AAAC Bare Conductor: Superior Performance & Lifespan

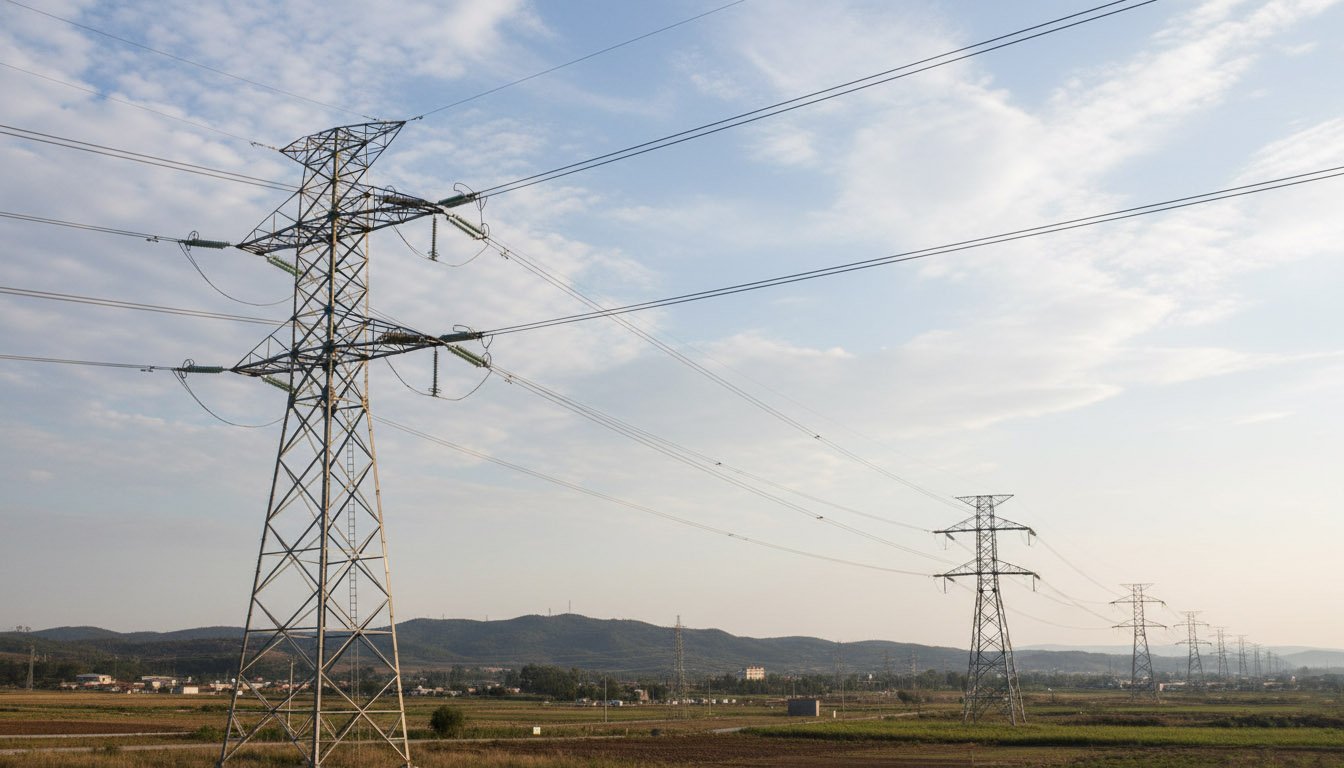

The AAAC Bare Conductor stands as a cornerstone in modern electrical power transmission and distribution systems. As global energy demands continue to soar, the need for efficient, reliable, and durable overhead conductors has never been more critical. This is where the All Aluminum Alloy Conductor (AAAC) excels, offering a superior alternative to traditional conductors like ACSR and AAC. Its unique composition, primarily a high-strength aluminum-magnesium-silicon alloy (typically 6201-T81), provides an exceptional combination of mechanical strength, low weight, high conductivity, and outstanding corrosion resistance. For utility companies and engineers planning new grid infrastructure or upgrading existing lines, understanding the multifaceted benefits of the AAAC Bare Conductor is essential. EPCOM is at the forefront of providing high-quality AAAC solutions that meet the rigorous demands of today’s power grids, ensuring long-term performance and grid stability.

Defining the AAAC Bare Conductor: A Deeper Look

To fully appreciate the capabilities of an AAAC Bare Conductor, one must first understand its fundamental structure and the materials that give it its advanced properties. Unlike its counterparts, the AAAC is not a composite conductor; it is a homogenous conductor made entirely of high-strength aluminum alloy wires. This design choice is deliberate and is the source of many of its advantages. The absence of a steel core, which is characteristic of ACSR conductors, eliminates the risk of galvanic corrosion between dissimilar metals, a significant long-term reliability issue in many environments. Furthermore, the heat treatment process applied to the aluminum alloy wires enhances their mechanical properties, resulting in a conductor that can withstand significant physical stress from wind, ice, and its own weight over long spans without compromising its electrical performance. This inherent strength and simplicity make the AAAC Bare Conductor a robust and economically sound choice for a vast range of overhead line applications.

The Composition of All Aluminum Alloy Conductors (AAAC)

The heart of the AAAC Bare Conductor is its material science. The specific alloy used, most commonly 6201-T81, is a carefully balanced mixture of aluminum, magnesium (around 0.5-0.9%), and silicon (around 0.6-0.9%). This formulation is not arbitrary. Each element plays a crucial role. Magnesium provides excellent strength and corrosion resistance, while silicon contributes to the alloy’s hardness and fluidity during the manufacturing process. The “T81” designation refers to the temper, indicating that the alloy has been solution heat-treated, cold worked, and then artificially aged. This multi-stage process aligns the alloy’s grain structure, significantly boosting its tensile strength far beyond that of pure aluminum (as used in AAC conductors). The result is a wire that is both strong and ductile, capable of being stranded into a final conductor cable that exhibits remarkable durability and a long service life, even in harsh environmental conditions.

Core Advantages of the AAAC Bare Conductor

The decision to use an AAAC Bare Conductor in a power project is driven by a clear set of technical and financial benefits. These advantages translate directly into a more resilient, efficient, and cost-effective power grid over the long term. From its impressive strength-to-weight ratio to its unmatched resistance to environmental degradation, AAAC offers a compelling value proposition. Let’s explore these core advantages in detail.

Exceptional Strength-to-Weight Ratio

One of the most celebrated features of the AAAC Bare Conductor is its high strength-to-weight ratio. Because it is made entirely of a lightweight aluminum alloy, it is significantly lighter than an ACSR conductor of the same diameter. However, thanks to the 6201 alloy, it possesses a much higher tensile strength than an AAC conductor. This unique combination allows for several key engineering benefits. Firstly, transmission towers can be designed to be lighter and less robust, reducing material and construction costs. Secondly, the conductor can be strung over longer spans between towers, meaning fewer towers are needed for a given line length. This not only reduces the initial project cost but also minimizes the environmental footprint of the transmission line. The lower sag characteristics of AAAC, a direct result of its strength and low weight, also mean that towers can be shorter without violating ground clearance safety regulations, further contributing to cost savings and reduced visual impact.

Unmatched Corrosion Resistance

Corrosion is a relentless enemy of overhead power lines, particularly in coastal, industrial, or polluted areas where salt spray, chemicals, and moisture can accelerate the degradation of metal conductors. This is where the AAAC Bare Conductor truly shines. Its homogenous, all-alloy construction means there is no steel core to rust or corrode. More importantly, it eliminates the possibility of galvanic corrosion, an electrochemical process that occurs when two dissimilar metals (like the aluminum and zinc-coated steel in ACSR) are in contact in the presence of an electrolyte. This type of corrosion can weaken the conductor from the inside out, leading to premature failure. The uniform nature of the AAAC conductor ensures a much longer, more reliable service life, reducing maintenance costs and the frequency of costly conductor replacements. For this reason, AAAC is the conductor of choice for infrastructure projects in challenging environments.

Technical Specifications of the AAAC Bare Conductor

When specifying a conductor for a project, engineers must rely on detailed technical data that conforms to established international standards. The performance of an AAAC Bare Conductor is defined by parameters such as its diameter, cross-sectional area, weight, DC resistance, rated strength, and ampacity (current-carrying capacity). EPCOM provides comprehensive data sheets for its AAAC products, ensuring that clients can make informed decisions based on precise and reliable information. These conductors are manufactured to meet or exceed the requirements of various international standards, including ASTM B399, BS EN 50182, and IEC 61089. Adherence to these standards guarantees interoperability, safety, and performance consistency, which are critical for the integrity of the power grid.

AAAC Bare Conductor Comparative Data (ASTM B399)

To illustrate the typical specifications, the table below provides a sample comparison of common AAAC sizes based on the ASTM B399 standard. Note how the rated strength increases significantly with conductor size while maintaining an efficient weight profile. This data is crucial for calculating sag, tension, and overall line design.

Practical Applications of AAAC Bare Conductor

The versatility of the AAAC Bare Conductor makes it suitable for a wide spectrum of applications in the power sector. Its balanced properties allow it to be deployed effectively as both a primary and secondary overhead distribution conductor in urban and suburban networks. In these settings, its lower sag is particularly advantageous, allowing for safer installation in populated areas with limited space. However, its primary role is often in long-distance overhead transmission lines, where its high strength-to-weight ratio and corrosion resistance provide maximum value. Whether spanning rivers, valleys, or rugged terrain, AAAC provides a reliable conduit for bulk power transfer. Its resilience also makes it an excellent choice for sub-transmission lines that feed critical infrastructure and for coastal power lines where salt-laden air would quickly compromise lesser conductors.

The Role of AAAC Bare Conductor in Upgrading Aging Grids

Many of the world’s electrical grids are decades old and are struggling to cope with increased demand and the integration of renewable energy sources. When reconductoring existing lines, using an AAAC Bare Conductor can often provide a significant capacity upgrade without needing to modify or replace the existing support structures. Because AAAC is lighter than ACSR of the same resistance, it can replace an older conductor while imposing less mechanical load on the towers. At the same time, its superior electrical characteristics can allow for higher power transfer. This makes grid upgrades faster, more affordable, and less disruptive. This process, known as reconductoring, is a key strategy for grid modernization, and the AAAC Bare Conductor is a central technology in this effort. For more information on this process, the Institute of Electrical and Electronics Engineers (IEEE) provides extensive resources on power system engineering.

Installation and Essential Accessories for AAAC Bare Conductor

Proper installation is paramount to realizing the full lifespan and performance benefits of an AAAC Bare Conductor. While the material is robust, it must be handled with care to avoid scratching, nicking, or kinking the wires, as surface damage can become a point of mechanical failure or electrical discharge (corona) over time. Using the correct tools, tensioning equipment, and, most importantly, the right hardware and accessories is non-negotiable. The compatibility of fittings and connectors with the 6201 aluminum alloy is crucial to prevent performance issues. EPCOM offers a complete ecosystem of products designed to work seamlessly with our AAAC conductors, ensuring the integrity of the entire overhead line system from start to finish.

Ensuring Line Integrity with Quality Hardware

The reliability of an overhead line is only as strong as its weakest component. High-quality hardware is essential for securing the conductor and ensuring flawless electrical connections. For suspension points, a reliable clamp is needed to hold the conductor securely without causing damage. The XGU Suspension Clamp is specifically designed for this purpose, providing excellent holding strength and a smooth profile to protect the AAAC Bare Conductor from abrasion and stress concentration. For making electrical connections, such as taps or splices, precision is key to minimizing resistance and preventing hot spots. The JBTL Parallel Groove Connector is an ideal solution, offering a secure, low-resistance connection that ensures efficient power flow. Furthermore, at points of high stress, like suspension and dead-end points, the conductor needs extra protection. Preformed Armor Rods are wrapped around the conductor at these locations to distribute stress more evenly and protect the conductor strands from damage caused by clamping forces and vibration. Using these integrated components from EPCOM guarantees a cohesive and durable installation.

Comparative Analysis: AAAC Bare Conductor vs. Other Conductors

To make an informed choice, it is helpful to compare the AAAC Bare Conductor directly against its most common alternatives: AAC (All Aluminum Conductor) and ACSR (Aluminum Conductor Steel Reinforced). Each conductor type has a specific set of characteristics that makes it suitable for different applications. The choice depends on a balance of factors including required strength, conductivity, corrosion resistance, and overall project cost.

AAAC Bare Conductor vs. AAC

AAC is made from 1350-H19 aluminum, which is 99.5% pure. It has the highest conductivity for its weight among all bare overhead conductors. However, its major drawback is its very low tensile strength. This limits its use to short spans in distribution networks and busbars where mechanical load is not a primary concern. The AAAC Bare Conductor, by contrast, offers slightly lower conductivity (around 52.5% IACS compared to AAC’s 61.2% IACS) but has a vastly superior tensile strength. This allows AAAC to be used for much longer spans and in areas with higher mechanical loading requirements, making it a far more versatile conductor for both transmission and distribution.

AAAC Bare Conductor vs. ACSR

ACSR has been the workhorse of the industry for many years. It achieves high strength by incorporating a high-strength steel core, which is then covered by outer layers of aluminum wires. This composite design gives it a very high tensile strength, often exceeding that of AAAC for a given size. However, this comes with several disadvantages. ACSR is significantly heavier, which requires more robust and expensive support structures. Its bimetallic construction makes it highly susceptible to galvanic corrosion, drastically reducing its lifespan in corrosive environments. The installation of ACSR is also more complex. In summary, while ACSR offers the highest strength, the AAAC Bare Conductor provides a more balanced profile with superior corrosion resistance, a better strength-to-weight ratio, and a simpler, more reliable construction. For a deep dive into conductor standards, the ASTM International website is an invaluable resource.

Conductor Performance Comparison Chart

The following chart visually compares the key performance attributes of AAC, ACSR, and AAAC conductors. Ratings are on a relative scale to highlight the specific strengths of each conductor type. As shown, the AAAC Bare Conductor offers the most balanced overall performance, particularly excelling in corrosion resistance and strength-to-weight ratio.

Choose EPCOM for Your AAAC Bare Conductor Needs

In a world where energy infrastructure is more vital than ever, choosing the right components is a decision of long-term consequence. The AAAC Bare Conductor represents the pinnacle of modern conductor technology, offering a balanced, reliable, and durable solution for overhead power lines. Its superior performance characteristics lead to a lower total cost of ownership, enhanced grid reliability, and a longer service life.

At EPCOM, we are committed to excellence. Our AAAC conductors are manufactured under the strictest quality control protocols, ensuring they meet and exceed the highest international standards. We understand that every project is unique, and our team of experts is ready to assist you in selecting the precise conductor and accessory package to meet your specific technical requirements. By partnering with EPCOM, you are not just buying a product; you are investing in the quality, reliability, and future of your power infrastructure. Contact us today to learn more about our AAAC Bare Conductor solutions and how we can empower your next project.
