Electric Cable Tester: Your Ultimate Overview

An Electric cable tester is an indispensable tool for professionals across numerous industries, from electrical contracting and network installation to manufacturing and facility maintenance. In any environment where electrical or data cables are present, ensuring their integrity is paramount for safety, efficiency, and performance. This comprehensive article delves into every facet of the electric cable tester, exploring its functions, the various types available, and how to select the perfect model for your specific needs. We will also examine complementary tools that streamline your workflow and look at the technological advancements shaping the future of cable diagnostics. Understanding these devices is the first step toward guaranteeing reliable connections and preventing costly downtime.

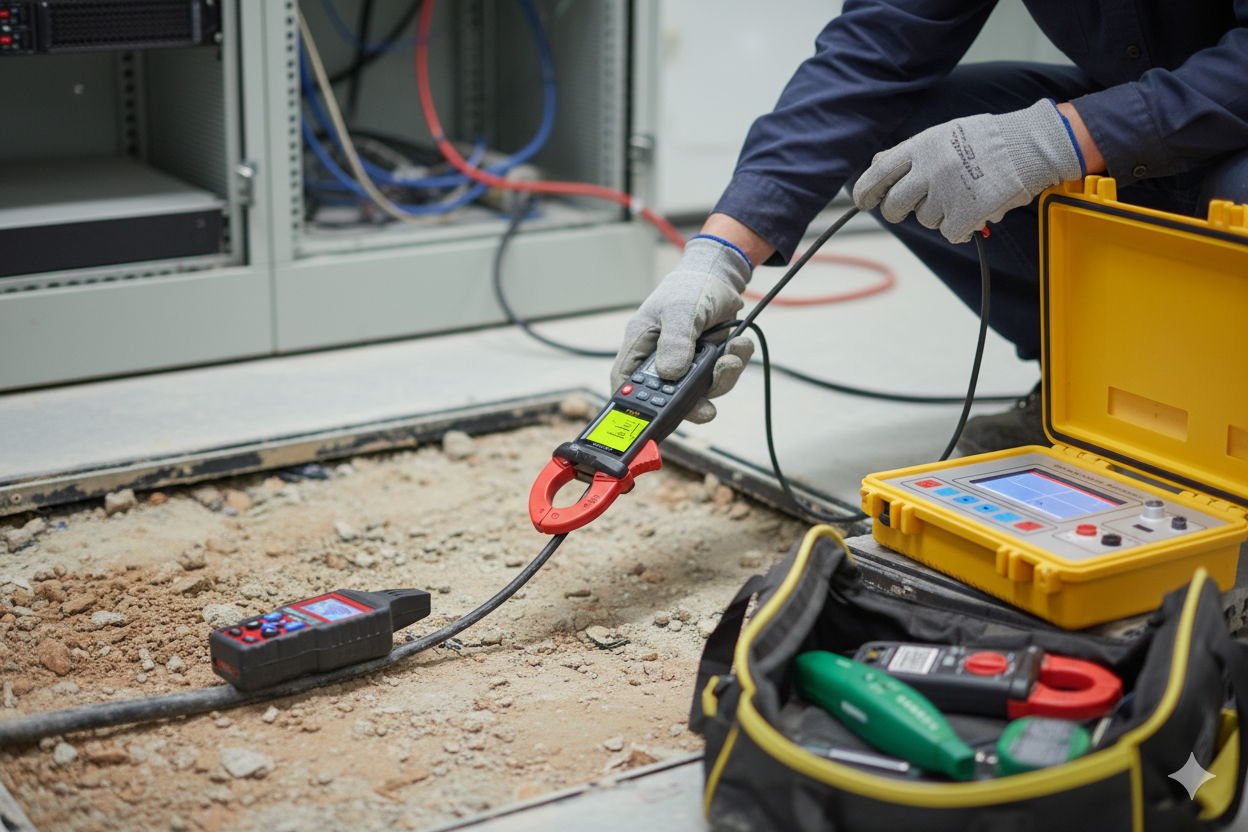

What Exactly is an Electric Cable Tester?

At its core, an electric cable tester is a device designed to verify the physical and electrical properties of a cable. Its primary job is to send a signal through a wire and analyze the signal that returns, or is received at the other end. This process allows technicians to confirm that a cable is constructed and installed correctly and is capable of performing its intended function without issues. While some testers offer a simple pass/fail result, more sophisticated models provide detailed data about the cable’s condition, helping to pinpoint the exact location and nature of any faults. For professionals, this diagnostic capability is not just a convenience—it’s a necessity for maintaining robust and safe systems.

The Core Purpose of an Electric Cable Tester

The fundamental purpose of any electric cable tester is to answer a few critical questions about a cable run. First, is there continuity? This means checking if an electrical path exists from one end of the cable to the other without any breaks. Second, is the cable wired correctly? This involves checking for faults like shorts (where two wires are touching), opens (a break in a wire), crossed pairs, or other misconfigurations. Finally, for more advanced applications like data networks, a tester can measure performance parameters to certify that the cable meets specific industry standards for speed and reliability.

Distinguishing Between Testers, Locators, and Analyzers

The term “cable tester” is often used broadly, but it’s important to distinguish between different types of diagnostic tools. A basic electric cable tester typically focuses on continuity and wiring faults. A cable locator, or tone generator and probe, is used to trace and identify a specific wire within a bundle of cables. An advanced cable analyzer or certifier goes a step further by performing a series of complex tests to measure signal loss, crosstalk, and other performance metrics against predefined standards, like those from the Telecommunications Industry Association (TIA). While all are related, choosing the right tool depends entirely on the task at hand.

Why Every Professional Needs a Reliable Electric Cable Tester

In the world of electrical and network systems, assumptions are dangerous. A cable that looks perfect on the outside can harbor hidden faults that lead to system failure, data corruption, or severe safety hazards. A reliable electric cable tester removes guesswork from the equation, providing concrete evidence of a cable’s health. It is an investment that pays for itself by preventing rework, reducing troubleshooting time, and upholding a professional standard of quality. For any business that depends on its electrical or data infrastructure, a high-quality tester is a non-negotiable part of the toolkit.

Ensuring Safety on the Job with an Electric Cable Tester

Safety is the most critical reason to use an electric cable tester. Undetected faults in electrical wiring can lead to short circuits, which may cause equipment damage or, in the worst-case scenario, electrical fires. Furthermore, working on supposedly de-energized circuits without verification is a significant risk. A voltage-detecting electric cable tester confirms the absence of power before work begins, protecting technicians from electric shock. By verifying proper grounding and insulation, these testers play a vital role in creating a safe working environment and ensuring the final installation complies with safety codes and regulations.

Boosting Diagnostic Efficiency and Reducing Downtime

Time is money, and nothing wastes more time on a job site than chasing an elusive cable fault. Without a tester, diagnosing an issue can involve hours of manual inspection and trial and error. An electric cable tester can identify the problem and often its exact location in a matter of seconds. For businesses, this rapid diagnostic capability is crucial. Whether it’s a factory floor where a machine has stopped or an office where the network is down, minimizing downtime is essential for productivity. A tester allows technicians to resolve issues faster, getting critical systems back online with minimal disruption.

Types of Electric Cable Testers and Their Applications

The market for electric cable testers is diverse, with tools ranging from simple, pocket-sized devices to highly complex analyzers. The right choice depends on the type of cables you work with, the environment you work in, and the level of detail required for your diagnostics. Understanding the primary categories of testers and their intended applications is key to selecting a tool that will serve you effectively and provide a positive return on investment. Let’s explore the most common types you’ll encounter in the field.

Basic Continuity and Voltage Electric Cable Tester

This is the most fundamental type of electric cable tester. A continuity tester provides a simple pass/fail indication of whether a circuit is open or closed, typically using an LED light or an audible beep. Many of these basic models also include a non-contact voltage (NCV) sensor to quickly check for the presence of live voltage. These are affordable, easy to use, and perfect for homeowners, DIY enthusiasts, and maintenance technicians who need to perform quick checks on power cords, fuses, switches, and simple wiring installations.

Advanced Multifunction Electric Cable Tester Models

Multifunction testers, often called wire mappers or qualification testers, offer a significant step up in capability. In addition to checking for opens, shorts, and miswires, they can identify the exact pinout of a cable and display it on an LCD screen. Many models can also measure the length of a cable using Time Domain Reflectometry (TDR) technology, which sends a pulse down the wire and measures the time it takes to reflect from the end or a fault. These are the workhorse tools for electricians and network installers who need detailed wiring information without the high cost of a full certification analyzer.

High-Voltage (HiPot) Electric Cable Tester

A High-Potential (HiPot) tester, also known as a dielectric strength tester, performs a very different function. Instead of checking for continuity, it is used to test the insulation of a cable. The device applies a much higher voltage than the cable would normally carry and checks for any leakage current. This process ensures that the insulation can withstand voltage spikes without breaking down, which is a critical safety and quality control measure. HiPot testing is most common in manufacturing environments for testing new cables, transformers, and other electrical components before they are sold, and in industrial settings to verify the integrity of high-voltage wiring.

Network Cable Testers: A Specialized Category

Within the world of data communications, network cable testers are a specialized class of their own. They can be broken down into three main tiers:

• Verification Testers: These tools confirm that the cable is connected correctly according to wiring standards (like T568A/T568B) and check for basic faults. They ensure connectivity but do not test for bandwidth.
• Qualification Testers: This intermediate tier goes a step further by testing whether the cable can support specific network speeds and technologies, such as 1000BASE-T (Gigabit Ethernet). It answers the question, “Can this cable run my network?”
• Certification Testers: This is the highest tier. A certification tool performs an exhaustive series of tests against standards set by organizations like the TIA/ISO. It measures parameters like crosstalk, return loss, and signal-to-noise ratio. A pass result provides a guarantee that the cable link complies with a specific category (e.g., Cat 6A) and comes with a detailed report to prove it. These are essential for commercial installers who must provide a warranty for their work.

How to Choose the Right Electric Cable Tester for Your Needs

Selecting the right electric cable tester from the vast array of options can be daunting. The key is to move beyond price and brand and focus on function. A tool that is overkill for your needs is a waste of money, while a tool that is not capable enough will lead to frustration and inaccurate results. By carefully evaluating your requirements and understanding the key features that differentiate various models, you can make an informed decision that equips you for success.

Assessing Your Primary Use Case: What Are You Testing?

The first step is to define what you will be testing most often. Are you primarily working with power cables in residential or commercial buildings? Or are you installing and troubleshooting twisted-pair data cables for Ethernet networks? Perhaps you work with coaxial cables for video systems or multi-conductor cables in industrial control panels. The type of cable and its application will immediately narrow down your options. For instance, a network installer needs a tool that can test RJ45 connections, while a commercial electrician may need a tester with rugged, heavy-duty leads.

Key Features to Look for in a Modern Electric Cable Tester

Once you know your primary application, consider the features that will make your job easier and more efficient. A clear, backlit LCD screen is far superior to simple LEDs for conveying detailed information, especially in poorly lit environments. Durability is another major factor; look for testers with rugged, overmolded housing that can withstand drops and job site abuse. Consider the battery life and whether a rechargeable option is better for your workflow. For those who need to document their work, testers with the ability to save and export test results can be a significant time-saver.

Understanding Certifications and Standards

For data cabling, understanding cable categories is crucial. A tester designed for Cat 5e may not be suitable for testing Cat 6 or Cat 6A cables, which have stricter performance requirements. If your work requires adherence to specific standards, ensure the electric cable tester you choose is rated for that purpose. Similarly, for electrical work, look for testers that meet safety ratings established by organizations like the Underwriters Laboratories (UL) or have CAT ratings (e.g., CAT III, CAT IV) that specify the voltage environments in which they can be safely used.

Step-by-Step: Using a Basic Electric Cable Tester

While advanced models have complex interfaces, the operation of a basic electric cable tester is typically straightforward. The following steps provide a general guideline for performing a continuity or wire map test. However, you should always read and follow the specific instructions provided by the manufacturer of your device, as operational details can vary.

1. Safety First: Before connecting any tester, ensure the cable is completely de-energized and not connected to any active equipment at either end. Testing a live data port or electrical circuit with a basic tester can damage the device and the equipment it’s connected to.
2. Connect the Tester: A typical cable tester consists of two units: the main master unit and a smaller remote unit. Connect one end of the cable you wish to test to the master unit and the other end to the remote unit.
3. Initiate the Test: Press the “Test” button on the main unit. The tester will send signals through each wire in the cable.
4. Interpret the Results: The tester will display the results, usually through a series of LEDs. For a simple continuity tester, a single light will indicate a pass. For a wire mapper, a sequence of lights will indicate the status of each pin. A pass will typically show a straight-through sequence (1-1, 2-2, 3-3, etc.). Any deviation, such as unlit, flashing, or out-of-sequence lights, indicates a specific fault. Consult the tester’s manual to understand what each light pattern means.

Common Faults an Electric Cable Tester Can Detect

A proficient electric cable tester is a powerful diagnostic tool capable of identifying a wide range of wiring problems that are invisible to the naked eye. Detecting these faults early is crucial for preventing network failures, equipment damage, and safety hazards. Understanding the types of faults a tester can find helps you better interpret its results and address the root cause of the problem more effectively. Below is a breakdown of the most common cable faults.

The Role of an Electric Cable Tester in Preventative Maintenance

Beyond diagnosing existing problems, an electric cable tester is a powerful tool for preventative maintenance. Cables, especially in industrial or high-traffic environments, can degrade over time due to physical stress, environmental exposure, or temperature fluctuations. This degradation may not cause an immediate failure but can lead to intermittent issues or a gradual decline in performance. By implementing a regular testing schedule, organizations can identify these potential issues before they escalate into critical failures. This proactive approach helps to ensure system reliability, extend the lifespan of the infrastructure, and prevent unexpected and costly outages.

Beyond Testing: Complementary Tools for Cable Management

A successful cable installation involves more than just testing. It’s a complete workflow that includes preparation, termination, and securing the cable. Having the right tools for each stage is just as important as having a good tester. At EPCOM, we understand that professionals need a complete toolkit to perform their jobs efficiently and to the highest standard. That’s why we offer a range of high-quality tools that work alongside your electric cable tester.

For instance, before a cable can be terminated and tested, it must be prepared correctly. This requires stripping the outer jacket and inner conductor insulation precisely without nicking the copper wires. A tool like our Rechargeable Wire Stripper provides consistent, clean strips every time, setting the foundation for a reliable connection. When working with larger gauge power cables or armored cables, a powerful cutting tool is essential. The manual effort required can be strenuous and time-consuming, but our Electrical Hydraulic Cutter makes quick and clean work of even the toughest cables, improving both safety and efficiency on the job.

Finally, the quality of the termination itself is critical. A poor crimp can lead to intermittent connections, signal loss, and eventual failure. To ensure a solid and durable connection, a professional-grade crimper is non-negotiable. We offer a wide selection of Electrical Crimping Tools designed for various connector types and gauges, giving you the confidence that every termination you make is secure and built to last. By combining these essential preparation tools with a reliable electric cable tester, you create a seamless workflow that guarantees quality from start to finish.

Advancements in Electric Cable Tester Technology

Like all technology, the electric cable tester continues to evolve. Modern testers are more powerful, user-friendly, and feature-rich than ever before. One of the most significant advancements is the integration of wireless technology. Many high-end testers now feature Bluetooth or Wi-Fi connectivity, allowing them to pair with smartphones or tablets. This enables technicians to transfer test results to a mobile app for easy viewing, report generation, and sharing with clients or project managers directly from the field. This capability eliminates the need for manual data entry and streamlines the documentation process.

Furthermore, improvements in TDR and signal analysis technologies have made testers more accurate. They can now pinpoint fault locations with greater precision and provide more detailed insights into cable performance. User interfaces have also improved dramatically, with many models now featuring large, full-color touchscreens that simplify navigation and make it easier to interpret complex test results. These advancements are transforming the electric cable tester from a simple diagnostic device into a comprehensive cable management solution.

EPCOM’s Commitment to Quality Cable Tools

At EPCOM, we recognize that professionals demand tools that are not only accurate but also rugged enough to handle the rigors of the job site day in and day out. Our entire line of electrical and cable tools is built with this principle in mind. We are committed to providing high-performance solutions that help you work safer, faster, and more effectively. We believe that a quality tool is an extension of the professional’s skill, and our goal is to provide equipment that you can trust on every job. From basic diagnostic devices to a comprehensive range of preparation and termination tools, EPCOM is your partner in achieving installation excellence.

Frequently Asked Questions about the Electric Cable Tester

How often should I calibrate my electric cable tester?

For basic continuity testers, calibration is generally not required. However, for advanced qualification or certification testers, regular calibration is crucial for ensuring accuracy. Most manufacturers recommend annual calibration by an authorized service center. This process adjusts the tester’s internal circuitry to ensure its measurements remain within specified tolerances. Always refer to the manufacturer’s guidelines for your specific model.

Can I use a multimeter as an electric cable tester?

A multimeter can perform some of the functions of a very basic electric cable tester. For example, you can use its resistance or continuity mode to check for opens and shorts. However, it cannot check for miswires, split pairs, or performance characteristics like crosstalk. For anything beyond a simple two-wire cable, a dedicated cable tester is a much more efficient and reliable tool.

What does a “split pair” fault mean on a network cable tester?

A split pair is a common and tricky wiring error in network cabling. It occurs when one wire from one twisted pair is swapped with a wire from another twisted pair at both ends. For example, pin 1 might be wired with the white/orange wire, but pin 2 is wired with the white/green wire (instead of the solid orange). The cable will still show electrical continuity, which can fool a simple tester. However, because the wires are not properly paired, it disrupts the magnetic field balance that is essential for noise cancellation, leading to severe performance degradation and data errors, especially at higher network speeds. Only a quality wire mapper or certification electric cable tester can reliably detect this fault.

Is a more expensive electric cable tester always better?

Not necessarily. The “best” tester is the one that best fits your needs. A top-of-the-line certification analyzer costing thousands of dollars would be unnecessary for a homeowner who just wants to check a network cable. Conversely, a basic continuity tester is inadequate for a commercial installer who needs to provide certified reports. The price of a tester generally reflects its feature set, accuracy, and durability. The key is to match the tool’s capabilities and cost to the demands of your work.

What safety precautions should I take when using an electric cable tester?

Safety should always be your top priority. First and foremost, never use a data cable tester or a basic continuity tester on a live electrical circuit. Always verify that the cable is de-energized and disconnected from all power sources and active equipment. For electrical work, use a tester with the appropriate CAT safety rating for the environment you are in. Inspect your tester and its leads for any signs of damage before each use. Finally, as recommended by the Electrical Safety Foundation International (ESFI), always follow proper lockout/tagout procedures when working on electrical systems.

Conclusion: The Right Tool for a Reliable Connection

In conclusion, the electric cable tester is far more than a simple diagnostic tool; it is a fundamental component of any professional’s toolkit, crucial for ensuring the safety, integrity, and performance of modern electrical and data infrastructures. From simple continuity checks to comprehensive performance certification, there is a tester designed for every application and every budget. By understanding the different types of testers, assessing your specific needs, and choosing a quality device, you empower yourself to diagnose problems quickly, prevent future failures, and deliver work that meets the highest standards of excellence. When combined with other quality preparation and termination tools from EPCOM, you are fully equipped to handle any cabling challenge that comes your way.
