MPO/MTP Patch Cord for High-Density Data Centers
The MPO/MTP Patch Cord represents a cornerstone of modern high-speed data transmission, providing the essential density and performance required by today’s sprawling data centers and telecommunication networks. As the demand for bandwidth continues to explode, driven by cloud computing, AI, and IoT, network architects are increasingly turning to MPO/MTP solutions to build scalable, efficient, and future-proof infrastructures. This comprehensive article explores the technology, benefits, applications, and selection criteria for MPO/MTP patch cords, highlighting their indispensable role in the digital age. At EPCOM, we understand that a reliable network begins with superior components, and these advanced cables are at the forefront of enabling next-generation connectivity.
Decoding the Technology: What is an MPO/MTP Patch Cord?
Before delving into complex applications, it is crucial to understand the fundamental technology. An MPO/MTP patch cord, at its core, is a fiber optic cable terminated at either end with an MPO or MTP connector. Unlike traditional single-fiber connectors like LC or SC, these are multi-fiber connectors designed to house multiple optical fibers within a single ferrule. This ingenious design is the key to their high-density capabilities. Consequently, a single MPO/MTP patch cord can replace a dozen or more individual fiber patch cables, drastically simplifying cable management and saving valuable rack space.
MPO vs. MTP: Understanding the Critical Difference
While the terms MPO (Multi-fiber Push-On) and MTP® (Multi-fiber Termination Push-on) are often used interchangeably, it’s important to recognize the distinction. MPO is a generic industry standard, whereas MTP is a high-performance MPO connector developed by US Conec. MTP connectors are engineered with superior mechanical and optical performance enhancements. These include features like a floating ferrule to maintain physical contact over a mated pair and elliptical guide pins that reduce debris generation. Therefore, while all MTPs are MPOs, not all MPOs meet the stringent performance criteria of an MTP connector. For mission-critical applications where reliability and precision are paramount, choosing a genuine MTP patch cord from a trusted supplier like EPCOM is a vital decision.
The Unmatched Advantages of an MPO/MTP Patch Cord Solution
The adoption of the MPO/MTP patch cord is not merely a trend; it is a strategic response to the physical and technical limitations of legacy cabling systems. The benefits are multifaceted, directly addressing the core challenges faced by network administrators today.
- Unprecedented Space Savings: In a data center, space is a premium commodity. By consolidating up to 12, 24, or even more fibers into a single connection point, MPO/MTP patch cords can reduce cabling bulk by up to 75% compared to traditional duplex patch cords. This opens up pathways for better airflow, reduces cooling costs, and simplifies maintenance.
- Rapid Deployment and Scalability: The plug-and-play nature of MPO/MTP systems dramatically reduces installation time. Instead of terminating and testing dozens of individual fibers, technicians can connect a single high-density cable. This modularity is also perfect for scalable growth. As network demands increase, adding capacity is as simple as plugging in a new MPO/MTP patch cord or cassette.
- Cost-Effectiveness: While the initial component cost might be higher than a single duplex cable, the total cost of ownership is significantly lower. The savings come from reduced installation labor, faster deployment times, and simplified cable management infrastructure. Furthermore, the ability to support future network upgrades without a complete overhaul of the physical layer provides long-term financial benefits.
- Enhanced Performance and Reliability: Factory-terminated and tested MPO/MTP patch cords from reputable manufacturers like EPCOM offer consistent, high-quality performance. This eliminates the variability and potential for errors associated with field terminations. The result is lower insertion loss, better return loss, and a more reliable network backbone capable of handling high-bandwidth applications like 100G, 400G, and beyond.
Exploring the Different Types of MPO/MTP Patch Cords
Choosing the correct MPO/MTP patch cord requires understanding its various specifications. The selection depends entirely on the specific application, network architecture, and future growth plans. Making an informed decision is key to maximizing the performance and longevity of your network infrastructure.
Fiber Count: The Core of Density
MPO/MTP connectors are available in various fiber counts. The most common are 8-fiber and 12-fiber configurations. A 12-fiber MPO/MTP patch cord has long been the standard for 10G and 40G applications. However, with the rise of 100G and 400G Ethernet, the 8-fiber configuration (used in QSFP-DD and OSFP transceivers) has gained significant popularity. For ultra-high-density backbone applications, 16-fiber and 24-fiber MPO/MTP patch cords are also utilized, providing a clear upgrade path for future network demands.
Fiber Type: Singlemode vs. Multimode
Like all fiber optic cables, MPO/MTP patch cords come in both singlemode (OS2) and multimode (OM3, OM4, OM5) variants.
- Singlemode (OS2): Ideal for long-distance transmission, typically used in telecom networks and large data center campus backbones. It offers nearly unlimited bandwidth but requires more precise alignment and typically uses more expensive laser sources.
- Multimode (OM3/OM4/OM5): The workhorse of the modern data center for shorter-reach applications (up to a few hundred meters). OM3 and OM4 are optimized for 10G, 40G, and 100G speeds, while OM5 (Wideband Multimode Fiber) is designed to support Short Wavelength Division Multiplexing (SWDM), allowing multiple signals to be sent over a single fiber, further enhancing bandwidth.
Polarity in an MPO/MTP Patch Cord: Ensuring a Proper Link
Polarity is one of the most critical and often misunderstood aspects of MPO/MTP cabling. It refers to the mapping of fibers from one end of the cable to the other, ensuring that the transmit signal (Tx) at one end correctly connects to the receive port (Rx) at the opposite end. The TIA-568 standard defines three primary methods for MPO/MTP patch cord polarity.
| Polarity Type | Method | Connector Type (Key) | Common Use Case |
|---|---|---|---|
| Type A (Straight-Through) | Fiber 1 at one end connects to Fiber 1 at the other end. A polarity flip must be introduced elsewhere, typically with a patch cord. | Key Up to Key Up | Direct connections and linking MPO/MTP Module Cassettes. |
| Type B (Reversed/Flipped) | Fiber 1 at one end connects to Fiber 12 at the other, Fiber 2 to Fiber 11, and so on. The entire fiber array is reversed. | Key Up to Key Up | Direct connection between 40G/100G transceivers. |
| Type C (Pairs Flipped) | Adjacent pairs of fibers are flipped. Fiber 1 connects to Fiber 2 at the other end, and Fiber 2 connects to Fiber 1. | Key Up to Key Down | Used in duplex applications over a multi-fiber backbone. Not as common for parallel optics. |
Critical Applications of the MPO/MTP Patch Cord
The versatility and high-density nature of the MPO/MTP patch cord make it an ideal solution for a wide range of demanding environments. Its impact is felt across multiple industries where data speed and reliability are non-negotiable.

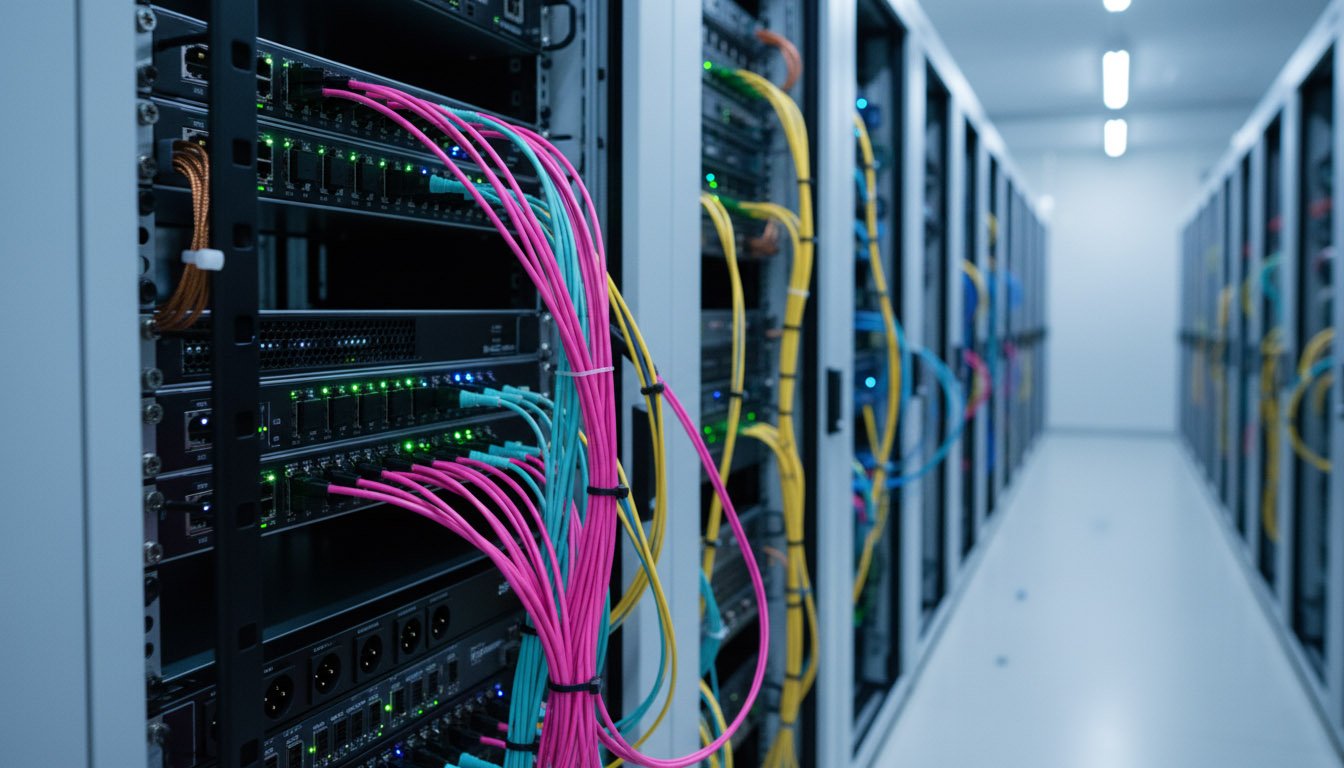

The Data Center Backbone
This is the primary application for MPO/MTP patch cords. They are used to create high-speed backbone links between core switches, aggregation switches, and access switches. In a structured cabling system, trunk cables connect different rows or cabinets, terminating in MPO/MTP adapter panels or module cassettes. This architecture allows for rapid deployment of new servers and equipment without running new, disruptive cabling. For more details on organizing this infrastructure, explore our guide on MPO/MTP ODF for Data Centers.
High-Performance Computing (HPC) Clusters
HPC environments, used for scientific research, financial modeling, and AI training, require massive interconnectivity between thousands of nodes. The low latency and high bandwidth of an MPO/MTP patch cord infrastructure are essential for these systems to function efficiently. The density allows for extremely compact and powerful computing clusters to be built.
Telecommunications and 5G Networks
Central offices and mobile switching centers are evolving to support the immense bandwidth requirements of 5G technology. MPO/MTP patch cords are used to interconnect equipment within these facilities, enabling the high-speed fronthaul and backhaul networks that power next-generation wireless services. The technology’s reliability is crucial, as explained by industry bodies like the Fiber Optic Association (FOA).
Ethernet Speed Evolution Supported by MPO/MTP Technology
This chart illustrates the exponential growth in Ethernet speeds, a trend that relies heavily on the density and scalability of MPO/MTP patch cord solutions.
How to Select the Right MPO/MTP Patch Cord
With a clear understanding of the types and applications, the selection process becomes more methodical. A successful deployment hinges on choosing a product that not only meets current needs but also provides a runway for future expansion.
Key Performance Metrics: Insertion Loss and Return Loss
Two of the most important technical specifications for any fiber optic cable are insertion loss (IL) and return loss (RL).
- Insertion Loss (IL): This measures the amount of light lost as a signal passes through a connector or cable. Lower is better. For MPO/MTP patch cords, it’s crucial to look for “low loss” versions, especially in long links with multiple connection points, to stay within the network’s loss budget.
- Return Loss (RL): This measures the amount of light reflected back towards the source. Higher is better. High reflection can destabilize laser sources and corrupt the data signal. A high-quality MPO/MTP patch cord will have excellent return loss values.
Verifying these parameters is essential for network certification. For accurate field testing, specialized equipment is required. EPCOM provides solutions like the MPO/MTP Optical Power Meter, designed specifically to test multi-fiber links quickly and accurately, ensuring your installation meets performance standards before it goes live.
Best Practices for MPO/MTP Patch Cord Installation and Management
Proper handling and installation are just as important as selecting a high-quality product. A poorly managed MPO/MTP patch cord can lead to performance degradation and network downtime. Following best practices ensures the longevity and reliability of the cabling infrastructure.
Inspect and Clean Before Connecting
The number one cause of network failure in fiber optics is contaminated connector end-faces. Dust, oils, and other microscopic debris can block the light signal and even permanently damage the connector. Always use an MPO/MTP-specific inspection scope to check the connector end-face before mating. If it’s dirty, clean it using a dedicated MPO/MTP click-cleaner or lint-free wipes and appropriate solvent. This simple step can prevent countless hours of troubleshooting later.
Respect the Bend Radius of your MPO/MTP Patch Cord
All fiber optic cables have a minimum bend radius. Bending the cable tighter than this specified radius can cause micro-fractures in the fiber, leading to signal loss or complete failure. Always route MPO/MTP patch cords gently, avoiding sharp corners and tight cinching with cable ties. Using proper cable management accessories like horizontal and vertical managers helps maintain the correct bend radius throughout the pathway.
Labeling and Documentation
In a high-density environment, clear labeling is not a luxury; it is a necessity. Every MPO/MTP patch cord should be labeled at both ends with a unique identifier that corresponds to a central documentation system. This documentation should track the cable’s path, connection points, polarity type, and test results. When troubleshooting or making changes, this system becomes invaluable, saving time and preventing accidental disconnections of critical services.
The Future is High-Density: MPO/MTP Patch Cords and Beyond
The role of the MPO/MTP patch cord is set to become even more critical as data rates continue to climb. The roadmap to 800G, 1.6T, and future terabit Ethernet speeds relies heavily on parallel optics and multi-fiber connectivity. As discussed by leading technology analysts like those at Lightwave, the industry is moving towards more integrated solutions. Emerging technologies like co-packaged optics (CPO), where the optical engine is placed on the same substrate as the switching ASIC, will require extremely dense and precise optical interconnects, a role for which MPO/MTP technology is a natural fit.
Furthermore, the connector technology itself continues to evolve. New variants like the MPO-16 and MPO-32 are being developed to support next-generation transceivers and provide even greater density. The continued innovation ensures that the MPO/MTP patch cord platform will remain the backbone of high-speed networks for the foreseeable future.
Why Partner with EPCOM for Your MPO/MTP Patch Cord Needs?
In a market flooded with options, choosing the right supplier is paramount. At EPCOM, we are more than just a vendor; we are a partner in your network’s success. We are committed to providing not only superior products but also the expertise to help you build a robust and reliable infrastructure.
- Uncompromising Quality: Every MPO/MTP patch cord we supply is manufactured in state-of-the-art facilities using premium materials. Each assembly undergoes rigorous multi-stage testing for IL, RL, and end-face geometry to ensure it meets or exceeds industry standards.
- Expert Technical Support: Our team of connectivity specialists is available to help you design, plan, and deploy your MPO/MTP infrastructure. From selecting the right polarity to developing a comprehensive testing strategy, we provide the guidance you need to succeed.
- Customization and Flexibility: We recognize that every network is unique. EPCOM offers a wide range of customizable MPO/MTP patch cord solutions, including various lengths, fiber types, jacket ratings, and polarity configurations to meet your exact project requirements.
Conclusion: Building the Future on a Foundation of Fiber
The MPO/MTP patch cord is a testament to the incredible innovation within the fiber optics industry. It is a simple yet powerful solution that directly addresses the most pressing challenges of modern data networks: the need for more bandwidth in less space. By enabling rapid deployment, offering unparalleled scalability, and ensuring reliable performance, these high-density cables provide the critical foundation upon which the digital world is built.
Whether you are upgrading an existing data center, building a new HPC cluster, or expanding a telecommunications network, integrating a high-quality MPO/MTP patch cord strategy is essential for success. Contact EPCOM today to explore our full range of MPO/MTP solutions and let us help you build a network that is ready for the challenges of today and the opportunities of tomorrow.
