Optical Fiber Tester: Your Essential Network Tool
An Optical Fiber Tester is an indispensable instrument for anyone involved in the installation, maintenance, or troubleshooting of fiber optic networks. In today’s hyper-connected world, the demand for high-speed data transmission is insatiable, and fiber optic cables form the backbone of this global communication infrastructure. However, the performance of these networks hinges on the pristine condition of each fiber strand. Consequently, using a reliable optical fiber tester is not just a best practice; it is a fundamental requirement for ensuring network integrity, minimizing downtime, and delivering the promised bandwidth. Without proper testing, even the most advanced network can suffer from crippling performance issues, making these tools a critical investment for technicians, engineers, and network operators alike.
The Critical Role of an Optical Fiber Tester
Why is testing fiber optic cables so important? The answer lies in the very nature of light transmission. A fiber optic cable is a delicate medium where pulses of light carry vast amounts of data. Any imperfection in the fiber—be it a microscopic crack, a dirty connector, a sharp bend, or a faulty splice—can impede this light, causing signal degradation or complete loss. This phenomenon, known as attenuation, is the primary enemy of network performance. Therefore, an optical fiber tester is used to proactively identify, locate, and quantify these issues before they impact service.
The consequences of neglecting fiber testing can be severe and costly. For instance, a single contaminated connector can cause high insertion loss and back reflection, leading to intermittent errors that are incredibly difficult to diagnose without the right equipment. This can result in significant network downtime, leading to lost revenue and frustrated customers. Moreover, attempting to troubleshoot a complex network without data from an optical fiber tester is like navigating without a map. It’s an inefficient, time-consuming process of guesswork that often fails to resolve the root cause. Investing in the right testing equipment from a trusted provider like EPCOM ensures that every link is verified, certified, and ready to perform at its peak potential from day one.
Core Types of Fiber Optic Test Equipment
The term “optical fiber tester” encompasses a wide range of devices, each designed for a specific purpose. Understanding the function of each type is crucial for building a comprehensive testing toolkit. While some tools provide a high-level overview, others offer a granular analysis of the fiber’s condition. Essentially, these instruments work together to provide a complete picture of the network’s health, from the physical layer up.
The OTDR: Your Network’s Detailed Diagnostic Tool

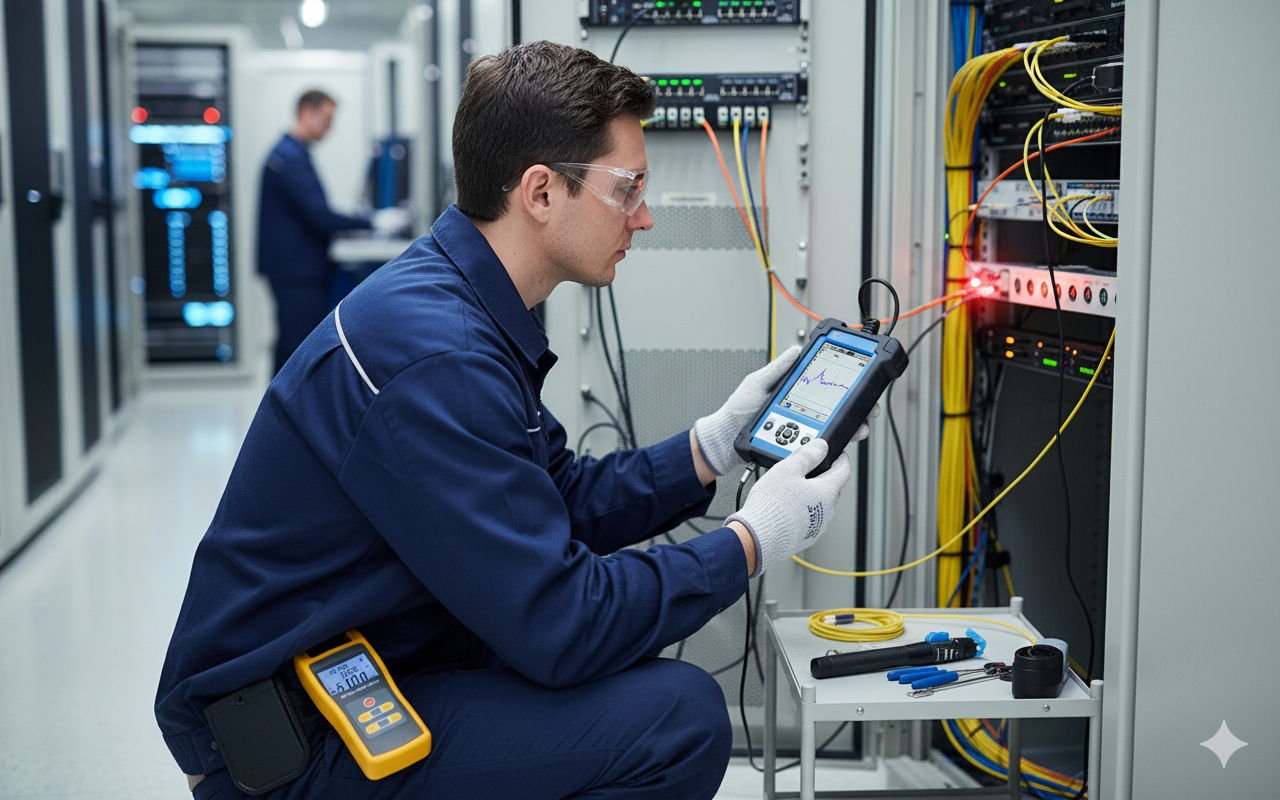

An Optical Time Domain Reflectometer, or OTDR, is one of the most powerful and sophisticated types of optical fiber tester. It functions like radar for your fiber optic cable, providing a detailed graphical representation, known as a “trace,” of the entire fiber link. By sending a high-powered pulse of light down the fiber and measuring the light that is scattered or reflected back, an OTDR can precisely locate and characterize various events. These events include splices, connectors, bends (macrobends), and the end of the fiber itself. Furthermore, it measures the loss (in dB) of these events and calculates the total loss of the link. This capability makes the OTDR an invaluable tool for both initial network certification and long-term troubleshooting, as it can pinpoint a fault’s exact location, saving technicians hours of manual searching.
OPM & OLS: The Fundamental Optical Fiber Tester Duo
The most basic yet essential test for any fiber optic link is measuring insertion loss, which is the total amount of light lost between two endpoints. This is performed using a combination of two devices: an Optical Light Source (OLS) and an Optical Power Meter (OPM). The OLS injects a continuous wave of light at a specific wavelength (e.g., 1310 nm or 1550 nm for single-mode fiber) into one end of the cable. At the other end, the OPM measures the amount of light received. By comparing the received power level to a reference power level, the OPM calculates the total optical loss of the cable link in decibels (dB). This test, often called Tier 1 certification, is a simple pass/fail check to ensure the link loss is within the acceptable limits defined by industry standards. For more complex setups, such as those with multi-fiber connectors, specialized tools are required. For example, the MPO/MTP Optical Power Meter from EPCOM is designed to quickly and accurately measure the power and loss of all 12 or 24 fibers in an MPO/MTP connector simultaneously, dramatically speeding up the testing process for data centers.
Visual Fault Locator (VFL): The Quick-Check Optical Fiber Tester
A Visual Fault Locator (VFL) is a simple, handheld optical fiber tester that uses a high-intensity red laser to identify breaks, sharp bends, and faulty connectors. When the red light is injected into the fiber, it will escape at any point of significant loss, becoming visibly bright at the location of the fault. This makes the VFL an excellent first-line troubleshooting tool for identifying problems within patch panels or near connector end-faces, often referred to as the “dead zone” where an OTDR might struggle. While it doesn’t provide any measurement data, its ability to provide immediate visual confirmation of a problem makes it a must-have for every technician’s toolkit. It is quick, intuitive, and highly effective for diagnosing simple, common issues.
Fiber Inspection Probes: The Microscopic View of a Connector
According to industry studies, the number one cause of fiber optic network failure is contaminated connectors. A microscopic particle of dust, oil from a fingerprint, or a tiny scratch on a connector end-face can scatter or block the light signal, causing significant performance degradation. A fiber inspection probe is a specialized video microscope designed to magnify the connector end-face by 200x or 400x, displaying the image on a screen. This allows technicians to see any contaminants or damage that would be invisible to the naked eye. Cleaning and inspecting every connector before it is mated is a critical step in any fiber optic installation. Skipping this step is a major gamble that can lead to costly network problems down the line. Proper inspection and cleaning are foundational to reliable network performance.
Advanced Optical Fiber Tester Solutions for Modern Networks
As network technology evolves, so too must the tools used to test it. The rise of high-density data centers and 400G/800G transmission rates has introduced new challenges that require more advanced optical fiber tester solutions. Legacy testing methods are often too slow and inefficient for these complex environments. Modern testers incorporate automation, advanced analytics, and connectivity features to streamline workflows and provide deeper insights into network performance.
These advanced tools are not just about measuring new parameters; they are about improving the entire testing lifecycle. This includes test setup, data collection, results analysis, and reporting. For example, many modern OTDRs feature automated test scripts that guide technicians through the process, reducing the chance of human error. They can also automatically analyze a trace, identify events, and provide a clear pass/fail result based on predefined standards. This shift towards automation helps ensure consistency and accuracy, regardless of the technician’s experience level. Additionally, cloud connectivity allows for test results to be uploaded from the field in real-time, enabling project managers to monitor progress and troubleshoot issues remotely. This level of integration is becoming essential for managing large-scale network deployments efficiently.
MPO/MTP Testing with a Specialized Optical Fiber Tester
Multi-fiber Push-On (MPO) or Multi-Terminating Push-pull (MTP) connectors are the standard for high-speed, high-density applications. These connectors consolidate 8, 12, 24, or even more fibers into a single ferrule, which presents unique testing challenges. Testing each fiber individually with traditional single-fiber testers is extremely time-consuming and prone to error. A specialized MPO optical fiber tester is designed to address this. These testers can check all fibers in the connector simultaneously for continuity, polarity, and power loss. Polarity testing is particularly crucial for MPO connections to ensure that the transmitter at one end correctly communicates with the receiver at the other. An incorrect polarity scheme will cause the link to fail. Using a dedicated MPO tester ensures that these complex connections are installed correctly and efficiently.
The Role of an Optical Fiber Tester in Certifying Networks
Network certification is the process of verifying that a newly installed cabling system complies with the performance criteria set by organizations like the Telecommunications Industry Association (TIA). This certification provides a guarantee to the network owner that the infrastructure meets the required standards and can support the intended applications. An optical fiber tester is central to this process.
- Tier 1 Certification (Basic): This involves testing each link for insertion loss using an OPM and OLS. It verifies that the link’s attenuation is within the calculated loss budget.
- Tier 2 Certification (Extended): This includes Tier 1 testing and adds an OTDR trace for each fiber. The OTDR trace provides a detailed characterization of the link, showing the performance of each component (connectors, splices) and confirming installation quality. Tier 2 certification offers a much more comprehensive view of the network’s health and is often required for warranties or service-level agreements.
Beyond the Optical Fiber Tester: Essential Companion Tools
While a high-quality optical fiber tester is the star of the show, a successful fiber optic installation relies on a cast of supporting tools. The quality of the work performed before the test is even conducted has a massive impact on the final results. A perfectly installed and terminated fiber will pass certification tests with ease, while a poorly prepared one will lead to a frustrating cycle of re-testing and rework. Therefore, having the right companion tools is just as important as the tester itself. These tools ensure that every connection is physically pristine before it is ever measured for performance.
The Critical First Step: The Optical Fiber Cleaver
Before a fiber can be spliced or terminated with a connector, it must be precisely cut, or “cleaved.” A high-quality cleave creates a perfectly flat, smooth end-face that is perpendicular to the fiber’s axis. This is absolutely essential for achieving a low-loss connection. A poor cleave, with angled faces, chips, or cracks, will create a gap between the fiber cores, resulting in significant signal loss and reflection. That’s why a high-precision Optical Fiber Cleaver is a non-negotiable tool. These devices are designed to score and break the fiber with extreme accuracy, consistently producing the mirror-like finish required for optimal performance. Investing in a reliable cleaver from EPCOM is a crucial first step in building a high-performance network.
Maintaining Pristine Connections with an Optical Fiber Cleaner
As mentioned earlier, connector contamination is the leading cause of network failure. The only way to combat this is through a strict “inspect, clean, and inspect again” policy. This requires the use of specialized cleaning tools designed specifically for fiber optic connectors. Using inappropriate materials, like a standard cloth or canned air, can actually make the problem worse by leaving behind residues or creating a static charge that attracts more dust. A professional Optical Fiber Cleaner kit includes items like one-click cleaners, lint-free wipes, and specially formulated solvents. These tools are designed to effectively remove contaminants from the tiny connector end-face without causing any damage. Making sure every technician has and uses these cleaning supplies is one of the most cost-effective ways to improve network reliability.
How to Choose the Right Optical Fiber Tester
With a wide variety of testers available, selecting the right one for your specific needs can be a daunting task. The best optical fiber tester for a data center technician might be different from the ideal tool for a long-haul network engineer. Making the right choice involves carefully considering several key factors to ensure the tool aligns with your applications, skill level, and budget. An informed decision will not only provide you with accurate testing capabilities but also improve the efficiency and productivity of your team.
Factors to Consider When Selecting an Optical Fiber Tester
When evaluating different models, consider the following points:
- Network Type: Are you working primarily with single-mode (SM) or multimode (MM) fiber? Ensure your optical fiber tester is compatible with the fiber types and wavelengths used in your network (e.g., 850/1300 nm for MM, 1310/1550/1625 nm for SM).
- Application: What is the primary use case? For basic installation and verification, an OPM/OLS kit and a VFL might suffice. For in-depth troubleshooting, certification, and fault finding, an OTDR is essential.
- Required Measurements: Determine what you need to measure. Is it just total link loss (OPM/OLS), or do you need to know the location and loss of individual events (OTDR)? Do you need to inspect connector end-faces (Inspection Probe)?
- User Interface and Ease of Use: A complicated optical fiber tester can lead to errors and frustration. Look for a device with an intuitive interface, a clear display, and automated testing features that can simplify the process for technicians of all skill levels.
- Reporting Capabilities: The ability to easily generate and share professional certification reports is a critical feature. Check if the tester’s software is user-friendly and allows for customization of reports with project details and company logos.
- Durability and Battery Life: Field instruments need to be rugged enough to withstand the rigors of daily use. Look for a robust design, and consider the battery life to ensure it can last a full day’s work on a single charge.
- Budget: While cost is always a factor, it’s important to view an optical fiber tester as a long-term investment. A cheaper tool that provides inaccurate results or fails frequently will cost more in the long run through wasted time and network downtime.
To help visualize the trade-offs, here is a comparison of the most common types of optical fiber tester:
| Feature | OTDR | OPM/OLS Kit | VFL | Inspection Probe |
|---|---|---|---|---|
| Primary Use | Network characterization, fault location | Insertion loss measurement (Tier 1) | Quick fault identification (visual) | Connector end-face inspection |
| Measures | Distance, Loss (dB), Reflectance | Power (dBm), Loss (dB) | N/A (Visual Indication) | Contamination, Scratches, Pits |
| Complexity | High | Low | Very Low | Medium |
| Relative Cost | High | Low-Medium | Very Low | Medium |
Visualizing Optical Fiber Tester Cost vs. Complexity
To further illustrate the relationship between different types of testing equipment, the chart below shows the relative cost and operational complexity. This can help in deciding where to allocate budget based on your team’s primary needs.
The Future of Fiber Optic Testing and the Modern Optical Fiber Tester
The telecommunications industry is in a constant state of evolution, and the field of fiber optic testing is no exception. As network speeds push into the terabit-per-second territory and technologies like 5G and the Internet of Things (IoT) become mainstream, the demands placed on the underlying fiber infrastructure will only intensify. Consequently, the optical fiber tester of tomorrow will need to be smarter, faster, and more integrated than ever before. Several key trends are shaping the future of this critical technology.
One of the most significant trends is the move towards integrated platforms. Instead of carrying multiple separate devices, technicians will increasingly use a single, modular optical fiber tester platform that can perform a variety of tests, from OTDR analysis to fiber inspection and Ethernet testing. This not only reduces the amount of gear a technician needs to carry but also provides a unified interface for data management and reporting. Another key development is the growing role of automation and cloud-based solutions. As detailed in publications like Lightwave, which covers the future of optical technology, cloud connectivity enables test results to be instantly synchronized, analyzed, and shared. This facilitates remote collaboration, improves quality control, and provides project managers with real-time visibility into field operations. Finally, artificial intelligence (AI) and machine learning are beginning to play a role in analyzing test data, helping to automate the interpretation of complex OTDR traces and predict potential points of failure before they occur.
Why Choose EPCOM for Your Optical Fiber Tester Needs?
In a field where precision and reliability are paramount, choosing the right partner for your testing equipment is as important as choosing the equipment itself. EPCOM stands out as a leader in providing high-quality, dependable solutions for the telecommunications industry. Our commitment goes beyond simply selling products; we aim to empower our customers with the tools and knowledge they need to build and maintain world-class fiber optic networks.
At EPCOM, we understand the challenges you face in the field. That’s why our curated selection of optical fiber tester equipment is chosen for its performance, durability, and user-friendly design. From advanced OTDRs for comprehensive network certification to essential tools like power meters, cleavers, and cleaners, we offer a complete solution for all your fiber optic needs. We believe in the quality of our products and back them with expert technical support. When you choose EPCOM, you are not just buying an optical fiber tester; you are gaining a trusted partner dedicated to your success. We are committed to helping you achieve network excellence by providing tools that deliver accurate results, improve efficiency, and stand the test of time.
Conclusion: Your Network’s Health Depends on a Quality Optical Fiber Tester
In conclusion, the health, performance, and reliability of any fiber optic network are directly linked to the quality of its installation and the rigor of its testing protocol. An optical fiber tester is not a luxury but a fundamental necessity for verifying that every component of the network meets the highest standards. From locating faults with an OTDR to verifying loss with an OPM and ensuring pristine connections with an inspection probe, these instruments provide the critical data needed to build and maintain robust communication systems.
By investing in a comprehensive suite of testing tools, including essential companions like high-precision cleavers and cleaners, you are investing in the long-term viability of your network. Don’t let preventable issues like dirty connectors or faulty splices compromise your network’s performance. Empower your team with the right equipment from EPCOM to ensure every installation is a success. Explore our extensive range of optical fiber testing solutions today and take the first step towards a more reliable and efficient network.
