Optical Transceivers: The Core of Modern Networks
Optical Transceivers are the foundational components of modern digital infrastructure, acting as the vital heart of data centers, telecommunication networks, and enterprise systems worldwide. These compact, powerful devices are essential for converting electrical signals into light and vice-versa, enabling data to travel over vast distances at incredible speeds through fiber optic cables. As the demand for bandwidth continues to explode, driven by cloud computing, 5G, and the Internet of Things (IoT), a deep understanding of fiber optic transceivers is no longer optional—it’s a necessity for network architects, engineers, and IT professionals. At EPCOM, we recognize that the performance and reliability of your entire network depend on the quality of these critical modules. This comprehensive article delves into the world of optical transceiver modules, exploring their types, functions, and the ecosystem of components required to build a resilient, high-performance network.
The Fundamental Role of Optical Transceivers in Networking

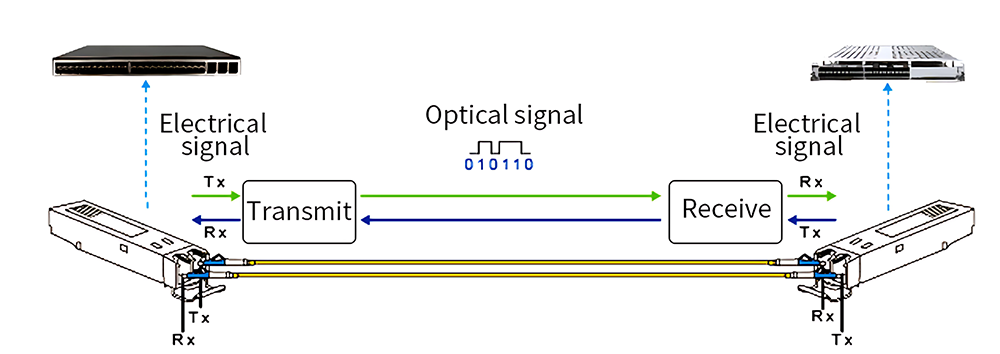

At its core, the function of an optical transceiver is straightforward: to transmit and receive data. The “transmitter” side takes an electrical input from a host device (like a switch or router) and converts it into an optical signal using a laser diode. This light signal is then sent through a fiber optic cable. Simultaneously, the “receiver” side uses a photodiode to detect an incoming optical signal, convert it back into an identical electrical signal, and send it to the host device. This bidirectional process allows for full-duplex communication.
However, the impact of these devices goes far beyond simple signal conversion. They are the primary determinants of a network link’s speed, reach, and reliability. Whether it’s a short-range connection within a data center rack or a long-haul link spanning hundreds of kilometers, the choice of transceiver dictates the performance. Factors like wavelength, data rate (e.g., 10G, 100G, 400G), and form factor (e.g., SFP+, QSFP28) must be carefully selected to match the specific application. Consequently, these modules are pivotal in scaling network capacity and ensuring seamless data flow in an increasingly connected world.
Exploring the Diverse World of Optical Transceivers
The landscape of optical transceivers is vast and varied, with different modules designed for specific networking needs. The form factor—the physical size and shape of the module—is one of the most common ways to categorize them. Each form factor is developed to support different data rates, power consumption levels, and densities. Let’s explore some of the most prevalent types you will encounter, many of which are part of EPCOM’s extensive portfolio.
SFP+ (Small Form-Factor Pluggable Plus)
SFP+ is an enhanced version of the earlier SFP form factor. It is a workhorse in the industry, primarily designed for 10 Gbps data rates. Due to its compact size and low power consumption, SFP+ has become the de facto standard for 10G Ethernet connections in enterprise networks and data centers. It supports a variety of protocols, including Ethernet, Fibre Channel, and SONET/SDH. SFP+ modules are available for both multimode fiber (short reach, e.g., SR) and single-mode fiber (long reach, e.g., LR, ER, ZR), making them incredibly versatile for different link distances.
QSFP+ (Quad Small Form-Factor Pluggable Plus)
As network speed requirements grew beyond 10G, the QSFP+ form factor emerged. The “Quad” in its name signifies that it supports four independent channels, typically 10 Gbps each. By combining these channels, a QSFP+ module can provide a total data rate of 40 Gbps (4x10G). This innovation was crucial for high-density 40G Ethernet deployments. Furthermore, some QSFP+ modules can be used in a “breakout” mode, where a single 40G port on a switch can be split into four separate 10G SFP+ ports, offering significant flexibility in network design.
QSFP28: The Standard for 100G Optical Transceivers
The QSFP28 form factor represents a major leap forward, becoming the dominant module for 100 Gbps networking. It uses the same physical footprint as QSFP+ but upgrades the channel capabilities. The “28” indicates that each of its four channels can handle up to 28 Gbps. This allows for a 100G connection (4x25G), providing a straightforward and cost-effective upgrade path from 40G. The immense popularity of QSFP28 optical transceivers is due to their ability to deliver high bandwidth in a dense, power-efficient package, making them ideal for modern data center interconnects.
Emerging Form Factors: QSFP-DD and OSFP
The relentless pursuit of higher speeds has led to the development of next-generation optical transceivers capable of 400 Gbps and beyond. Two leading form factors in this space are QSFP-DD (Quad Small Form-Factor Pluggable Double Density) and OSFP (Octal Small Form-Factor Pluggable). QSFP-DD effectively doubles the number of electrical contacts on the QSFP connector, allowing for eight lanes instead of four (hence “Double Density”). OSFP is a slightly larger module designed from the ground up for higher power and thermal requirements. Both are paving the way for 400G, 800G, and even 1.6T network speeds, ensuring that network infrastructure can keep pace with future demands.
How to Select the Right Optical Transceivers for Your Needs
Choosing the correct optical transceiver is a critical decision that impacts budget, performance, and future scalability. It’s a process that requires careful consideration of several technical factors. Making an informed choice ensures compatibility and prevents costly network downtime.
1. Data Rate and Protocol Compatibility
The first step is to match the transceiver’s data rate to the port on your switch, router, or server. A 10G SFP+ module must be used in a 10G SFP+ port. Mismatching speeds will result in a failed link. Additionally, ensure the module supports the required protocol, whether it’s Ethernet for data networking or Fibre Channel for storage area networks (SANs).
2. Fiber Type and Wavelength
Optical transceivers are designed to work with either multimode fiber (MMF) or single-mode fiber (SMF). MMF has a larger core and is used for short-distance links (e.g., within a building), while SMF has a smaller core and is used for long-distance links. Transceivers for MMF (like SR, or Short Reach) typically use 850nm wavelength lasers. Transceivers for SMF (like LR, ER, ZR) use longer wavelengths, such as 1310nm or 1550nm, to minimize signal loss over greater distances.
3. Required Transmission Distance (Reach)
Every transceiver is rated for a maximum transmission distance. For example, a 10GBASE-SR SFP+ module can reach up to 300 meters over OM3 MMF, whereas a 10GBASE-LR module can reach up to 10 kilometers over SMF. It’s crucial to calculate your link distance and choose a module that can reliably cover it. It is often wise to select a module with a slightly longer reach than required to account for potential signal loss from splices or connectors in the fiber path.
4. Host Device Compatibility
While transceiver form factors are standardized, some original equipment manufacturers (OEMs) like Cisco or Juniper code their devices to only accept their own branded transceivers. EPCOM offers fully compatible third-party transceivers that are programmed to be recognized by these host devices. These modules provide the same performance and reliability as OEM parts but at a fraction of the cost, offering significant savings without compromising quality.
Essential Supporting Components for High-Performance Optical Transceivers
An optical network is an ecosystem. Even the most advanced optical transceivers cannot perform optimally without high-quality supporting hardware. Proper cabling, cleaning, and organization are non-negotiable for maintaining signal integrity and network reliability. EPCOM provides a complete range of solutions to build and maintain this critical infrastructure.
H3: The Backbone of High-Density Connectivity: MPO/MTP Patch Cords
In modern data centers, space is at a premium. To connect high-speed 40G and 100G optical transceivers, which use multiple fiber lanes, a special type of connector is needed. This is where MPO/MTP Patch Cords become indispensable. MPO (Multi-fiber Push-On) and MTP (a high-performance version of MPO) connectors terminate multiple fibers (typically 8, 12, or 24) within a single, compact interface. This allows for rapid deployment of high-density connections, making them the standard for parallel optics applications like 40GBASE-SR4 and 100GBASE-SR4. Using pre-terminated, factory-tested MPO/MTP assemblies from EPCOM ensures reliable, low-loss connections that are crucial for high-bandwidth applications.
H3: Maintaining Signal Integrity: The Fiber Optic Cassette Cleaner
The single biggest cause of network failure in fiber optic systems is contaminated connector end-faces. A microscopic speck of dust or oil can block the light signal, causing high insertion loss, bit errors, or a complete link failure. This problem is magnified with multi-fiber MPO connectors. A Fiber Optic Cassette Cleaner is an essential tool for every network technician. This device uses a lint-free cleaning tape to quickly and effectively remove contaminants from connector end-faces with a simple click-and-clean mechanism. Regularly cleaning every connector before it’s plugged in is a best practice that prevents countless hours of troubleshooting and ensures your optical transceivers perform at their peak.
H3: Organizing and Protecting Your Network: The Optical Distribution Box
As a network grows, so does the number of fiber connections. Proper management of these connections is vital for organization, protection, and ease of maintenance. An Optical Distribution Box (ODB) serves as a central point for terminating, splicing, and distributing fiber optic cables. It provides a secure, organized environment that protects delicate fibers from damage and makes moves, adds, and changes much more efficient. By housing connections within a dedicated enclosure, an ODB helps maintain proper fiber bend radius, reduces the risk of accidental disconnections, and simplifies cable management. It is a fundamental building block for a scalable and maintainable fiber network.
Comparative Analysis of Popular Optical Transceivers
To better illustrate the differences between common transceiver types, the table below provides a side-by-side comparison. This helps in understanding which module is suited for which application based on key performance metrics.
| Feature | SFP+ | QSFP+ | QSFP28 |
|---|---|---|---|
| Max Data Rate | 10 Gbps | 40 Gbps | 100 Gbps |
| Lane Configuration | 1 x 10G | 4 x 10G | 4 x 25G |
| Common Application | Enterprise LAN, Data Center ToR | Data Center Aggregation, 40G Uplinks | High-Density Data Center, Cloud Networks |
| Breakout Capability | No | Yes (4x 10G) | Yes (4x 25G) |
| Typical Connector | Duplex LC | Duplex LC or MPO/MTP-12 | Duplex LC or MPO/MTP-12 |
The Future of Optical Transceivers and Data Transmission
The pace of innovation in optical networking is not slowing down. As we move into an era of artificial intelligence, machine learning, and massive data analytics, the demands on our network infrastructure will continue to grow. The industry is already well on its way to standardizing 400G and 800G Ethernet, driven by advancements in modulation techniques (like PAM4) and silicon photonics.
One of the most exciting future trends is the move towards co-packaged optics (CPO). CPO involves integrating optical connectivity directly onto the same package as the main processing chips (like CPUs or GPUs). This promises to dramatically reduce power consumption and latency by shortening the electrical path between the chip and the optics. While still an emerging technology, CPO could revolutionize data center architecture in the coming years. For more information on developing standards, organizations like the Institute of Electrical and Electronics Engineers (IEEE) are key resources for tracking the latest developments.
Why Choose EPCOM for Your Optical Transceivers and Network Solutions?
In a field where precision and reliability are paramount, choosing the right partner is as important as choosing the right technology. EPCOM stands out as a leading provider of comprehensive fiber optic solutions, from cutting-edge optical transceivers to the essential supporting components that make your network robust.
Quality and Reliability: All EPCOM transceivers undergo rigorous testing to ensure 100% compatibility and performance. We adhere to Multi-Source Agreement (MSA) standards, guaranteeing that our modules will function flawlessly with a wide range of OEM hardware.
Cost-Effectiveness: We provide high-quality, reliable alternatives to expensive OEM transceivers. By choosing EPCOM, you can significantly reduce your network infrastructure costs without sacrificing performance, allowing you to allocate your budget more effectively.
Expert Support: Our team of networking experts is here to help you navigate the complexities of optical networking. Whether you need assistance selecting the right module for your application or troubleshooting a complex issue, EPCOM provides the technical support you need to succeed.
Comprehensive Portfolio: Beyond just optical transceivers, we offer a full suite of products, including patch cords, cleaners, and distribution boxes. This makes EPCOM a one-stop-shop for all your fiber optic needs, ensuring that every component of your network works together seamlessly.
Conclusion: The Indispensable Role of High-Quality Optical Transceivers
Optical transceivers are the unsung heroes of our digital age. They are the critical link that translates the ones and zeros of the digital world into flashes of light, enabling the high-speed global communication we now take for granted. From the SFP+ modules connecting servers in an enterprise closet to the advanced QSFP28 optical transceivers powering massive cloud data centers, these devices are fundamental to network performance. Building a reliable, scalable, and future-proof network requires not only selecting the right transceivers but also investing in the high-quality ecosystem of cables and components that support them. At EPCOM, we are committed to providing the solutions and expertise you need to build the powerful network infrastructure of tomorrow.
