Overhead Power Cable: EPCOM’s In-Depth Guide

Overhead power cable systems are absolutely fundamental to modern society, forming the backbone of electrical grids that deliver energy to homes, businesses, and industries. These vital networks, often stretching across vast distances, ensure that electricity generated from various sources reaches consumers reliably and efficiently. Consequently, understanding the intricacies of overhead power cable technology, from conductor types to installation practices and essential accessories, is crucial for anyone involved in the power transmission and distribution sector. At EPCOM, we specialize in providing high-quality components and solutions designed to enhance the performance and longevity of these critical infrastructures. This comprehensive guide delves into every facet of overhead power cables, offering valuable insights for professionals and enthusiasts alike.

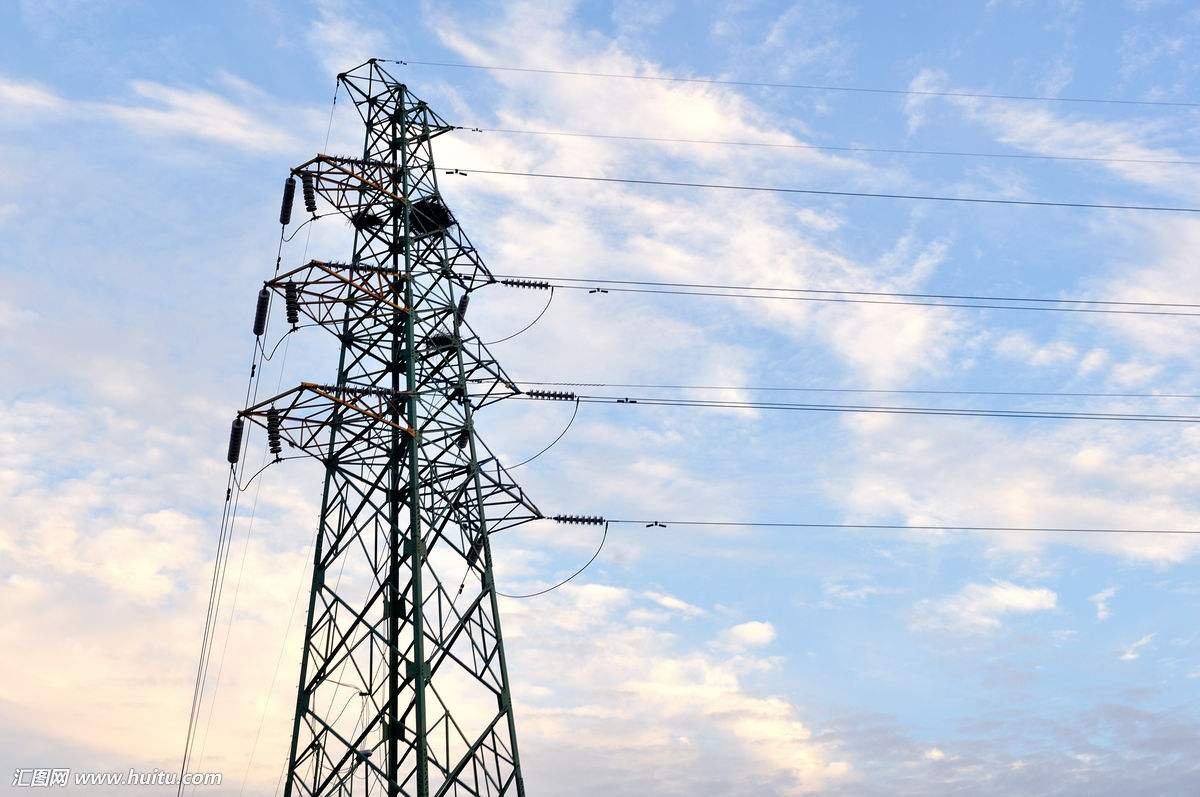

A towering steel lattice structure, a type of support structure for overhead power cables

Understanding Overhead Power Cable Systems

An overhead power cable system is a complex assembly of components working in concert to transmit electrical energy. Primarily, these systems are preferred for long-distance transmission and distribution due to their cost-effectiveness compared to underground alternatives, especially at higher voltages. Furthermore, their accessibility allows for easier maintenance and fault detection. However, they are also susceptible to environmental factors like weather and can sometimes pose aesthetic concerns. The design and implementation of an overhead power cable network require meticulous planning to ensure safety, reliability, and efficiency.

Core Components of an Overhead Power Cable Line

Several key elements constitute a typical overhead power line. Firstly, there are the conductors, which are the wires responsible for carrying the electrical current. These are often made from aluminum or copper, sometimes reinforced with steel for added strength. Secondly, insulators are used to support the conductors and prevent the electrical current from flowing to the support structures (poles or towers). Thirdly, the support structures themselves, which can range from wooden poles for lower voltage distribution to large steel lattice towers for high-voltage transmission, physically elevate the conductors above the ground. Lastly, various types of hardware and accessories, such as clamps, connectors, and dampers, are essential for holding the conductors, joining them, and mitigating issues like vibration. EPCOM offers a wide array of such critical hardware.

How Overhead Power Cables Transmit Electricity

The transmission of electricity via an overhead power cable relies on the principles of electrical engineering. Alternating current (AC) is typically used for long-distance transmission because its voltage can be easily stepped up or down using transformers. High voltage is used for transmission to minimize energy losses over long distances. Once the electricity reaches a local substation, the voltage is stepped down for distribution to consumers. The efficiency of an overhead power cable is influenced by factors such as conductor material, cross-sectional area, and ambient temperature.

Advantages of Overhead Power Cable Systems

Overhead power cable systems offer several distinct advantages. Their initial installation cost is generally lower than that of underground cable systems, particularly for high-voltage applications over long distances. Moreover, faults in overhead lines are usually easier to locate and repair, leading to shorter outage durations. The cooling of conductors is also more efficient in open air, allowing for higher current carrying capacities. Additionally, modifications and upgrades to overhead lines can often be implemented more readily.

Disadvantages and Challenges of Overhead Electrical Power Cable Networks

Despite their benefits, overhead electrical power cable networks face certain challenges. They are exposed to elements such as storms, high winds, ice loading, and lightning, which can cause damage and lead to power outages. Vegetation growth near lines can also cause short circuits if not properly managed. Furthermore, the visual impact of overhead lines can be a concern in scenic or densely populated urban areas. Safety is another critical aspect, as fallen lines or accidental contact can be hazardous. Therefore, robust design and regular maintenance are paramount.

Types of Overhead Power Cable Conductors

The choice of conductor is a critical design decision for any overhead power cable project, influencing its efficiency, strength, and lifespan. Different materials and constructions offer varying properties suitable for diverse applications. Understanding these types is key to optimizing an overhead power distribution cable or transmission line.

All Aluminium Conductor (AAC)

All Aluminium Conductors (AAC) are made up of one or more strands of hard-drawn 1350-H19 aluminum. These conductors are known for their excellent conductivity (about 61% IACS), good corrosion resistance, and low weight. AACs are primarily used in urban areas for distribution lines where spans are short and mechanical strength is less critical. Their lightweight nature reduces the sag and the loading on support structures. For example, products like “AAC Conductors 35mm² For Transmission And Distribution Lines” are common in such scenarios. However, due to their relatively low strength-to-weight ratio, they are not ideal for very long spans or areas with high mechanical loads like ice or wind.

All Aluminium Alloy Conductor (AAAC)

All Aluminium Alloy Conductors (AAAC) are manufactured from heat-treated aluminum-magnesium-silicon alloys (typically 6201 or similar). These alloys provide significantly higher mechanical strength than pure aluminum, along with good conductivity and superior corrosion resistance. AAACs offer a better strength-to-weight ratio than AACs, making them suitable for longer spans in distribution networks and also for transmission lines. An “18 AWG AAAC Bare Conductor For Overhead Lines” is an example of this type used in various applications. They are often preferred in coastal regions where corrosion is a significant concern.

Aluminium Conductor Steel Reinforced (ACSR): A Widely Used Overhead Power Cable

Aluminium Conductor Steel Reinforced (ACSR) is perhaps the most common type of conductor used in overhead power transmission cable and distribution lines due to its excellent combination of strength and conductivity. ACSR consists of a solid or stranded steel core surrounded by one or more layers of hard-drawn 1350-H19 aluminum strands. The steel core provides high mechanical strength, allowing for longer spans and greater sag resistance, making it ideal for river crossings, and rugged terrains. The aluminum outer layers provide the necessary conductivity. Products like “Durable 9.8mm ACSR Conductors For Overhead Lines” and “Corrosion-Resistant 3/8” ACS Conductor For Power Distribution” (often, ACS refers to Aluminum Clad Steel, which can be a component in ACSR or a standalone conductor) highlight the versatility of this design. The “ACSR Curlew Conductor” mentioned in the context of the provided image is a specific construction standard for ACSR, indicating its stranding and size. While ACSR is highly effective, the steel core can be susceptible to corrosion if the galvanization is damaged, although modern ACSR often features improved galvanization or grease filling for better protection.

Aluminium Conductor Alloy Reinforced (ACAR)

Aluminium Conductor Alloy Reinforced (ACAR) conductors offer another balance between strength and conductivity. These conductors are formed by concentrically stranding hard-drawn 1350-H19 aluminum wires around a core of high-strength aluminum-magnesium-silicon alloy (6201-T81) wires. Essentially, ACAR combines the benefits of AAC (conductivity) and AAAC (strength) into a single conductor. They generally have a better strength-to-weight ratio and ampacity than ACSR conductors of the same weight, and also offer better corrosion resistance since there’s no steel core. A “High-Conductivity 95mm² ACAR Bare Conductor” is an example of such a conductor, prized for its efficiency.

Aerial Bundled Cable (ABC)

Aerial Bundled Cable (ABC) is an innovative solution primarily for low-voltage (LV) and medium-voltage (MV) overhead power distribution cable networks, especially in urban and rural areas where safety, aesthetics, and reliability are key concerns. ABC consists of several insulated phase conductors (typically aluminum) bundled together, often with a neutral messenger wire (which can be bare or insulated and may also support the bundle). The insulation provides protection against direct contact, reduces the risk of faults due to clashing conductors or contact with trees, and allows for narrower rights-of-way. “ABC Cable For Aerial Installation” significantly improves the safety and reliability of distribution networks, especially in areas with dense vegetation or where space is limited. It also presents a more aesthetically pleasing option compared to traditional bare open-wire systems.

Covered Overhead Power Cable

Covered conductors, sometimes referred to as tree wire, feature a thin layer of polymeric covering over the conductor. This covering is not classified as full insulation for direct contact by personnel but provides protection against momentary contact with other conductors, tree branches, or animals, thereby reducing the frequency of outages. They are typically used in medium-voltage overhead power cable systems in areas with high tree density or where animal-induced outages are common. This type of overhead electrical power cable offers a middle ground between bare conductors and fully insulated ABC systems.

High-Temperature Low-Sag (HTLS) Conductors

High-Temperature Low-Sag (HTLS) conductors represent a significant advancement in overhead power cable technology. These conductors are designed to operate at higher temperatures (up to 250°C) with significantly less sag than conventional conductors like ACSR. This allows for increased current carrying capacity (ampacity) on existing transmission corridors without needing to rebuild towers or acquire new rights-of-way. HTLS conductors utilize composite cores (such as carbon fiber or Invar steel) or advanced aluminum alloys. While more expensive initially, they can be a cost-effective solution for upgrading congested transmission lines and integrating renewable energy sources that may have intermittent high output. Their adoption is crucial for modernizing the grid and enhancing the capabilities of high voltage overhead power cable networks.

Factors Influencing Overhead Power Cable Conductor Selection

Selecting the appropriate conductor for an overhead power cable line involves a careful evaluation of several factors.

  • Current Carrying Capacity (Ampacity): The conductor must be able to carry the maximum expected load current without exceeding its temperature limit.
  • Voltage Level: The voltage of the line influences insulation requirements and conductor spacing.
  • Mechanical Strength: The conductor must withstand mechanical stresses due to its own weight, ice loading, wind pressure, and temperature variations.
  • Sag: The amount a conductor droops between supports is critical for maintaining safe ground clearances. Materials with better strength-to-weight ratios or HTLS properties help manage sag.
  • Span Length: Longer spans require conductors with higher tensile strength.
  • Environmental Conditions: Factors like temperature extremes, corrosive atmospheres (coastal or industrial areas), and wind/ice prevalence influence material choice. For example, AAAC or ACAR might be preferred over ACSR in highly corrosive environments.
  • Economic Considerations: This includes the initial cost of the conductor, installation costs, and the lifetime cost of energy losses.
  • Regulatory Requirements and Standards: Compliance with national and international standards, such as those from IEC (International Electrotechnical Commission) or IEEE, is mandatory.

Choosing the right overhead power cable conductor ensures the long-term reliability, safety, and economic viability of the power line.

Conductor TypeMaterial CompositionKey AdvantagesTypical Applications
AAC (All Aluminium Conductor)1350-H19 AluminumHigh conductivity, lightweight, good corrosion resistanceShort span LV/MV distribution, urban areas
AAAC (All Aluminium Alloy Conductor)Aluminum-Magnesium-Silicon Alloy (e.g., 6201)Higher strength than AAC, good strength-to-weight ratio, excellent corrosion resistanceMV/HV distribution and transmission, coastal areas
ACSR (Aluminium Conductor Steel Reinforced)Aluminum strands (1350-H19) around a steel coreVery high strength, good ampacity, economical for long spansMV/HV/EHV transmission, long spans, river crossings
ACAR (Aluminium Conductor Alloy Reinforced)Aluminum strands (1350-H19) around an aluminum alloy core (e.g., 6201)Good balance of strength and ampacity, better corrosion resistance than ACSRMV/HV distribution and transmission
ABC (Aerial Bundled Cable)Insulated aluminum phase conductors bundled together (often with a messenger wire)Increased safety, reliability, reduced right-of-way, aesthetic improvementLV/MV distribution in urban/rural areas, forested regions
HTLS (High-Temperature Low-Sag)Advanced aluminum alloys with composite or special steel coresHigher operating temperatures, increased ampacity, lower sagUpgrading existing transmission lines, new lines with high capacity needs

Key Considerations for Overhead Power Cable Installation

The installation of an overhead power cable is a complex undertaking that demands meticulous planning and execution. Safety, precision, and adherence to established standards are paramount throughout the process. Several key considerations must be addressed to ensure a successful and durable installation of any overhead power cable system, whether it’s for high voltage transmission or local distribution.

Planning and Surveying for Overhead Power Cable Routes

Before any physical work begins, comprehensive planning and surveying are essential. This phase involves determining the optimal route for the overhead power cable line. Factors considered include topography, existing infrastructure, environmental sensitivities, accessibility for construction and maintenance, and proximity to populated areas. Detailed surveys provide data on terrain profiles, soil conditions, and potential obstacles. This information is crucial for designing the line, selecting appropriate support structures, and calculating conductor sag and tension. Modern surveying techniques, such as LiDAR (Light Detection and Ranging) and GPS, are often employed for greater accuracy and efficiency in planning overhead electrical power cable installations.

Securing Right-of-Way (ROW)

A Right-of-Way (ROW) is a legal right to pass along a specific route through grounds or property belonging to others. Securing the necessary ROW is a critical and often time-consuming aspect of overhead power cable projects. This involves negotiations with landowners, obtaining permits from relevant authorities, and addressing any legal or environmental concerns. A clearly defined ROW ensures that there is adequate clearance around the power lines for safety and maintenance, preventing encroachments and minimizing risks associated with vegetation or nearby structures. The width of the ROW depends on the voltage level of the overhead power cable and regulatory requirements.

Pole and Tower Erection for Overhead Power Lines

Once the route is planned and ROW secured, the next step is the erection of support structures, which can be wooden poles, concrete poles, or steel towers, depending on the voltage and terrain. The foundations for these structures must be robust enough to handle the loads imposed by the conductors, wind, ice, and their own weight. The type of foundation varies with soil conditions and structure type. Proper alignment and verticality of poles and towers are critical for the stability of the overhead power cable and to ensure correct conductor sag and clearance. Specialized equipment, such as cranes and augers, is typically used for this phase.

Stringing and Sagging Operations for Overhead Power Cable Conductors

Stringing, also known as conductor pulling, is the process of installing the overhead power cable conductors onto the support structures. This operation requires careful control to prevent damage to the conductors and to ensure they do not touch the ground or other obstacles. Tension stringing methods are commonly used, where the conductor is kept under tension throughout the installation process. After stringing, the conductors are sagged to predetermined levels. Sagging is crucial because conductor length varies with temperature and loading. Correct sag ensures that the conductor maintains safe clearances from the ground and other objects under all operating conditions and prevents excessive tension on the conductors and supports. Sag charts and specialized instruments are used to achieve the design sag for the specific overhead power cable type.

Safety Protocols During Overhead Power Cable Installation

Safety is the utmost priority during every stage of an overhead power cable installation. Lineworkers face numerous hazards, including working at heights, electrical risks (even on de-energized lines due to induction), and heavy equipment operation. Comprehensive safety programs, including rigorous training, use of personal protective equipment (PPE), adherence to established work procedures (like those from OSHA for electrical standards), and on-site safety briefings, are essential. Measures such as proper grounding, ensuring lines are de-energized and locked out, and maintaining safe distances from energized parts are critical. EPCOM advocates for the highest safety standards in all operations involving overhead power cable components.

Environmental Impact and Mitigation for Overhead Power Cable Projects

Overhead power cable projects can have environmental impacts, including habitat disturbance, effects on bird populations (collision and electrocution), and visual intrusion. Environmental impact assessments (EIAs) are typically required to identify potential effects and develop mitigation strategies. These can include careful route selection to avoid sensitive areas, use of bird-friendly designs (e.g., avian diverters, modified pole configurations), responsible vegetation management within the ROW, and restoration of disturbed areas after construction. Minimizing the environmental footprint is an increasingly important aspect of modern overhead power transmission cable projects.

Essential Accessories for Overhead Power Cable Lines

While conductors and support structures are primary components, a variety of accessories are indispensable for the proper functioning, safety, and longevity of an overhead power cable system. These accessories perform critical roles, from securing conductors to protecting them from damage. EPCOM is proud to offer a range of high-quality accessories designed for reliability and performance in demanding overhead line applications.

Suspension Clamps: Supporting the Overhead Power Cable

Suspension clamps are vital hardware used to hang conductors from insulators on support structures, particularly on tangent towers or poles where the line runs relatively straight. Their primary function is to support the conductor vertically while allowing for some longitudinal movement, which can occur due to wind or temperature changes. This movement helps to equalize tension along the line. A well-designed suspension clamp, such as EPCOM’s CGH Suspension Clamp, ensures a secure grip on the conductor without causing damage through excessive clamping force or stress concentrations. These clamps are typically made from aluminum alloy or galvanized steel for strength and corrosion resistance. The choice of clamp depends on the conductor type, diameter, and the expected mechanical loads on the overhead power cable.

Featured Product: CGH Suspension Clamp
EPCOM’s CGH Suspension Clamp is engineered for superior performance in supporting overhead power cable conductors. Its design focuses on providing a secure yet gentle grip, minimizing wear on the conductor and ensuring long-term reliability. Ideal for various conductor types, it’s a crucial component for stable and durable overhead line construction. Visit the CGH Suspension Clamp product page to learn more about its specifications and applications.

Dead-End Clamps (Tension Clamps): Anchoring Overhead Power Cables

Dead-end clamps, also known as tension clamps or anchor clamps, are used at locations where an overhead power cable terminates or changes direction significantly (angle poles/towers), or at sectioning points. Their crucial role is to firmly grip the conductor and transfer its full tensile load to the insulator assembly and then to the support structure. These clamps must be strong enough to withstand the maximum design tension of the conductor without slipping or damaging it. There are various designs of dead-end clamps, including bolted type, compression type, and wedge type. EPCOM offers robust solutions like the PA1500 Dead-End Clamp, designed for secure and reliable anchoring of overhead power distribution cables and transmission lines.

Featured Product: PA1500 Dead-End Clamp
The PA1500 Dead-End Clamp from EPCOM is built for strength and durability, providing a reliable anchoring solution for overhead power cable systems. It ensures a firm grip on the conductor, capable of handling significant tensile loads, which is essential for maintaining line integrity at termination points or sharp angles. Discover the benefits of the PA1500 Dead-End Clamp for your next project.

Insulators: Isolating the Overhead Power Cable

Although EPCOM’s focus here is on clamps and tools, insulators are a critical, non-negotiable component of any overhead power cable system. They are made from materials with high dielectric strength, such as porcelain, glass, or polymeric composites. Insulators serve two main functions: they mechanically support the conductors and electrically isolate them from the support structures, preventing current leakage to the ground. The type and size of insulator depend on the line voltage, mechanical loads, and environmental conditions. Common types include pin insulators, suspension insulators (used in strings for higher voltages), and post insulators.

Vibration Dampers for Overhead Line Conductors

Overhead power cable conductors, especially those on long spans, are susceptible to aeolian vibration – a high-frequency, low-amplitude vibration caused by steady, moderate winds blowing across the conductor. This vibration can lead to fatigue failure of conductor strands or damage to associated hardware over time. Vibration dampers, such as Stockbridge dampers, are installed on conductors to absorb and dissipate this vibrational energy, thereby protecting the overhead power cable and extending its service life. The proper placement and number of dampers depend on factors like span length, conductor type, tension, and terrain.

Other Essential Fittings and Connectors

Numerous other fittings and connectors are essential for completing an overhead power cable installation. These include:

  • Mid-span Joints (Splices): Used to connect two lengths of conductor together. They must provide both mechanical strength and electrical continuity. Compression joints are commonly used for their reliability.
  • Repair Sleeves: Used to repair minor damage to conductor strands, restoring strength and conductivity.
  • Parallel Groove Clamps (PG Clamps): Used for making T-connections or tapping off smaller conductors from a main line.
  • Arcing Horns and Grading Rings: Used at higher voltages to protect insulators and conductors from damage due to power arcs and to ensure uniform voltage distribution across insulator strings.
  • Grounding Hardware: Essential for safety and system protection, ensuring that support structures and specific points on the line are effectively connected to earth.

The quality and correct application of these accessories are vital for the overall performance and safety of the overhead power cable infrastructure.

Tools for Overhead Power Cable Maintenance and Installation

Effective installation and maintenance of overhead power cable systems rely heavily on the use of specialized, high-quality tools. These tools not only ensure that work is performed efficiently but also play a critical role in the safety of lineworkers and the long-term integrity of the power line. EPCOM understands the importance of reliable tools and provides solutions designed for the demanding tasks involved in working with overhead power cables.

Cable Cutters: Precision in Severing Overhead Power Cables

Cable cutters are fundamental tools for any work involving overhead power cables, whether for new installations, repairs, or decommissioning. It is crucial to use cutters specifically designed for the type and size of conductor being handled. Using an inappropriate cutter can damage the conductor strands, create a hazardous situation, or lead to premature tool failure. For instance, cutting ACSR requires robust cutters with hardened blades capable of shearing through the steel core. EPCOM’s Ratchet Cable Cutter is an excellent example of a tool designed for ease of use and efficiency, allowing for clean cuts on various types of overhead power cable with reduced physical effort due to its mechanical advantage.

Featured Product: Ratchet Cable Cutter
When precision and ease of use are paramount, EPCOM’s Ratchet Cable Cutter delivers. This tool is designed to handle various overhead power cable types, providing clean, efficient cuts with significantly less effort than conventional cutters. Its robust construction ensures durability in field conditions. Equip your team with the Ratchet Cable Cutter for safer and more effective cable preparation.

Crimping Tools (Compression Tools)

Crimping tools, also known as compression tools, are essential for installing compression connectors, splices, and terminals on overhead power cable conductors. These tools apply a controlled amount of force to deform the connector barrel and conductor strands, creating a secure, low-resistance electrical and mechanical connection. Hydraulic or manual crimping tools are available, with die sets specific to the connector and conductor size. Proper crimping is critical; an incorrect crimp can lead to high resistance, overheating, and eventual failure of the connection. Using the right tool and die combination, as specified by the connector manufacturer, is imperative for a reliable overhead power cable joint.

Hoists and Pulling Equipment

During the stringing of overhead power cables, hoists (e.g., chain hoists, lever hoists) and specialized pulling equipment (e.g., bullwheel pullers, tensioners) are indispensable. Pullers are used to pull the conductor from the drum to the support structures, while tensioners apply a controlled back-tension to prevent the conductor from sagging excessively or contacting the ground. Hoists are used for lifting, tensioning, and precise positioning of conductors and hardware. The capacity of this equipment must be adequate for the loads involved, and regular inspection and maintenance are necessary for safe operation.

Stringing Blocks (Running Out Blocks)

Stringing blocks are roller-equipped pulleys that are hung on insulators or cross-arms. The overhead power cable conductor is threaded through these blocks during the stringing operation. They allow the conductor to be pulled smoothly along the line, minimizing friction and preventing damage to the conductor surface. Blocks are available with different groove linings (e.g., neoprene, urethane) suitable for various conductor types, including bare aluminum, ACSR, and covered or ABC cables. Proper selection and placement of stringing blocks are vital for a damage-free installation of the overhead power cable.

Dynamometers and Sag Scopes

Achieving the correct tension and sag in an overhead power cable is crucial for its performance and safety. Dynamometers are instruments used to measure the tension in the conductor during stringing and sagging operations. Sag scopes, or transits, are used to visually check and adjust the sag of the conductor to match the design specifications detailed in sag-tension charts. These tools ensure that the overhead power cable is not over-tensioned (which could lead to failure) or under-tensioned (which could result in clearance violations).

Personal Protective Equipment (PPE) and Safety Gear

Beyond the tools for manipulating cables, personal protective equipment is the most critical “tool” for lineworker safety. This includes hard hats, safety glasses, insulating gloves and sleeves (rated for the voltages involved), fall arrest systems (harnesses, lanyards), flame-resistant clothing, and insulated footwear. Specialized tools like hot sticks (insulated poles for manipulating energized equipment from a distance) and voltage detectors are also essential for working on or near live or potentially live overhead power cable systems. Comprehensive training on the correct use and care of PPE is fundamental.

Maintenance and Inspection of Overhead Power Cable Systems

Once an overhead power cable system is installed and operational, regular maintenance and inspection are critical to ensure its continued reliability, safety, and longevity. Proactive maintenance helps identify potential issues before they lead to costly failures or widespread outages. A well-structured maintenance program for an overhead electrical power cable network can significantly extend its service life and optimize performance.

Routine Inspection Procedures for Overhead Power Cables

Routine inspections are the cornerstone of an effective maintenance strategy for overhead power cables. These can be categorized as:

  • Patrol Inspections: These are frequent visual checks, often done from the ground or a vehicle, to quickly identify obvious problems like broken insulators, leaning poles, visible conductor damage, or vegetation encroachment. Drone patrols are increasingly used for this purpose, offering a safer and often more efficient way to cover large areas of overhead power cable routes.
  • Detailed Inspections: Performed less frequently than patrols, these involve a closer examination of all components of the overhead power cable line. This may include climbing structures (after ensuring they are de-energized and grounded or using live-line techniques) to inspect conductors, clamps, insulators, and hardware up close. Specialized diagnostic tools might be used during detailed inspections.
  • Comprehensive Inspections (Diagnostic): These are in-depth assessments, often involving non-destructive testing (NDT) techniques to evaluate the condition of components that may not show visible signs of degradation. This could include thermographic surveys to detect hot spots (indicating high resistance connections) or acoustic emission testing.

The frequency of these inspections depends on factors like the age of the line, environmental conditions, voltage level, and regulatory requirements for the specific overhead power cable.

Common Faults and Their Detection in Overhead Power Cable Lines

Various types of faults can occur in overhead power cable systems. Common issues include:

  • Conductor Damage: Broken strands due to fatigue (aeolian vibration), corrosion, or arcing. This reduces the conductor’s strength and ampacity.
  • Insulator Failure: Cracks, chips, or flashovers on insulators can compromise their insulating capability, leading to leakage currents or faults. Contamination on insulator surfaces also plays a role.
  • Hardware Corrosion or Loosening: Clamps, connectors, and other fittings can corrode or loosen over time, leading to increased resistance, overheating, and potential mechanical failure.
  • Support Structure Degradation: Wooden poles can rot, concrete poles can spall, and steel towers can suffer from corrosion or member deformation. Foundation issues can also compromise stability.
  • Vegetation Encroachment: Trees growing too close to or into an overhead power cable can cause faults, especially during high winds or wet conditions. Regular vegetation management is crucial.
  • Grounding System Deterioration: Effective grounding is essential for safety and protection. Corrosion or theft of grounding components can impair its effectiveness.

Detection methods range from visual observation to sophisticated diagnostic tools like infrared cameras, ultraviolet (corona) cameras, and acoustic detectors.

Repair Techniques for Overhead Power Cables and Components

When faults or degradation are detected, timely and appropriate repairs are necessary. Common repair techniques include:

  • Conductor Repair: Minor damage might be repaired using repair sleeves. More significant damage may require splicing in a new section of conductor or replacing the entire span of the overhead power cable.
  • Insulator Replacement: Damaged or contaminated insulators are typically replaced. Live-line techniques can sometimes be used to replace insulators without de-energizing the line, minimizing service disruption.
  • Hardware Tightening/Replacement: Loose fittings can be re-tightened (if appropriate) or replaced. Corroded components are usually replaced with new ones.
  • Structure Reinforcement or Replacement: Damaged sections of poles or towers might be reinforced or repaired. Severely degraded structures require complete replacement.

All repair work on overhead power cables must be carried out by qualified personnel following strict safety procedures.

Predictive Maintenance and Modern Technologies for Overhead Power Cable Lines

The utility industry is increasingly moving towards predictive maintenance strategies for overhead power cable systems. This involves using data analytics and condition monitoring technologies to predict when components are likely to fail, allowing maintenance to be scheduled proactively. Modern technologies facilitating this include:

  • Drones (UAVs): Equipped with high-resolution cameras, thermal imagers, and LiDAR scanners, drones provide a versatile platform for detailed line inspections, reducing costs and improving safety compared to traditional methods.
  • Sensors: Line-mounted sensors can monitor parameters like conductor temperature, sag, current, and ambient conditions in real-time, providing valuable data for assessing line health.
  • Data Analytics and AI: Advanced algorithms and machine learning can analyze inspection data and sensor readings to identify patterns, predict failures, and optimize maintenance schedules for overhead power cables. For instance, Smart Grid initiatives often incorporate such technologies.
  • Geographic Information Systems (GIS): GIS platforms are used to manage asset data, track inspection and maintenance activities, and visualize the condition of the overhead power cable network.

These technologies help utilities improve reliability, reduce operational costs, and enhance the resilience of their overhead electrical power cable infrastructure.

Innovations in Overhead Power Cable Technology

The field of overhead power cable technology is continually evolving, driven by the need for greater efficiency, reliability, capacity, and environmental compatibility. Innovations span materials science, design engineering, and system operation, all contributing to the modernization of overhead power transmission cable and distribution networks. EPCOM is committed to staying at the forefront of these advancements to offer cutting-edge solutions.

Impact of Smart Grids on Overhead Power Cable Lines

The development of smart grids is profoundly influencing the design and operation of overhead power cable systems. Smart grids incorporate advanced sensing, communication, and control technologies to enable two-way power flow, automate grid operations, and improve monitoring capabilities. For overhead lines, this means the integration of sensors for real-time monitoring of conductor temperature, sag, and faults. It also involves advanced protection schemes and an increased ability to manage distributed energy resources (DERs) like solar and wind, which often connect to the distribution network via overhead power cables. The enhanced visibility and control provided by smart grid technologies help optimize the utilization of existing overhead power cable assets and improve grid resilience.

Advanced Materials for Next-Generation Overhead Power Cables

Research into advanced materials is leading to the development of new types of overhead power cable conductors with superior properties:

  • Composite Cores: As seen in HTLS conductors, carbon fiber composites, polymer matrix composites, and aluminum matrix composites are being used to create cores that are lighter and stronger than traditional steel cores, or offer better thermal stability. This allows for higher ampacity and reduced sag in overhead power cables.
  • Nanomaterials: There is ongoing research into incorporating nanomaterials like carbon nanotubes into conductor materials to enhance conductivity, strength, and thermal performance. While still largely in the R&D phase for bulk applications, the potential for significantly improved overhead power cable characteristics is substantial.
  • Advanced Aluminum Alloys: New aluminum alloys are being developed that offer better combinations of conductivity, strength, and creep resistance at elevated temperatures, pushing the performance envelope for overhead power cables beyond traditional materials.
  • Superconducting Cables (for specific applications): While not “overhead” in the traditional sense for long distances due to cooling requirements, research into high-temperature superconducting cables continues, which could revolutionize power transmission capacity in specific, dense corridors. For general overhead applications, the focus remains on more conventional material improvements.

These material innovations are key to increasing the power transfer capability and efficiency of future overhead power cable lines.

Enhancing Efficiency and Minimizing Losses in Overhead Power Cable Systems

Energy losses (primarily $I^2R$ losses) in overhead power cable transmission and distribution are a significant concern. Innovations aimed at reducing these losses include:

  • Larger Conductor Sizes: Using conductors with larger cross-sectional areas reduces electrical resistance, though this must be balanced against cost and mechanical considerations.
  • Higher Voltage Transmission: Transmitting power at higher voltages reduces current for the same amount of power, thereby significantly lowering resistive losses. This is a primary driver for EHV (Extra High Voltage) and UHV (Ultra High Voltage) overhead power cable lines.
  • Optimized Conductor Designs: Designs like ACSR/TW (Trapezoidal Wire) or shaped wire compact conductors can pack more aluminum into a given diameter, reducing resistance compared to round wire constructions for the same overall size.
  • Improved Connection Technology: High-quality, low-resistance connectors and clamps, like those offered by EPCOM, are crucial in minimizing losses at joints and termination points on an overhead power cable.

Furthermore, Dynamic Line Rating (DLR) systems, which calculate real-time ampacity based on actual environmental conditions rather than static assumptions, allow for more efficient utilization of existing overhead power cable capacity without compromising safety.

Building Resilience for Overhead Power Cables Against Extreme Weather

With the increasing frequency of extreme weather events due to climate change, enhancing the resilience of overhead power cable networks is a top priority. Innovations in this area include:

  • Stronger Poles and Towers: Designing support structures to withstand higher wind loads and greater ice accumulation. This includes using more robust materials and improved structural designs.
  • Undergrounding Strategically: In areas highly prone to severe weather or with critical loads, selective undergrounding of overhead power cables can improve resilience, though it comes at a higher cost.
  • Advanced Conductor Designs: HTLS conductors, with their lower sag at high temperatures, can also exhibit better performance under ice loading conditions compared to some traditional conductors. Some specialized overhead power cable designs focus on ice-shedding capabilities.
  • Improved Vegetation Management: Utilizing LiDAR and AI for more precise and predictive vegetation management helps reduce the risk of tree-related outages during storms.
  • Modular and Rapid Restoration Systems: Developing systems and strategies for quickly restoring damaged sections of overhead power cable lines after a major event.

Building a more resilient overhead power cable grid is essential for ensuring energy security in a changing world.

Safety Standards and Regulations for Overhead Power Cable

The design, construction, operation, and maintenance of overhead power cable systems are governed by a comprehensive set of safety standards and regulations. These are established by national and international bodies to protect utility workers, the public, and the environment. Adherence to these standards is not just a legal requirement but a fundamental aspect of responsible grid management. EPCOM is dedicated to providing products that meet or exceed these stringent safety and quality benchmarks for all types of overhead power cable applications.

Key International and Regional Standards for Overhead Power Cable Lines

Several organizations play a pivotal role in developing and maintaining standards for overhead power cables:

  • International Electrotechnical Commission (IEC): The IEC publishes a wide range of international standards covering conductors (e.g., IEC 61089 for round wire concentric lay overhead electrical stranded conductors), insulators, fittings, and design criteria for overhead lines (e.g., IEC 60826 on design criteria of overhead transmission lines).
  • Institute of Electrical and Electronics Engineers (IEEE): IEEE Standards Association develops numerous standards crucial for overhead power cables in North America and often referenced globally. These include the National Electrical Safety Code (NESC, ANSI C2), which provides basic provisions for safeguarding persons during the installation, operation, or maintenance of electric supply and communication lines. Other relevant IEEE standards cover conductor ampacity (e.g., IEEE 738), line construction, and lightning protection.
  • CENELEC (European Committee for Electrotechnical Standardization): CENELEC develops European Standards (ENs) that are widely adopted across Europe, often harmonizing IEC standards.
  • National Standards Bodies: Individual countries also have their own national standards bodies (e.g., ANSI in the USA, BSI in the UK, DIN in Germany) that adopt or adapt international standards or develop specific national requirements for overhead power cable systems.

These standards cover aspects such as minimum clearances, conductor sag and tension, material specifications, structural loading requirements, and safe work practices for overhead electrical power cable networks.

The Importance of Adherence to Safety Codes in Overhead Power Cable Operations

Strict adherence to safety codes and standards is paramount for several reasons:

  • Public Safety: Ensuring that overhead power cables are installed and maintained with adequate clearances from buildings, roads, and ground prevents accidental contact and electrical hazards to the general public.
  • Worker Safety: Safety standards dictate safe work procedures, required training, and the use of appropriate PPE to protect lineworkers who operate in inherently hazardous environments around high voltage overhead power cables.
  • System Reliability: Properly designed and installed lines according to standards are more resilient to environmental stresses and less prone to failures, leading to a more reliable power supply.
  • Legal and Regulatory Compliance: Utilities and contractors must comply with applicable safety regulations to avoid penalties, legal liabilities, and damage to their reputation.
  • Interoperability: Standardized components for overhead power cable systems ensure that parts from different manufacturers can work together, simplifying procurement and maintenance.

A strong safety culture, underpinned by robust standards, is essential in the power industry.

EPCOM’s Commitment to Quality and Safety in Overhead Power Cable Solutions

At EPCOM, we understand that the quality and safety of overhead power cable components are non-negotiable. Our products, including suspension clamps like the CGH Suspension Clamp, dead-end clamps like the PA1500, and tools like our Ratchet Cable Cutter, are designed and manufactured with meticulous attention to detail and adherence to relevant industry standards. We are committed to:

  • Using High-Quality Materials: Ensuring durability, strength, and corrosion resistance appropriate for demanding overhead power cable environments.
  • Rigorous Testing: Subjecting our products to thorough testing to verify their mechanical and electrical performance.
  • Continuous Improvement: Staying updated with the latest revisions of standards and incorporating best practices into our design and manufacturing processes.
  • Supporting Our Customers: Providing technical information and support to help our customers select and correctly apply our products for safe and reliable overhead power cable installations.

EPCOM believes that by supplying high-quality, reliable components, we contribute to the overall safety and efficiency of the overhead power cable networks that power our communities.

The Future of Overhead Power Cable Networks

Overhead power cable networks, while a mature technology, are set to play an even more critical role in the evolving energy landscape. The future will see these networks adapt to new challenges and opportunities, driven by decarbonization goals, increasing electrification, and the need for a more resilient and intelligent grid. The ongoing evolution of overhead power cable technology is key to this transformation.

Role of Overhead Power Cables in Renewable Energy Integration

The large-scale integration of renewable energy sources (RES) like wind and solar power presents both challenges and opportunities for overhead power cable systems. Many prime locations for renewable generation (e.g., offshore wind farms, large solar parks in remote areas) are often distant from existing load centers. This necessitates the construction of new high-capacity overhead power transmission cable lines, often High Voltage Direct Current (HVDC) lines for very long distances, to bring this green energy to consumers. Furthermore, the intermittent nature of some RES requires a more flexible and robust overhead power cable grid capable of managing fluctuating power flows and maintaining stability. Upgrades to existing overhead distribution cable networks are also needed to accommodate distributed renewable generation, such as rooftop solar.

Upgrading Aging Overhead Power Cable Infrastructure

Much of the existing overhead power cable infrastructure in developed countries was built several decades ago and is now approaching the end of its design life. Upgrading this aging infrastructure is a significant undertaking but essential for maintaining reliability and meeting future energy demands. This involves replacing old conductors, poles, and hardware. It also provides an opportunity to deploy modern technologies, such as HTLS conductors, to increase the capacity of existing corridors, thereby minimizing the need for new rights-of-way. The refurbishment of existing overhead power cable lines is a major driver for demand in conductor and accessory markets.

Addressing Increasing Global Energy Demands with Overhead Power Cable Solutions

Global energy demand, particularly for electricity, continues to rise, driven by population growth, industrialization in developing countries, and the increasing electrification of transportation (EVs) and heating. Overhead power cable networks are the primary means of delivering this increased electricity. This necessitates not only expanding existing networks but also building new, higher-capacity overhead power cable lines. Innovations that increase the power transfer density (more power through existing or smaller corridors) are crucial. This makes advanced overhead electrical power cable technologies and efficient system design more important than ever.

The Synergy Between Overhead and Underground Cable Systems

While this guide focuses on overhead power cables, it’s important to acknowledge that future grids will increasingly utilize a synergistic combination of overhead and underground solutions. Overhead lines will likely remain the dominant choice for long-distance bulk power transmission and rural distribution due to cost advantages. However, underground cables will see increased use in densely populated urban areas (for aesthetic and space reasons), for submarine connections, and in environmentally sensitive locations. The challenge lies in seamlessly integrating these different systems and optimizing their respective benefits within the broader energy network. Both overhead and underground power cable technologies will continue to advance to meet these evolving needs.

Why Choose EPCOM for Your Overhead Power Cable Needs?

When it comes to sourcing components for your critical overhead power cable infrastructure, choosing a reliable and knowledgeable partner is paramount. EPCOM stands out as a supplier committed to quality, innovation, and customer satisfaction. We understand the challenges and intricacies of building and maintaining robust overhead power cable systems.

Experience and Expertise in Overhead Power Cable Components

EPCOM brings valuable experience to the table, with a deep understanding of the requirements for various overhead power cable applications. Our team is knowledgeable about different conductor types, international standards, and the demanding environmental conditions that overhead line components must endure. This expertise allows us to offer not just products, but also informed advice to help you select the optimal solutions for your specific overhead power cable projects, whether they involve high voltage transmission or local distribution networks.

Unwavering Commitment to Product Quality

Quality is at the core of everything we do at EPCOM. We recognize that the reliability of an entire overhead power cable line can depend on the performance of even the smallest component. That’s why our products, including our CGH Suspension Clamps, PA1500 Dead-End Clamps, and Ratchet Cable Cutters, are manufactured to stringent quality standards using appropriate materials designed for longevity and performance. Choosing EPCOM means investing in components that will contribute to the long-term integrity and reduced maintenance costs of your overhead power cable assets.

Comprehensive Customer Support

At EPCOM, we believe in building lasting relationships with our customers. We offer comprehensive support, from initial product selection to after-sales service. Our team is ready to assist with technical queries, provide detailed product information, and ensure a smooth procurement process. We are dedicated to helping you find the right solutions for your overhead power cable challenges, ensuring your projects are completed efficiently and successfully.

Driving Innovation in Overhead Power Cable Accessories

The power industry is constantly evolving, and EPCOM is committed to keeping pace with these changes. We actively monitor industry trends, new material developments, and evolving standards related to overhead power cables. This allows us to adapt our product offerings and explore innovative solutions that can bring tangible benefits to our customers, such as improved installation efficiency, enhanced durability, or better performance under challenging conditions. By choosing EPCOM, you partner with a forward-thinking supplier for your overhead power cable needs.

Conclusion: Powering the Future with Reliable Overhead Power Cable Systems

Overhead power cable systems are, and will continue to be, indispensable lifelines of our electrified world. From the robust conductors carrying immense electrical loads across continents to the intricate accessories that ensure their secure and safe operation, every component plays a vital role. As energy demands grow and the grid evolves to integrate more renewable sources and smart technologies, the importance of high-quality, reliable, and technologically advanced overhead power cable infrastructure only increases.

EPCOM is dedicated to supporting this critical sector by providing superior quality components, including specialized clamps and tools, designed for the unique demands of overhead power cable networks. Our commitment to excellence, combined with our industry expertise, makes us a trusted partner for utilities, contractors, and engineers working to build, maintain, and upgrade the overhead power lines that energize our communities and industries. By focusing on durable materials, precision engineering, and adherence to the highest safety and performance standards, EPCOM helps ensure that your investment in overhead power cable systems delivers lasting value and unwavering reliability for years to come. We invite you to explore our range of solutions and experience the EPCOM difference in powering a brighter future.

Similar Posts
