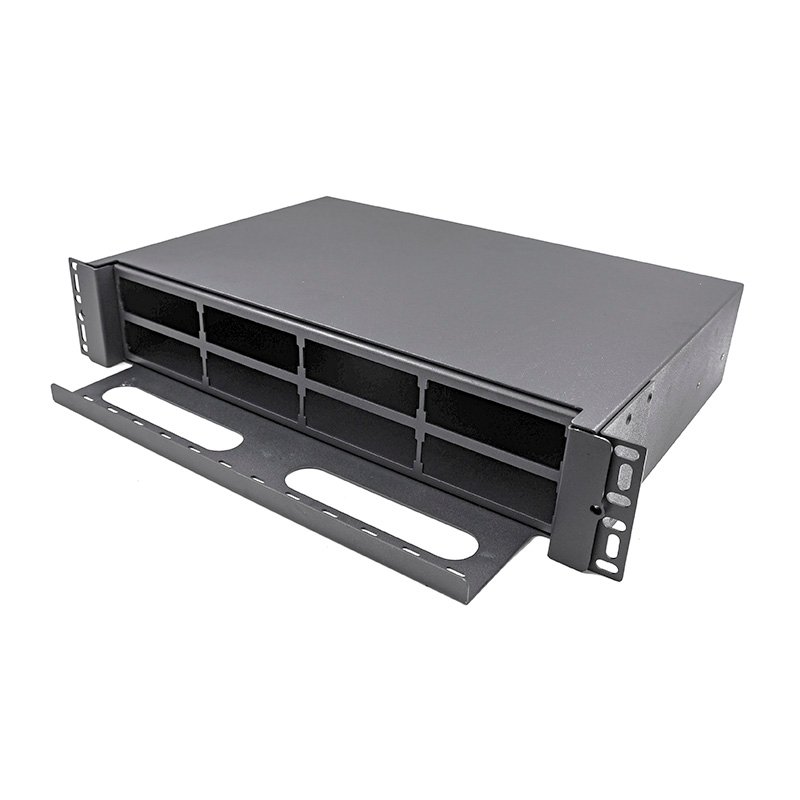

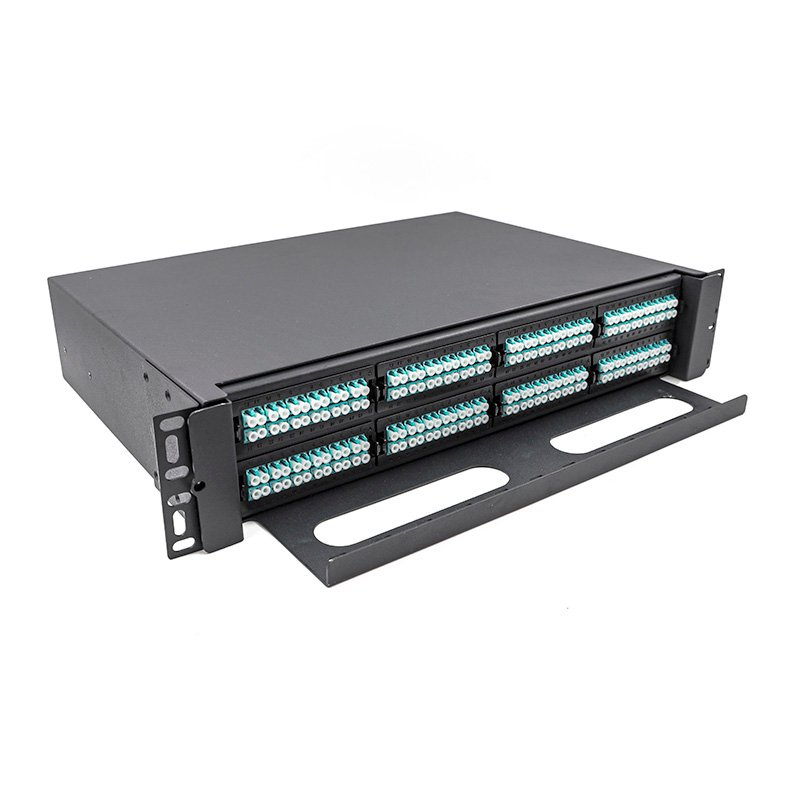

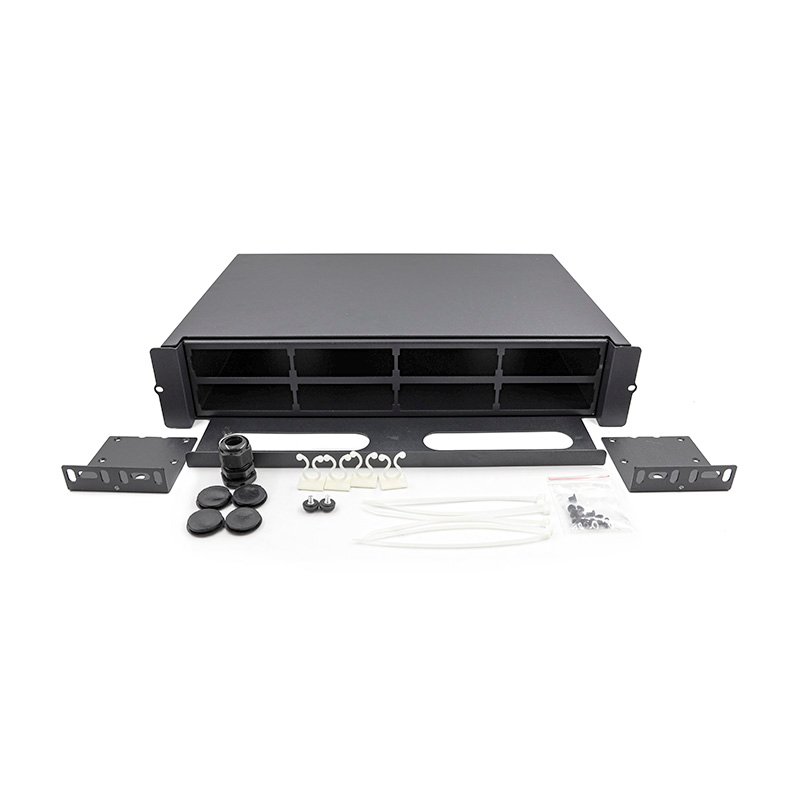

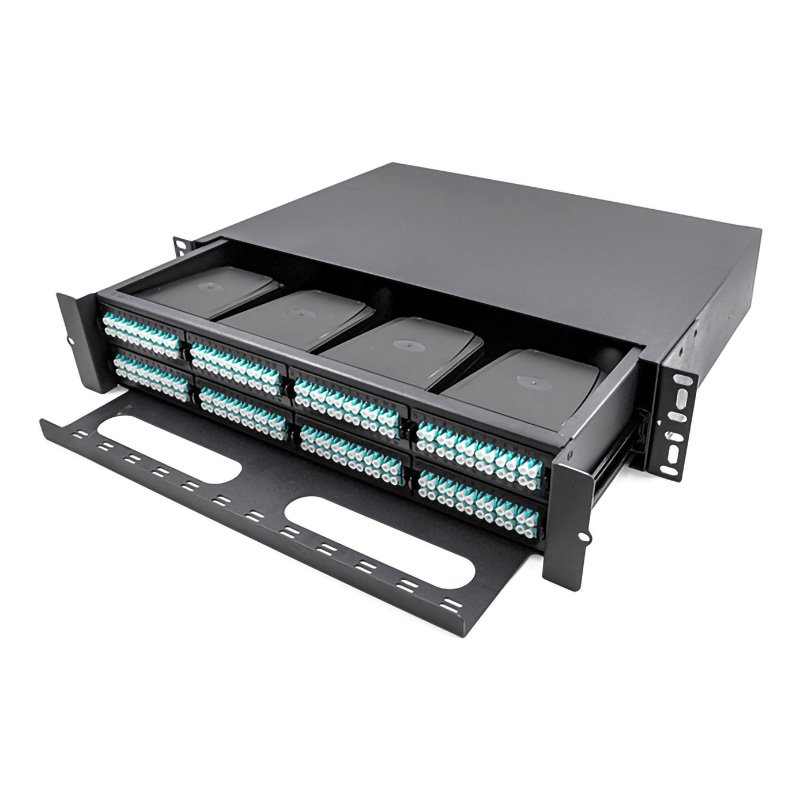

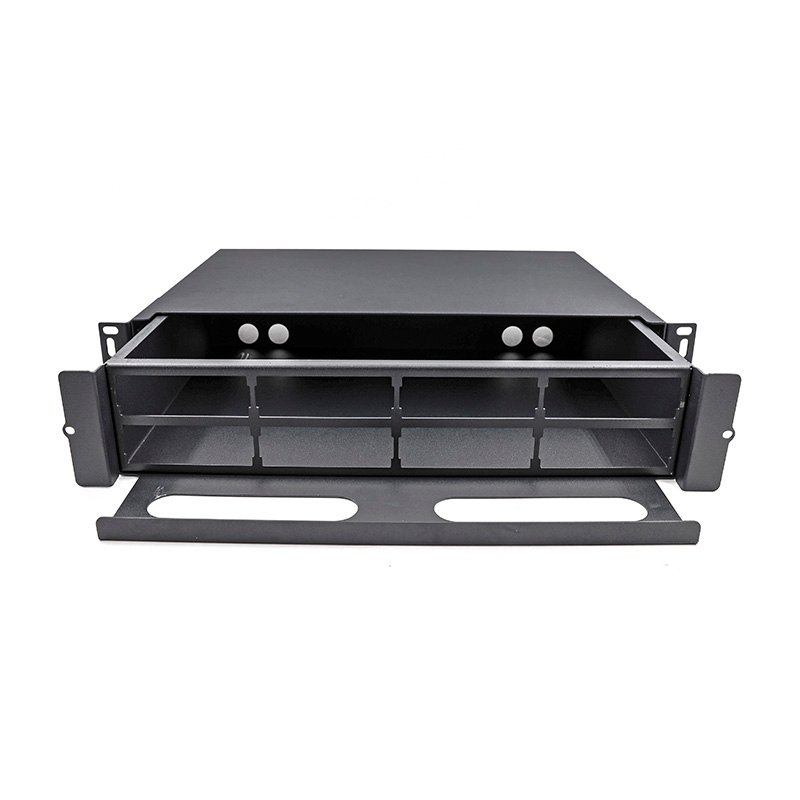

Rack Mount 2U MPO Patch Panel 192-384 Cores

The 2U MPO Patch Panel is a high-density fiber optic patch panel that is designed to save space and provide a cost-effective solution for connecting MPO trunks to LC duplex cables. The panel is made of durable steel and features a sliding drawer design for easy access to the ports. The panel is also compatible with a variety of MPO connector types, including LC, SC, and ST.

Description

2U MPO Patch Panel: A High-Density Solution for Data Center Networks

Features

High density: Up to 384 fibers per 2U rack unit

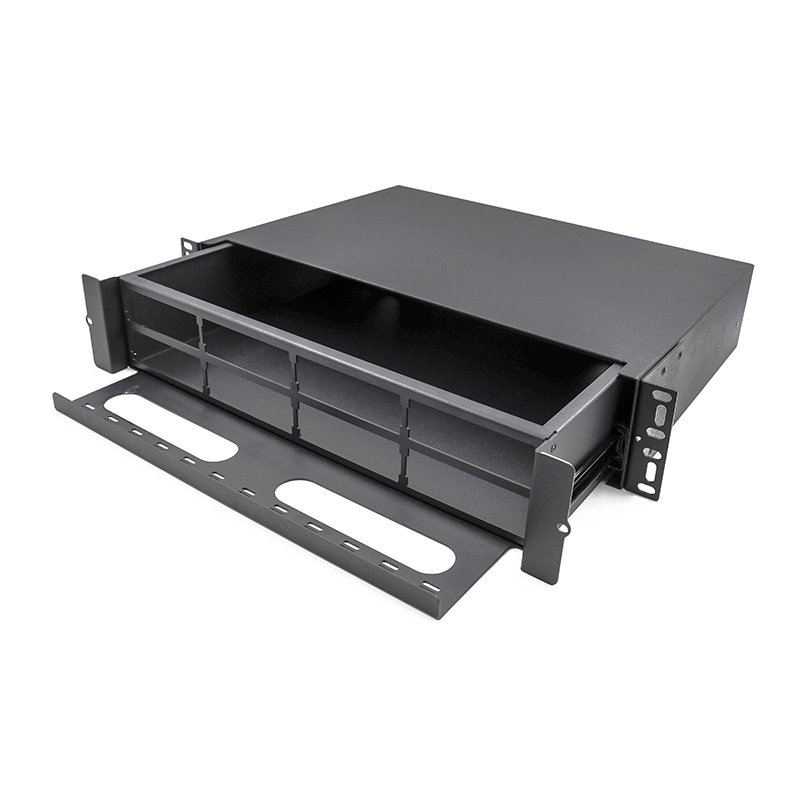

Space-saving: Sliding drawer design for easy access to ports
Versatile: Compatible with a variety of MPO connector types
Durable: Made of steel construction
Cost-effective: Provides a cost-effective solution for connecting MPO trunks to LC duplex cables

Applications

Data centers
Enterprise networks
Service provider networks
Fiber optic communication systems

Common Parameters

Parameter	Value
Ports	1U – 96~192 Core / 2U – 192~384 Core
Fiber type	OS2, OM3, OM4, OM5
Connector type	LC duplex, SC duplex, ST duplex
Insertion loss	< 0.35 dB
Return loss	> 60 dB
VFL test	Pass
Operating temperature	-40°C to +85°C
Storage temperature	-40°C to +90°C
Relative humidity	5% to 95% (non-condensing)

Benefits

High density: The 2U MPO Patch Panel can accommodate up to 384 fibers per 2U rack unit, which is significantly more than traditional patch panels. This makes it an ideal solution for high-density applications such as data centers and enterprise networks.
Space-saving: The sliding drawer design of the 2U MPO Patch Panel makes it easy to access the ports, even in tight spaces. This can save you valuable rack space and make it easier to manage your cabling.
Versatile: The 2U MPO Patch Panel is compatible with a variety of MPO connector types, including LC, SC, and ST. This makes it a versatile solution that can be used with a wide range of applications.
Durable: The 2U MPO Patch Panel is made of steel construction, which makes it durable and long-lasting. This is important for mission-critical applications where downtime is not an option.
Cost-effective: The 2U MPO Patch Panel is a cost-effective solution for connecting MPO trunks to LC duplex cables. This is because it uses a high-density design that reduces the amount of rack space required and the amount of cabling needed.
