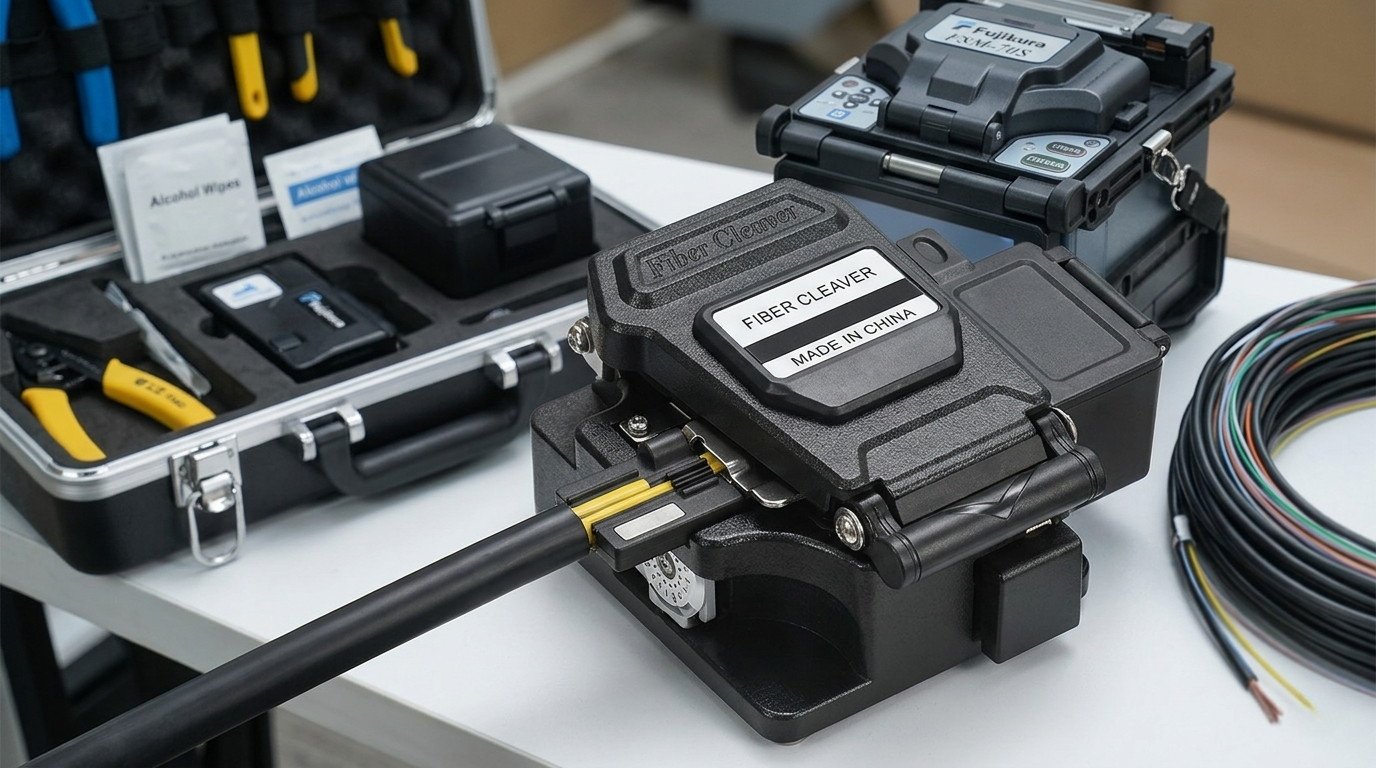

3-In-1 Fiber Cleaver High Precision Optical Cutter
The 3 In 1 Optical Fiber Cleaver is a high precision, compact, and durable tool that is designed for cleaving optical fibers. It is ideal for use in a variety of applications, including telecommunications, CATV, and fiber optic testing.
- Integrated 3-in-1 universal holder compatible with 250μm, 900μm, and flat drop cables.
- High precision tungsten steel blade providing a typical cleave angle of less than 0.5 degrees.
- Extended blade life with 16 rotatable positions supporting up to 48,000 total cleaves.
- Automatic blade return mechanism designed to improve field operation efficiency and speed.
- Durable aluminum alloy body with shock-resistant design for long-lasting industrial use.
Description
3-In-1 Fiber Cleaver is an essential instrument for professional telecommunication network construction and fiber maintenance. At EPCOM, we focus on providing tools that guarantee consistent performance in diverse field environments. This high-precision cleaver is specifically designed to handle various optical fibers, including 250μm, 900μm, and flat drop cables. By utilizing a multifunctional holder system, technicians can execute clean cuts without the need for additional tool adjustments. This versatility significantly boosts operational speed during fiber splicing projects.
Quality assurance remains our top priority at EPCOM. Our engineering team ensures that every blade is manufactured to provide a stable cleaving angle, typically maintaining a precision of less than 0.5 degrees. Such accuracy is vital for reducing optical return loss and ensuring the longevity of fiber links. Furthermore, the robust mechanical design complies with ITU-T G.652 standards, making it a reliable choice for international telecommunication infrastructures.
Key Advantages of the 3-In-1 Fiber Cleaver
The primary benefit of this device is its integrated holder that accommodates multiple fiber types. Whether you are working with single-mode fibers or multi-fiber ribbons, the holder provides a secure grip that prevents slippage. Consequently, the risk of fiber breakage during the cutting process is greatly minimized. EPCOM has also implemented an automatic blade return feature. This mechanism allows the operator to perform repetitive tasks with minimal physical fatigue, thereby enhancing overall project efficiency in large-scale deployments.
High Precision Performance of 3-In-1 Fiber Cleaver
To achieve a perfect end-face, the preparation phase is just as important as the cleave itself. We recommend using a 3 Ports Optical Fiber Stripper to remove the primary and secondary coatings before cleaving. The 3-In-1 Fiber Cleaver works best on clean, well-prepared fiber cores. By following this standard operating procedure, technicians can ensure that the cleave angle remains within the tightest tolerances required for modern high-speed data transmission.
Product Specifications
| Technical Parameter | Details and Range |
|---|---|
| Fiber Material | Standard Silica Glass |
| Fiber Count | Single fiber & Ribbon fiber (up to 12 cores) |
| Cladding Diameter | 125μm |
| Coating Diameter | 250μm to 900μm and 3mm flat cable |
| Cleave Angle | Typical 0.5 Degrees |
| Blade Durability | 48,000 Cleaves (16 positions × 3,000 each) |
| Cleave Length | 9-16mm (250μm) / 10-16mm (900μm) |
| Weight and Size | 260g / 60mm × 57mm × 46mm |
Professional Splicing with 3-In-1 Fiber Cleaver
For backbone networks and data center installations, high-quality fusion is mandatory. The 3-In-1 Fiber Cleaver is the perfect companion for our Digital Fiber Fusion Splicer. Once the fiber is cleaved, the digital splicer performs an automated end-face inspection. If the cut is perfect, the machine proceeds with the alignment and arc fusion. This combined solution ensures that every joint meets the stringent requirements of IEEE networking standards, providing peace of mind for network engineers.
In residential fiber-to-the-home (FTTH) projects, mechanical connectivity is often used to save time. The precision of the 3-In-1 Fiber Cleaver allows for seamless integration with the T-type SC Fast Connector. By providing a flat and debris-free fiber tip, the cleaver ensures that the optical path through the fast connector is unobstructed. EPCOM designs these tools to work in harmony, reducing the time spent on troubleshooting and re-terminating connectors in the field.
Maintenance Guidelines for 3-In-1 Fiber Cleaver
Proper maintenance of the 3-In-1 Fiber Cleaver is necessary to sustain its high performance over time. The tungsten steel blade is equipped with 16 rotatable positions. EPCOM suggests rotating the blade periodically after approximately 3,000 cleaves per position. This rotation ensures that you are always using a sharp cutting edge. Moreover, removing debris from the rubber pads and the blade edge with an lint-free swab soaked in isopropyl alcohol will prevent accuracy issues.
The body of the cleaver is constructed from high-strength aluminum alloy, offering excellent durability against accidental drops. However, it is still a precision instrument. EPCOM provides a dedicated protective case for each unit to shield the 3-In-1 Fiber Cleaver from dust and moisture when not in use. Regular inspection of the sliding rails will ensure that the cutting motion remains smooth and fluid. By following these simple maintenance steps, you can ensure that your tool remains a reliable asset for many years.
Trust EPCOM for Fiber Solutions
As a leading provider of fiber optic equipment, EPCOM is dedicated to innovation and customer satisfaction. The 3-In-1 Fiber Cleaver is a testament to our commitment to quality. We offer comprehensive technical support and a global supply chain to meet your project deadlines. Whether you are building local networks or global backbones, our tools provide the precision you need to succeed.
