3U MPO/MTP Patch Panel: High-Density 288 Fiber

Core Functionality of the EPCOM 3U MPO/MTP Patch Panel

As networks evolve toward 100G, 400G, and beyond, the need for dense, manageable fiber terminations is paramount. This panel offers a comprehensive platform for integrating multi-fiber MPO/MTP trunks into systems utilizing standard duplex connectors. The modular design is a key feature, supporting up to 12 separate modules or cassettes within its 3U profile. This modularity allows network engineers to deploy fiber incrementally, scaling capacity precisely as needed without requiring large, initial capital investments. Furthermore, the panel’s structure facilitates standardized polarity management, which is critical for maintaining signal integrity in parallel optics applications.

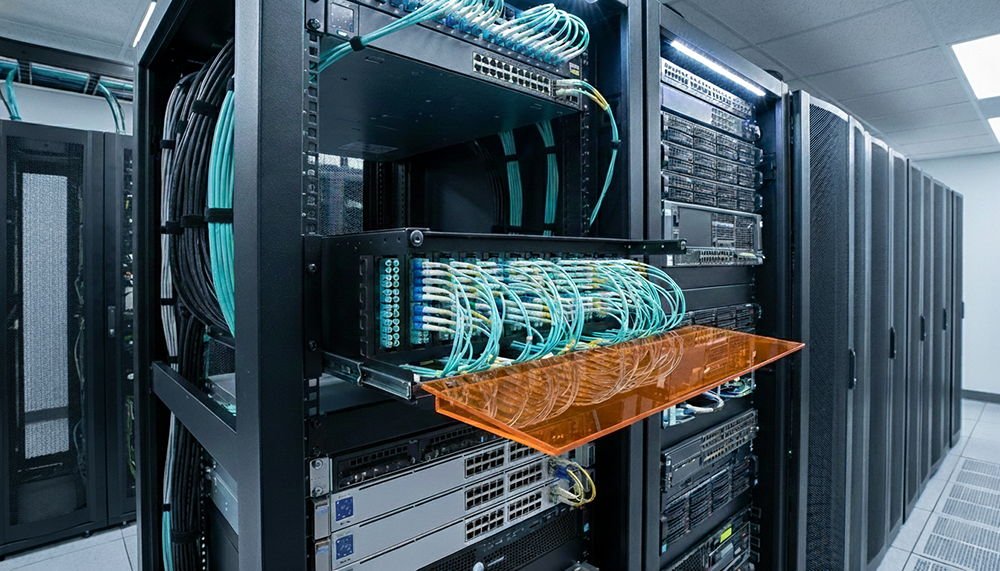

The robust construction of this 3U MPO/MTP Patch Panel is optimized for 19-inch rack installations. It ensures long-term physical protection for thousands of fiber termination points. Access to the fiber optic connections is made easy through a sliding tray mechanism. This unique sliding feature simplifies all installation, inspection, and maintenance procedures. It eliminates the need to dismantle adjacent equipment, saving valuable downtime and labor costs during operational hours.

Modular Design and High-Density Benefits of the 3U MPO/MTP Patch Panel

High-density environments necessitate solutions that conserve rack space without compromising performance. EPCOM’s modular approach provides a superior solution. Each of the 12 slots is designed to accept either an MPO/MTP cassette or an adapter panel, depending on the network architecture requirements.

The primary components that integrate with this solution are the MPO/MTP Module Cassette. These cassettes serve as the bridge between multi-fiber backbone cables and the individual LC or SC patch cords connected to servers and switches. Using pre-terminated cassettes guarantees factory-tested performance, drastically reducing on-site termination complexity and minimizing potential insertion loss issues. The plug-and-play nature supports rapid deployment for time-sensitive infrastructure upgrades.

Another essential element is the high-performance MPO/MTP Patch Cord. These cords are used to connect the cassettes within the panel to the active equipment. EPCOM ensures these patch cords meet stringent industry specifications for both single-mode and multi-mode applications, guaranteeing that the end-to-end link performance is maintained across the entire cabling plant. The entire system is built to align with global standards, which is vital for multinational deployment. For a detailed look into the physical and optical characteristics of these connectors, consult the TIA/EIA 604-5 Type MPO standard.

This modular system allows for high scalability. A single 3U MPO/MTP Patch Panel can manage hundreds of fiber connections. This consolidation is crucial in data centers where every rack unit (RU) of space must be optimized for revenue-generating equipment. The overall density achieved simplifies cable routing and reduces the volume of patch cables, improving airflow and lowering cooling costs within the cabinet.

Robust Construction and Ease of Maintenance

The longevity and reliability of a fiber management solution depend heavily on its construction. EPCOM utilizes high-quality, cold-rolled steel for the enclosure of the 3U Patch Panel, providing exceptional structural integrity and protection against physical damage. The finish is typically a black powder coating, offering excellent durability and corrosion resistance.

Effective cable management features are integrated throughout the panel design. These include dedicated fiber routing guides and strain relief mechanisms for the incoming trunk cables. Proper strain relief is mandatory to prevent micro-bending of the delicate fiber optic cables, which can lead to significant signal degradation and network performance issues. Furthermore, the cable management system minimizes clutter, ensuring that technicians can easily identify and trace specific fiber runs.

In terms of maintenance, the sliding tray is complemented by accessible MPO/MTP ports and clearly labeled areas for documentation. This user-centric design minimizes the potential for human error during crucial network changes. The ability to safely and swiftly move the entire panel assembly out of the rack facilitates inspection of rear MPO/MTP connections without interrupting the services of adjacent equipment.

To ensure performance following installation or maintenance, an indispensable tool is the MPO/MTP Optical Power Meter. This specialized equipment allows technicians to verify the insertion loss of multi-fiber connections, confirming that the entire fiber channel, including the 3U MPO/MTP Patch Panel and its components, meets the required optical budget for high-speed transmission protocols. Integrating professional testing equipment ensures a guaranteed, high-performance network link.

Comprehensive Ecosystem Integration and Performance Assurance

The EPCOM 3U MPO/MTP solution is not an isolated product but a cornerstone of a complete, high-speed fiber ecosystem. Its design ensures compatibility with standard 19-inch rack infrastructure, making it a universal fit for almost any data center or telecommunications environment worldwide. The inherent flexibility means it supports various fiber types, including OS2 single-mode, and OM3/OM4/OM5 multi-mode, catering to different distance and bandwidth requirements.

For deployments aiming at the highest throughput, such as 400 Gigabit Ethernet, the ability to manage complex MPO/MTP polarity schemes (Method A, B, or C) within the panel is crucial. The density offered by the 3U MPO/MTP Patch Panel simplifies the deployment of parallel optics technology, supporting protocols like 400GBASE-SR8, which requires high fiber counts and strict polarity alignment. Learn more about the specific requirements for these high-speed physical layers in the IEEE 802.3 Standard for Ethernet.

By minimizing the number of individual connections required for high-fiber counts, MPO/MTP panels significantly reduce the total link loss budget compared to traditional patching methods. This results in cleaner signal transmission and greater margin for future high-speed upgrades. The precision-engineered components, when paired with EPCOM’s pre-terminated cables and cassettes, guarantee low insertion loss across all channels.

The Critical Role of the 3U MPO/MTP Patch Panel in Next-Gen Networks

In a modern hyperscale data center, the efficient use of space translates directly into profitability. The 3U MPO/MTP Patch Panel allows administrators to aggregate the connectivity of numerous network switches, storage devices, and servers into a manageable footprint. This consolidation is vital for managing the sheer volume of data traffic generated by virtualization, cloud computing, and AI workloads.

This product is specifically employed in:

• **Data Center Migration:** Facilitating smooth, high-speed migration paths from 10G to 40G, 100G, and 400G.
• **Telecommunications:** Serving as the central fiber hub in Central Offices (COs) and large enterprise network aggregation points.
• **Storage Area Networks (SANs):** Providing reliable, high-bandwidth interconnectivity for Fibre Channel and other critical SAN protocols.

The use of this high-density panel streamlines the process of moves, adds, and changes (MACs). Because the majority of fiber is terminated via multi-fiber MPO/MTP connectors at the rear, network changes on the front side only require manipulation of easily accessible patch cords, preventing accidental disconnection of backbone fibers. This ensures maximum network uptime and simplifies operational workflow.

Why EPCOM is the Trusted Partner for Your 3U MPO/MTP Patch Panel Needs

EPCOM is committed to delivering network solutions that combine performance, reliability, and ease of use. Our expertise in high-density fiber optics ensures that the 3U MPO/MTP Patch Panel is engineered to exceed industry expectations. We understand that infrastructure investment requires long-term peace of mind.

Our rigorous quality assurance process covers every aspect of the product, from the choice of cold-rolled steel to the precise alignment of the MPO/MTP adapters within the chassis. This attention to detail guarantees a product that is physically durable and optically superior. Partner with EPCOM to leverage the full potential of your high-speed network infrastructure, ensuring that your data center remains agile and future-proof.

The total fiber management capacity and robust feature set of the EPCOM 3U MPO/MTP Patch Panel provide a cost-effective path to high-density networking. It represents the perfect fusion of density, modularity, and simplified maintenance.
