ABC Cable for Aerial Installation

Description

ABC Cable systems consist of several insulated phase conductors bundled together, often with a neutral messenger wire which may also support the structure. Unlike bare conductor systems, the insulation on ABC cables prevents accidental contact and significantly reduces the risk of electrical faults caused by clashing conductors or contact with vegetation. Consequently, this makes aerial bundled conductors an ideal choice for deployment in diverse environments, ranging from dense urban settings to challenging rural terrains.

Advantages of Using Aerial Bundled Cable

Choosing EPCOM’s ABC Cable for your overhead power distribution projects provides numerous tangible benefits:

• Enhanced Safety: The primary advantage is improved safety. The insulated cores minimize the risk of electric shock upon accidental contact and reduce the chances of short circuits caused by wind or falling objects.
• Increased Reliability: ABC cables are less susceptible to faults caused by clashing conductors during high winds or contact with tree branches. This leads to fewer power outages and a more stable power supply network.
• Lower Maintenance Costs: Reduced fault rates and less need for aggressive vegetation management translate directly into lower long-term maintenance expenditures for utility providers.
• Simplified Installation: While requiring specific accessories, the bundled nature can simplify installation compared to multiple bare wires. Fewer attachment points may be needed on poles.
• Improved Aesthetics: A single bundled cable presents a neater appearance compared to multiple bare conductors, which is particularly beneficial in urban and residential areas.
• Theft Deterrence: The insulated construction makes electricity theft more difficult compared to easily tapped bare conductors.
• Weather Resistance: The insulation, typically made from durable materials like XLPE or PE, provides excellent resistance to UV radiation, moisture, and varying temperatures.

Key Features of EPCOM’s ABC Cable

EPCOM’s commitment to quality ensures our LV aerial bundled cable products meet rigorous industry standards. Key features include:

• High-Quality Conductors: We utilize stranded aluminum (AAC), aluminum alloy (AAAC), or aluminum conductor steel reinforced (ACSR) for phase and neutral conductors, ensuring optimal conductivity and mechanical strength.
• Durable Insulation: Our cables feature robust XLPE (Cross-linked Polyethylene) or PE insulation, providing excellent dielectric strength, abrasion resistance, and long-term performance in outdoor environments.
• Compliance with Standards: Our products are manufactured and tested in accordanceance with international standards such as IEC 60502-1 (as referenced by the International Electrotechnical Commission), NFC 33-209, BS 7870, or equivalent specifications, ensuring compatibility and reliability.

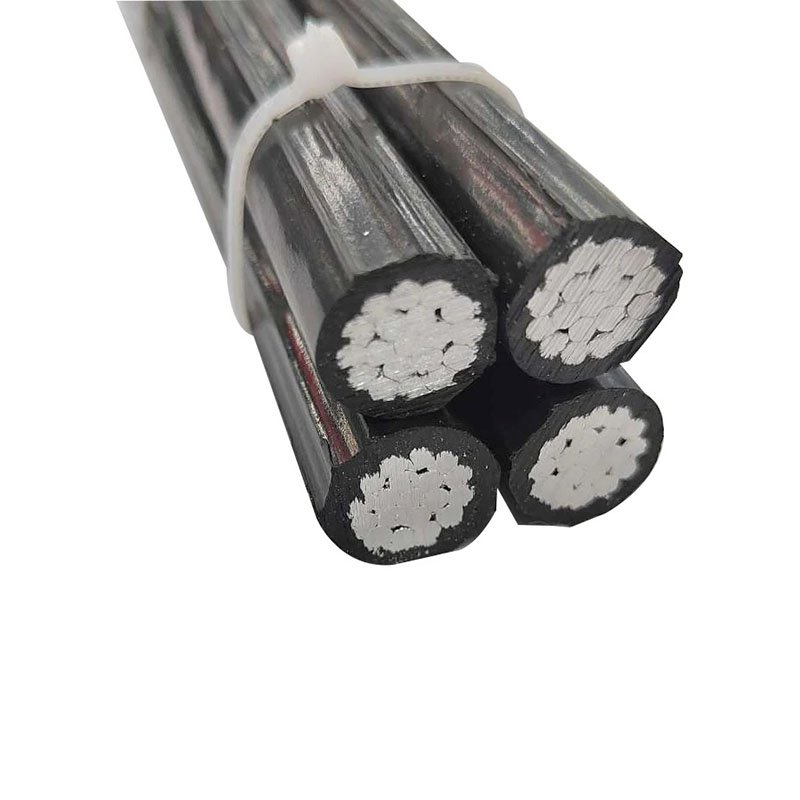

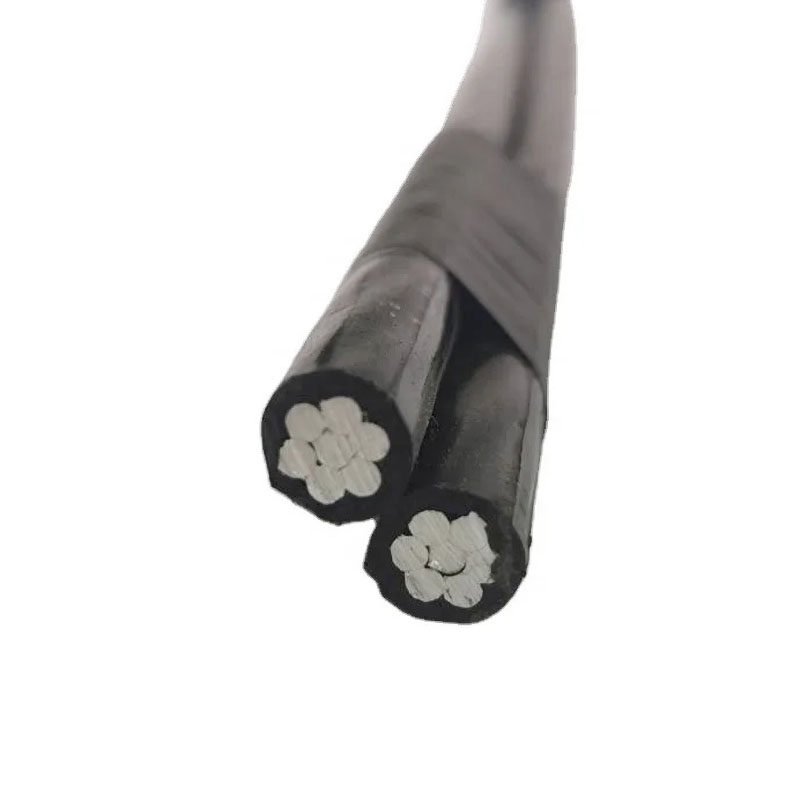

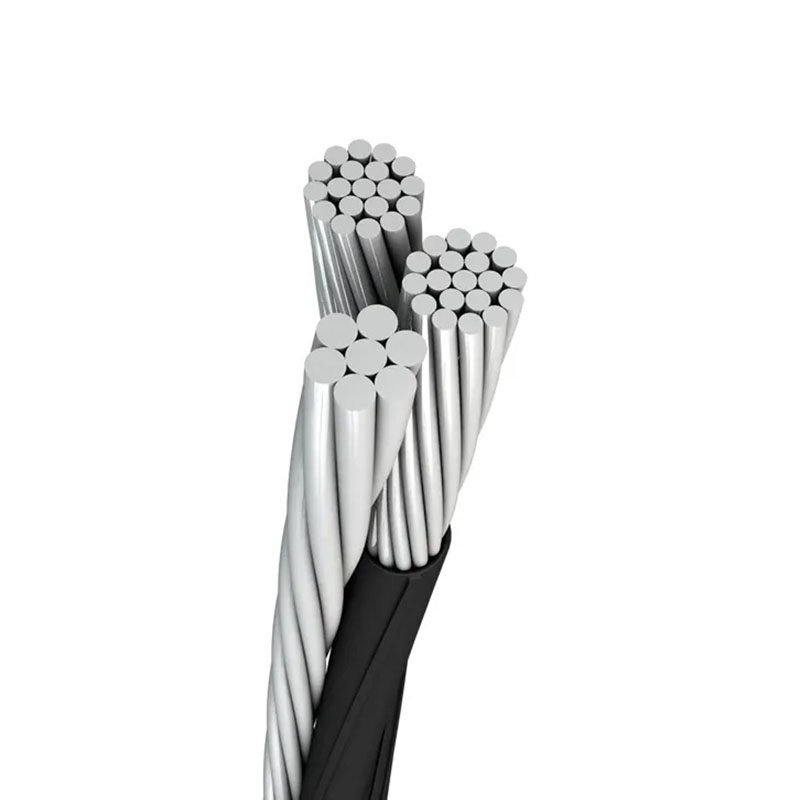

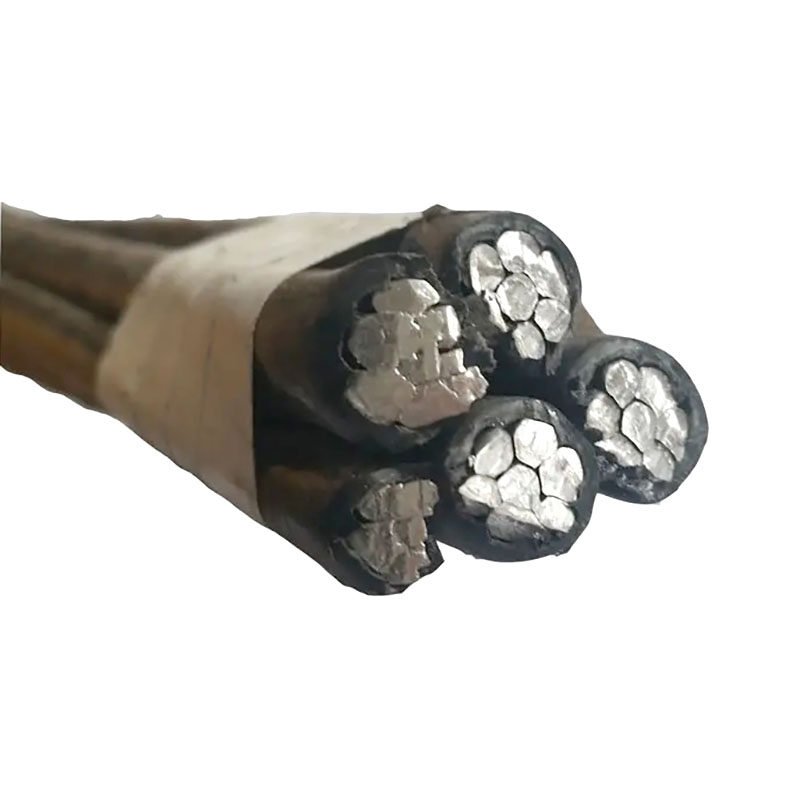

• Versatile Configurations: We offer various configurations including Duplex, Triplex, and Quadruplex service drop cables, as well as multi-core distribution cables to suit diverse application needs.

Applications for Aerial Bundled Conductors

The versatility and benefits of ABC Cable make it suitable for a wide array of applications in modern overhead power distribution systems:

• Low Voltage distribution networks in urban, suburban, and rural areas.
• Service connections (service drops) from distribution lines to individual buildings.
• Temporary power supply for construction sites or events.
• Street lighting systems.
• Installations in areas with dense vegetation where tree trimming is difficult or costly.
• Upgrading existing bare wire systems to improve safety and reliability.

Essential Accessories for ABC Cable Installation

A successful and long-lasting ABC Cable installation relies on the use of appropriate, high-quality accessories. EPCOM provides a comprehensive range of components designed to work seamlessly with our aerial bundled conductors, ensuring mechanical integrity and electrical safety. For reliable conductor joining and tapping, our H-Type Parallel Groove Connectors offer excellent electrical contact and corrosion resistance.

Furthermore, maintaining the structural stability of the overhead lines is crucial. EPCOM supplies robust Stay Wire (also known as Guy Wire) assemblies, engineered to withstand mechanical stresses and environmental factors, ensuring poles remain secure. Equally important is the insulation and support system. Our high-grade Porcelain Pin Insulators provide reliable electrical insulation and mechanical support for the conductors, contributing significantly to the overall safety and longevity of the power line installation.

Technical Specifications Overview

EPCOM offers ABC Cable in various configurations to meet diverse project needs. Key parameters include:

Product Type	Available Core Configurations	Phase Conductor Cross-section (mm²)
ABC Cable	1, 2, 4, 4+2 1+k, 2+k, 3+k 1+k+16, 2+k+16, 3+k+16	10 – 185

Note: ‘k’ typically denotes the neutral messenger conductor. ‘+16’ may indicate an additional smaller conductor (e.g., for street lighting). The cross-section range refers to the main phase conductors. Please contact EPCOM for specific configurations, detailed datasheets, and applicable standards (e.g., IEC, NFC, BS, ASTM).

Commitment to Quality

At EPCOM, quality is paramount. Our ABC Cable products undergo rigorous testing throughout the manufacturing process to ensure they meet or exceed international standards and customer expectations. From raw material inspection to final product verification, we implement strict quality control measures. This commitment ensures that you receive reliable, durable, and safe aerial bundled cable solutions for your critical power infrastructure projects.

Choosing EPCOM means partnering with a supplier dedicated to providing high-quality aerial bundled conductors and comprehensive support. Contact us today to discuss your specific requirements and discover how our ABC cable solutions can enhance the safety and efficiency of your overhead power lines.
