High-Performance ACS Conductor for Power Systems

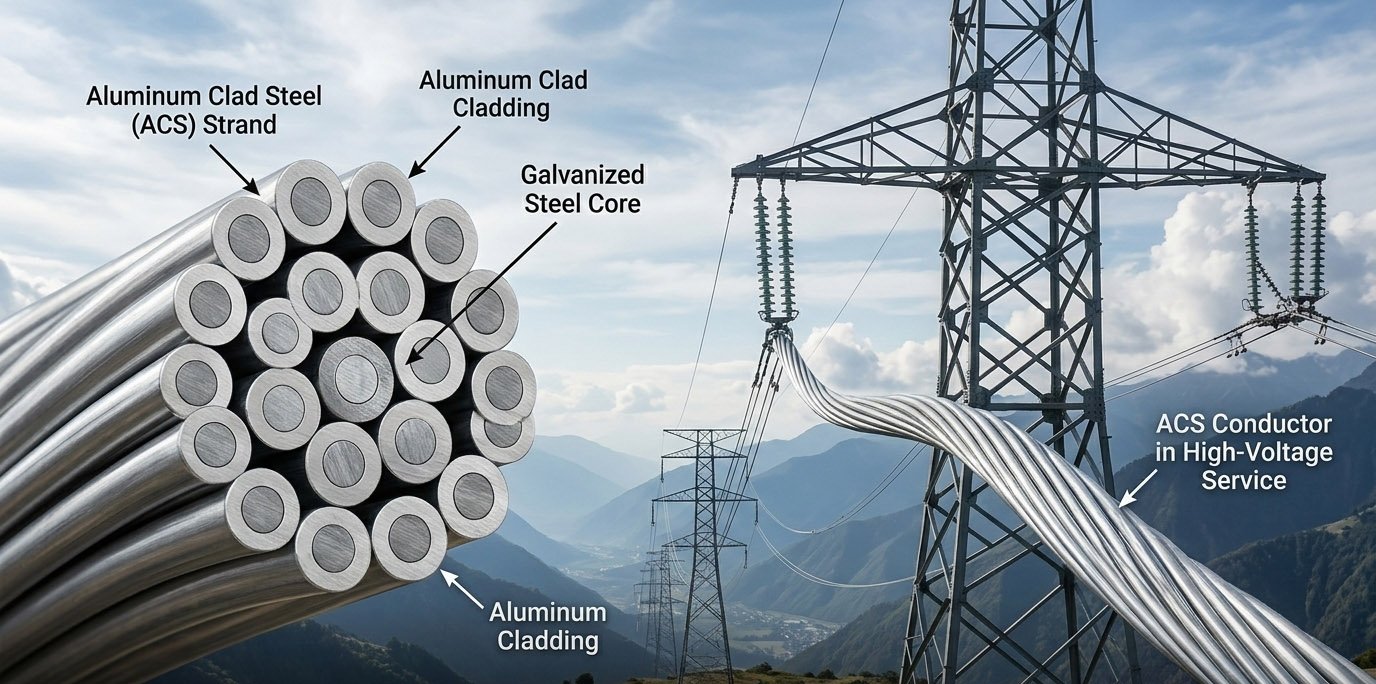

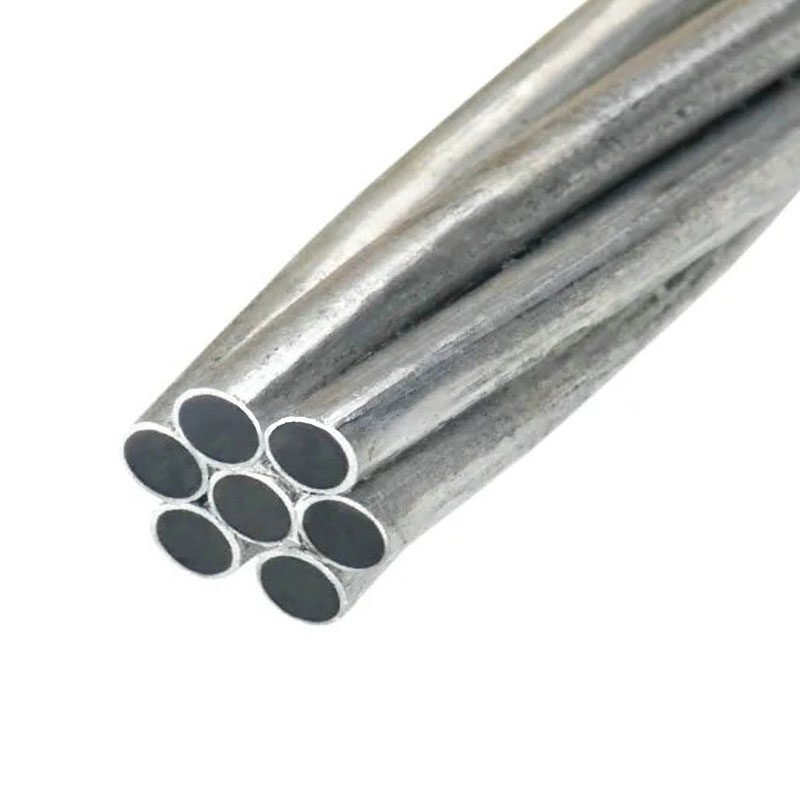

ACS conductor, also known as Aluminum Clad Steel Reinforced, is a type of electrical conductor that is made up of a steel core that is clad with aluminum. The aluminum cladding provides the conductor with excellent corrosion resistance, while the steel core provides it with strength.
- High Strength: Steel core provides superior tensile strength for long-span power lines.
- Corrosion Proof: Thick aluminum cladding offers a 50+ year life in harsh environments.
- Thermal Stability: Maintains structural integrity and safety clearances during peak thermal loads.
- High Efficiency: Lower electrical resistance reduces energy loss compared to traditional cables.
- Advanced Bonding: Metallurgical bond prevents galvanic corrosion for maximum network reliability.
Description
ACS Conductor solutions provided by EPCOM represent the pinnacle of modern electrical engineering. These Aluminum Clad Steel conductors are specifically designed to meet the rigorous demands of overhead transmission and distribution lines. By integrating high-strength steel with a protective aluminum layer, this product ensures exceptional durability in harsh environments. EPCOM remains committed to delivering infrastructure components that balance mechanical reliability with electrical efficiency.
In contemporary power grids, the choice of wiring material significantly impacts long-term operational costs. Consequently, engineers prioritize materials that offer low electrical resistance and high corrosion resistance. The unique metallurgical bond in this conductor type provides a seamless transition between the steel core and the aluminum cladding. This construction effectively prevents galvanic corrosion, which is a common failure point in traditional reinforced cables.

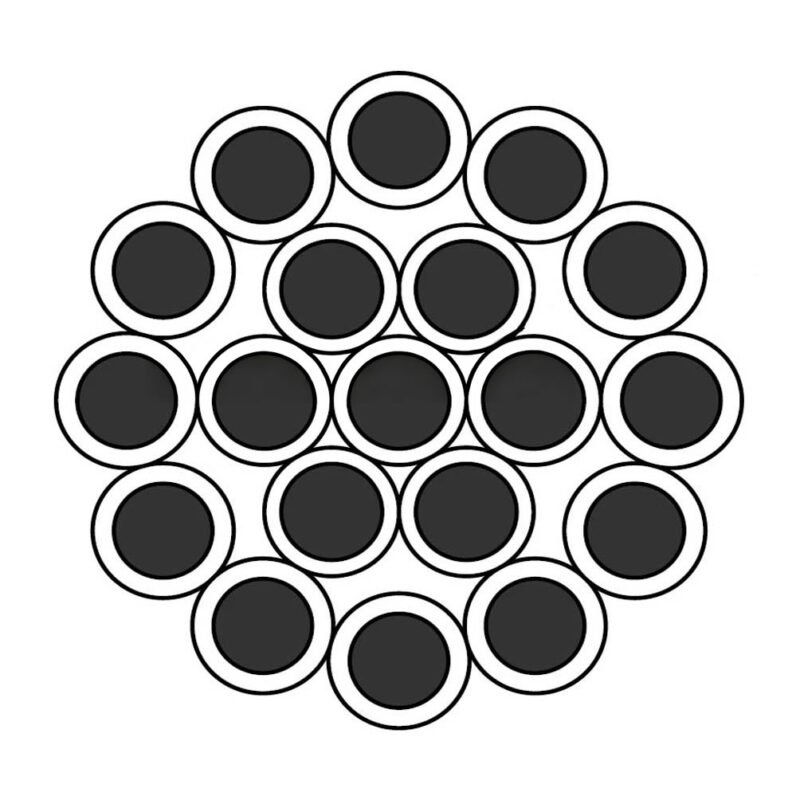

The Structural Advantages of ACS Conductor
One of the primary benefits of using an ACS Conductor is its superior strength-to-weight ratio. The steel core provides the necessary tensile strength to support long spans across challenging terrains. Meanwhile, the thick aluminum cladding ensures high conductivity for efficient power transmission. Furthermore, this dual-layered design allows for reduced sag under heavy thermal loads, ensuring safety clearances are maintained at all times.
Moreover, the thermal stability of these materials is noteworthy. Unlike standard alternatives, these conductors maintain their integrity during peak demand periods when temperatures rise. As a result, utility providers can increase the current-carrying capacity of existing lines without compromising structural safety. EPCOM utilizes advanced manufacturing processes to ensure every meter of cable meets international ASTM standards for metallurgical consistency.
Superior Corrosion Resistance in ACS Conductor
Corrosion remains the greatest threat to the longevity of overhead power lines, particularly in coastal or industrial regions. In these areas, airborne salts and pollutants rapidly degrade standard galvanized steel. However, the aluminum cladding on an ACS Conductor acts as a permanent barrier. This protective layer is significantly thicker than traditional zinc coatings, providing a service life that often exceeds fifty years.
To ensure a complete and reliable installation, EPCOM recommends pairing these conductors with high-quality hardware. For instance, using a professional Suspension Clamp is essential for managing mechanical stress at support points. These components are engineered to distribute pressure evenly, preventing localized damage to the conductor surface. Additionally, for termination points, the Anchoring Clamp provides the high-grip strength required for dead-end structures.
Technical Specifications and Parameters
Understanding the technical nuances is vital for proper network planning. EPCOM provides a wide range of cross-sectional areas to suit diverse voltage levels and span requirements. Below are the key physical and electrical parameters for standard configurations.
| Property Description | Unit of Measure | Technical Value |
|---|---|---|
| Conductivity (IACS) | % | 20.3% – 40% |
| Density at 20°C | g/cm³ | 6.53 – 6.64 |
| Modulus of Elasticity | GPa | 162 – 165 |
| Thermal Expansion Coeff. | 10⁻⁶/°C | 12.9 – 13.2 |
| Tensile Strength Range | MPa | 1000 – 1340 |
| Aluminum Thickness | % of Radius | Minimum 10% |
Optimizing Network Reliability with ACS Conductor
The implementation of ACS Conductor technology contributes significantly to the overall stability of the power grid. Because these conductors have a lower resistance than traditional steel cores, energy loss during transmission is greatly reduced. This efficiency is a core requirement for utilities following IEEE guidelines for sustainable energy delivery.
Installation efficiency is another factor to consider. Although the material is highly durable, it remains flexible enough for standard stringing methods. EPCOM ensures that the surface finish is smooth to minimize corona discharge and radio interference. For branch connections, we recommend using the Parallel Groove Connector, which is specifically designed to provide a secure electrical path without deforming the conductor strands.
Installation and Maintenance Best Practices
Proper handling during the stringing process is crucial for maintaining the performance of the cable. EPCOM advises contractors to use tension-controlled equipment to avoid over-stretching the aluminum layer. Additionally, periodic inspections should be conducted to ensure that all fittings, such as the Tension Clamp, remain tight and free from debris.
Furthermore, selecting the right accessories helps in mitigating vibration damage. Aeolian vibrations can lead to fatigue failure over time if not properly dampened. The inherent mechanical properties of the ACS Conductor help absorb some of this energy, but specialized dampers are still recommended for high-tension spans. EPCOM provides comprehensive technical support to assist clients in selecting the appropriate hardware suite for their specific environmental conditions.
In conclusion, EPCOM stands as a leading provider of high-quality transmission solutions. By choosing our Aluminum Clad Steel products, you are investing in a future-proof infrastructure. Whether you are upgrading an existing line or constructing a new high-voltage network, our team is ready to provide the expertise and products necessary for success. We invite you to contact us for detailed quotes and customized engineering solutions tailored to your project requirements.
