Black Plastic Suspension Clamp for Overhead Cable
The Black Plastic Suspension Clamp is a versatile tool that can be used for a variety of purposes. It is made of high-quality materials and is easy to use. The clamp is also very durable and can withstand a lot of wear and tear.
- High-strength UV-resistant reinforced plastic body ensures long-term outdoor durability.
- Excellent dielectric properties prevent electrical tracking in high-voltage environments.
- Ergonomic design allows for quick installation on short spans without specialized tools.
- Safe mechanical structure protects ADSS cables from micro-bending and jacket damage.
- Corrosion-proof polymer material is ideal for coastal and polluted industrial regions.
Description

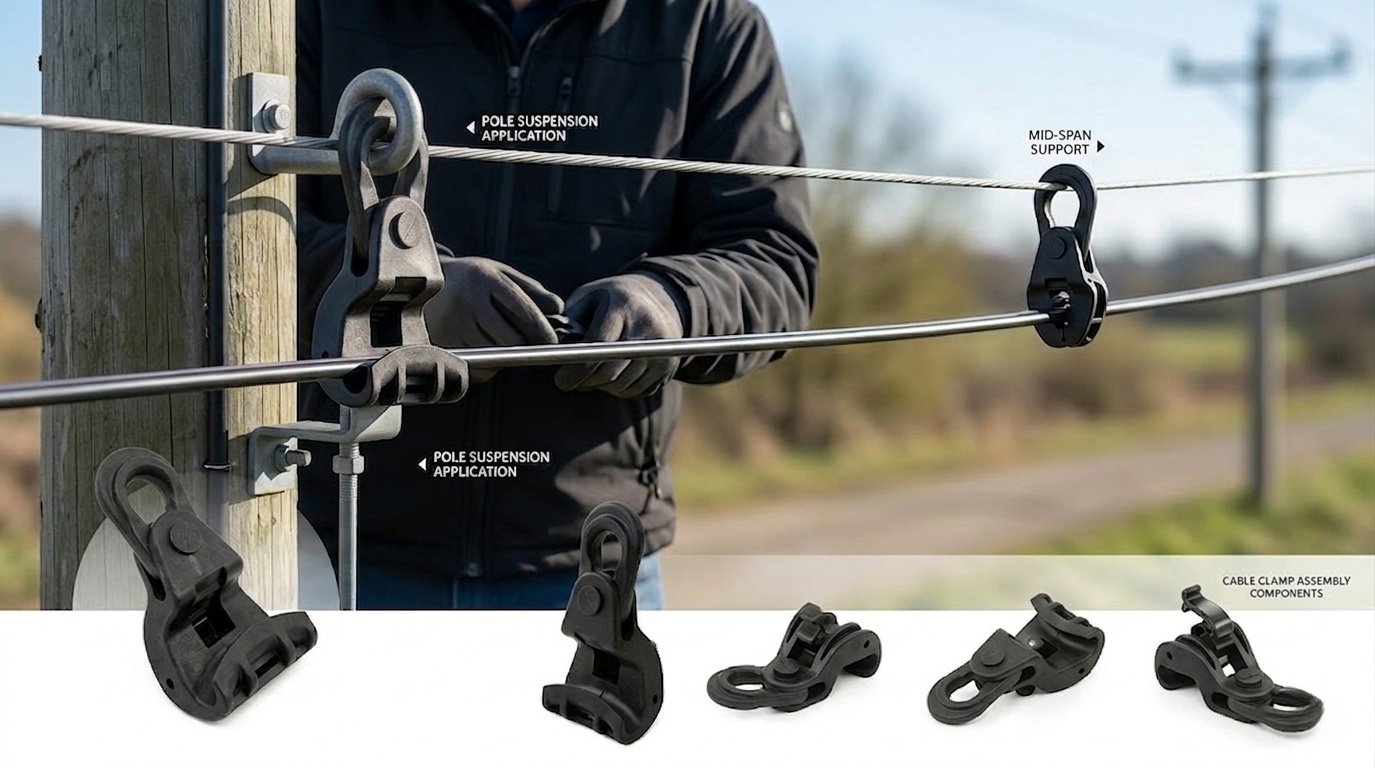

Black Plastic Suspension Clamp products are essential components in modern aerial fiber optic deployments. EPCOM provides these high-performance clamps to support All-Dielectric Self-Supporting (ADSS) cables on short spans. This specific hardware ensures that the cable remains securely suspended without causing long-term mechanical fatigue. By utilizing UV-resistant materials, our clamps withstand harsh environmental conditions globally.
The structural integrity of an aerial network depends on the quality of its support fittings. Aerial installations face constant tension, wind vibration, and temperature fluctuations. EPCOM designs every plastic clamp to mitigate these stresses effectively. Our engineering team prioritizes long-term reliability for telecommunication service providers and utility companies.
Technical Features of Black Plastic Suspension Clamp
Durability is the hallmark of the EPCOM suspension solution. Each clamp consists of a high-strength plastic body reinforced with glass fiber. This material choice provides excellent dielectric properties and mechanical strength. Consequently, it prevents electrical tracking in high-voltage environments where ADSS cables are often deployed.
Furthermore, the ergonomic design allows for rapid installation without specialized tools. The locking mechanism secures the cable firmly yet gently. This balance protects the delicate optical fibers inside the jacket. Maintaining the signal integrity of IEEE standard compliant networks is our top priority.
| Specifications Parameter | Detailed Data |
|---|---|
| Material | UV-Resistant Reinforced Nylon/Plastic |
| Applicable Cable Diameter | 10mm – 20mm (Standard range) |
| Breaking Load (Min) | 4.5 kN |
| Span Length | Up to 100 Meters |
| Installation Type | Hook or J-Hook Support |
| Working Temperature | -40°C to +70°C |
Integrated Solutions for Fiber Management
A complete aerial installation requires more than just a single clamp. EPCOM suggests a holistic approach to pole line hardware selection. For instance, when mounting equipment on concrete or wooden poles, you must utilize high-quality fasteners. Our stainless steel strap provides the necessary tension to hold brackets in place under heavy loads.
Moreover, the choice of bracket influences the stability of the entire span. We recommend the UPB pole bracket for its versatility and durability. This bracket pairs perfectly with the Black Plastic Suspension Clamp to create a reliable pivot point for the cable. Using matched components reduces the risk of mechanical failure during extreme weather events.
The Importance of Cable Protection and Support
One critical aspect of using a Black Plastic Suspension Clamp is protecting the cable contact area. While the clamp itself is designed to be gentle, additional reinforcement is often necessary for long-term health. EPCOM provides preformed armor rods that wrap around the cable before inserting it into the clamp. This layer distributes the clamping pressure and prevents micro-bending losses in the glass fibers.
Proper tension management is essential for network longevity. If a cable is too loose, wind can cause excessive galloping. Conversely, if it is too tight, the structural load increases significantly. EPCOM hardware is tested to meet international ISO quality standards to ensure safety. Our clients rely on these integrated solutions to minimize maintenance costs over the system’s 25-year lifecycle.
Installation Guidelines for Black Plastic Suspension Clamp
Efficiency in the field is a major advantage of the EPCOM design. The installation process begins by securing the bracket to the pole. Once the bracket is firm, the suspension clamp is attached via a hook or bolt. The technician then opens the clamp and places the ADSS cable inside the protective groove.
Actually, the simplicity of the Black Plastic Suspension Clamp reduces the training time for ground crews. No complex torque settings are required for these specific plastic models. However, technicians should always verify that the cable is centered within the clamp. This alignment ensures that the load is balanced across the internal surface area.
In coastal regions or areas with high industrial pollution, material choice becomes even more vital. EPCOM uses specialized polymers that resist salt spray and chemical corrosion. Our black plastic hardware does not rust, making it a superior choice over traditional metal clamps in specific environments.
Why Choose EPCOM Black Plastic Suspension Clamp?
EPCOM stands at the forefront of telecommunication infrastructure supply. We understand that every project has unique requirements and budget constraints. Our manufacturing process combines cost-efficiency with uncompromising quality control. By choosing our suspension solutions, you are investing in the stability of your communication backbone.
Our global supply chain ensures that components arrive on time for critical project deadlines. We provide comprehensive technical support to help you select the right accessories for your specific ADSS cable type. Whether you are building a rural network or an urban smart city grid, EPCOM has the expertise to guide you.
In conclusion, the Black Plastic Suspension Clamp is a small but vital link in the fiber optic chain. When combined with our straps, brackets, and armor rods, it forms a robust system. Trust EPCOM to deliver the reliability your subscribers expect. Contact our sales team today for detailed quotations and technical consultations regarding your next aerial deployment.
