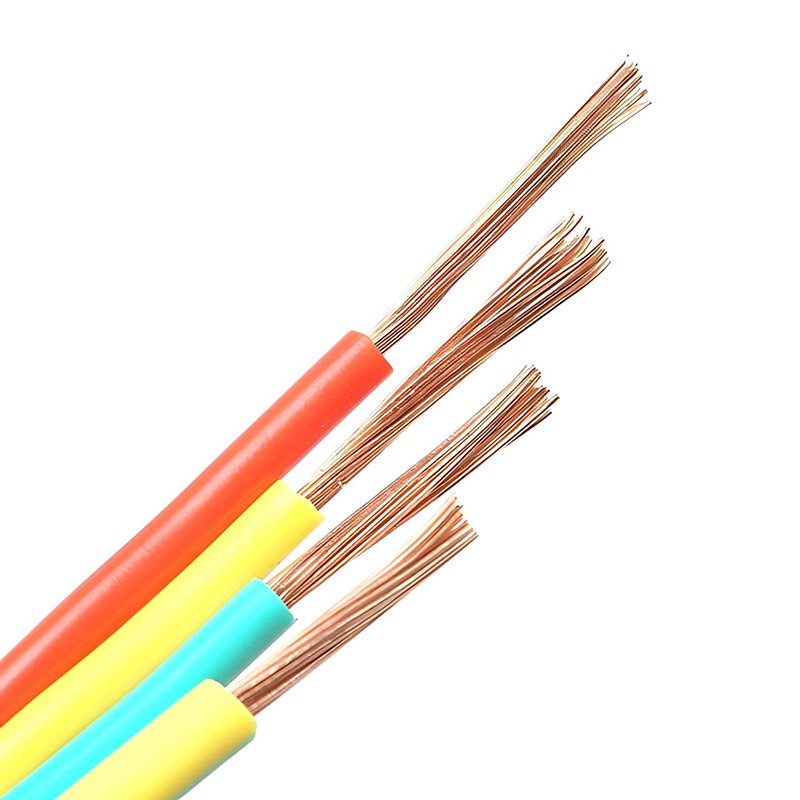

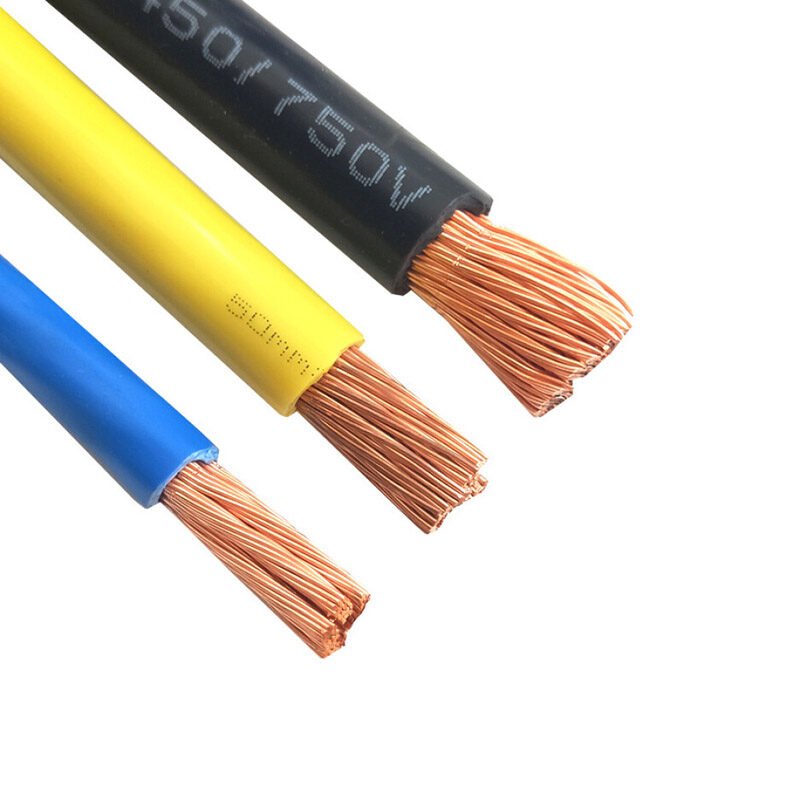

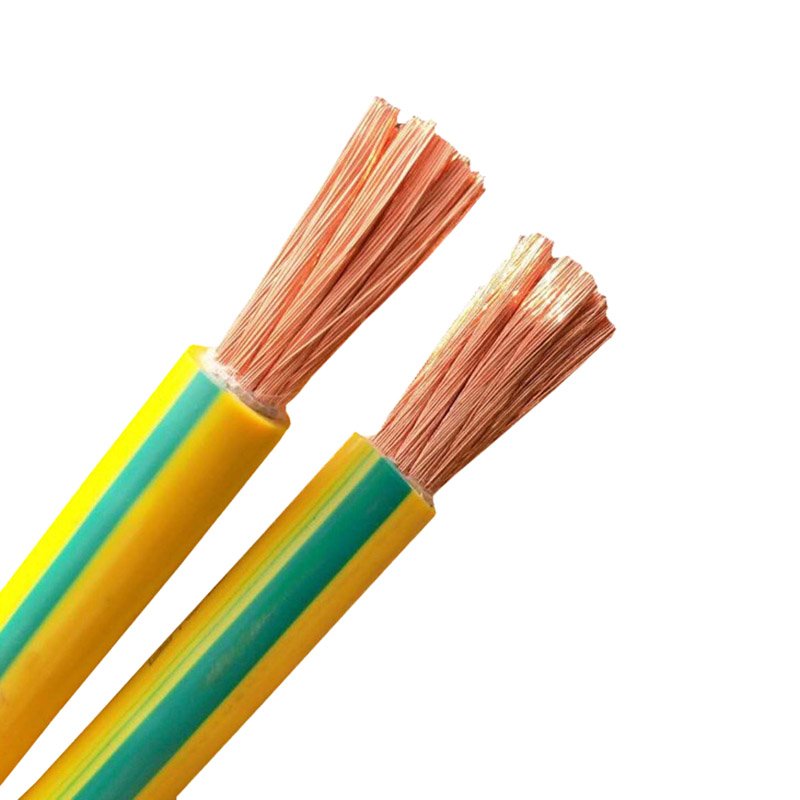

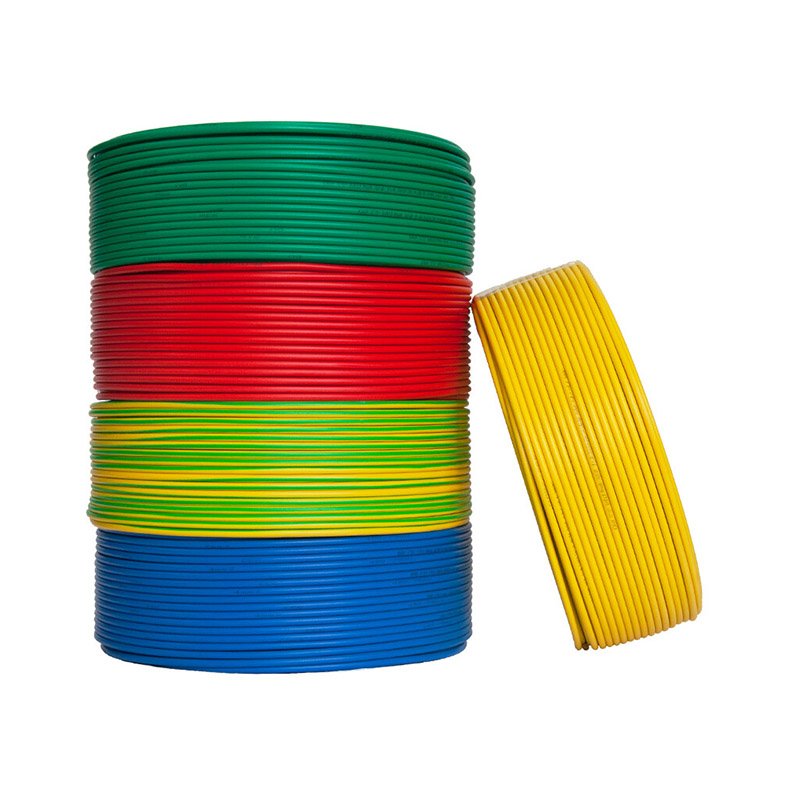

BV Wire – Ultra-Flexible Wire for Easy Installation

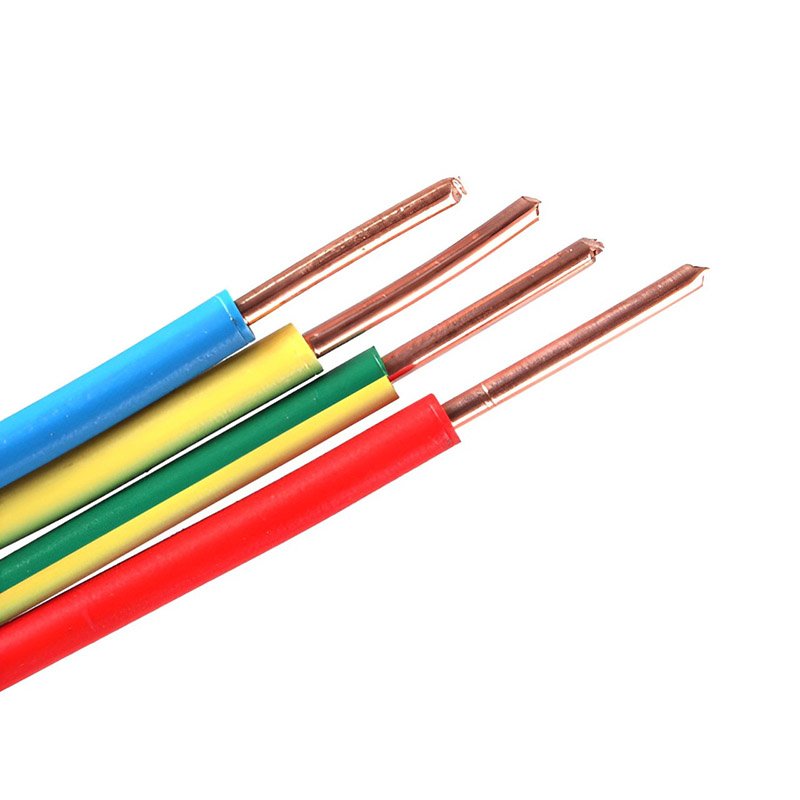

BV Wire is a type of single-core, copper conductor wire that is insulated with polyvinyl chloride (PVC). It is a general-purpose cable that is commonly used in electrical installations for homes, offices, and other commercial buildings.
Description
BV Wire – Ultra-Flexible Wire for Easy Installation
Features
- Copper conductor for high conductivity and low resistance
- PVC insulation for excellent electrical properties and resistance to moisture, chemicals, and abrasion
- Flame-retardant to minimize the risk of fire spread
- Flexible for easy installation in tight spaces
- Wide range of sizes to meet the requirements of different applications
Applications
- Power distribution in homes and businesses
- Lighting circuits
- Control circuits
- Appliance wiring
- Motor wiring
Specifications
The following table provides the specifications for common sizes of BV wire:
| Size | Conductor Diameter | Insulation Thickness | Overall Diameter |
Maximum Current Rating
|
| 1.5 mm² | 1.22 mm | 0.75 mm | 2.7 mm | 16 A |
| 2.5 mm² | 1.52 mm | 0.75 mm | 3.2 mm | 20 A |
| 4 mm² | 2.05 mm | 0.75 mm | 4.0 mm | 25 A |
| 6 mm² | 2.58 mm | 0.75 mm | 5.1 mm | 32 A |
| 10 mm² | 3.18 mm | 0.75 mm | 6.2 mm | 40 A |
Approvals
BV wire is approved by a variety of international standards organizations, including:
- IEC
- BSI
- UL
- CSA
BV Wire is a safe, reliable, and cost-effective choice for electrical installations. It is available in a wide range of sizes to meet the requirements of different applications.
For more information, please contact us.
