Extendible Ratchet Cable Cutter for Thick Cables
The Extendible Ratchet Cable Cutter is a versatile tool that can be used for a variety of tasks, including cutting cables, wires, and rebar. It is designed with a ratchet mechanism that provides maximum leverage, making it easy to cut through even the toughest materials. The Extendible Ratchet Cable Cutter is also equipped with telescopic handles that allow you to adjust the cutting length to fit your needs. This makes it a great tool for electricians, plumbers, and other professionals who need to cut cables in a variety of situations.
- Multi-stage ratcheting drive mechanism for precise and continuous cutting
- Adjustable telescopic handles offering customized leverage for diverse field applications

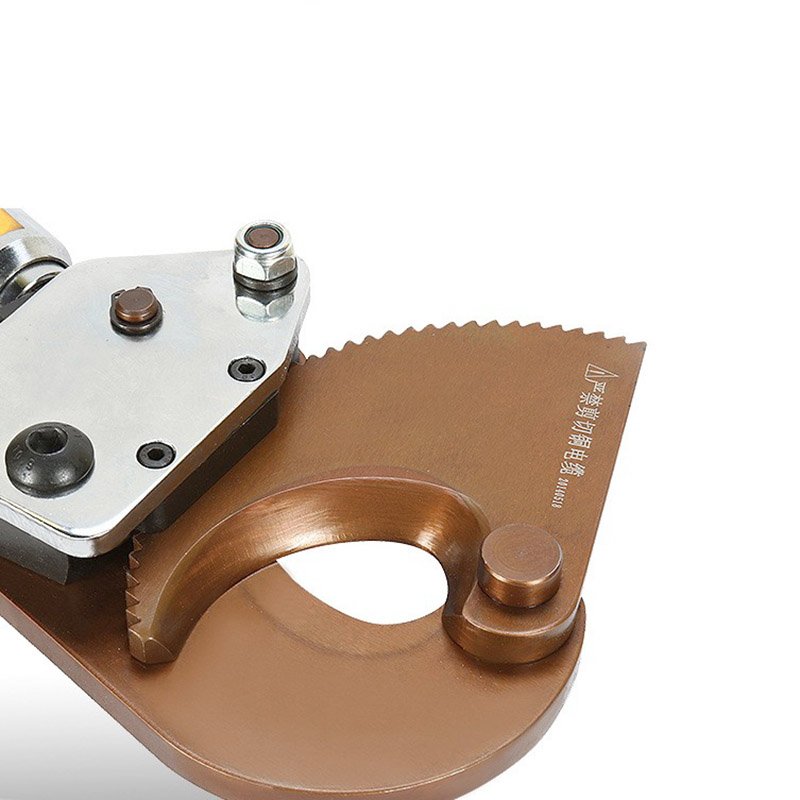

- Precision drop-forged Chrome Vanadium Steel blades for superior edge retention
- Handles copper and aluminum conductors up to 500 mm² with 45 mm capacity
- Safety features including quick-release trigger and anti-slip cushioned PVC grips
Description
Extendible Ratchet Cable Cutter tooling designed and manufactured by EPCOM provides electrical power specialists and telecommunication engineers with a high-performance manual solution for cutting heavy-duty conductors. Cutting large-diameter copper and aluminum power transmission cables is a highly demanding task that requires extreme physical force, mechanical accuracy, and strict safety guidelines. Standard manual shears often fail to deliver the necessary cutting pressure, resulting in crushed cable ends and severe operator muscle fatigue. This premium mechanical tool solves these critical issues by combining heat-treated drop-forged blades with robust telescopic handles. By adjusting handle length on the fly, operators can customize the leverage ratio to fit their exact working conditions. This level of utility ensures high productivity in the field, making it an indispensable asset for overhead line maintenance and underground cable splicing.
Extendible Ratchet Cable Cutter Mechanical Features

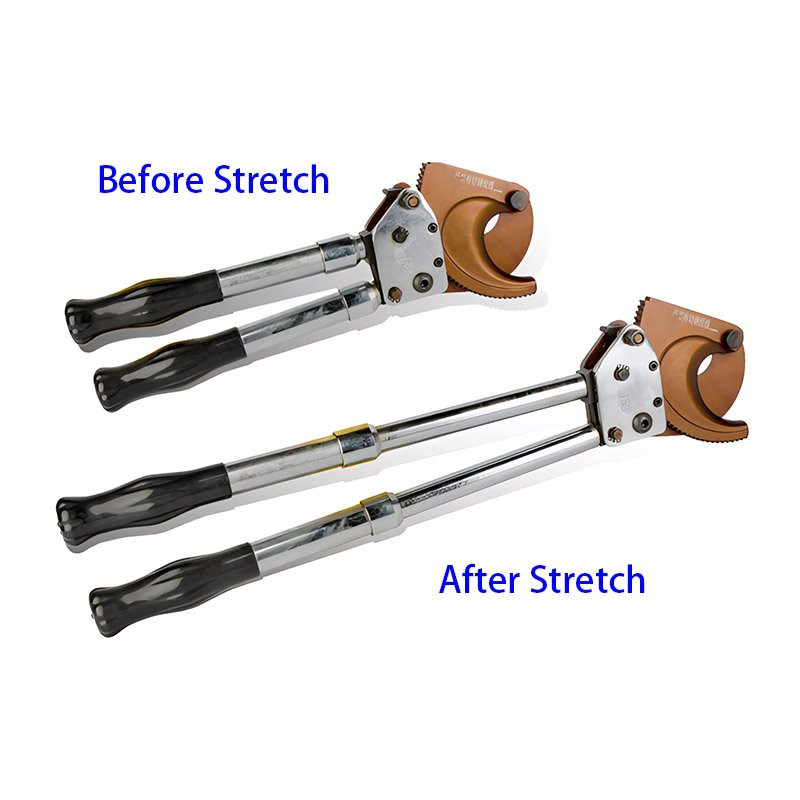

The operational efficiency of the Extendible Ratchet Cable Cutter depends on its multi-stage heavy-duty ratcheting drive. This advanced mechanical gear system locks the carbon steel blade firmly in place after every handle stroke. This step-by-step advance mechanism eliminates handle bounce-back, allowing technicians to apply progressive, continuous force through tough conductor sheathing. The telescoping handles represent a vital upgrade over fixed-length tools, allowing users to extend the grip arms to multiple pre-set positions. This customizability gives operators the mechanical advantage needed to cut dense cables in cramped trenches or high overhead configurations.
In addition, generating a perfectly straight, clean cut is essential for long-term cable termination health. Rough, deformed cuts increase contact resistance at the cable joint, which can lead to overheating and potential power system failure under high load. Therefore, our design conforms to international standards like the International Electrotechnical Commission standards. By maintaining a clean shear-cut geometry, the cable core keeps its round shape, facilitating smooth insertion into electrical connector housings, distribution boxes, and terminal terminals.

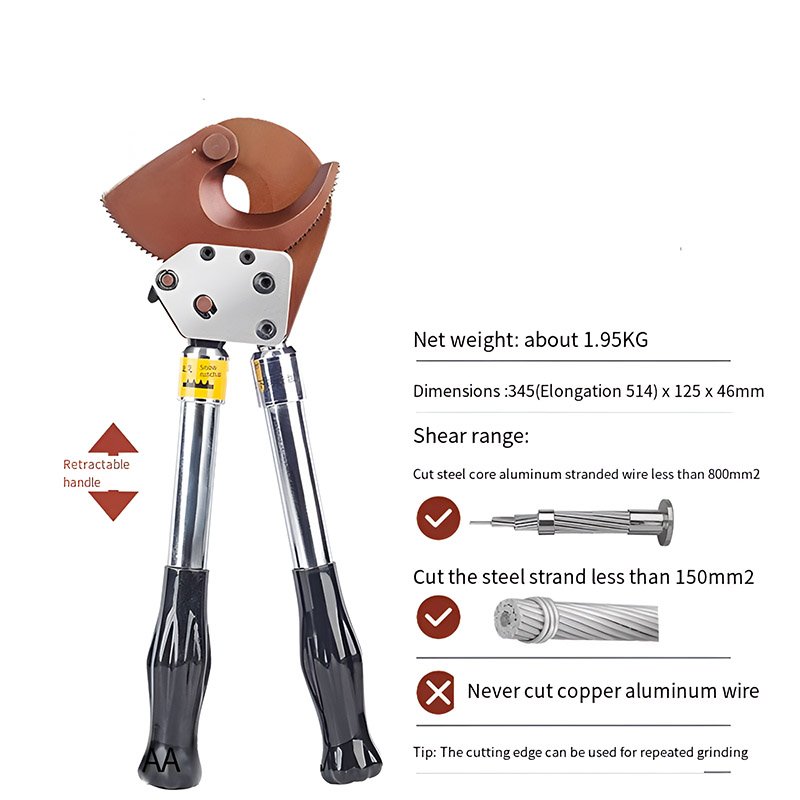

Technical Specifications and Sizing
To help logistics personnel, electrical engineers, and project procurement managers make the most accurate decisions for their next project, EPCOM publishes comprehensive parameter sheets. These standards emphasize the materials, load capacities, size limits, and mechanical designs that govern our heavy-duty manual line. Understanding these characteristics allows technicians to select the optimal tool for their specific cable size and type, preventing premature wear and tear. All components of our cutters are engineered to resist corrosion and structural fatigue under challenging outdoor environments.
| Parameter Metric | Structural Specification Details |
|---|---|
| Cutting Capacity (Copper) | Single and stranded copper conductors up to 500 mm² |
| Cutting Capacity (Aluminum) | Stranded aluminum electrical conductors up to 500 mm² |
| Maximum Cable Diameter | Accepts cables up to 45 mm outer diameter (non-steel-wire armored) |
| Telescoping Handle Range | Fully adjustable extendable arms from 350 mm to 520 mm |
| Cutting Blade Material | High-grade Chrome Vanadium Steel (Cr-V), precision drop-forged |
| Structural Body Material | High-strength, light-weight oval aluminum alloy tubing handles |
| Ergonomic Grip Sleeve | Anti-slip PVC double-cushioned hand grips for fatigue reduction |
| Safety Mechanism | Integrated quick-release toggle lever and heavy-duty handle lock |
| Net Weight | 2.85 kg for balanced overhead and ground operations |
How to Operate the Extendible Ratchet Cable Cutter Safely
Operating the Extendible Ratchet Cable Cutter safely is straightforward once technicians familiarize themselves with its design features. To begin, unlock the tool handle safety latch and fully open the circular cutting jaws. If the cable is highly dense or features multiple shielded layers, press the blade-release trigger to open the upper gear blade completely. Following this, pull the telescopic arms outward to their maximum length until the safety locking collars click firmly into place. Extending the arms is vital to generating peak force, as the extra handle length significantly reduces user effort during the final cutting phases.

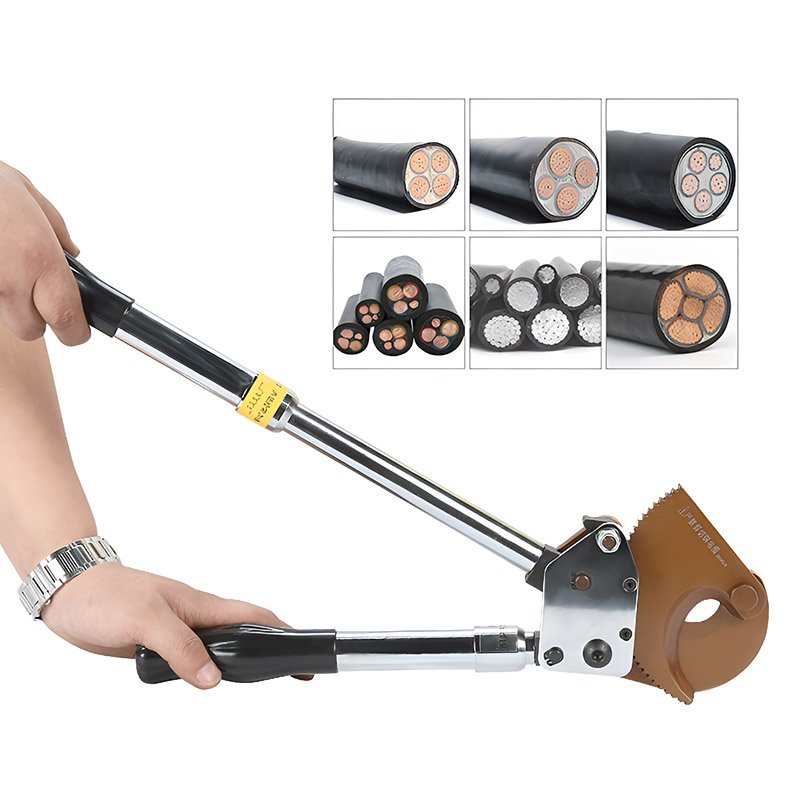

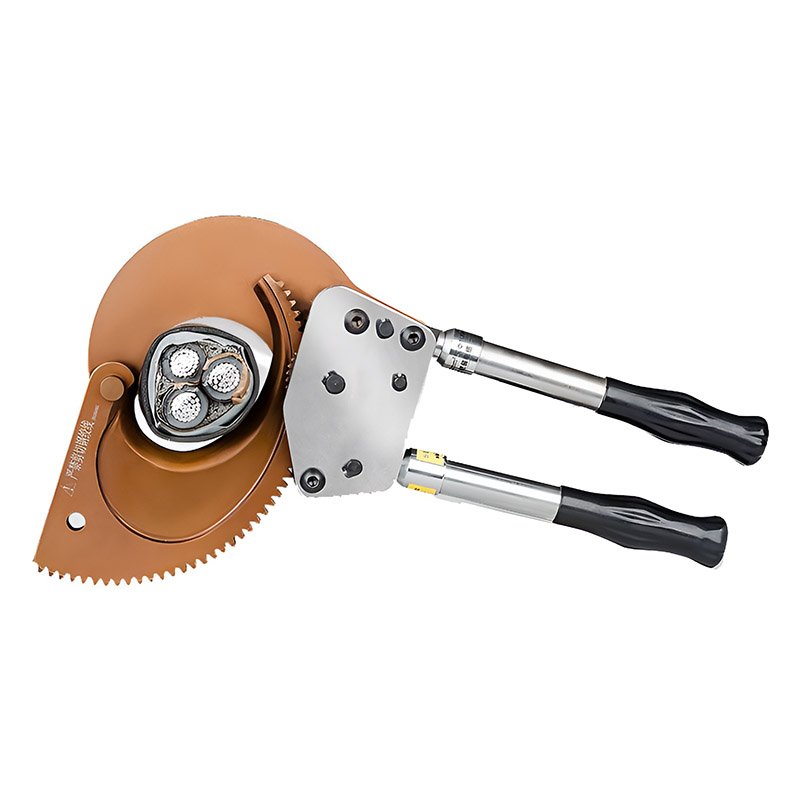

Next, position the copper or aluminum electrical wire deep inside the cutting jaw. Ensure the wire rests perpendicular to the blades to avoid angular deflection, which can cause blade damage over time. Begin pulling the handles together in a rhythmic, repeating motion to engage the ratchet teeth. Once the blade starts cutting through the cable core, continue the pumping action with steady pressure. When the cut is complete, the severed cable will release cleanly, and the cutting head can be safely locked shut for storage. Simple maintenance, like wiping away metal particles and applying machine oil after use, will preserve the cutting edge for years of much-needed field service.
Synergistic Cable Installation Solutions
While hand-held manual cutting tools remain essential for mobile field crews, modern grid construction projects often call for a complete, integrated system of power tools. To achieve maximum productivity on complex transmission networks, combining your primary hand cutter with other specialized tools is a highly recommended practice. For instance, before any cuts are performed, technicians must remove thick layers of polymer insulation and cable jackets. Utilizing a robust rotary wire stripper ensures that underlying metal strands are exposed safely without any structural nicks, providing an ideal starting point for a perfect shear-cut.
In high-volume scenarios where hundreds of heavy conductors must be split in a single day, operators may transition to motorized alternatives. A premium rechargeable ratchet cable cutter is perfect for accelerating repetitive preparation lines, saving labor time and reducing operator stress. Once the conductor is neatly separated and stripped, the final task is to secure standard metal lugs or terminal splices over the bare wire. Using a high-pressure electric hydraulic crimping tool guarantees a permanent, moisture-resistant connection that will withstand environmental elements for decades, completing the modern power distribution workflow.
Premium Standards in Electrical Engineering
At EPCOM, our primary objective is to supply highly reliable power connection fittings, terminal systems, and premium tooling accessories to infrastructure markets worldwide. We understand that industrial construction sites are unforgiving environments, which is why every tool we supply goes through extensive load and safety tests. By combining structural durability with lightweight alloys, our engineering team manufactures equipment that performs reliably when you need it most.
Our global clients trust us to keep their transmission networks running on schedule and without interruptions. Whether your technicians are working in modern urban high-rises or rugged wilderness substations, our complete tool ecosystem delivers the consistency required to maintain high grid up-time. By integrating the Extendible Ratchet Cable Cutter with advanced strippers and hydraulic terminators, EPCOM provides the end-to-end security needed for the next generation of global power transmission grids.
