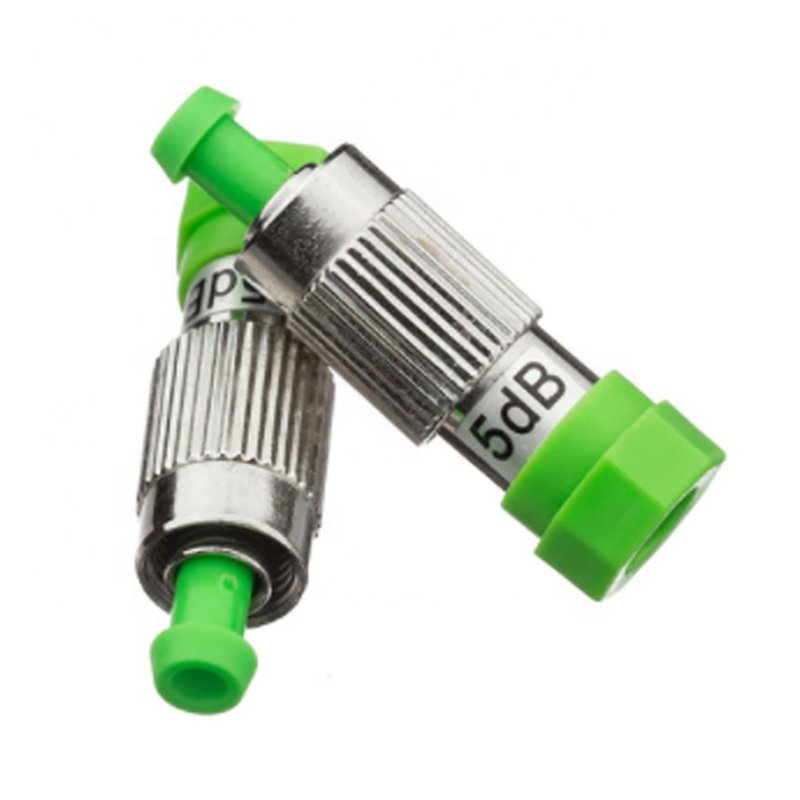

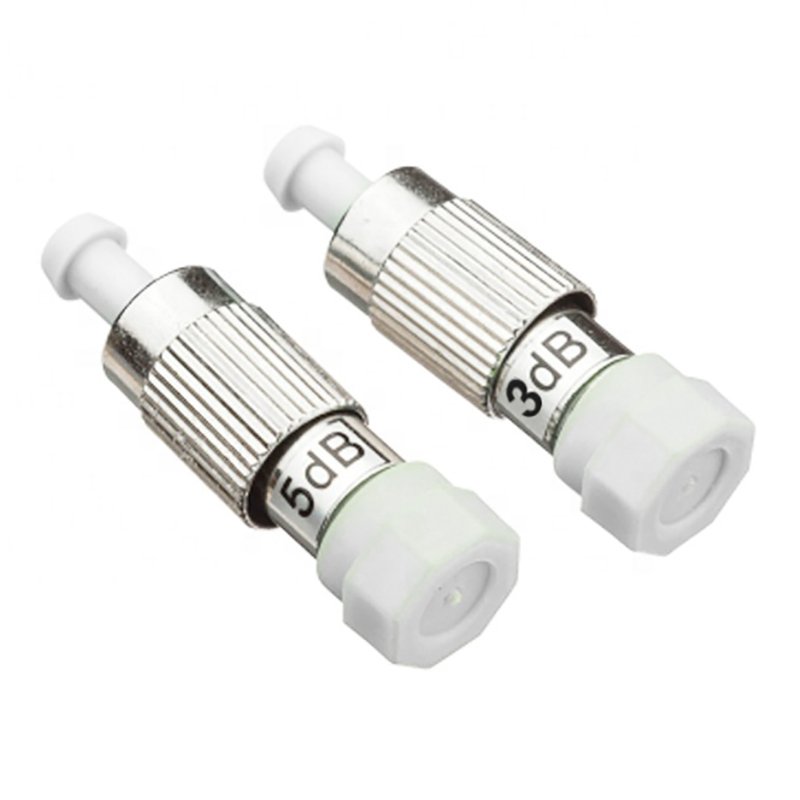

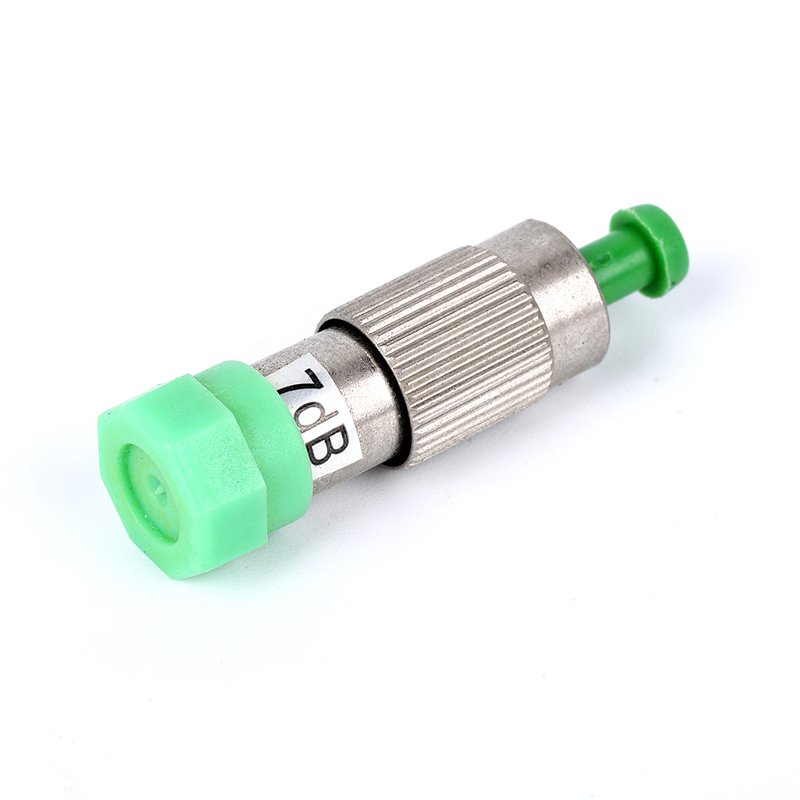

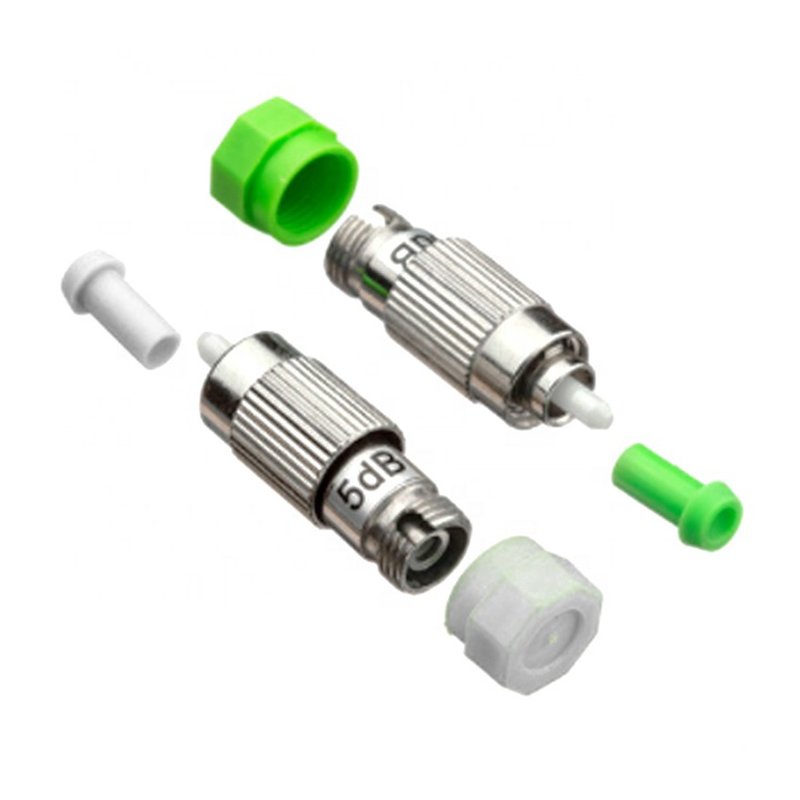

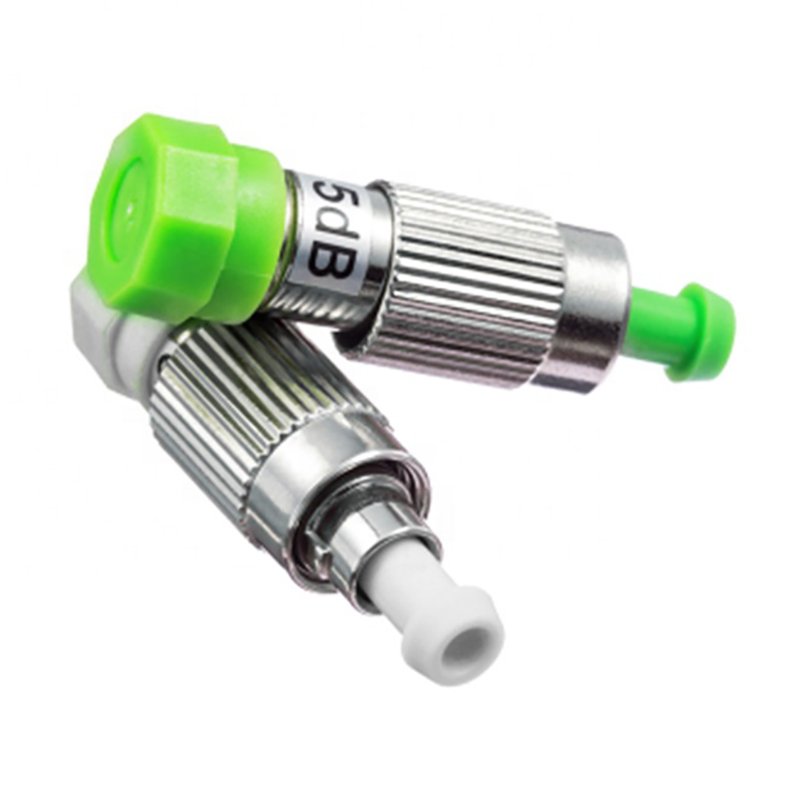

FC Optical Attenuator
An FC Optical Attenuator, also known as a fiber optic attenuator or optical fiber attenuator, is a passive optical device that reduces the power of an optical signal transmitted through a fiber optic cable. It is commonly used in fiber optic communication systems to control the optical power level and prevent signal overload at the receiver.
Description
FC Optical Attenuator | Reduce Signal Power in Fiber Optics (1-30dB)
Common Applications
- Attenuating optical signals to protect receivers from damage
- Equalizing optical signal levels among different transmitters
- Reducing reflections in optical networks
- Testing and troubleshooting fiber optic links
Key Features
- Low insertion loss and high return loss
- Wide attenuation range
- High stability and reliability
- Easy installation
- Complies with various industry standards
FC Optical Attenuator Parameters
| Parameter | Description |
| Connector type | FC |
| Ferrule type | PC or APC |
| Attenuation range | 1 dB to 30 dB |
| Operating wavelength |
1310 nm and 1550 nm
|
| Maximum optical input power | 27 dBm |
| Operating temperature | -40°C to +85°C |
| Storage temperature | -40°C to +85°C |
| Humidity | 95%RH |
Benefits
- Improved signal quality and network performance
- Reduced risk of receiver damage
- Enhanced network stability and reliability
- Cost-effective solution for optical signal attenuation
How to Choose the Right FC Optical Attenuator
When selecting an FC Optical Attenuator, it is crucial to consider the following factors:
- Attenuation value: Choose an attenuator with the appropriate attenuation value to meet your specific application requirements.
- Connector type: Ensure the attenuator connector type matches the connectors of your fiber optic cables.
- Ferrule type: Select an attenuator with the appropriate ferrule type (PC or APC) for your application.
- Operating wavelength: Choose an attenuator that operates within the wavelength range of your optical signal.
- Maximum optical input power: Ensure the attenuator can handle the maximum optical power level of your signal.
Applications
FC Optical Attenuators are widely used in various fiber optic communication applications, including:
- Telecommunications networks: Attenuating optical signals to prevent signal overload in long-haul transmission systems.
- CATV networks: Equalizing optical signal levels among different transmitters to ensure consistent signal quality for subscribers.
- Data center networks: Reducing reflections and improving signal quality in high-speed data transmission links.
- Fiber optic test equipment: Used in test and measurement applications to control the optical signal level for precise measurements.
Installation
FC Optical Attenuators are straightforward to install. They can be easily connected to fiber optic cables using standard fiber optic connectors.
Maintenance
FC Optical Attenuators require minimal maintenance. They should be kept clean and free from dust and debris to ensure optimal performance.
FC Optical Attenuators are essential components in fiber optic communication systems. They play a crucial role in controlling optical signal levels, preventing signal overload, and ensuring network stability and reliability. With their wide range of applications, FC Optical Attenuators are indispensable tools for fiber optic network designers, installers, and operators.
