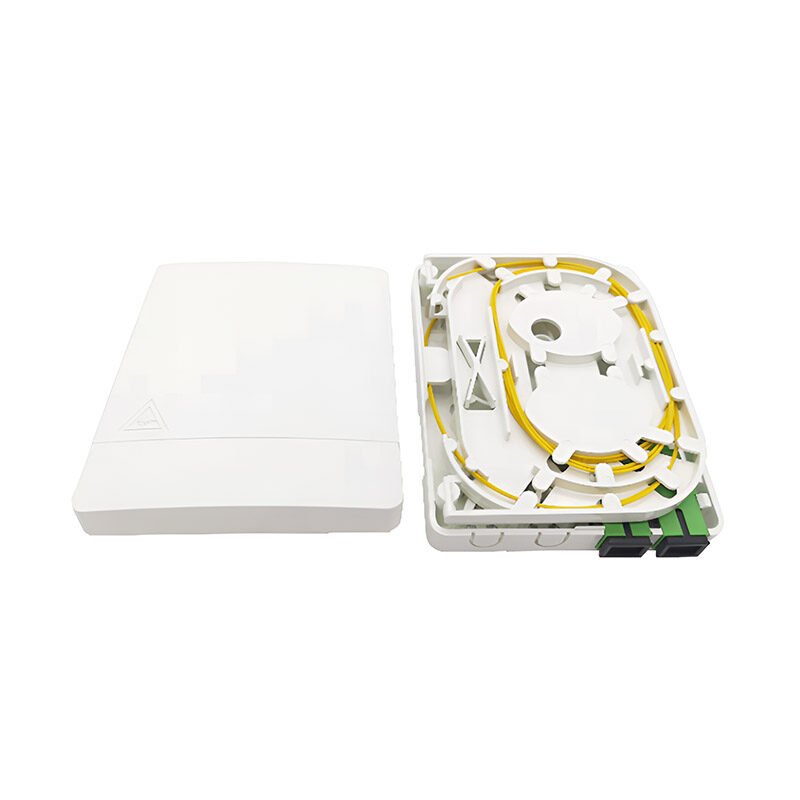

Fiber Optic Wall Socket with 2 Ports
The Fiber Optic Wall Socket with 2 Ports is a high-quality, durable, and easy-to-install product that is used in the end termination of residential buildings and villas to fix and splice with pigtails. It can be installed on the wall and adapts variety of optical connection styles.
- High-quality flame-retardant ABS material for long-term durability.
- Supports both SC simplex and LC duplex adapter configurations.
- Snap-on cover design enables fast and tool-free installation.
- Compact 86mm footprint fits seamlessly into modern indoor environments.
- Optimized internal routing paths protect fiber bend radius for signal integrity.
Description
Fiber Optic Wall Socket solutions provided by EPCOM represent the pinnacle of indoor optical termination technology. These compact terminal boxes are designed to bridge the gap between the external distribution network and the end-user’s active equipment. As high-speed internet demands grow, the need for reliable, aesthetically pleasing, and functional wall outlets becomes paramount for telecommunication service providers.
In modern FTTH (Fiber to the Home) deployments, the final connection point is often the most critical. EPCOM ensures that every indoor interface maintains signal integrity while offering ease of installation. Our termination boxes facilitate a clean transition from rugged outdoor cabling to delicate indoor patch leads. By utilizing high-quality ABS materials, these units protect sensitive glass fibers from environmental dust and physical strain.
Advanced Design of Fiber Optic Wall Socket Units

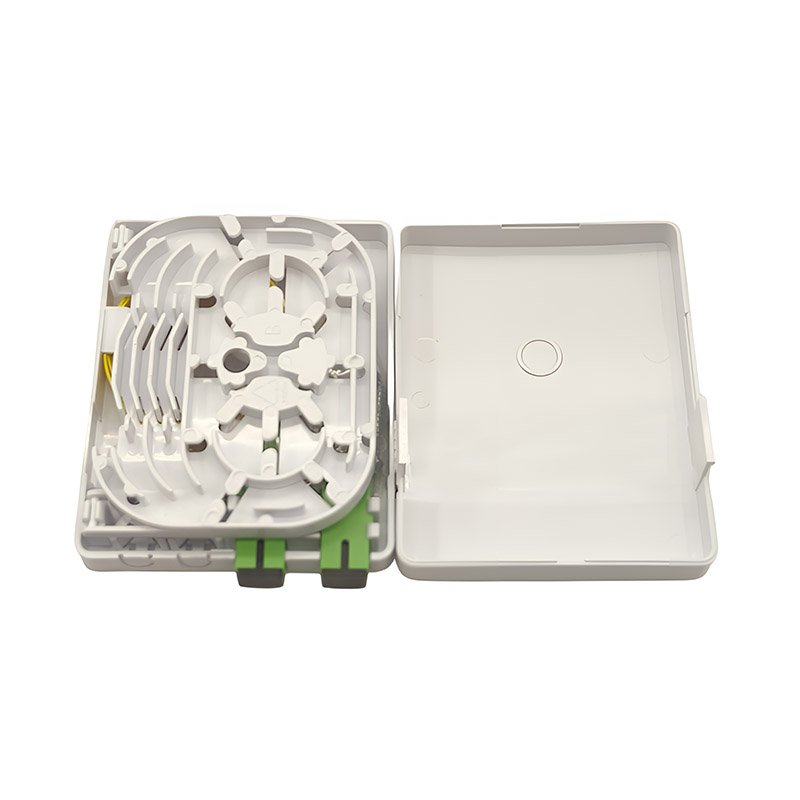

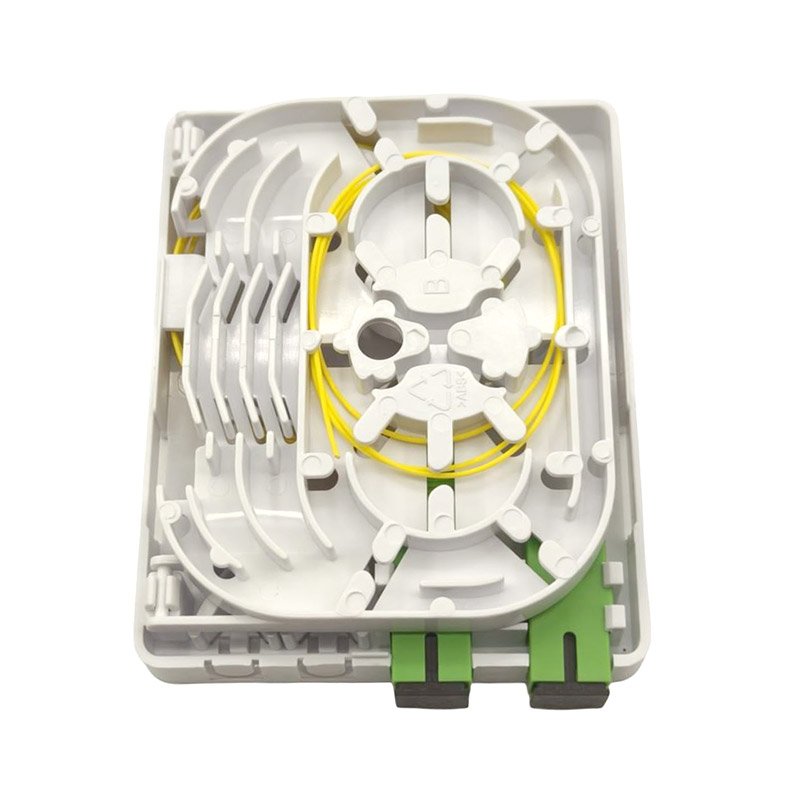

The architectural layout of our terminal box focuses on user-friendly maintenance and long-term durability. EPCOM has engineered these units to support both splicing and mechanical connectivity. The internal structure includes dedicated routing paths that respect the minimum bend radius of G.657A1 and G.657A2 fibers. This prevents macro-bending losses that could degrade network performance.

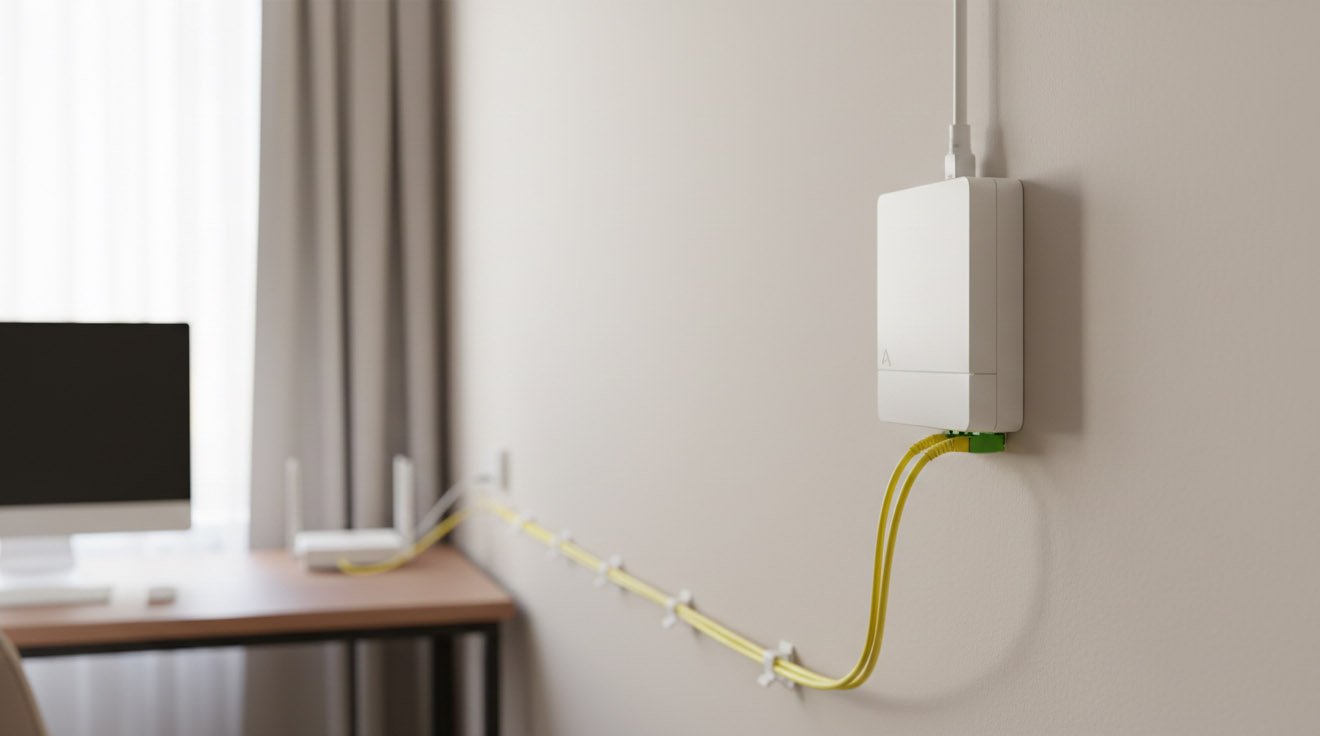

Furthermore, the sleek white finish allows the unit to blend seamlessly into office or residential environments. It is not merely a functional component; it is a professional interface for the digital home. Many installers prefer our design because it simplifies the management of excess fiber length, housing it safely within the base plate.
Versatile Connectivity with Fiber Optic Wall Socket
Versatility is a core requirement for ISP hardware. Our outlets support various adapter types, including SC simplex and LC duplex configurations. This flexibility allows technicians to adapt to different network standards without changing the base housing. Whether you are deploying a GJYXCH Drop Cable or a more robust GJYXBCH Drop Cable, the entrance ports are designed to secure the cable firmly.
Moreover, the integration with existing indoor wiring is seamless. For projects requiring high-density connections, the dual-port design is particularly effective. It allows for redundant links or the simultaneous delivery of internet and IPTV services through a single compact footprint.
Technical Specifications and Parameters
To ensure transparency and engineering precision, EPCOM provides detailed technical data for all connectivity products. Below are the specific parameters for our standard 2-port indoor termination unit. These values are benchmarked against ITU-T G.657 standards to guarantee global compatibility.
| Parameter Item | Specifications & Data |
|---|---|
| Application Environment | Indoor Wall-mounted |
| Material | High-quality ABS (Flame Retardant) |
| Max Capacity | 2 Cores (SC Simplex or LC Duplex) |
| Dimensions | 86mm x 86mm x 23mm |
| Operating Temperature | -40°C to +75°C |
| Insertion Loss | ≤ 0.2dB |
| Return Loss | ≥ 50dB (UPC), ≥ 60dB (APC) |
| Fiber Bend Radius | ≥ 30mm |
| Installation Method | Surface Mounted / Wall Mounted |
Installation Efficiency of Fiber Optic Wall Socket

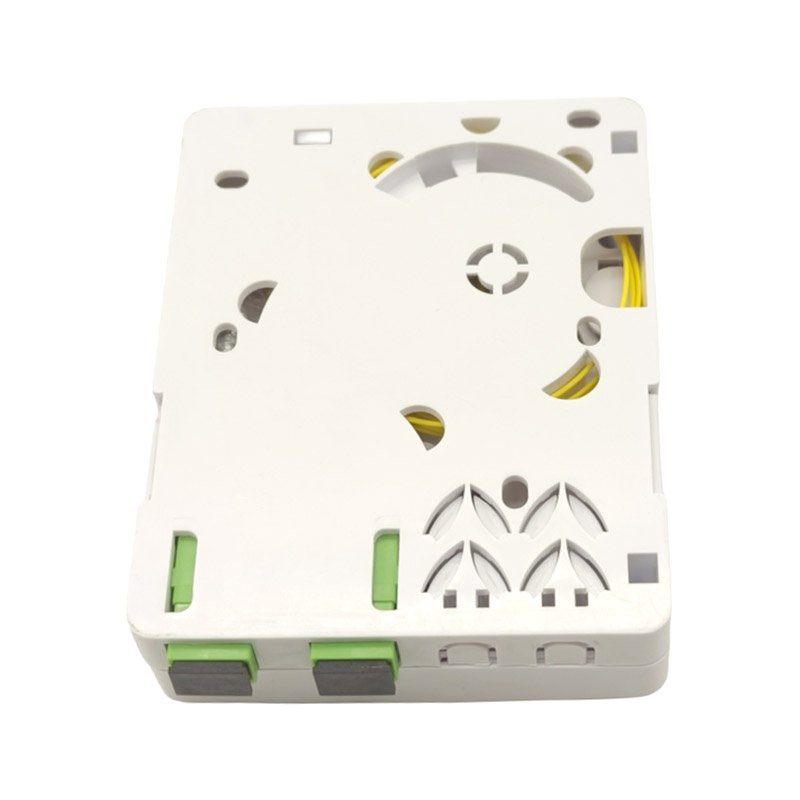

Time is a significant factor in large-scale FTTH rollouts. EPCOM recognizes that technicians need tools that reduce “on-site” time. Our termination box features a snap-on cover design, eliminating the need for complex tools during the final assembly. The base plate comes with pre-drilled holes compatible with standard international wall boxes.

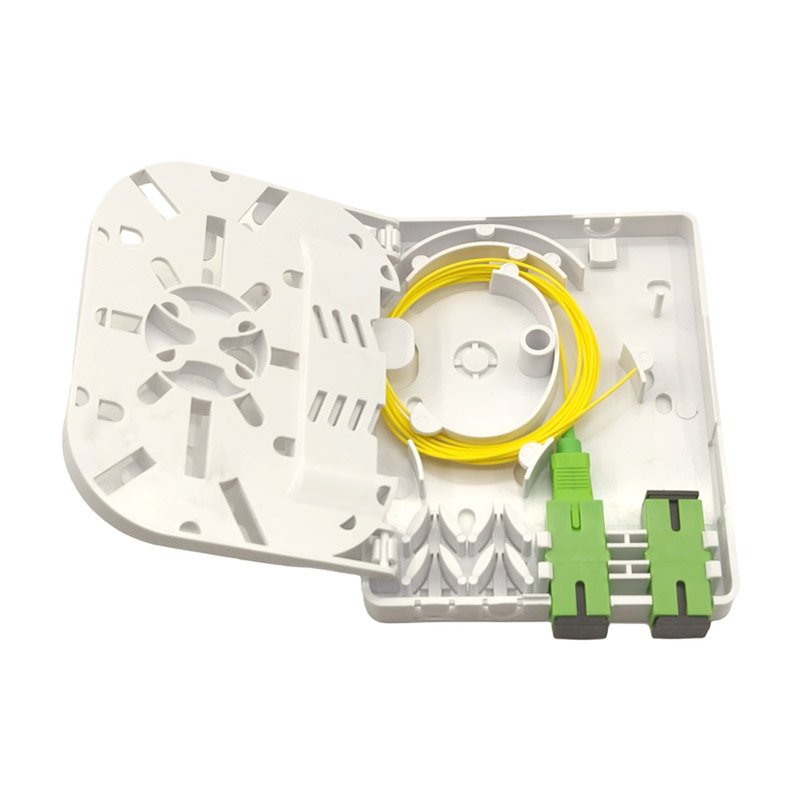

When connecting to the backbone, many engineers pair this unit with a fiber optic pigtail. This allows for a fusion splice inside the box, which is the most reliable method for minimizing signal attenuation. Alternatively, mechanical connectors can be used for rapid restoration or low-cost deployments.
Optimizing the User Experience

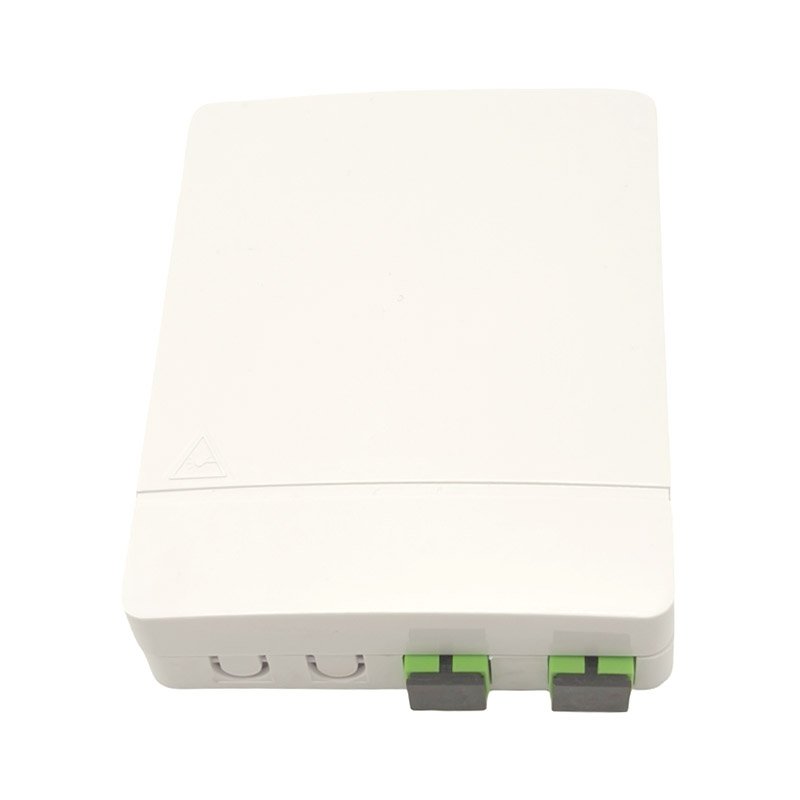

Beyond technical specs, the end-user experience matters. A well-installed outlet prevents accidental disconnections. The recessed adapter ports protect the connectors from being bumped by furniture or passing foot traffic. EPCOM integrates dust caps into the design, ensuring that ports remain clean even if they are not immediately in use.
Compatibility with Fiber Patch Cord Systems
A termination point is only as good as the cables connected to it. EPCOM offers a comprehensive range of fiber patch cord options to complete the link. By using matched components from the same manufacturer, network operators can ensure optimal performance and warranty protection.
Consistent glass geometry between the pigtail inside the socket and the patch cord outside is essential. Mismatched core diameters can lead to high reflectance and packet loss. Therefore, we recommend using EPCOM verified assemblies to maintain a clean optical power budget throughout the local loop.
Future-Proofing Your Infrastructure
The shift toward 10G-PON and beyond requires hardware that can handle higher frequencies. The Fiber Optic Wall Socket is designed with the future in mind. The materials used are UV-resistant and anti-aging, ensuring a lifespan of over 20 years. This longevity reduces the total cost of ownership for telecommunication companies.
As bandwidth demands increase, the physical infrastructure must remain stable. EPCOM invests in rigorous testing, including vibration, impact, and thermal cycling tests. This commitment to quality makes our products the preferred choice for major carriers globally.
Key Benefits of Choosing EPCOM Solutions
Choosing the right partner for fiber accessories is vital. EPCOM provides more than just hardware; we provide integrated connectivity solutions. Our products are manufactured under strict ISO 9001:2015 quality management systems.
- Reliability: Reduced failure rates at the customer premises.
- Design: Compact and professional appearance for any interior.
- Support: Comprehensive technical documentation and global shipping.
- Efficiency: Faster installation cycles for field technicians.
In conclusion, the Fiber Optic Wall Socket is an indispensable element of the modern broadband network. It provides a secure, organized, and professional termination point for high-speed fiber links. Trust EPCOM to deliver the components you need to build a faster, more reliable world.
