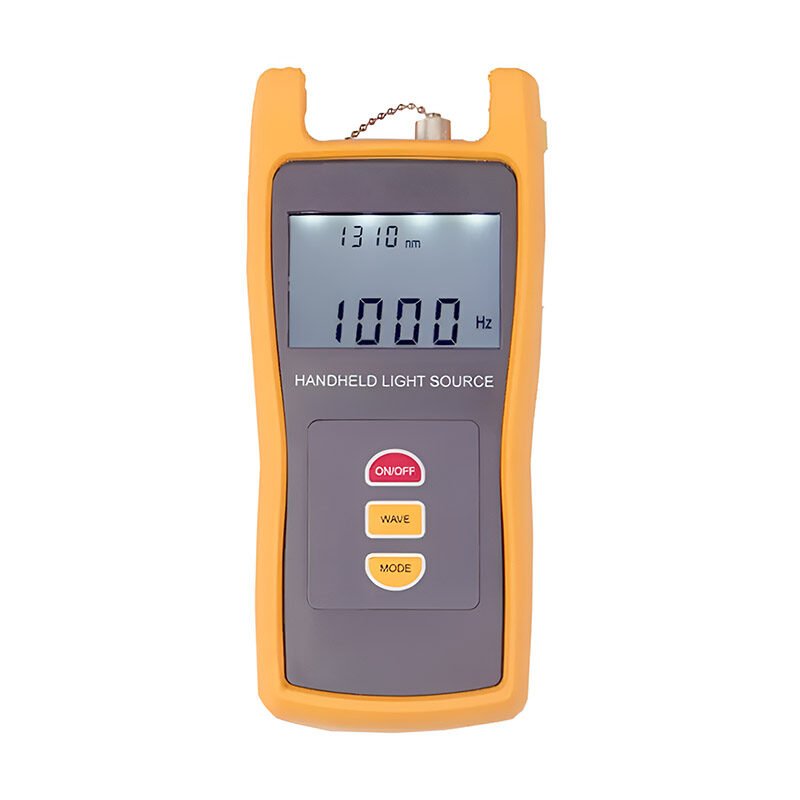

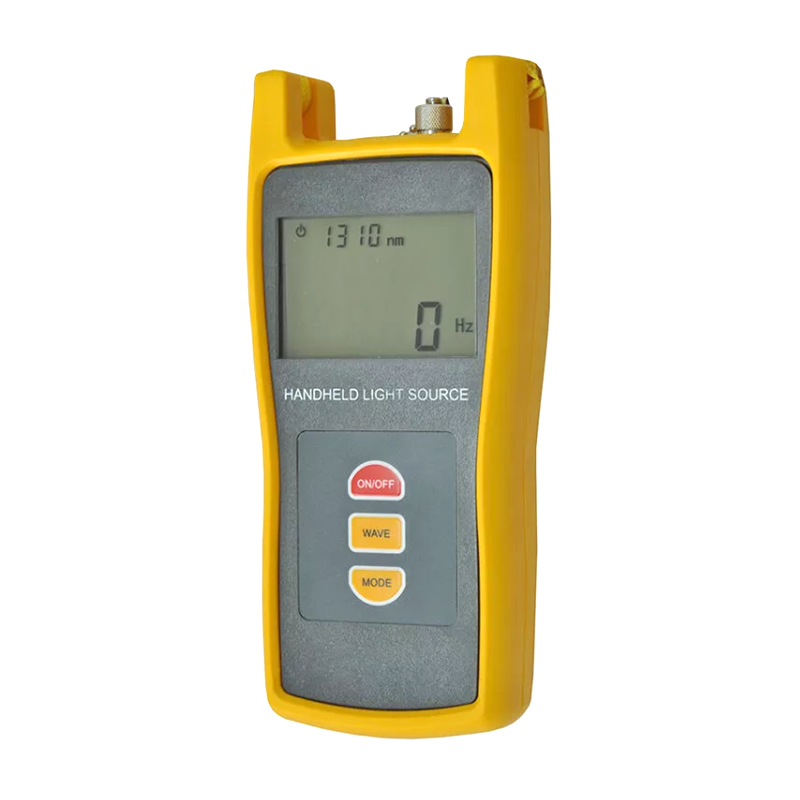

Portable Fiber Optical Laser Source
The Fiber Optical Laser Source is a versatile and powerful device that can be used for a variety of purposes. It is designed to be used in a variety of applications, including telecom, engineering maintenance of optical fiber networks, and cutting and laser welds.
Description
Fiber Optical Laser Source: High Accuracy & Multiple Wavelengths
Features
- Multiple wavelengths The Fiber Optical Laser Source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multi-mode fiber, as well as other wavelengths according to customers’ needs.
- Stable output It features high stability of the output power and stable output wavelength, making it ideal for precise measurements.

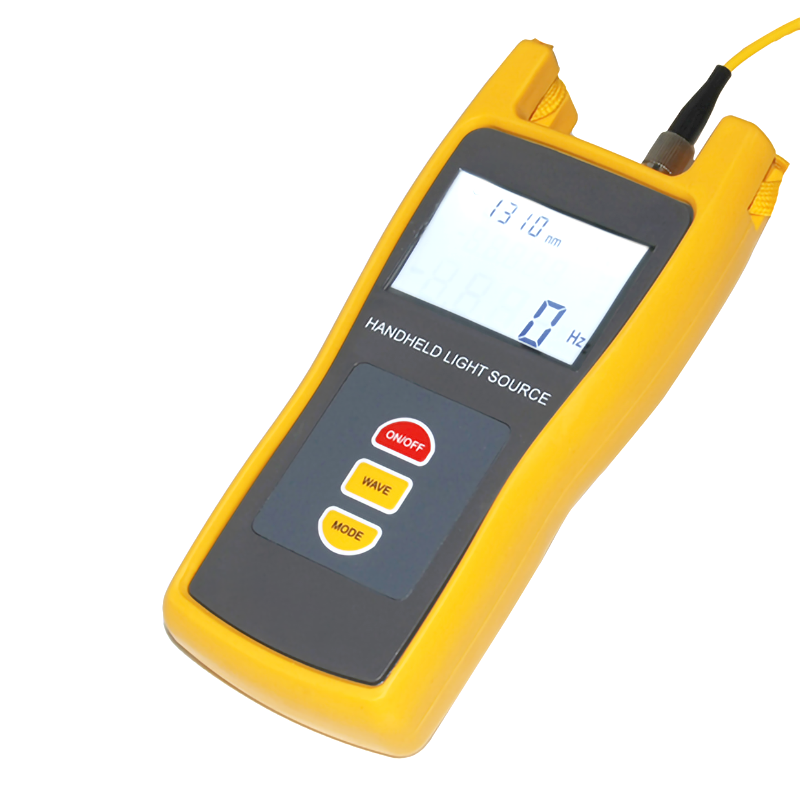

- Easy to use It has a backlight LCD display that supports night operation, a compact size and decent appearance, a large LCD, and easy operation. It also has an alternative 10 minutes Auto-off function that conserves battery life.
Applications
- Telecom The Fiber Optical Laser Source is commonly used in telecom applications for testing and maintenance of optical fiber networks.
- Engineering maintenance The Fiber Optical Laser Source is also used in engineering maintenance of optical fiber networks, including checking for breaks and faults in the cables.
- Cutting and laser welds It can be used for cutting and laser welds, making it a versatile tool for a variety of applications.
Parameters
| Parameter | Value |
| Wavelengths (nm) |
650, 1310/1550, 850/1300, 850/1300/1310/1550 (customizable)
|
| Emitter Type |
FP-LD, LED, or others (please specify)
|
| Typical Output Power (dBm) |
-7dBm for LD, -20dBm for LED
|
| Spectral Width(nm) | ≤10 |
| Output Stability |
±0.05dB/15mins; ±0.1dB/8hours
|
| Modulation Frequencies |
CW,2Hz (650nm); CW,270Hz, 1KHz, 2KHz (other wavelengths)
|

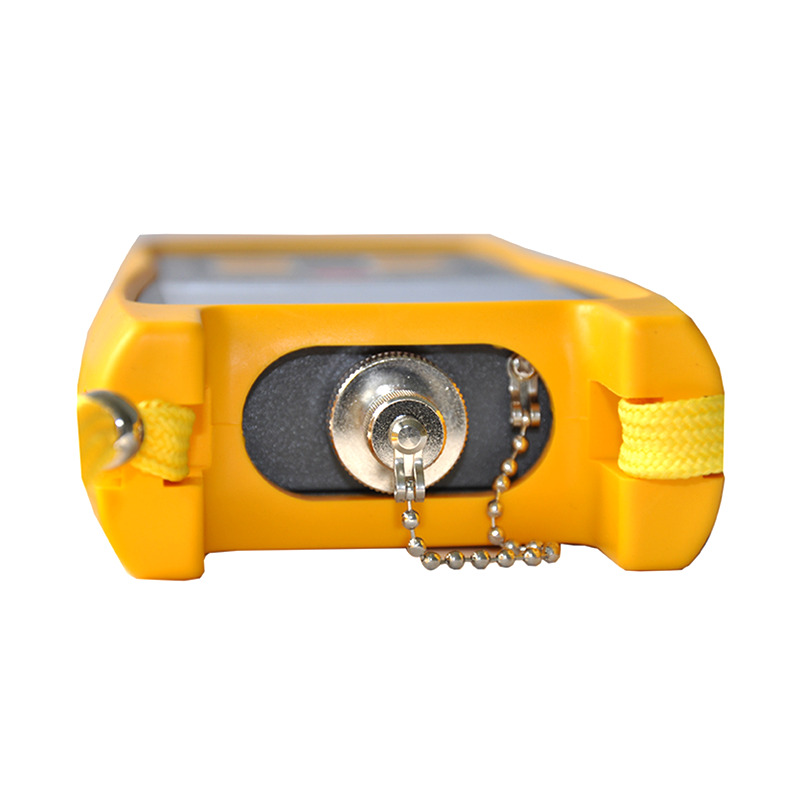

| Optical Connector |
FC/universal (FC/PC adaptor)
|
| Power Supply |
Alkaline Battery (3 AA 1.5V batteries)
|
| Battery Operating Time (hour) | 45 |
| Operating Temperature (C) | -10~+60℃ |
| Storage Temperature (C) | -25~+70 |
| Dimension | 23.5168cm² |
| Weight | 0.6kg |
Benefits
- High accuracy The Fiber Optical Laser Source is highly accurate, making it ideal for precise measurements.
- Versatile The Fiber Optical Laser Source can be used for a variety of applications, including telecom, engineering maintenance, and cutting and laser welds.
- Easy to use It is easy to use, with a backlight LCD display, a compact size and decent appearance, a large LCD, and easy operation.
- Long battery life It has a long battery life of up to 45 hours.
How to use the Fiber Optical Laser Source
- Connect the Fiber Optical Laser Source to the optical fiber network using the appropriate optical connector.
- Turn on the Fiber Optical Laser Source.
- Select the desired wavelength and modulation frequency.
- Use the power meter to measure the optical power at the end of the optical fiber network.
Tips
- When using the Fiber Optical Laser Source, be sure to wear safety glasses to protect your eyes from the laser beam.
- Do not point the laser beam at people or animals.
- Do not operate the Fiber Optical Laser Source in a hazardous environment.
It is a versatile and powerful device that can be used for a variety of purposes. It is a valuable tool for anyone who works with optical fiber networks.
