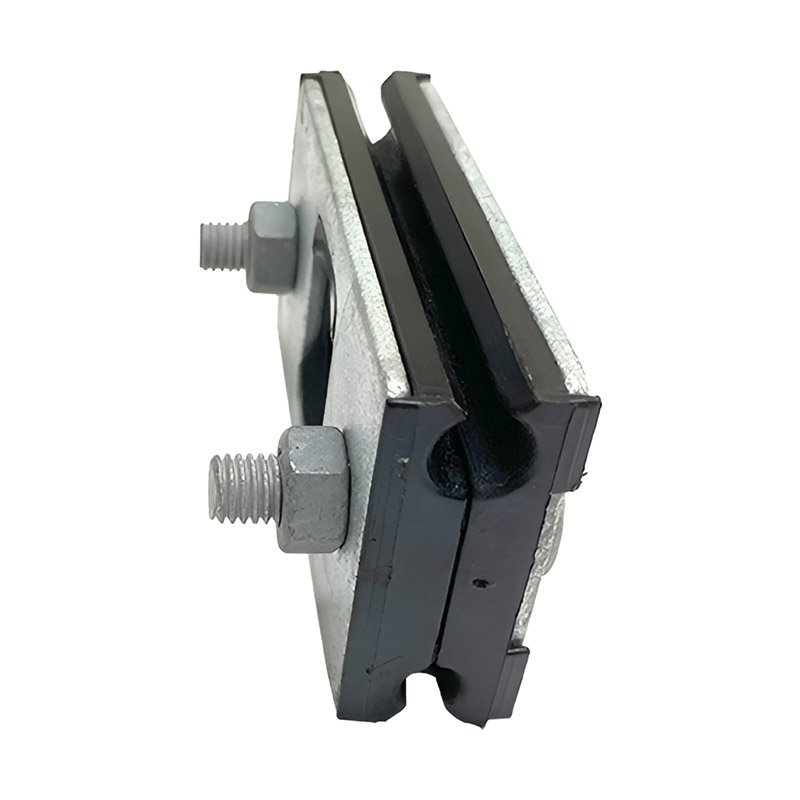

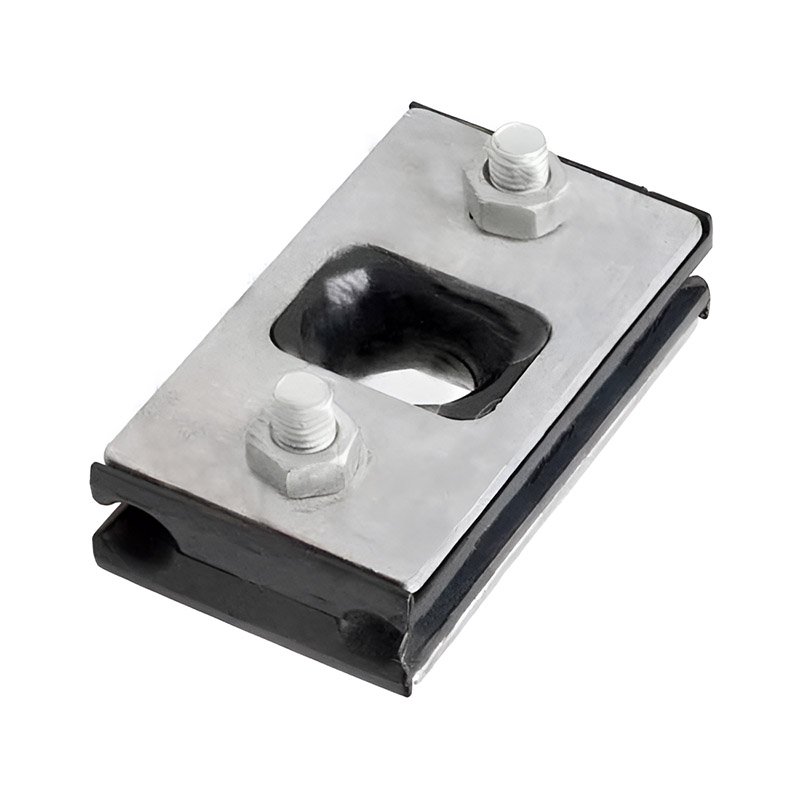

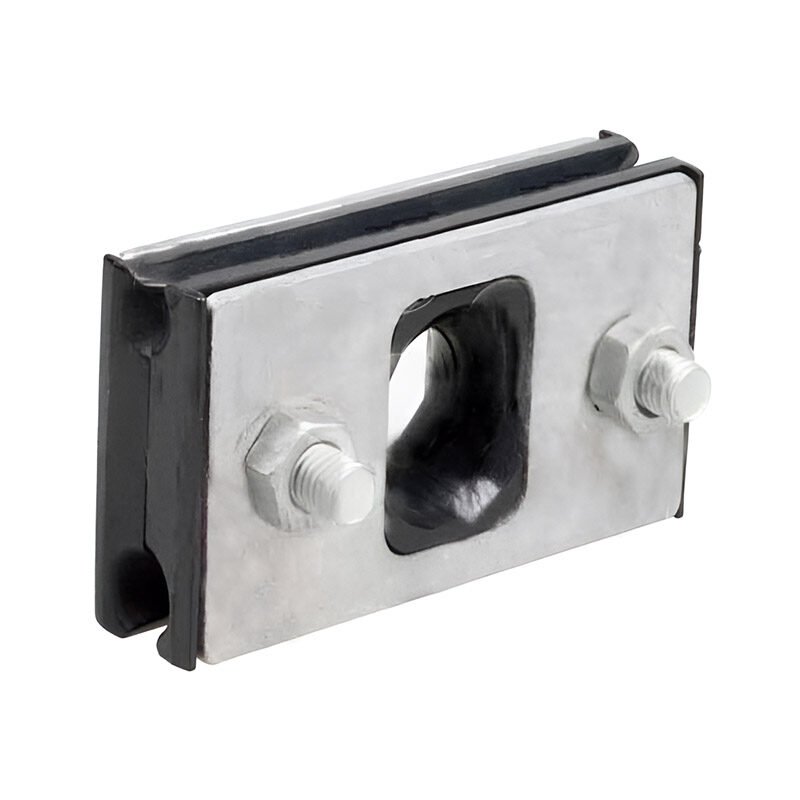

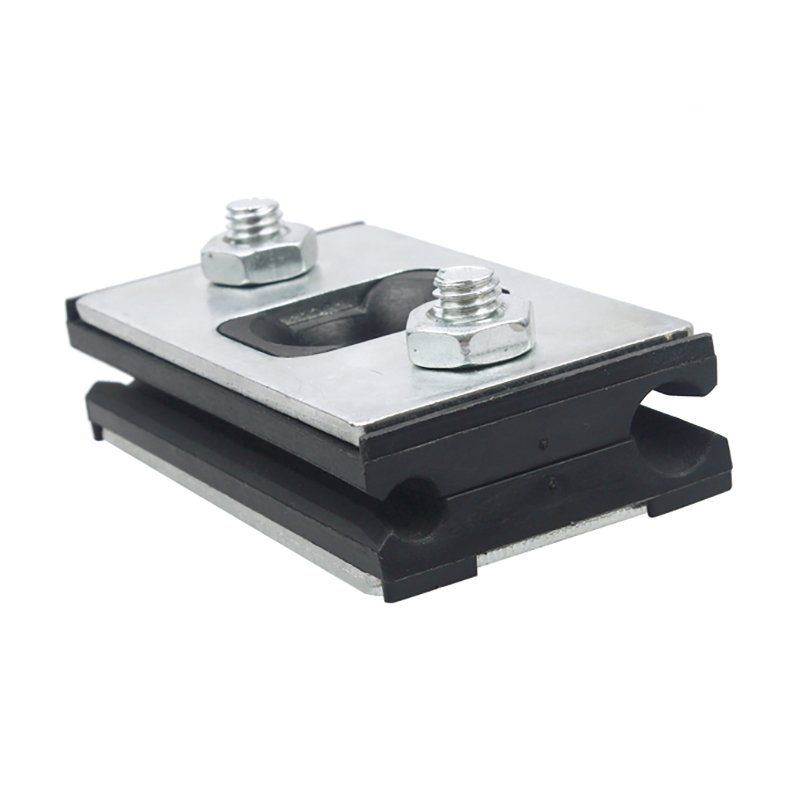

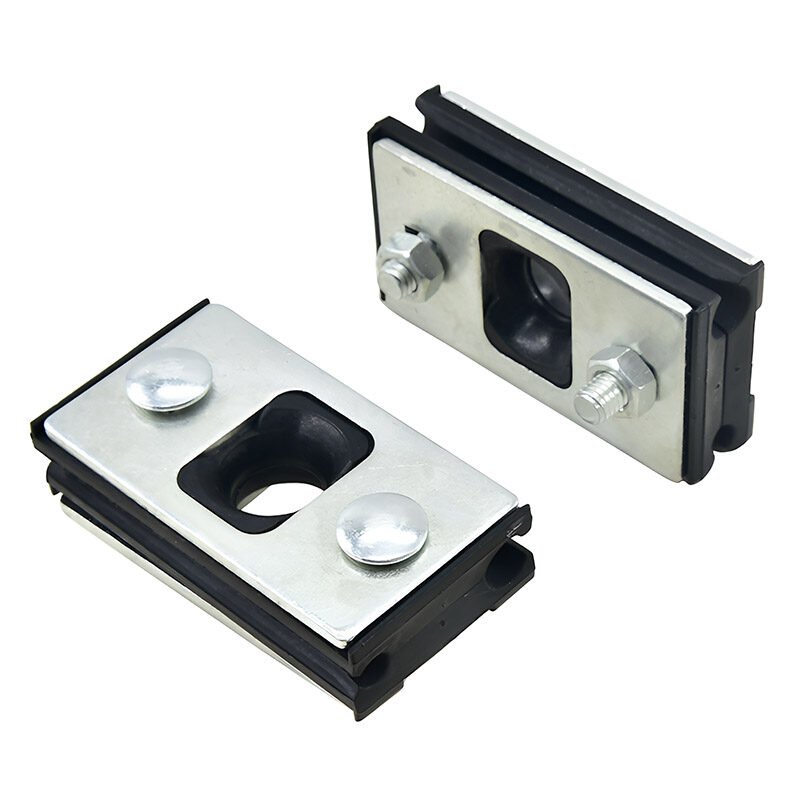

Figure 8 Suspension Clamp for Aerial Cable Support
The Figure 8 Suspension Clamp is a new type of cable suspension clamp that is designed for supporting and supporting Figure 8 optical cable in outdoor partial FTTH line deployments. The clamp is made of galvanized steel and uv resistant plastic, and it is durable and easy to install. The clamp is available in a variety of sizes, so you can find the perfect size for your cable. The clamp is also available in a variety of colors, so you can find the perfect color for your cable.
- High-strength aluminum alloy and UV-resistant polymer construction for maximum outdoor durability.
- Precision-machined grooves ensure secure clamping without damaging the optical fiber sheath.
- Versatile design compatible with messenger wire diameters ranging from 3.0mm to 9.0mm.
- Tool-free or single-bolt tightening mechanism for rapid and efficient field installation.
- Exceptional resistance to environmental stressors including extreme temperatures and salt spray.
Description
Figure 8 suspension clamp assemblies by EPCOM are specifically engineered to provide secure anchoring and reliable support for self-supporting aerial fiber optic cables. This professional-grade Figure 8 suspension clamp ensures that the integrated messenger wire is held firmly without causing damage to the outer sheath or the delicate internal fibers. As a leading manufacturer, EPCOM prioritizes mechanical stability and environmental resistance in every unit. Our specialized hardware simplifies the deployment of overhead networks by offering a robust connection point that manages tension and minimizes vibration during high-wind events.
Technical Advantages of the Figure 8 Suspension Clamp
The primary function of a Figure 8 suspension clamp is to sustain the weight of the cable across long spans between utility poles. At EPCOM, we utilize high-strength aluminum alloys and UV-stabilized thermoplastic materials to manufacture each Figure 8 suspension clamp. These materials prevent the risk of galvanic corrosion and ensure that the hardware remains functional for decades in harsh outdoor environments. Because the messenger wire carries the entire physical load, the clamping grooves are precision-machined to match the specific diameter of your GYXTW fiber optic cable.
Transitioning to modern network standards requires components that can handle varying tensile forces. Our Figure 8 suspension clamp is tested for slip resistance and breaking strength to ensure it meets or exceeds international safety requirements. The ergonomic design allows for rapid installation by field technicians, which significantly lowers the overall operational cost of network infrastructure projects.
Physical Specifications and Material Grades
Every Figure 8 suspension clamp undergoes rigorous quality control to ensure consistency across batches. For detailed engineering planning, please consult the following technical parameters. These specifications are designed to align with the ANSI standards for telecommunication hardware fittings.
| Parameter Category | Detailed Performance Values |
|---|---|
| Clamp Body Material | Corrosion-resistant Aluminum Alloy / Reinforced Polymer |
| Compatible Messenger Diameter | 3.0 mm to 9.0 mm |
| Maximum Tensile Strength | 12 kN – 15 kN (Vertical Load) |
| Mounting Compatibility | Standard J-Hooks and Eye Bolts |
| Weather Protection | Anti-UV, Anti-aging, and Salt Spray Resistant |
Installation Environment for Figure 8 Suspension Clamp

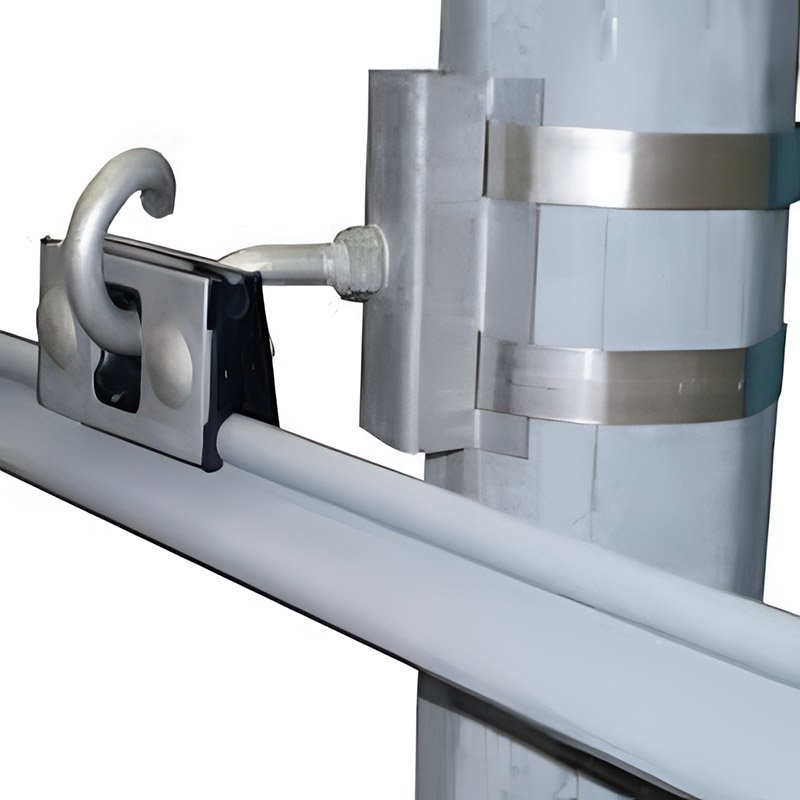

To achieve a professional installation, the Figure 8 suspension clamp must be integrated into a complete hardware system. EPCOM provides all the necessary components for a secure pole attachment. Typically, the clamp is hooked onto a UPB pole bracket which serves as the primary anchor point on the utility pole. This configuration ensures that the weight of the fiber optic cable is safely transferred to the pole structure without causing mechanical fatigue on the hardware.
Securing these brackets requires a reliable fastening method that can endure outdoor exposure. We highly recommend using a high-tension stainless steel strap to fix the brackets firmly to poles of various diameters. By combining the Figure 8 suspension clamp with these durable accessories, you create a long-lasting aerial network capable of providing consistent service for years. This systematic approach to hardware selection prevents unexpected outages and reduces the need for frequent maintenance climbs.
Operational Durability of the Figure 8 Suspension Clamp
Long-term performance is the hallmark of the EPCOM Figure 8 suspension clamp. We understand that aerial hardware is subject to extreme temperature cycles ranging from scorching summers to freezing winters. Consequently, our Figure 8 suspension clamp is designed to maintain its clamping force without becoming brittle. The internal padding or grooves are shaped to accommodate thermal expansion and contraction of the messenger wire, which prevents the cable from slipping or developing stress points.
Additionally, the Figure 8 suspension clamp design facilitates smooth cable routing around corners or elevation changes. Proper positioning of the clamp allows for a natural bend radius, which is essential for maintaining the optical performance of the glass fibers inside. EPCOM engineering ensures that your infrastructure is not just built, but optimized for the highest data transmission speeds.
Choosing EPCOM as Your Figure 8 Suspension Clamp Partner
Selecting the right Figure 8 suspension clamp is a critical decision for any ISP or telecommunications provider. EPCOM stands out by offering products that undergo strict multi-stage testing, including salt spray tests for coastal deployments and vibration tests for areas prone to high winds. Our commitment to quality ensures that every Figure 8 suspension clamp delivered to your site is ready for immediate and reliable service.
We also provide comprehensive technical support for large-scale deployments. If your project involves unique span lengths or specialized cable types, our team can recommend the ideal Figure 8 suspension clamp variant to suit your specific needs. Our logistics team ensures that global shipments are handled efficiently, so your project timelines are never compromised. Relying on EPCOM means choosing peace of mind for your aerial fiber network.
Optimized Network Longevity
The ultimate goal of using a premium Figure 8 suspension clamp is to extend the life of the network. By preventing cable sag and protecting the messenger wire from abrasion, our hardware helps maintain constant signal quality. Routine inspections are made easier by the accessible design of the Figure 8 suspension clamp, allowing technicians to verify hardware integrity with a simple visual check.
In summary, the EPCOM Figure 8 suspension clamp is more than just a fastener; it is a critical component of a high-performance communication system. Whether you are expanding urban fiber coverage or building rural backhaul, our hardware provides the stability and reliability required for modern data demands. Contact us today to learn more about our full range of aerial installation solutions.
