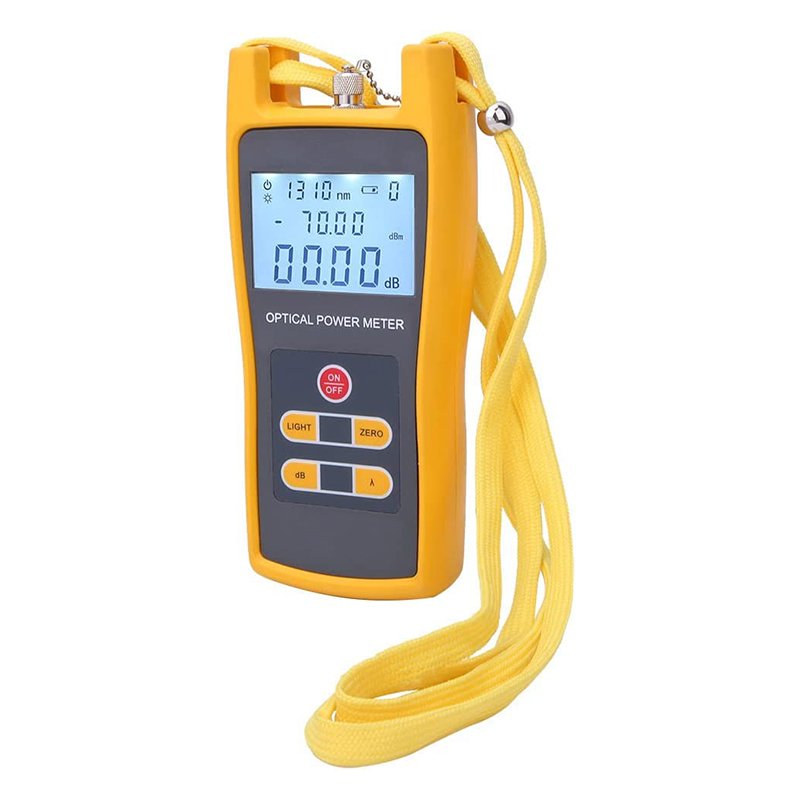

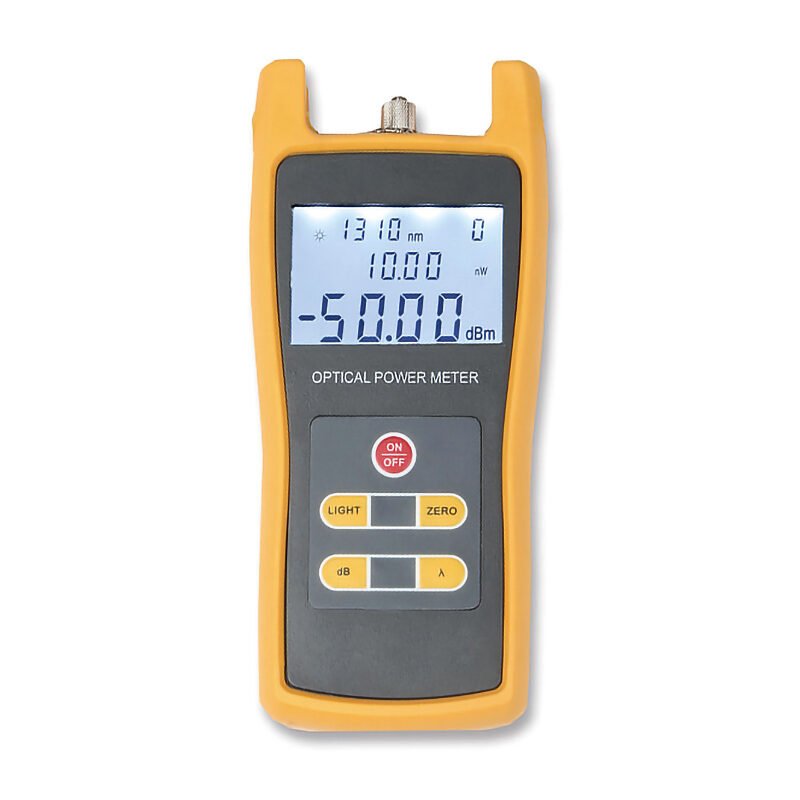

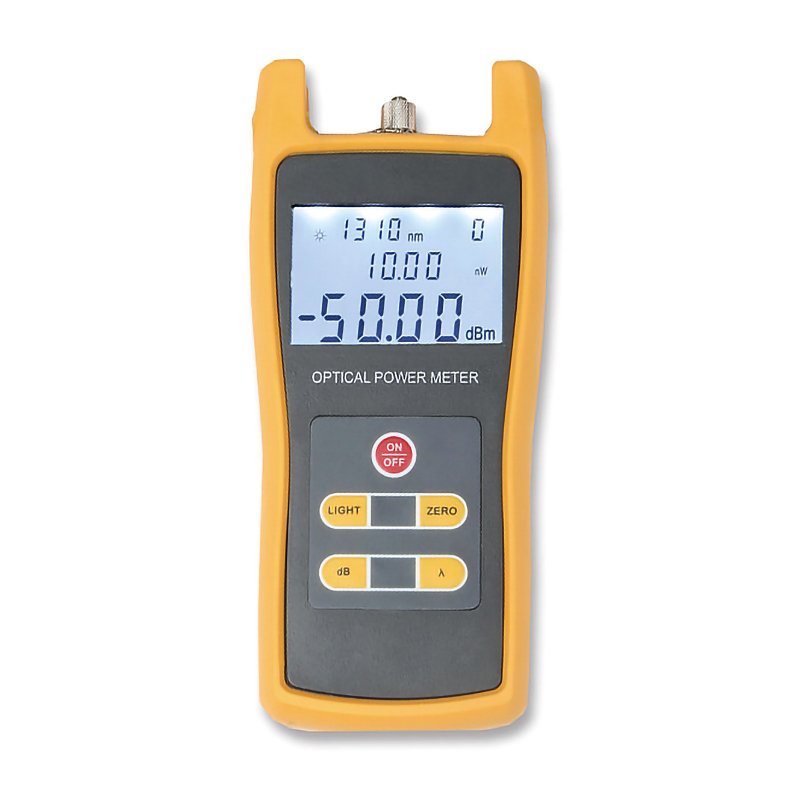

Handheld Optical Power Meter
The optical power meter is a portable instrument designed for the installation, operation, and maintenance of optical fiber networks. It is especially designed for optical fiber networks that require a precise, durable, and convenient portable test instrument. It is easy to use and can be used in a variety of applications, including maintenance in telescopes, engineering maintenance of optical fiber networks, and research and development of optical communications.
Description
Handheld Optical Power Meter | Precise & Durable for Telecom & Network Testing

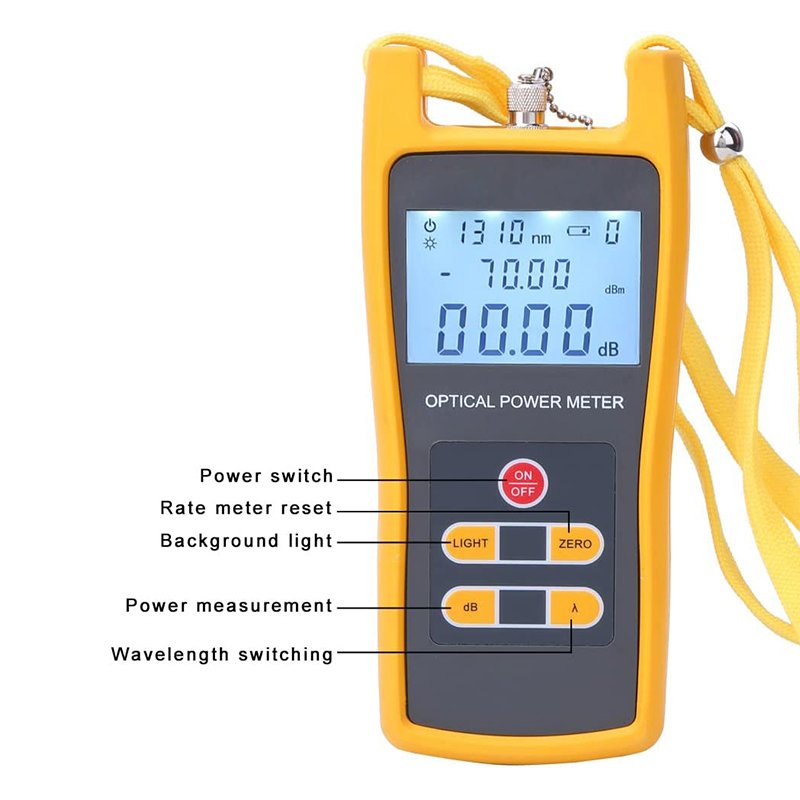

Features
- User self-calibration function
- Comfortable LCD display and optional backlight LCD display supports night operation
- Power measurements in dBm or mW and insertion loss in dB
- Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
- 10 minutes Auto-off function can be activated or deactivated.
Specifications
| Parameter | Value |
| Wavelength (nm) | 800~1700nm |
| Detector | InGaAs |
| Measurement Range (dBm) | -70~+6 |
| Uncertainty | +5% |
| Calibrated Wavelength (nm) |
850,980,1300,1310,1490,1550
|
| Resolution (dB) | 0.01 |
| Optical Connector |
FC (interchangeable SC, ST) / as well as 2.5mm universal
|
| Power Supply |
Alkaline Battery (3 AA 1.5V batteries)
|
| Battery Operating Time |
240 h with 1.5V Battery (3)
|
| Operating Temperature (°C) | -10~+60 |
| Storage Temperature (°C) | -25~+70 |
| Relative Humidity |
0 to 95% (non-condensing)
|

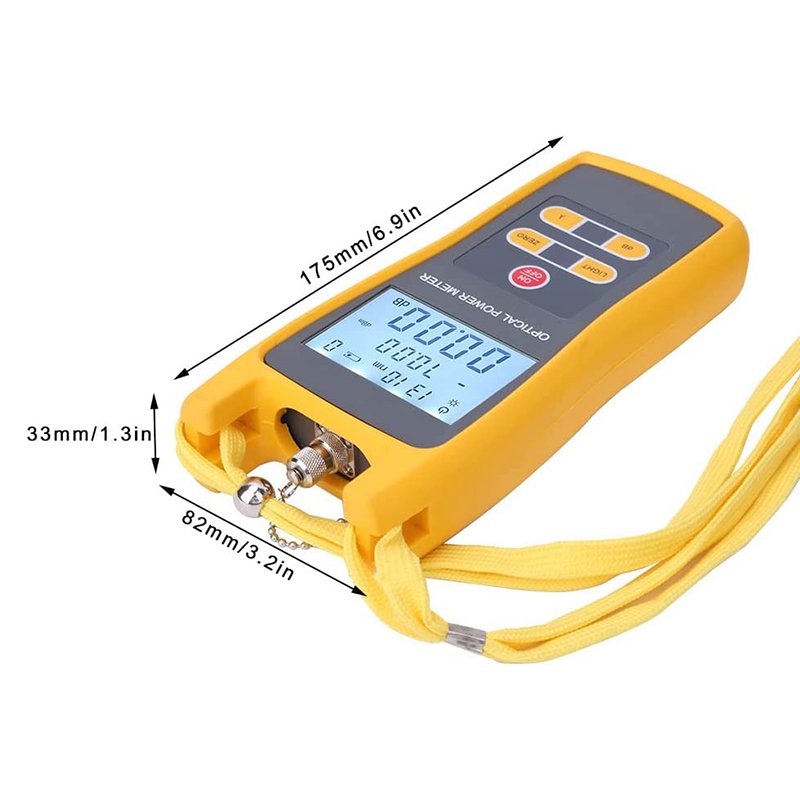

| Dimension | 23.5168cm |
| Weight | 0.5kg |
Applications
- Maintenance in Telecom
- Engineering maintenance of optical fiber network
- Engineering maintenance of Digital Data Network
- Teaching and research of optical communication
- Other optical fiber works
Benefits
- Precise measurements: The optical power meter is designed to provide precise measurements of optical power, which is essential for ensuring the proper operation of optical fiber networks.
- Durable construction: The optical power meter is housed in a durable case that can withstand the rigors of field use.
- Convenient portability: The optical power meter is lightweight and compact, making it easy to transport and use in a variety of settings.
- Easy to use: The optical power meter is easy to use, even for those with no prior experience with optical fiber testing.
- Versatile: It can be used for a variety of applications, including maintenance, installation, and troubleshooting.
Why Choose Our Optical Power Meter?
We are a leading provider of optical fiber test equipment, and we are committed to providing our customers with high-quality, reliable products. Our optical power meters are designed to meet the needs of the most demanding applications, and they are backed by our industry-leading warranty.
Contact us today to learn more about our optical power meters.
