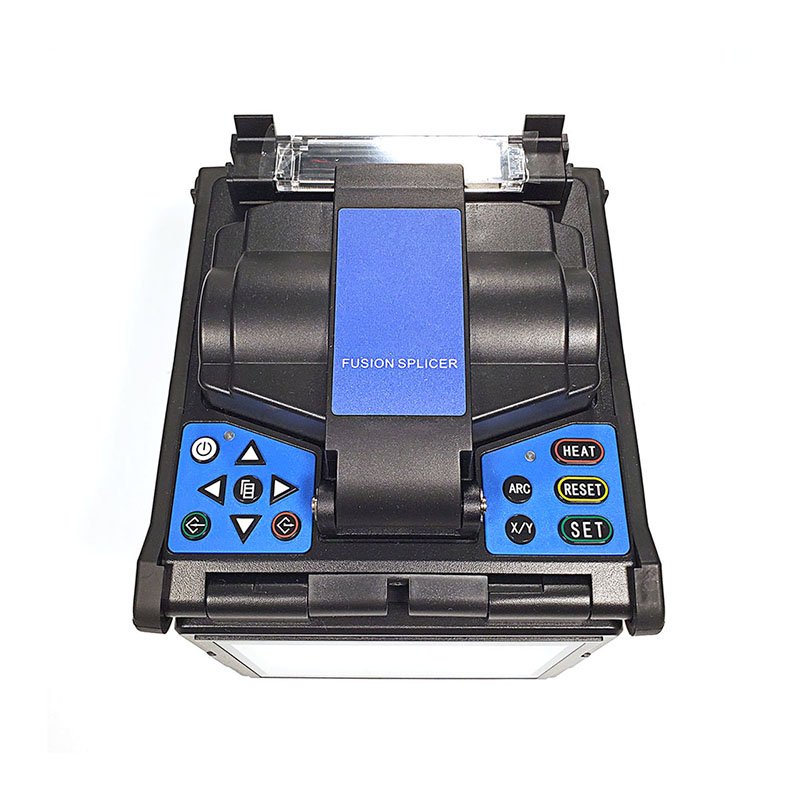

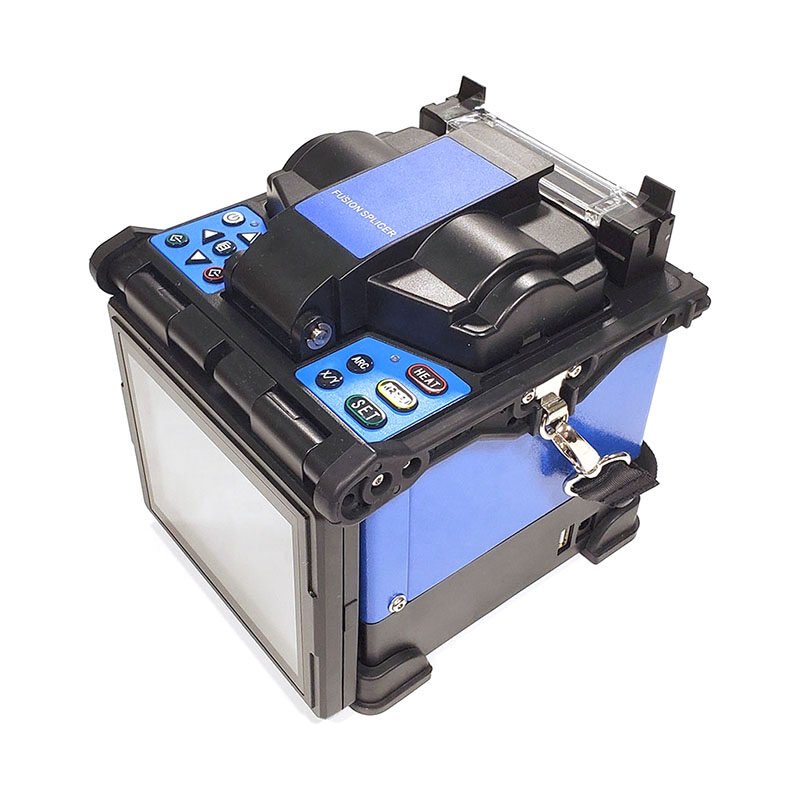

High Precision Fusion Splicer for Optical Networks
The High Precision Fusion Splicer is a versatile tool that can be used for a variety of applications, including fiber optic splices, optical fiber connectors, and fiber optic connectors. It is designed to splice many types of fiber by using core diameter aiming technology. The High Precision Fusion Splicer is a compact, lightweight, and easy-to-use tool that is perfect for field use. It has a fast splicing time and a low splicing loss.
- Advanced core-to-core alignment technology ensuring ultra-low splice loss for single-mode and multi-mode fibers.
- High-speed processing system achieving a typical splicing time of 6 to 8 seconds and rapid heating performance.

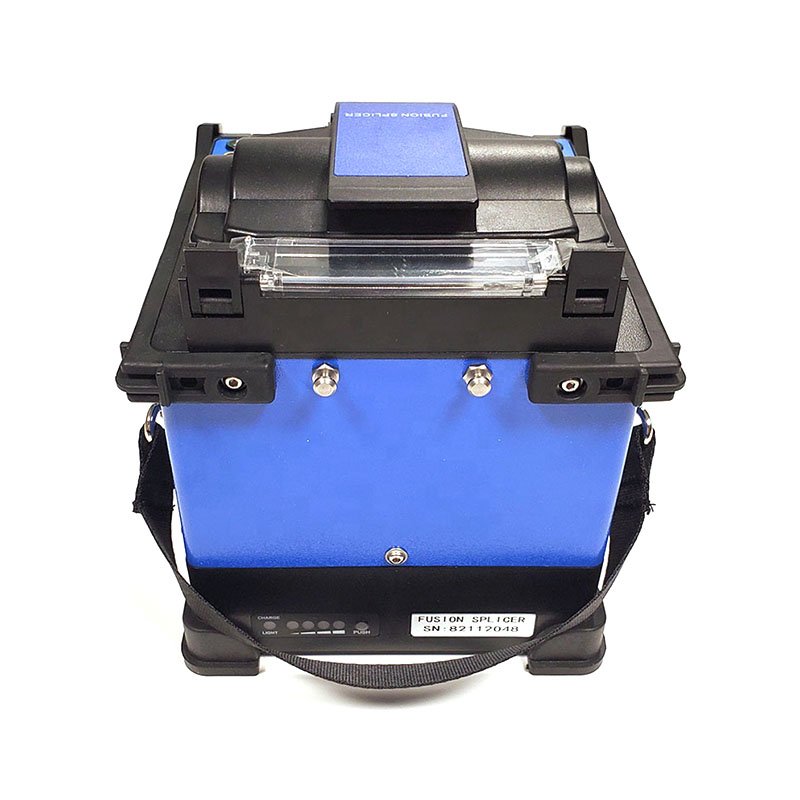

- Rugged industrial design providing superior protection against dust, water, and environmental shock in field conditions.

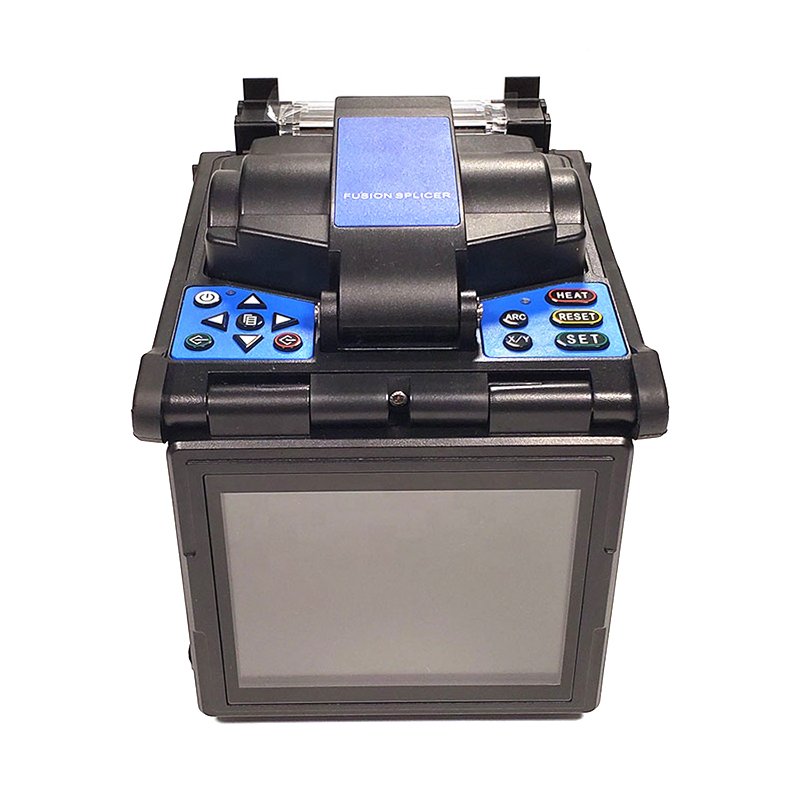

- Equipped with a 5.0 inch high-resolution color LCD touchscreen for intuitive operation and clear fiber visualization.
- High-capacity internal battery supporting up to 200 cycles of splicing and heating on a single charge.
Description
High Precision Fusion Splicer equipment by EPCOM represents the pinnacle of optical fiber joining technology. In modern telecommunications, achieving low-loss connectivity is essential for high-speed data transmission. This advanced device utilizes sophisticated core-alignment technology to ensure that fiber ends are perfectly matched. By employing high-speed image processing and precise motors, it minimizes splice loss effectively. Network stability depends heavily on the quality of these connections. Consequently, professional technicians rely on our equipment to handle rigorous field conditions.

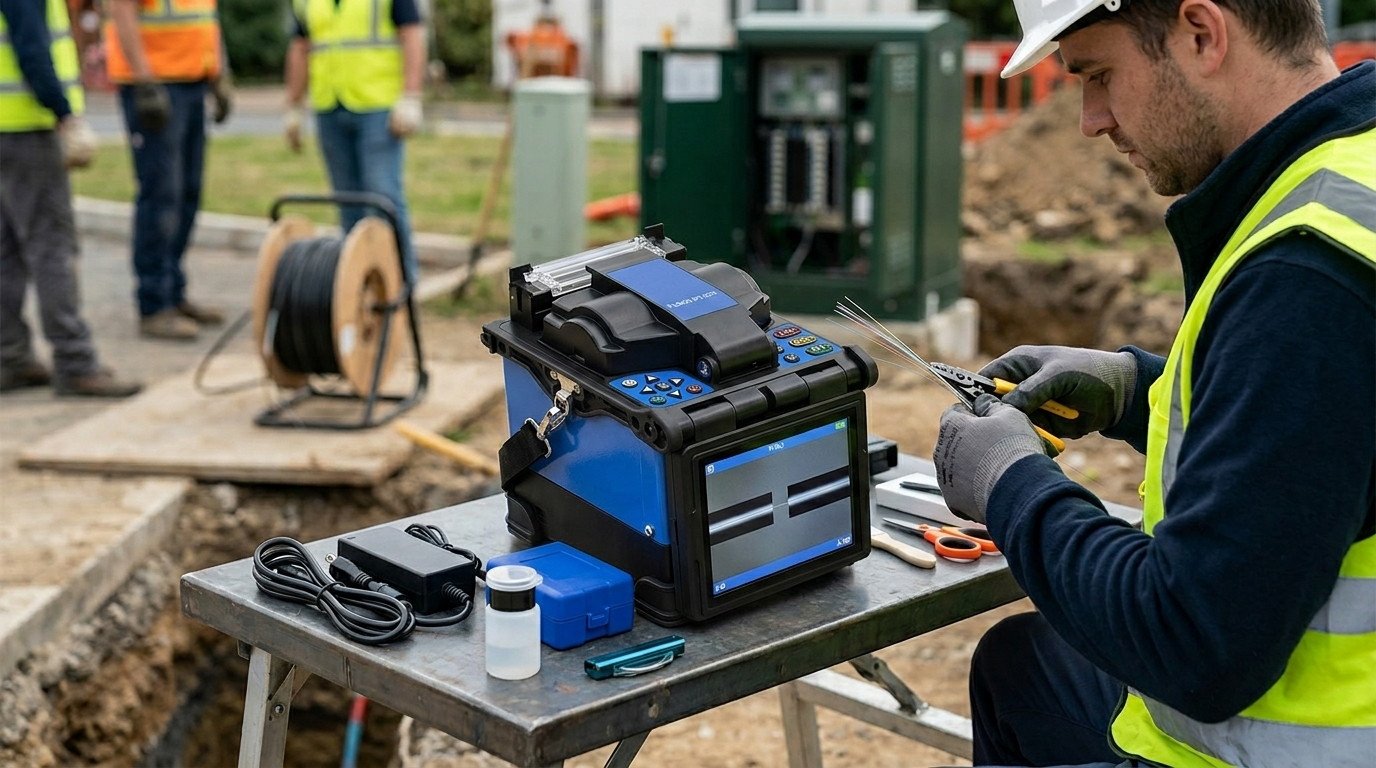

Engineers designed this tool to meet the growing demands of 5G infrastructure and data center maintenance. The rugged construction protects sensitive internal components from dust, moisture, and shock. Furthermore, the intuitive interface allows operators to perform complex tasks with minimal training. EPCOM prioritizes reliability in every component. Our solution ensures that every splice meets the strict ITU-T standards for optical networks. Performance consistency remains our primary objective throughout the manufacturing process.
Advanced Core Alignment in High Precision Fusion Splicer
Achieving a seamless connection requires more than just heat. The High Precision Fusion Splicer uses active core-to-core alignment to identify fiber types automatically. This process involves multiple high-precision cameras that capture the fiber profile from different angles. Then, the system adjusts the position in three axes—X, Y, and Z. This micro-positioning is critical for single-mode fibers where the core is only a few micrometers wide. Without such accuracy, signal attenuation would cripple long-distance transmissions.
Before the fusion process begins, the preparation of the fiber end-face is paramount. For the best results, we highly recommend using our high precision fiber cleaver. A clean, 90-degree cut prevents bubbles and flaws during the arc discharge. EPCOM systems are calibrated to detect improper cleaves and notify the user immediately. This prevents wasted effort and ensures long-term link integrity.
Technical Specifications Matrix
| Parameter Description | Technical Performance Data |
|---|---|
| Alignment Method | High Precision Core-to-Core Alignment |
| Average Splice Loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Splicing Time | Typical 6 – 8 Seconds (Standard Mode) |
| Heating Time | Typical 15 – 20 Seconds (Adjustable) |
| Display Screen | 5.0 Inch High-Resolution Color LCD Touchscreen |
| Magnification | 300X (X or Y view), 150X (X and Y view simultaneously) |
| Electrode Life | Standard 3000 to 5000 Splices |
| Power Supply | Internal Li-Battery (Splice/Heat up to 200 cycles) |
Operational Efficiency of High Precision Fusion Splicer

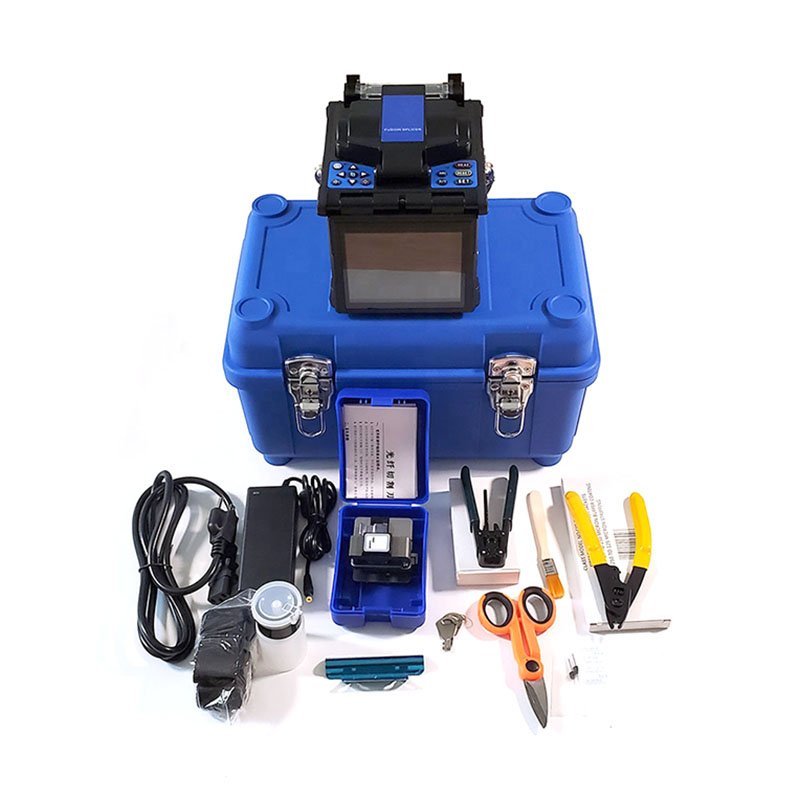

Efficiency in the field translates directly to cost savings for network operators. Our High Precision Fusion Splicer features a rapid heating oven that shrinks protection sleeves in record time. During large-scale deployments, every saved second adds up significantly. To maintain this workflow, technicians must utilize professional preparation tools. The 3 hole fiber stripping plier is essential for removing layers without damaging the glass cladding. EPCOM provides these accessories to ensure a standardized procedure for all staff members.
The durability of our hardware is tested against extreme temperatures and high altitudes. Automatic atmospheric pressure compensation adjusts the arc strength in real-time. Therefore, splicing in mountainous regions becomes as reliable as in a laboratory. The built-in lighting system also assists working in low-light environments, such as manholes or cabinets. Professionals appreciate these small but significant design choices. By integrating advanced sensors, the device maintains peak performance even after thousands of operations.
Quality Validation and Troubleshooting
Once the fusion is complete, verifying the link is the final critical step. While the machine estimates loss based on image analysis, visual confirmation is often required. We recommend using a portable VFL to check for any macro-bends or fractures near the splice point. This immediate feedback loop reduces the need for re-work. EPCOM strives to offer a complete ecosystem of tools that work in harmony.
Modern optical networks increasingly rely on IEEE standards for Ethernet over fiber. Meeting these benchmarks requires superior equipment that minimizes reflectance and return loss. Our fusion technology provides a stable environment for the arc, resulting in a cleaner melt. This leads to a physically stronger joint that can withstand tension. Maintenance teams find that our equipment drastically reduces the frequency of future repairs. Investing in quality tools today prevents expensive outages tomorrow.
Optimizing High Precision Fusion Splicer Maintenance

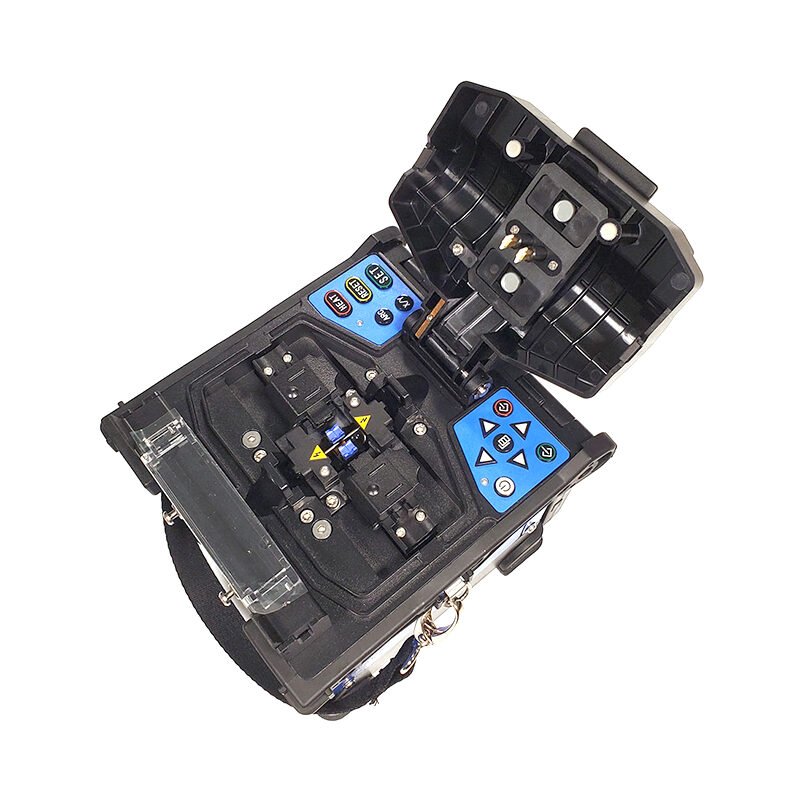

Regular maintenance ensures the longevity of your High Precision Fusion Splicer. Cleaning the V-grooves and mirrors is a simple task that prevents alignment errors. EPCOM provides a comprehensive cleaning kit with every unit. Furthermore, the electrodes are easily replaceable by the user, minimizing downtime. Our technical support team is always available to guide you through calibration procedures. By following a routine maintenance schedule, you ensure that the machine performs like new for years.
Software updates are also available to support new fiber types and enhance splicing algorithms. EPCOM continuously monitors industry trends to provide the best user experience. The USB interface allows for easy data export, which is useful for generating project reports. In summary, our equipment is not just a tool but a long-term investment in your network’s future. Reliability, precision, and ease of use are the cornerstones of our brand philosophy.
