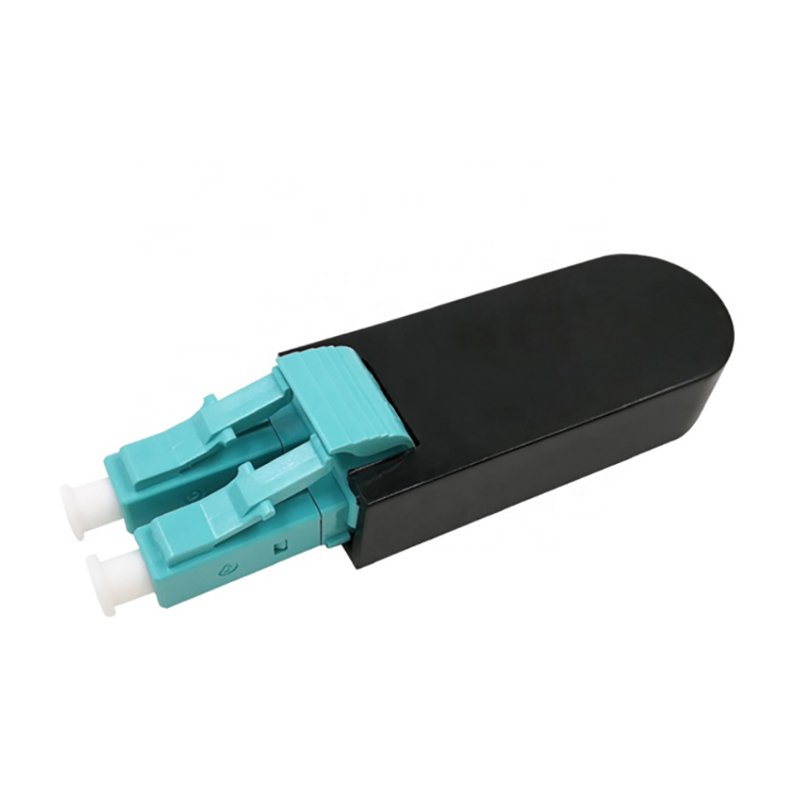

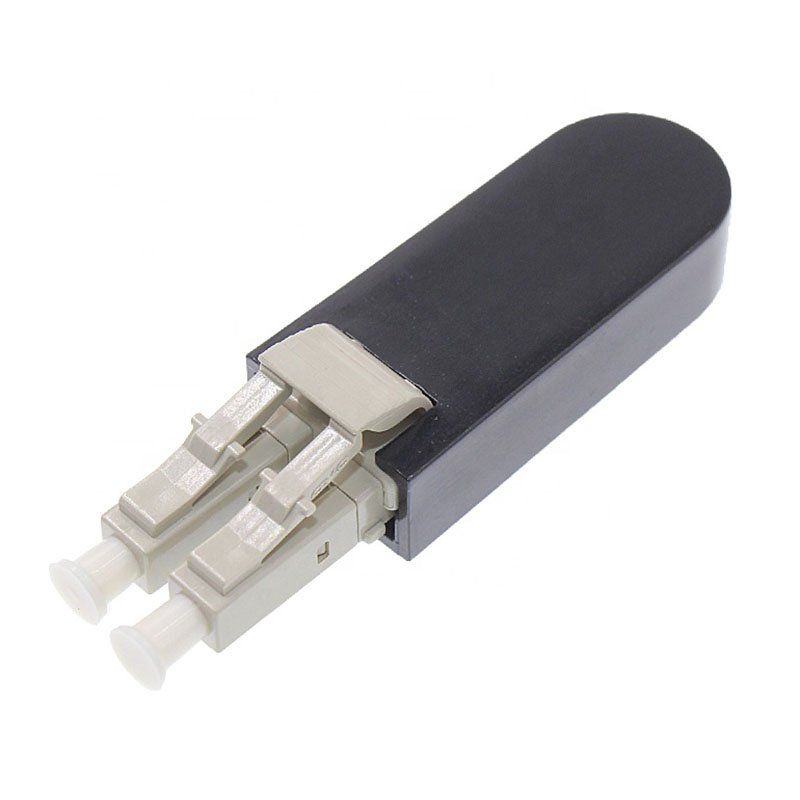

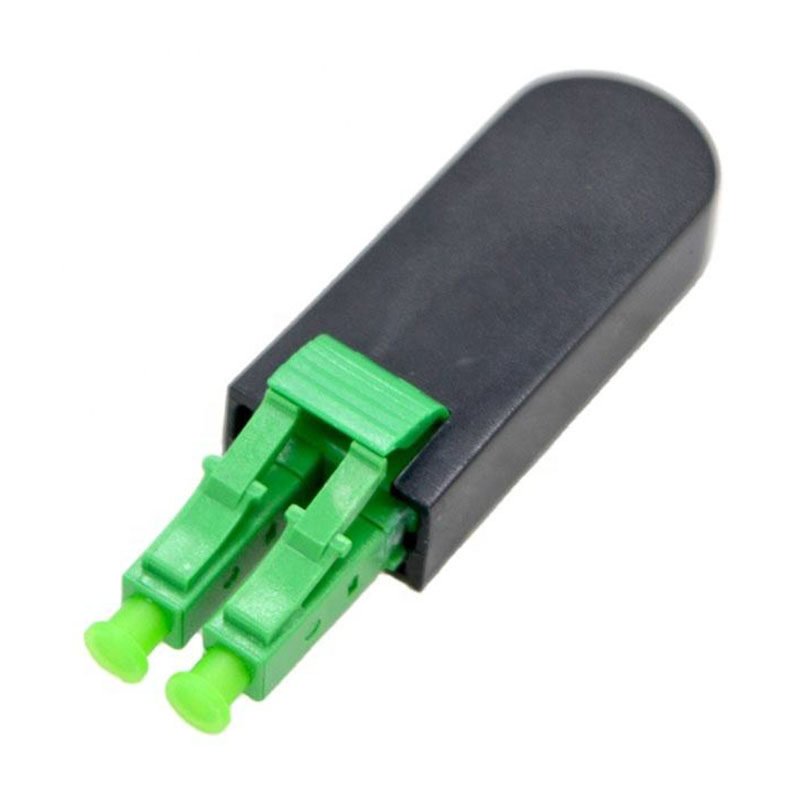

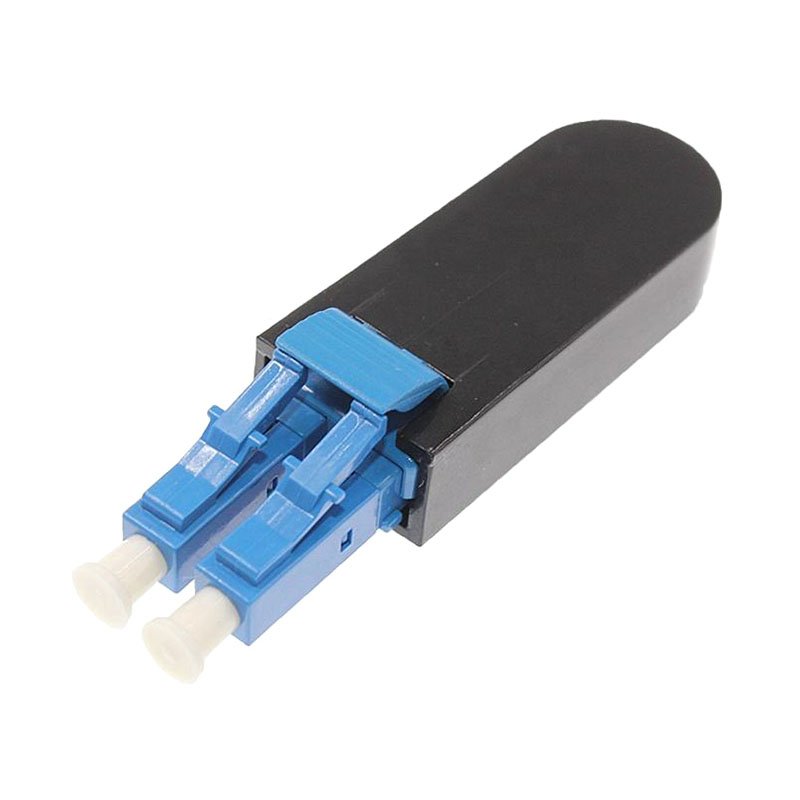

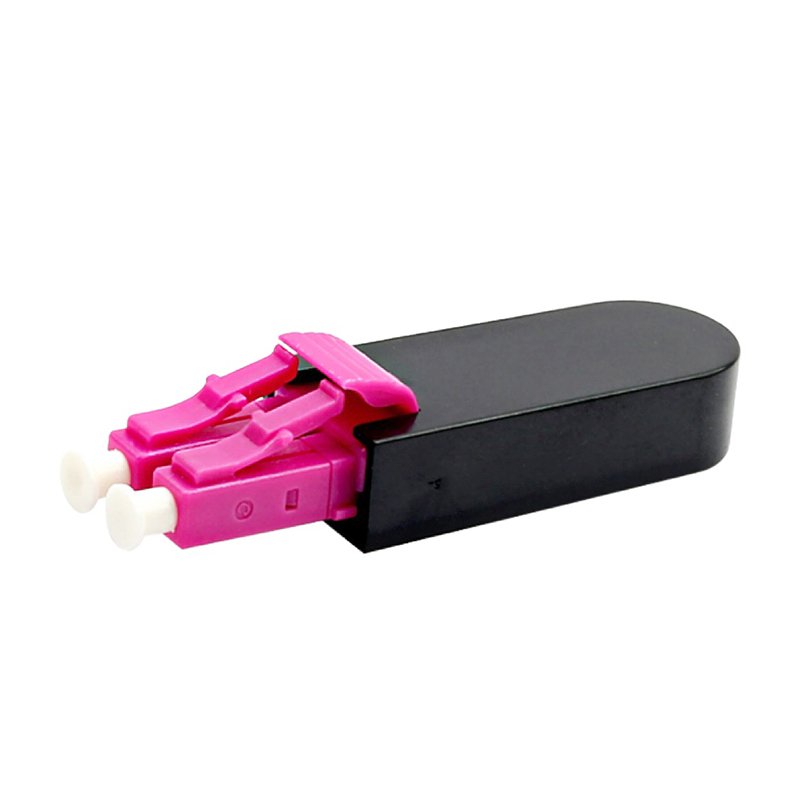

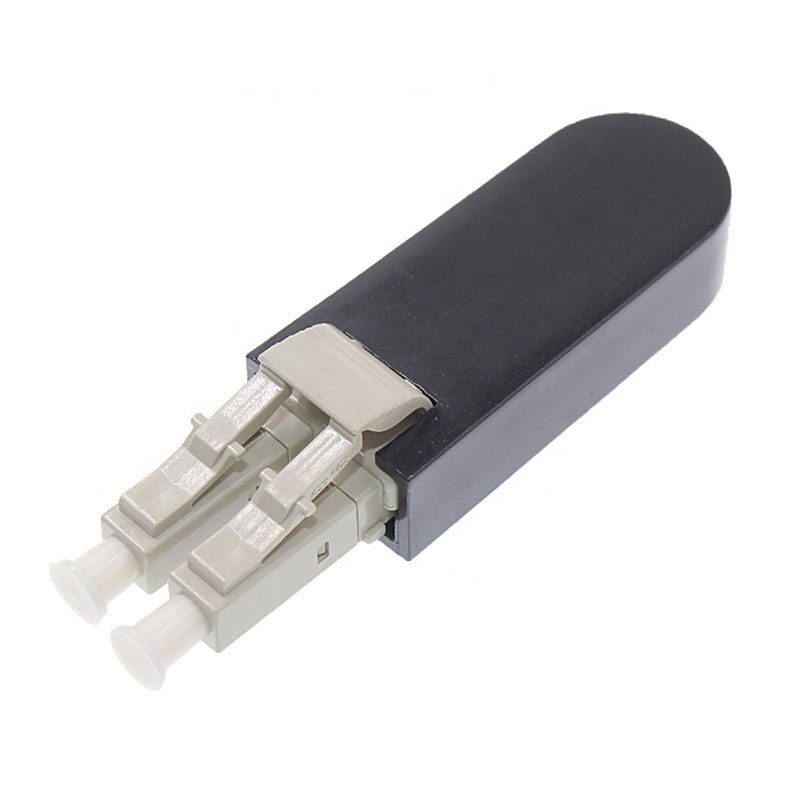

Premium LC Optical Loopback for Diagnostic Testing
An LC Optical Loopback is a device that is used to connect two optical fibers together. It is a type of fiber optic adapter that has two LC connectors, one on each end. It is used to test the performance of optical fiber transmission systems. It can also be used to isolate and troubleshoot problems in optical fiber networks.
- High precision ceramic ferrules ensure minimal insertion loss and superior signal stability.
- Fully compatible with LC standard ports for efficient testing of SFP plus transceivers and active equipment.
- Rugged and compact design allows for repeated matings and convenient use in high-density data centers.
- Supports multiple fiber modes including single-mode and multi-mode for versatile network diagnostic applications.
- Wide operating temperature range from -40 to +85 Celsius for reliable performance in harsh environments.
Description
LC Optical Loopback modules provided by EPCOM serve as an essential component for engineers and technicians focused on network verification. This specialized device allows for the effective testing of transmission capabilities and receiver sensitivity within fiber optic equipment. By redirecting the signal from the transmitter back to the receiver, it creates a self-contained loop that isolates potential faults. EPCOM ensures that every module meets rigorous industry standards for telecommunication reliability.
Fiber optic communication systems require precision and minimal signal loss. Our loopback adapters are designed to withstand frequent insertions without degrading performance. They are compatible with a wide range of active equipment, including switches, routers, and high-speed storage devices. Using these modules simplifies the troubleshooting process by providing a consistent and stable return path for optical signals.
Core Engineering of LC Optical Loopback
The design of the LC Optical Loopback emphasizes compact form factors and ease of use. EPCOM utilizes high-quality ceramic ferrules to ensure precise alignment of the fiber cores. This precision is critical for maintaining low insertion loss and high return loss across various wavelengths. Whether you are working in a data center environment or a laboratory, these modules provide the durability needed for repetitive testing cycles.
Furthermore, our products are available in multiple fiber modes to suit different network architectures. Single-mode variants are ideal for long-distance testing, while multi-mode options cater to short-range local area networks. Each unit undergoes comprehensive optical testing before shipping. This guarantee of quality helps network administrators maintain peak performance in their fiber optic networks.
Technical Specifications for LC Optical Loopback
Below are the detailed parameters for the standard LC loopback assembly. These specifications reflect the high performance required for modern high-speed data transmission.
| Parameter | Specification Details |
|---|---|
| Connector Type | LC / UPC or LC / APC |
| Fiber Mode | Single-mode (9/125um) or Multi-mode (50/125um, 62.5/125um) |
| Insertion Loss | ≤ 0.30 dB (Typical) |
| Return Loss | ≥ 50 dB (UPC), ≥ 60 dB (APC) |
| Operating Temperature | -40°C to +85°C |
| Durability | > 1000 Matings |
Applications and Network Integration

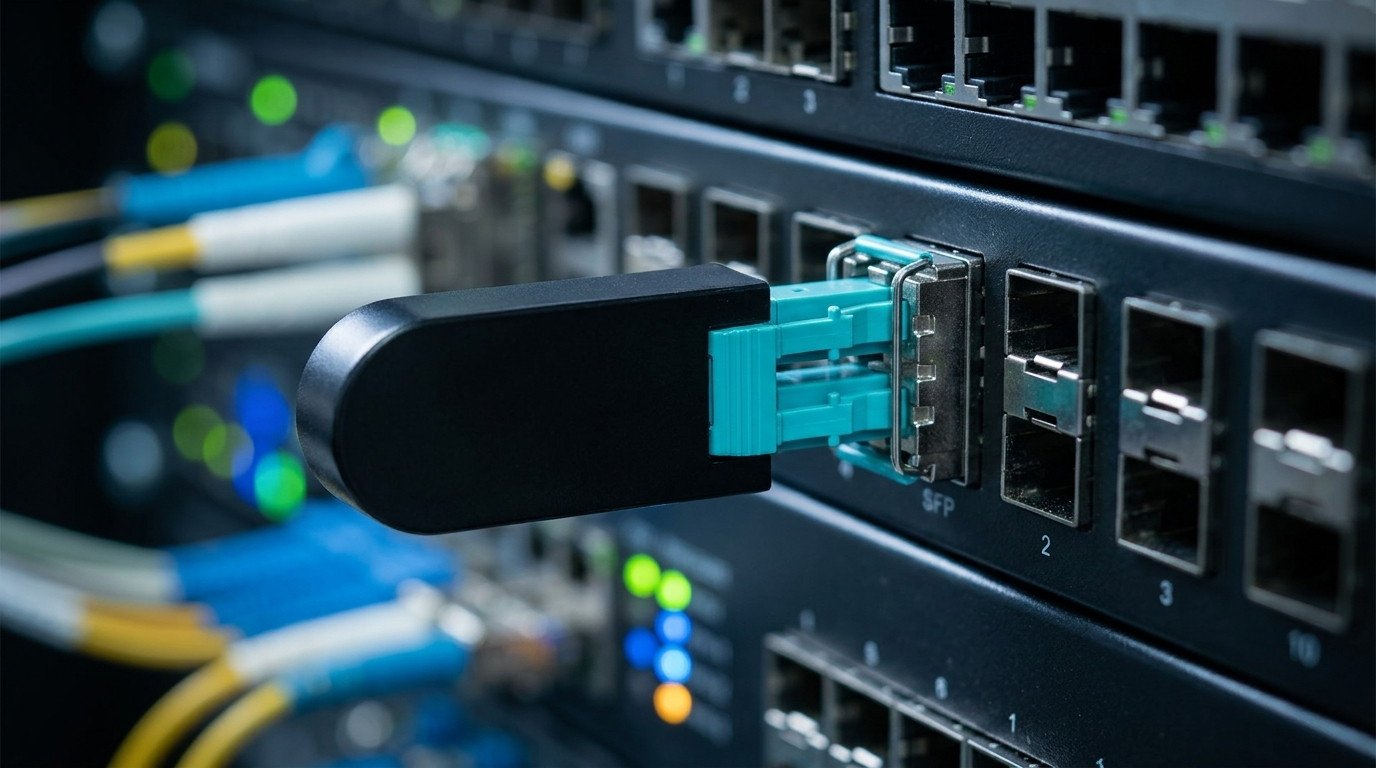

In a typical diagnostic scenario, the LC Optical Loopback is paired with other infrastructure components to verify a complete link. For instance, testing a high-speed SFP Plus Optical Transceiver often requires a loopback to confirm the port integrity. By using a loopback, you can immediately determine if the transceiver is functioning correctly before deploying it in a live production environment.
Another common use case involves cable plant testing. When a link fails, technicians use the loopback to rule out equipment failure. Transitioning through an LC Single Mode Adapter, the loopback can be connected to long-haul patch cords to check for continuity. EPCOM recommends keeping several loopback modules in every technician’s toolkit for rapid response.
Maintaining Your LC Optical Loopback
To ensure the longevity of your testing equipment, proper hygiene is mandatory. Dust and oils can quickly degrade the optical interface of any connector. We highly suggest using a 1.25mm LC/MU One Click Cleaner before every insertion. Regular cleaning prevents permanent damage to the delicate ceramic ferrule and ensures consistent test results over time.
EPCOM products are designed for durability, but environmental factors still play a role. The protective housing of our loopback modules is built to resist thermal fluctuations. However, maintaining the end-faces is the most effective way to protect your investment. Following standard TIA/EIA guidelines for fiber maintenance will prolong the life of your hardware significantly.
Why Choose EPCOM Solutions?
EPCOM stands as a leading provider of high-performance fiber optic components globally. Our commitment to quality starts with the selection of raw materials and continues through our advanced manufacturing processes. We understand the critical nature of network uptime, which is why our products undergo rigorous stress testing. Every module is verified to meet international standards for attenuation and physical tolerance.
Our team of experts provides comprehensive technical support for all our testing solutions. From initial selection to post-deployment advice, we assist our clients in optimizing their fiber infrastructure. Choosing EPCOM means investing in reliability and precision. We offer a diverse catalog that covers everything from basic connectivity to advanced diagnostic tools, ensuring that your network remains robust and scalable for future demands.
