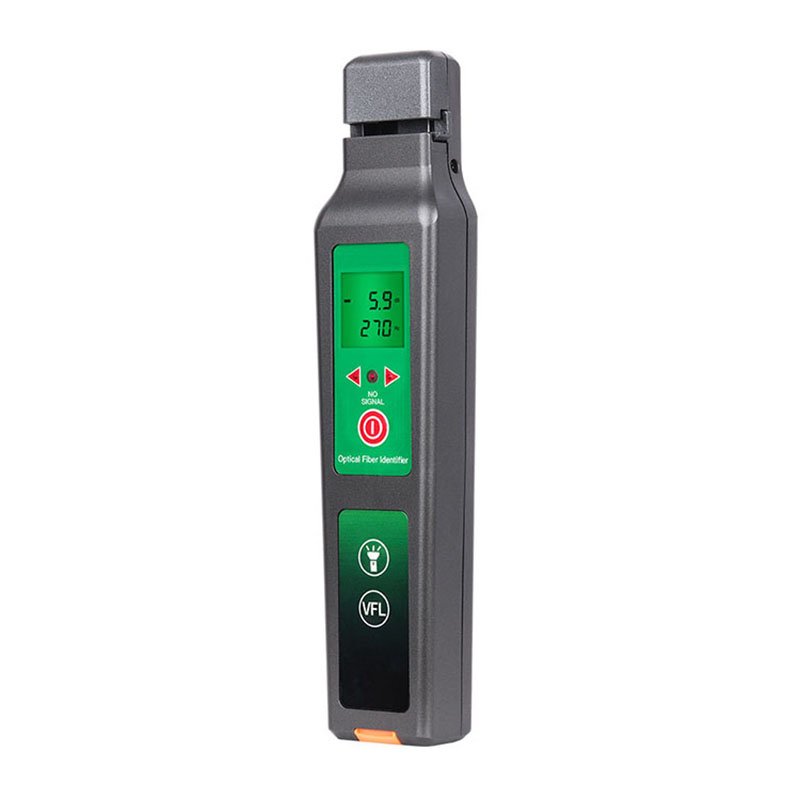

Live Fiber Identifier with VFL
The Live Fiber Identifier is an essential tool for optical maintenance technicians. It is used to identify the direction and power of optical signals without disrupting service. This makes it ideal for use in live networks, where downtime is not an option.
Description
Live Fiber Identifier: Identify & Troubleshoot Fiber Optics Quickly (All-in-One Tool)
Features:
- Identifies the direction and power of optical signals without disrupting service
- Uses macro bending technology for non-destructive testing
- Can identify the type of fiber
- Features a Visual Fault Locator (VFL) module
- VFL has a range of up to 10 kilometers (6.2 miles)
Applications:
- Maintenance in Telecom
- Engineering maintenance of optical fiber network
- Engineering maintenance of Digital Data Network
- Teaching and research of optical communication
- Other optical fiber works
Specifications:
| Parameter | Value |
| Wavelength Recognition Range | 800-1700nm |
| Signal Recognition Type |
CW,270 Hz ± 5%J kHz ± 5%,2 kHz ± 5%
|
| Detector Type |
1mm InGaAs 2 pcse
|
| Adapted fiber type |
Universal Holder for 0.25(Bare Fiber), 10.9, 2.0, 3.0 Cable
|
| Signal Direction |
Left & Right LED
|
| Optical Power Reading Range |
-40 dBm to 10 dBme
|
| Signal Frequency Range |
270Hz, 1kHz, 2kHz
|
| Power Type | AA*2 |
| Operating Temperature Range | -10°Cto 60°C |
| Storage Temperature Range | -25°C to 70°C |
| Dimension/Weight |
2194528mm/235g
|
VFL
| Parameter | Value |
| Power range | 10mW |
| Testing distance | 8-10km |
| Wavelength | 650nm |
| Laser type | LD |
| LED light | Yes |
Benefits:
- Prevents downtime: The Live Fiber Identifier can be used to identify and troubleshoot optical fiber problems without disrupting service. This can save businesses a significant amount of money in downtime costs.
- Improves safety: The Live Fiber Identifier uses non-contact technology, so there is no risk of electric shock or fiber damage. This makes it a safer tool to use than traditional methods.
- Increases efficiency: The Live Fiber Identifier can quickly and easily identify optical fiber problems, which can help technicians to resolve issues more quickly. This can improve overall network efficiency.
Conclusion
The Live Fiber Identifier is an essential tool for any optical maintenance technician. It is a versatile tool that can be used to identify, troubleshoot, and resolve a wide variety of optical fiber problems. If you are looking for a way to improve your network’s uptime, safety, and efficiency, then the Live Fiber Identifier is a great investment.
