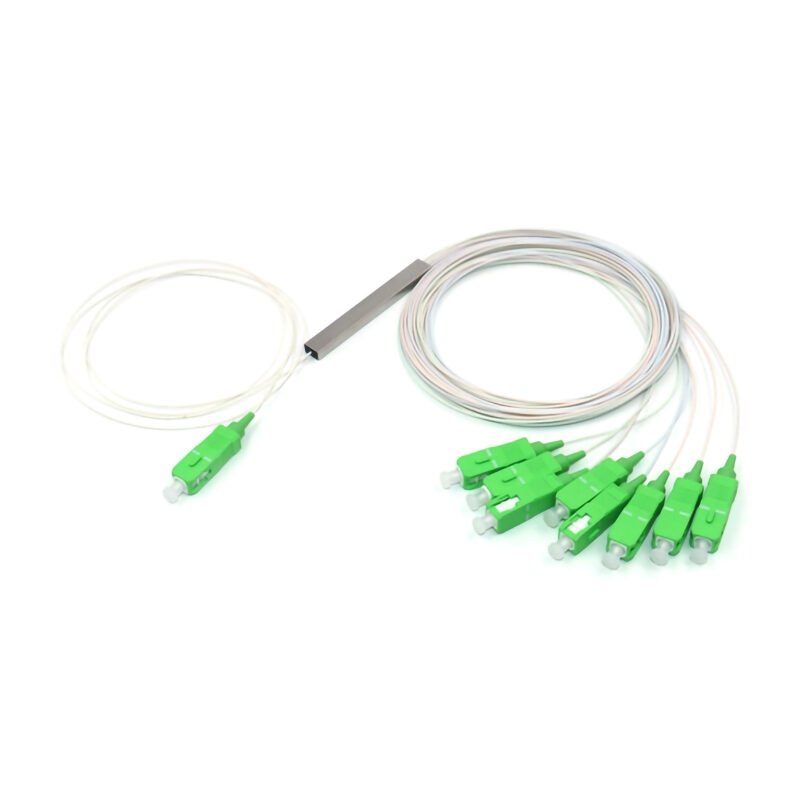

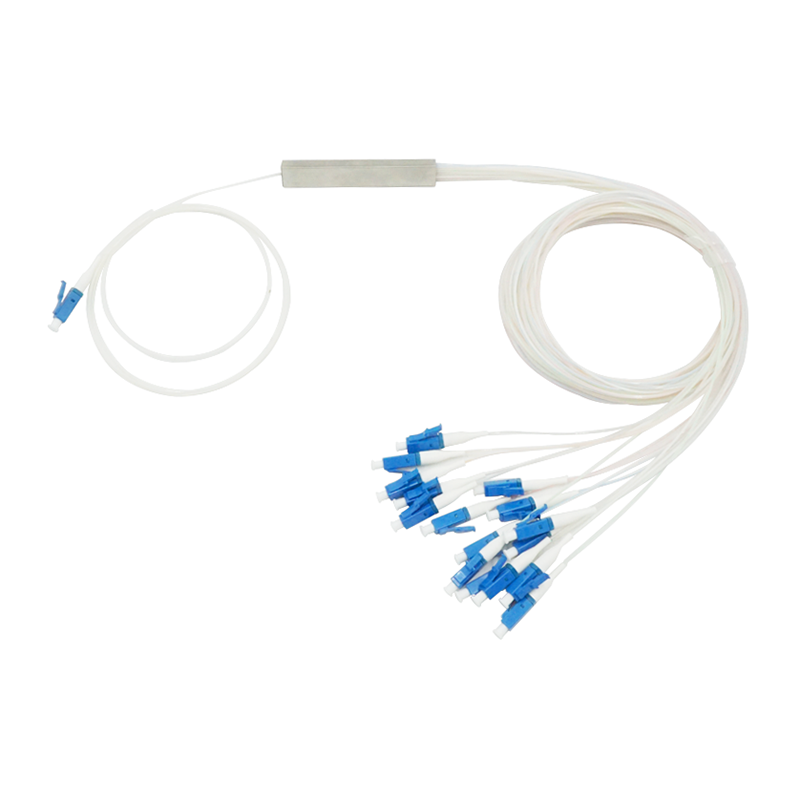

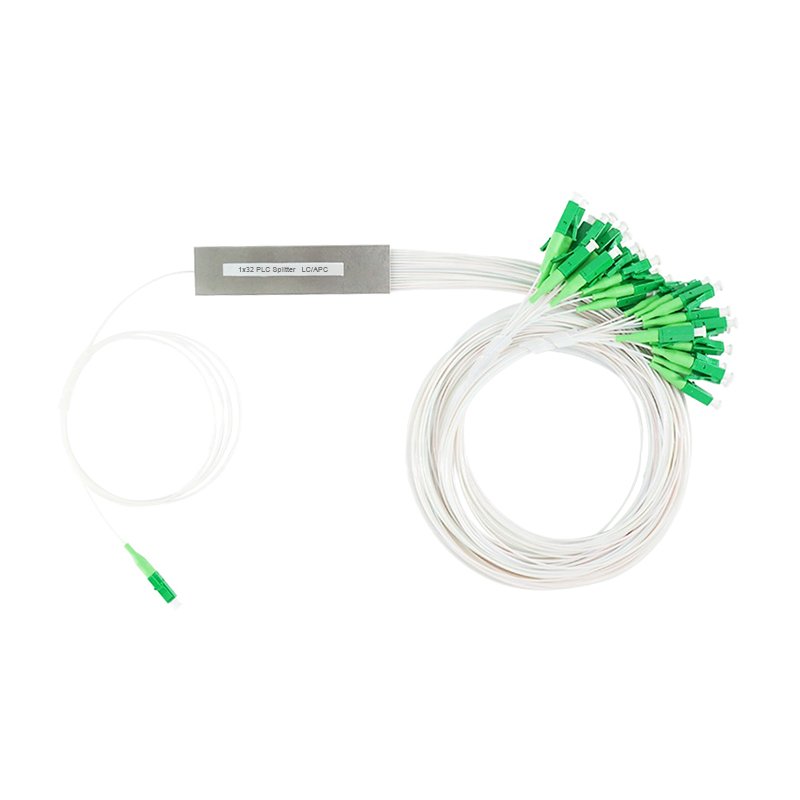

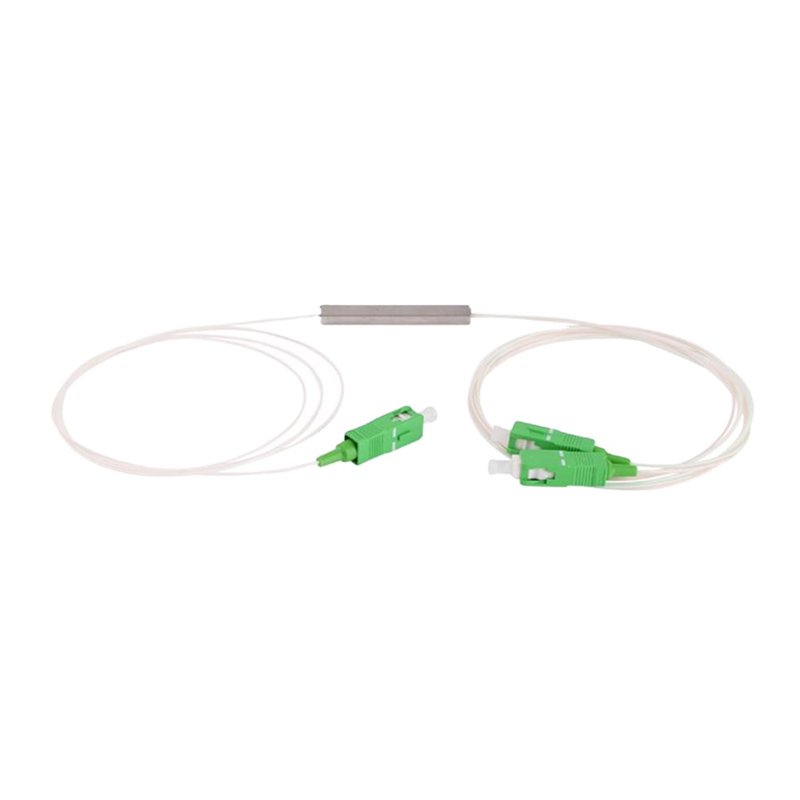

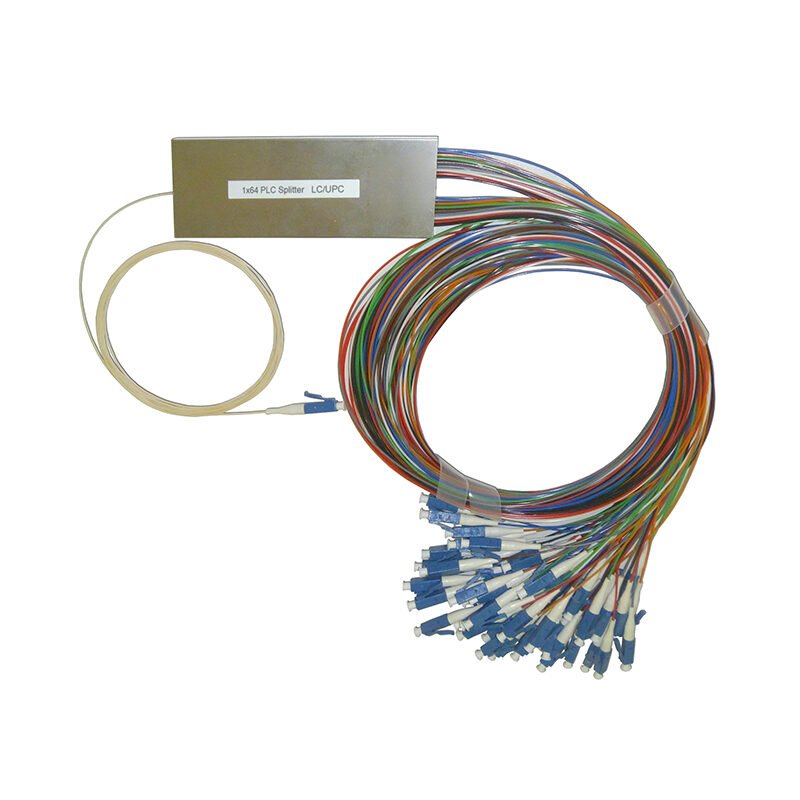

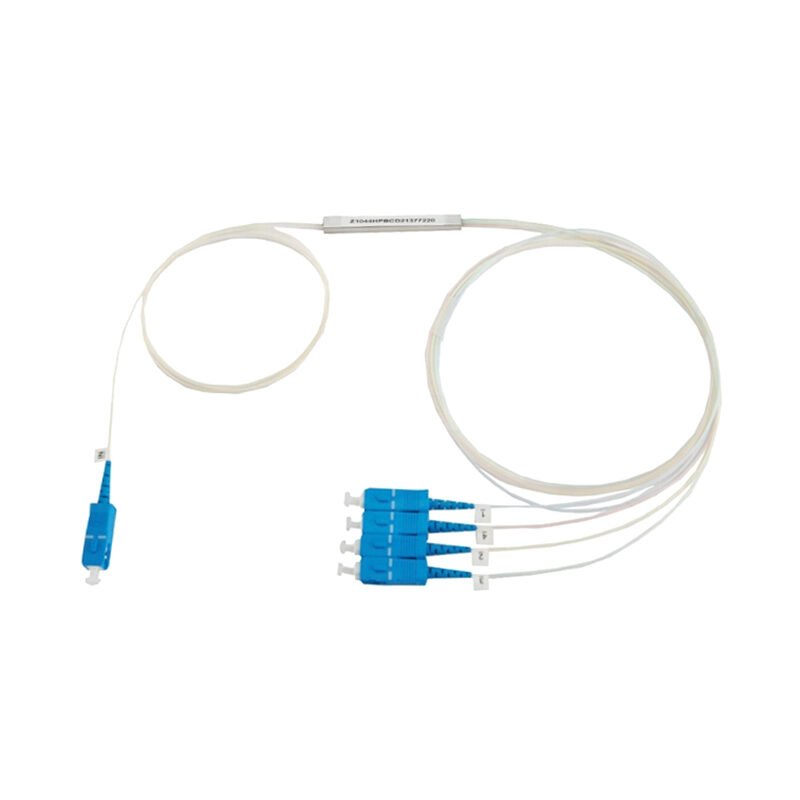

Mini PLC Splitter
A Mini PLC Splitter is a passive optical device that distributes an optical signal into multiple identical signals. It is a versatile device that can be used in a variety of applications, such as Fiber To The Home (FTTH), Fiber To The Building (FTTB), and Fiber To The Cell (FTTC).
Description
Mini PLC Splitter | High-Performance, Compact Design
Features
- Small and lightweight
- High channel counts
- Low insertion loss and return loss
- Wide operating wavelength
- Wide operating temperature
- Convenient engineering applications
Applications
- CATV network
- LAN, WAN, and MAN
- Testing equipment
- Fiber optic communication system
- FTTX access network based on PON structure
Parameters
| Parameter | Value |
| Operating Wavelength (nm) | 1260-1650 |
| Fiber Type |
G657A1 or as customers’ order
|
| Port Configuration | 1xN, 2xN |
| Insertion Loss (dB) | 3.8/4.0-24.5 |
| Loss Uniformity (dB) | 0.4-2.5 |
| Polarization Dependent Loss (dB) | 0.2-0.4 |
| Wavelength Dependent Loss (dB) | 0.3-0.5 |
| Temperature Dependent Loss (-40~85) (dB) | 0.4-0.5 |
| Return Loss (dB) | 55/50 |
| Operating Temperature (°C) | -40 to +85 |
| Directivity (dB) | 255 |
| Storage Temperature (°C) | -40 to +85 |
Benefits
- Improved network performance
- Reduced costs
- Increased efficiency
- Simplified installation
- Reliable operation
Why Choose Our Mini PLC Splitter?
Our Mini PLC Splitter is the perfect solution for a wide range of applications. It is designed and manufactured to the highest standards, and it is backed by our commitment to quality and customer service.
Contact Us Today
To learn more about our Mini PLC Splitter or to place an order, please contact us today.
