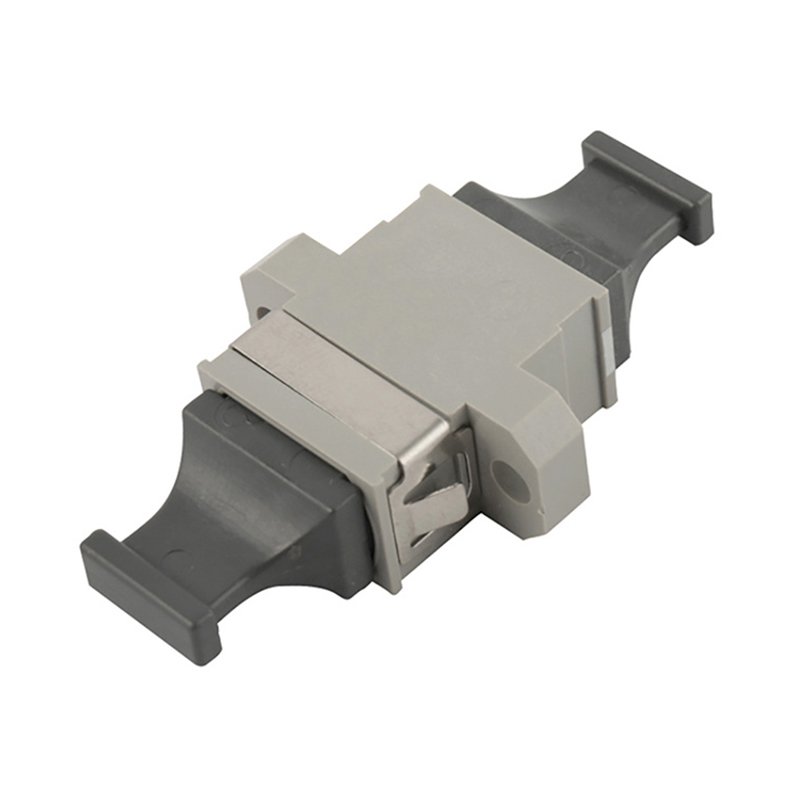

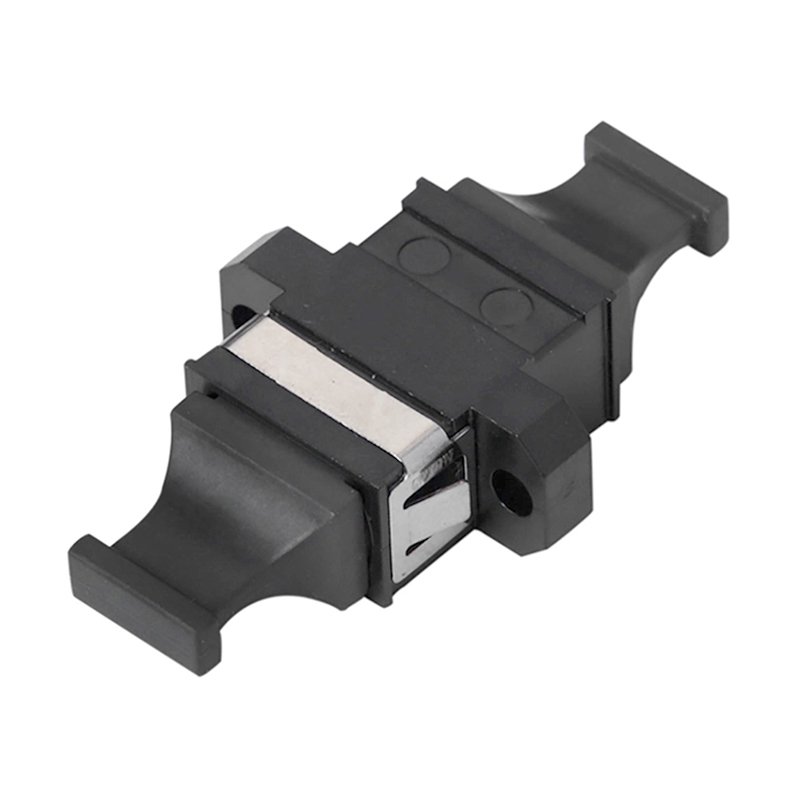

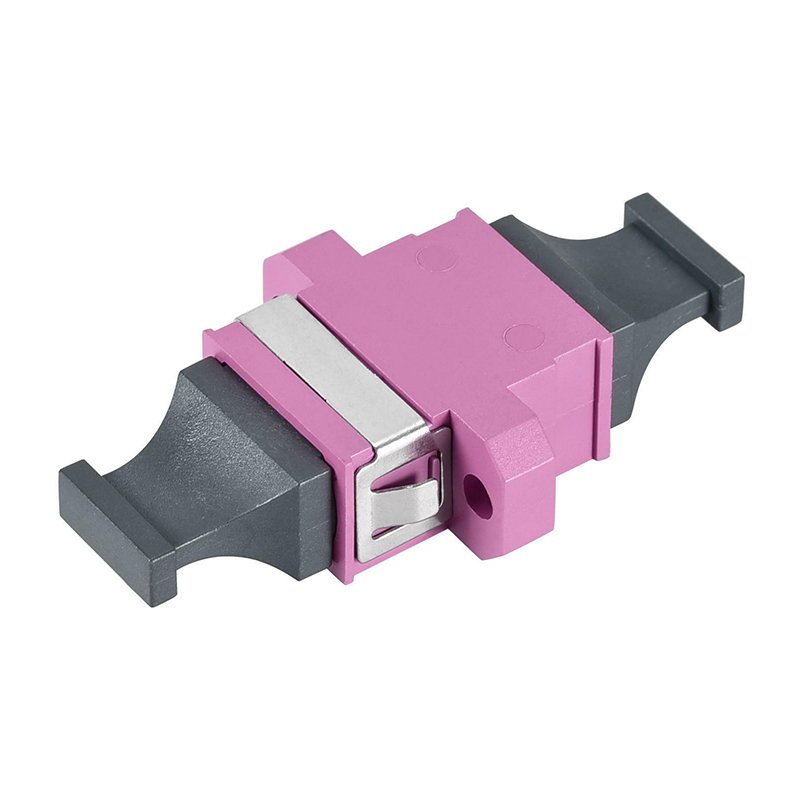

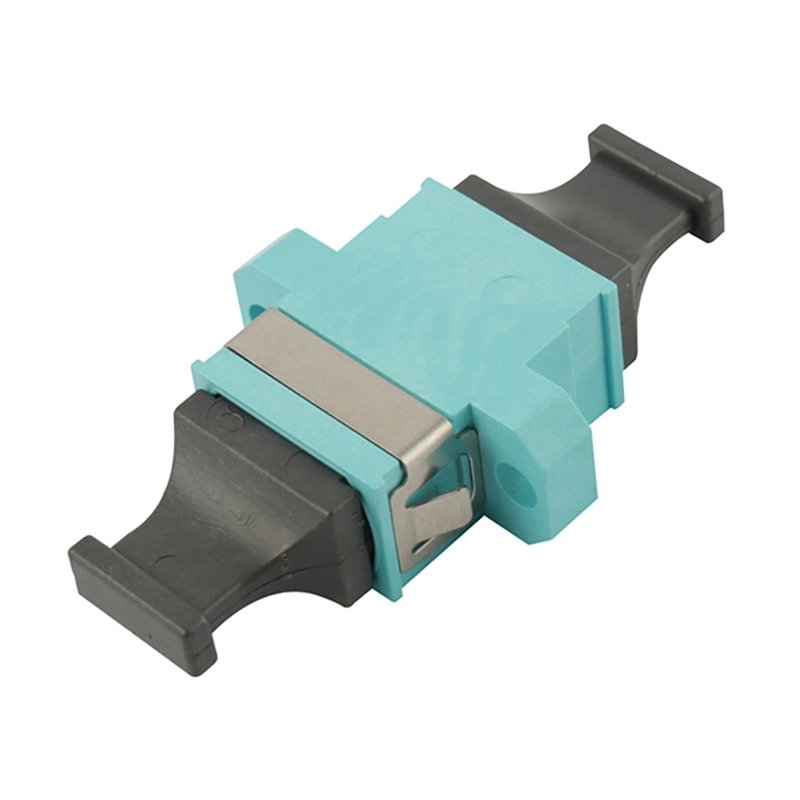

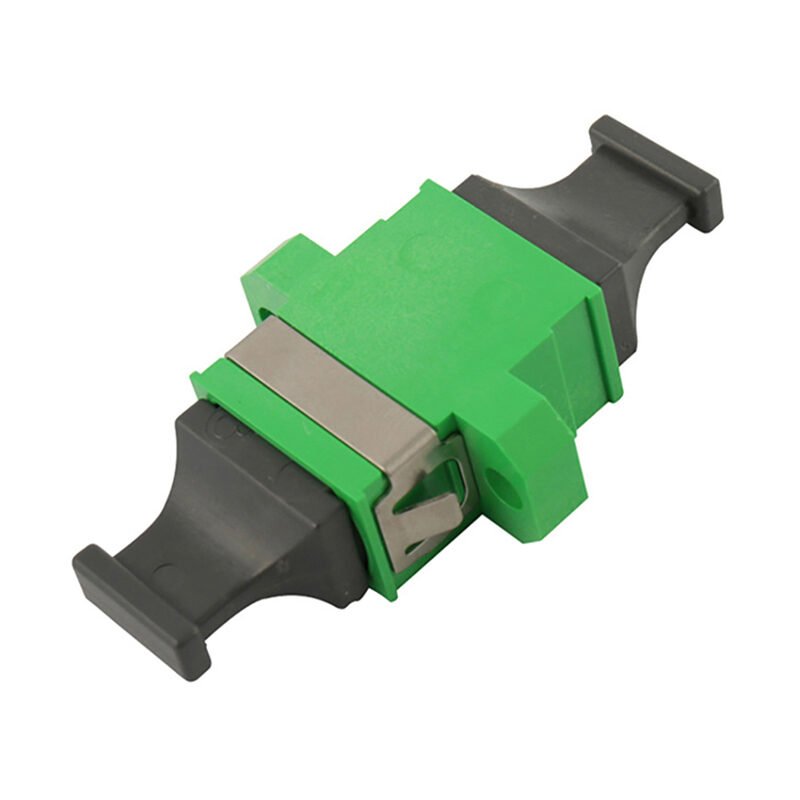

MPO/MTP Adaptor
MPO/MTP adaptors are passive devices that connect two MPO/MTP fiber optic cables or patch cords. They are commonly used in high-density fiber optic cabling applications, such as data centers and telecommunications networks. They are known for their high performance and reliability, making them a popular choice for demanding applications.
Description
MPO/MTP Adaptor: Achieve High-Density Optical Fiber Connections
Features:
- High Density: It supports up to 144 fibers within a single connector, significantly increasing fiber density and reducing cable footprint.
- Low Insertion Loss: It offers exceptional optical performance with low insertion loss, ensuring minimal signal degradation and maintaining high data transmission quality.
- Precision Alignment: It employs a precise alignment mechanism to guarantee consistent optical coupling and minimize signal interference.
- Durability: It is built with high-quality materials and robust construction, ensuring long-lasting performance and reliability.
Applications:
- Data Centers: It is widely used in data centers for high-speed network connections, trunk cabling, and fiber channel applications.
- Telecommunications: It plays a crucial role in telecommunications networks for backbone connections, optical transport systems, and subscriber access applications.
- Enterprise Networks: It is employed in enterprise networks for core-to-edge connectivity, server-to-switch links, and horizontal cabling infrastructures.
Common MPO/MTP Adaptor Parameters
| Parameter | Description |
| Connector Type | MTP/MPO |
| Keyway |
Up-Up, Up-Down, Keyless
|
| Fiber Count |
4, 8, 12, 24, 36, 48, 72, 144
|
| Ferrule Type | PC, APC |
| Insertion Loss | ≤0.35 dB |
| Return Loss | ≥60 dB |
| Durability |
≥1000 mating cycles
|
| Operating Temperature | -40°C to +85°C |
Why Choose Our MPO/MTP Adaptor?
- Superior Quality: We source premium materials and employ rigorous manufacturing processes to ensure the exceptional quality and reliability of our MPO/MTP Adaptor.
- Comprehensive Selection: We offer a wide range of MPO/MTP Adaptor options to meet your diverse application requirements, including various fiber counts, keyways, and ferrule types.
- Cost-Effective Solutions: We provide competitive pricing, ensuring you get the best value for your investment.
- Unparalleled Support: Our dedicated technical team is readily available to assist you with product selection, application guidance, and after-sales support.
Optimize Your Network with Our High-Performance MPO/MTP Adaptor
Contact us today to discuss your specific requirements and discover how our MPO/MTP Adaptor can enhance your network performance and efficiency.
