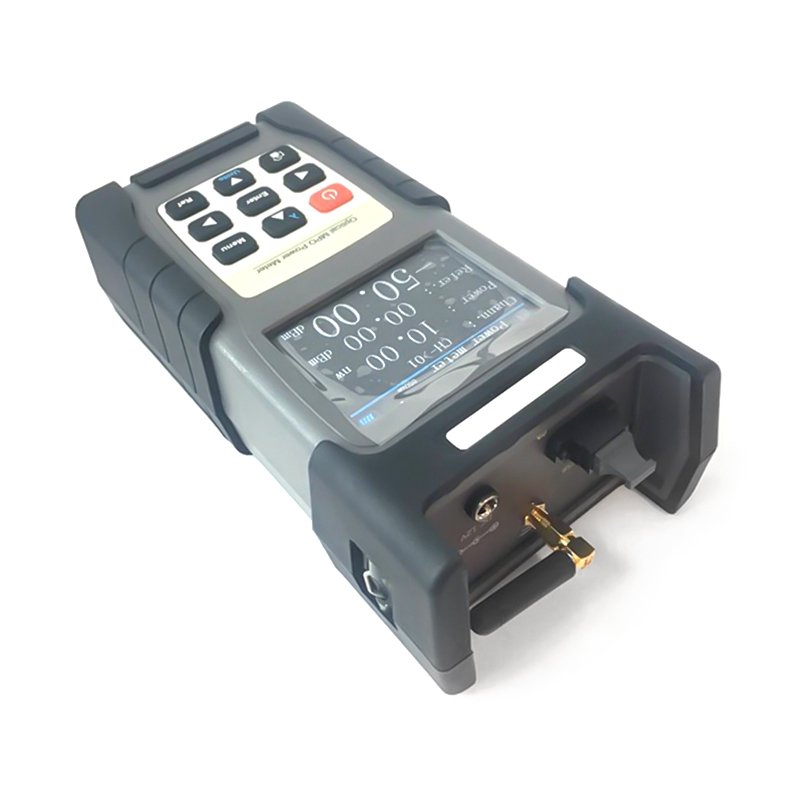

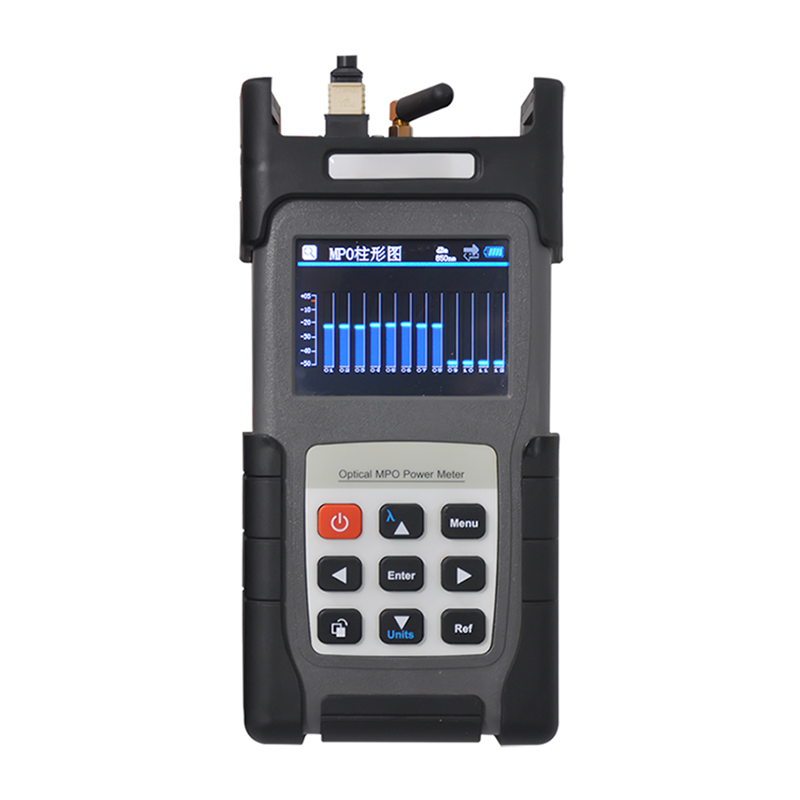

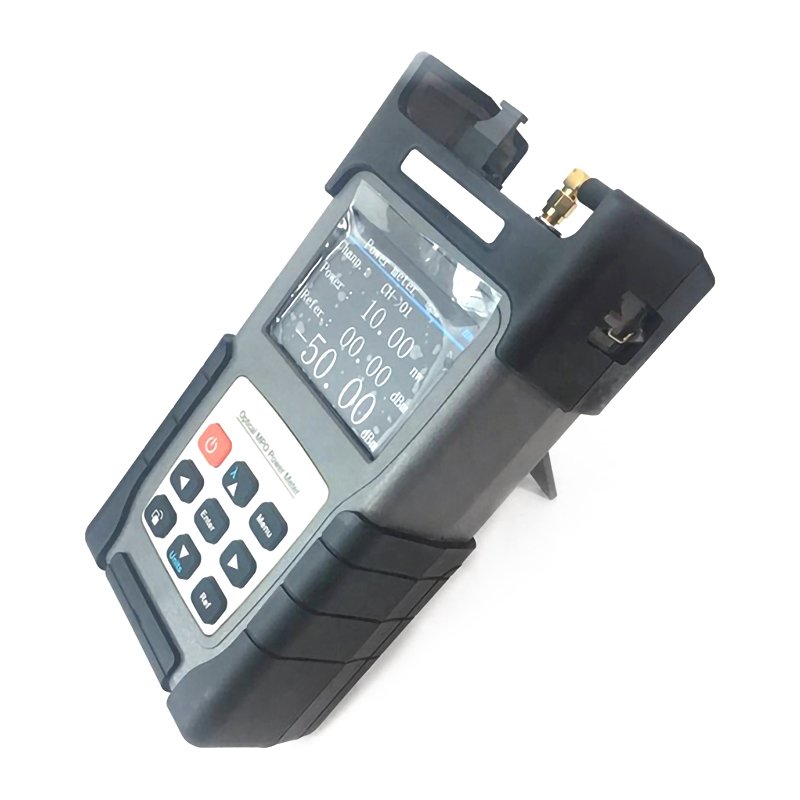

18 Channels MPO/MTP Optical Power Meter
The MPO/MTP Optical Power Meter is a versatile and reliable instrument that is designed for testing the optical power of MPO/MTP fiber optic connectors. It is widely used in various applications, such as telecommunications, data centers, and manufacturing.
- Multi-channel capability for 12/24 MPO connections.
- High-precision color LCD display.
- Single-key function switching.
- Intelligent power-saving mode.
- Over 10 hours of continuous operation from a 3500mAh battery.
Description
The MPO/MTP Optical Power Meter from EPCOM is an essential testing instrument specifically engineered for MPO fiber systems.
In recent years, the explosive growth of data center infrastructure and cloud computing has dramatically increased the demand for multi-fiber MPO connectivity.
Traditional single-channel optical power meters struggle to keep up, presenting challenges with complex measurement processes and questionable reliability.
To address this, EPCOM offers the 3224/3124 series, a solution designed to provide fast, accurate, and reliable testing for high-density fiber networks.
This instrument is the ideal choice for field applications, production line calibration, and polarity determination.
Key Benefits of the MPO/MTP Optical Power Meter
Efficiency and accuracy are paramount when deploying or maintaining MPO/MTP systems. The EPCOM power meter is designed to maximize both.
Compared to traditional instruments, the testing efficiency is improved by more than 10 times.
Technicians can test both the insertion loss and polarity of MPO fibers with a single key press, drastically reducing time and complexity on site.
For comprehensive testing, this power meter is designed to work seamlessly with an MPO/MTP Optical Light Source, ensuring end-to-end performance verification of your multi-fiber links.
Advanced Features for the Modern Technician
The EPCOM MPO tester is packed with features designed for user convenience and superior performance.
It streamlines the entire testing workflow, from measurement to reporting.
- Multi-Channel Capability: The device is specifically designed for MPO connections with dedicated 12 and 24 channel testing capabilities.
- High-Precision Display: A vibrant, high-precision color LCD screen presents data clearly for immediate analysis.
- Versatile Function Switching: Users can switch between four different function interfaces with a single key, including a single-channel power meter, a 12-channel power meter, MPO testing, and a column interface.
- Intelligent Power Saving: The backlight will automatically dim to enter power-saving mode if there is no operation for five minutes, conserving battery life.
- Extended Battery Life: A built-in 3500mAh high-capacity lithium battery allows for more than 10 hours of continuous operation in the field.
Streamlined Workflow with the MPO/MTP Optical Power Meter
Data management is a critical part of network certification and troubleshooting.
The EPCOM MPO/MTP Optical Power Meter simplifies this process significantly.
The device can store up to 100 history data reports internally, allowing you to save and review measurements directly on the unit.
When it’s time to compile a formal report, the integrated USB interface allows you to copy data directly to a computer without needing special software, which is incredibly convenient for the user.
Furthermore, the user can customize pass/fail thresholds for tests. This feature is invaluable for quality control on production lines and for ensuring that all links in a data center meet specific performance standards.
For complete fiber optic hygiene and testing, it is crucial to maintain pristine connector end-faces.
We recommend using an MPO/MTP Cleaning Pen before every measurement to ensure accurate readings.
Additionally, for verifying network segments, an MPO/MTP Loopback can be an indispensable tool for signal path validation.
Technical Specifications of the MPO/MTP Optical Power Meter
The following table details the technical specifications for the EPCOM 3224/3124 series MPO tester.
| EPCOM MPO Tester Specifications | |
|---|---|
| Laser Type | FP LD |
| Wavelength | 850/1300 or 1310/1550 |
| Frequency | 1KHz, 2KHz, 0 Hz, 270Hz |
| Fiber Type | 9/125, 50/125, 62.5/125 |
| Interface Type | SM/MM MPO/PC 12/24 core |
| Output Power | > -10dBm |
| Stability | ±0.2 (15min.), ±0.5 (8hours) |
| Detector | InGaAs |
| Wavelength Range | 850~1700nm |
| Calibration Wavelength | 850nm & 1300nm OR 1310nm & 1550nm |
| Optical Power Meter Range | +3~-50 dBm |
| Insertion Loss Accuracy | <0.2s/CHANNEL |
| Resolution | 0.01dB |
| Linearity | ±0.2dB (+5~-50dBm) |
| System Control | USB |
Primary Applications
With its combination of speed, precision, and user-friendly features, this tester is the best choice for a variety of critical applications.
It excels in demanding environments such as field testing in MPO data rooms, performing quality control and calibration on production lines, and for the rapid determination of fiber polarity in complex cable assemblies.
For any professional working with MPO/MTP infrastructure, the EPCOM 3224/3124 is the definitive tool for ensuring network performance and reliability.
