PA300 Anchor Clamp for ADSS Cable
The PA300 Anchor Clamp is a versatile tool that is designed to anchor ADSS optical fiber cables. It is made of high-quality materials and is designed to withstand the rigors of outdoor environments. It is easy to install and can be used with a variety of cable sizes.
- High-grade UV resistant glass fiber reinforced plastic body for maximum outdoor durability.
- Self-adjusting plastic wedges ensure a secure and non-slip grip without damaging the cable jacket.
- Heavy-duty stainless steel bail provides excellent corrosion resistance and flexible installation.
- Efficient tool-free installation design significantly reduces labor time and deployment costs.
- Dielectric construction prevents electromagnetic interference for safe use near power lines.
Description
PA300 Anchor Clamp is a vital instrument specifically engineered for the high-tension securing of All-Dielectric Self-Supporting (ADSS) cables within modern telecommunication infrastructures. EPCOM supplies this robust solution to maintain the structural integrity and long-term stability of aerial fiber deployments. By incorporating advanced thermoplastic polymers and expert engineering, this hardware distributes mechanical loads effectively without compromising the cable outer jacket. Consequently, it has established itself as a primary choice for telecommunication professionals and network contractors operating on a global scale.

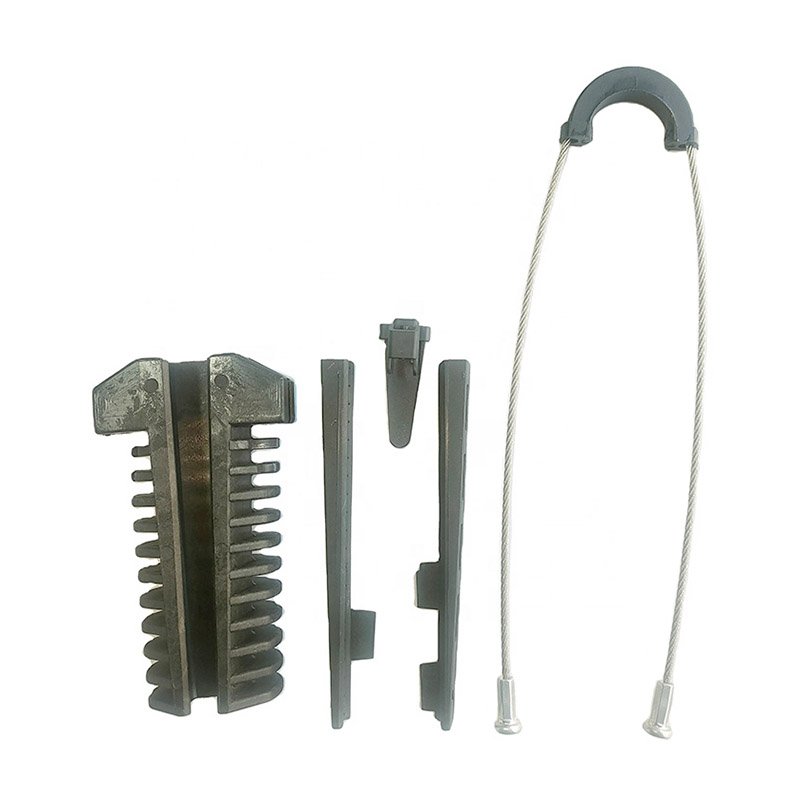

The overall performance of any fiber optic network is fundamentally linked to the quality of its dead-end hardware. EPCOM prioritizes the production of components that can withstand extreme environmental variables, from high UV exposure to corrosive atmospheres. The PA300 Anchor Clamp utilizes a sophisticated wedge-based mechanism that drastically simplifies the installation workflow. Furthermore, the conical housing and high-friction plastic wedges ensure a non-slip grip, even during periods of heavy wind load or significant ice accumulation on the lines.
Technical Superiority of PA300 Anchor Clamp
Operational reliability in the field remains the foremost concern for telecommunication service providers. The main body of the PA300 Anchor Clamp is crafted from premium, UV-stabilized glass fiber reinforced plastic. This specific material selection ensures the hardware remains completely immune to corrosion and dielectric interference, which is an absolute necessity for installations near high-voltage power lines. Additionally, the heavy-duty stainless steel bail provides the necessary flexibility and endurance when coupled with various pole-top fittings or extension hooks.
Installation efficiency represents a major operational advantage of this hardware. Unlike traditional tensioning systems that require complex specialized tools, this device features a tool-free mounting design. The internal wedges are engineered to be self-tightening, meaning the gripping force increases proportionally with the cable tension. Therefore, technicians can execute network deployments with greater speed, effectively lowering total labor costs and maximizing uptime. Such efficiency is especially critical when implementing wide-scale projects utilizing GYXTW fiber optic cable configurations.
Versatile Applications in Fiber Networks
The adaptability of the PA300 Anchor Clamp makes it suitable for diverse span lengths and challenging geographical conditions. Whether the project involves a dense urban fiber grid or a long-distance rural backbone, the clamp provides unwavering tension performance. EPCOM subjects every production batch to rigorous testing protocols for tensile strength, vibration endurance, and thermal cycling. As a result, the hardware effectively protects the sensitive glass fibers inside the ADSS cable, ensuring that signal attenuation remains within strict tolerances throughout the multi-decade service life of the cable.

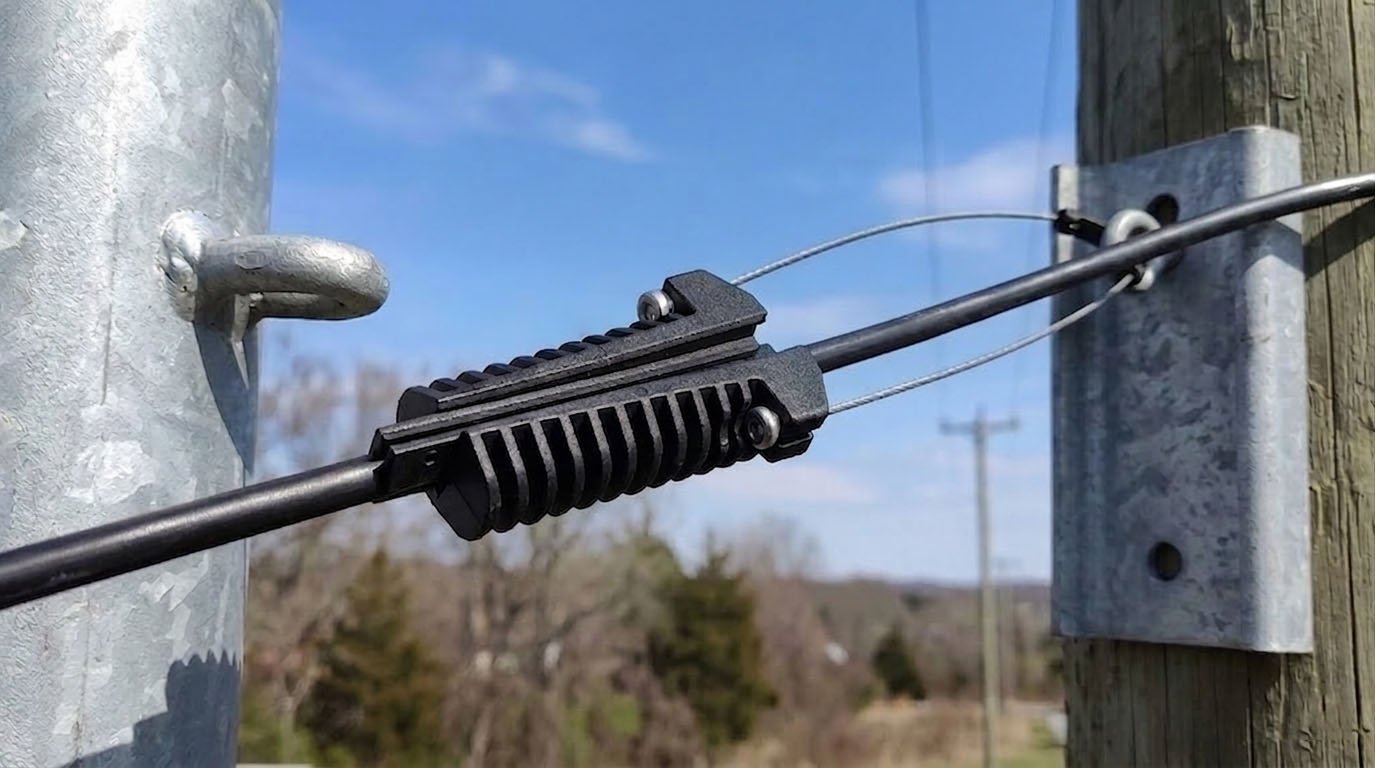

Furthermore, the hardware design is optimized for seamless compatibility with standard pole-line equipment. When securing these units to concrete, wood, or metal poles, industry professionals typically rely on the UPB pole bracket for a secure mounting point. This combination establishes a high-performance anchoring system capable of managing multi-directional mechanical stress. This integration ensures that the aerial cable line remains perfectly taut, preventing excessive sag during summer heat or brittle failure during winter cold.
Material Specifications and Standards
The raw materials integrated by EPCOM into the PA300 Anchor Clamp are meticulously chosen to align with international telecommunication standards. The glass fiber reinforced thermoplastic body offers an exceptional strength-to-weight ratio, minimizing the mechanical burden on supporting structures. Meanwhile, the stainless steel bail is chemically treated to resist salt-air corrosion and chemical pollutants. This focus on material longevity extends the replacement cycle of the hardware, ensuring a superior return on investment for large-scale infrastructure operators.
| Feature / Parameter | Detailed Specification |
|---|---|
| Material (Body) | UV-resistant glass fiber reinforced thermoplastic |
| Material (Wedges) | High strength engineering plastic |
| Material (Bail) | Stainless steel or hot-dip galvanized steel |
| Cable Diameter Range | 3mm to 7mm (standard ADSS) |
| Minimum Breaking Load | 3.0 kN |
| Installation Type | Tool-free wedge locking |
| Operating Temperature | -40°C to +70°C |
Installation Best Practices for PA300 Anchor Clamp
To optimize performance, EPCOM recommends strict adherence to professional installation guidelines. First, verify that the ADSS cable diameter is compatible with the clamp’s specific range. An incorrect size match can lead to cable slippage or excessive localized pressure on the internal fibers. Second, the bail must be securely locked and centered within the bracket eyelet to avoid unbalanced tension.
In environments where pole mounting requires additional stability, installers frequently use stainless steel strap to reinforce bracket attachment. This ensures that the anchor point remains immovable under high-tension loads. Proper tension management is essential; the PA300 Anchor Clamp should be positioned to maintain specific sag requirements while ensuring clearance from electrical lines or ground obstacles. These meticulous installation steps contribute significantly to the overall lifespan of the fiber network.
Long-term Durability and Maintenance
A key advantage of the PA300 Anchor Clamp is its virtually maintenance-free operation. Once the wedge system is locked under tension, it requires no periodic tightening. The high-performance plastics are engineered to resist degradation from ozone, humidity, and rapid temperature shifts. Nevertheless, EPCOM suggests that network operators perform annual visual checks to identify any mechanical stress caused by unforeseen external impacts, such as falling debris or extreme weather events.
Sustainable manufacturing practices are also a cornerstone of the EPCOM production process. By utilizing recyclable polymers and energy-efficient molding techniques, we minimize the environmental footprint of our hardware. This dedication to both quality and sustainability makes the PA300 Anchor Clamp an ideal choice for smart city developments and green infrastructure projects worldwide.
Why Choose EPCOM for Your Anchoring Solutions?
Partnering with a reliable hardware manufacturer is essential for the long-term viability of telecommunication projects. EPCOM offers decades of technical expertise and a consistent track record of delivering high-performance aerial hardware solutions. Our engineering departments utilize real-world feedback to iterate on hardware designs, ensuring that every PA300 Anchor Clamp meets and exceeds current industry expectations for safety and reliability.
In addition to manufacturing excellence, EPCOM provides dedicated technical consultancy and global logistics support. We recognize the critical timelines associated with fiber rollouts and maintain extensive stock levels to facilitate rapid deployment. By selecting our anchoring hardware, you are investing in a system designed for reliability, speed, and overall operational economy. Our distribution network ensures that top-tier aerial components are available whenever and wherever your network expansion takes place.
Ultimately, the PA300 Anchor Clamp represents the industry standard for secure cable tensioning. Its durable housing, efficient installation mechanism, and compatibility with standard ADSS fiber cables make it a cornerstone of modern aerial connectivity. Trust EPCOM to deliver the mechanical strength and environmental resistance required for your next infrastructure project, ensuring a stable and connected network for years to come.
