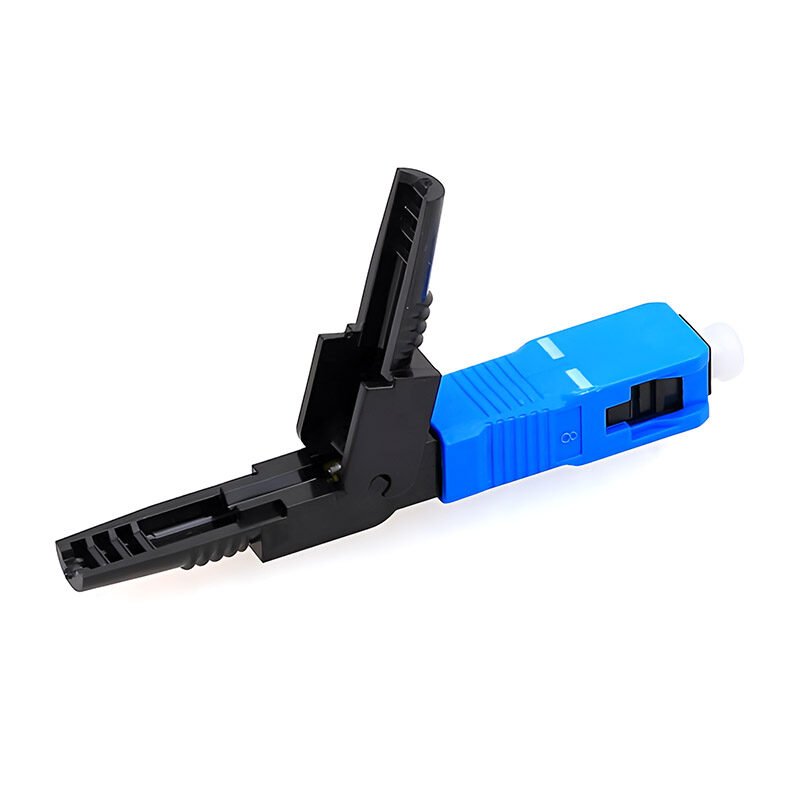

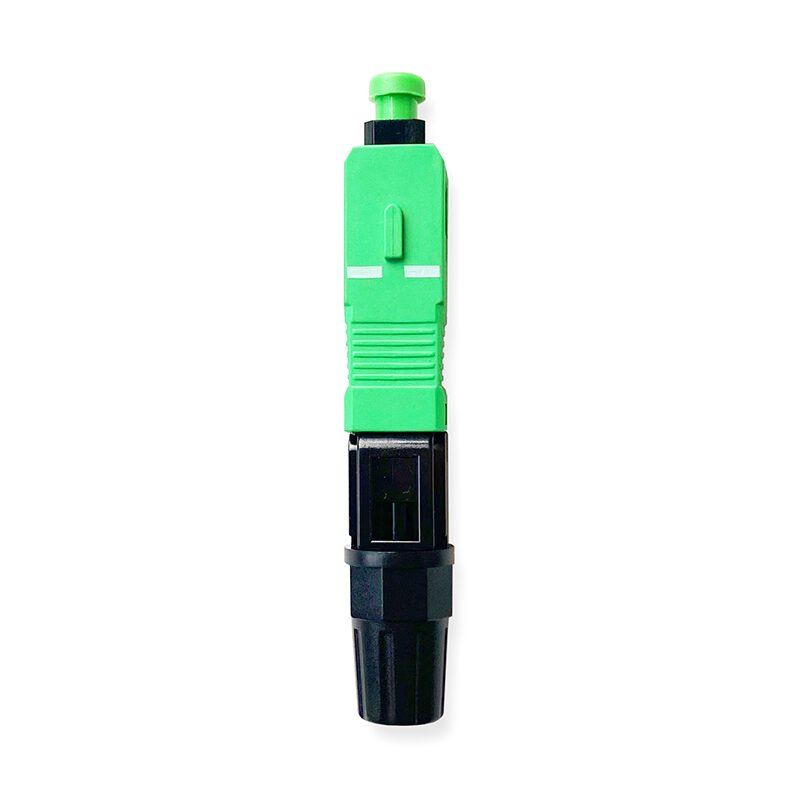

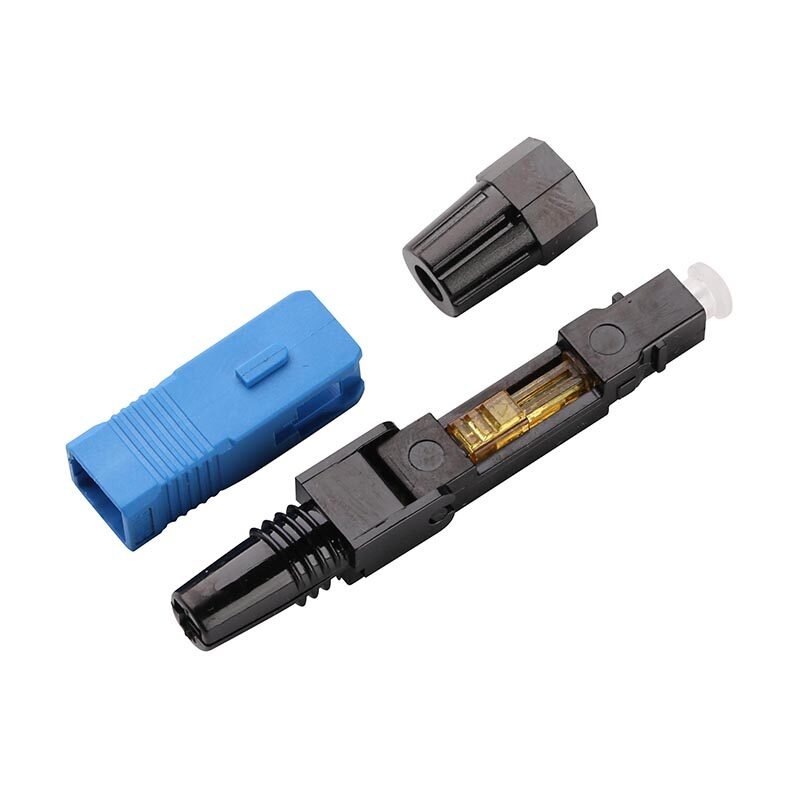

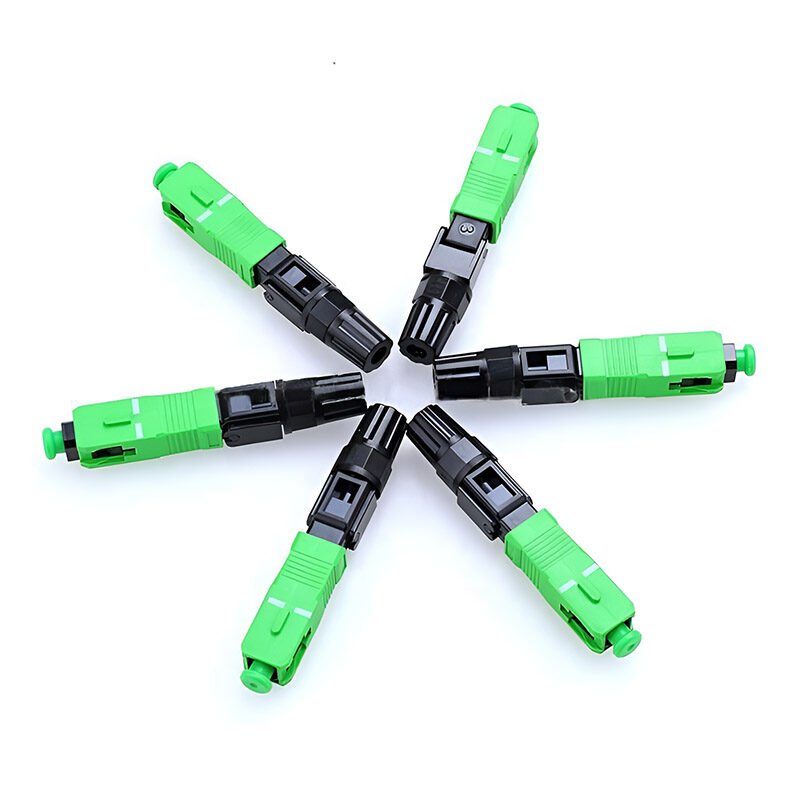

Round Type SC Fast Connector
Round Type SC Fast Connectors are a quick and easy way to terminate fiber optic cables. They are designed to be used without epoxy, polishing, splicing, or heating, and can achieve similar transmission parameters as standard polishing and splicing technology.
Description
Round Type SC Fast Connector: Quick and Easy Fiber Optic Termination
Features
- Quick and easy assembly
- High return loss, low insertion loss
- Cost-effective and portable
- Quick installation
- Reliable and superior optical performance
Applications
- Patch panels
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- FTTH outlets
- Connection at the desk for LAN environments
Common Parameters
| Parameter | Value |
| Connector type | SC |
| Length | 60mm |
| Applicable for |
Drop cable, Indoor cable
|
| Fiber mode |
Single mode or Multi mode
|
| Operation time |
About 50s (no fiber cut)
|
| Insertion loss | ≤0.2dB+ |
| Insertion loss typical value | 0.2dB |
| Return loss |
≥50dB UPC ≥55dB APC
|
| Fastening strength of naked fiber | 25N |
| Tensile strength | ≥50N |
| Reusable | ≥10 times |
| Operating temperature | -40~+85℃ |
How to Order
To order Round Type SC Fast Connectors, please contact us today. We offer a variety of options to meet your specific needs.
Benefits of Using Round Type SC Fast Connectors
There are many benefits to using Round Type SC Fast Connectors, including:
- Quick and easy installation: They can be installed in a matter of minutes, without the need for special tools or training.
- Low cost: They are a cost-effective way to terminate fiber optic cables.
- High performance: They can provide the same high performance as standard polishing and splicing technology.
- Reliability: They are a reliable way to connect fiber optic cables.
Why Choose Us?
We are a leading supplier of Round Type SC Fast Connectors. We offer a wide variety of products to meet your specific needs. We also offer competitive prices and excellent customer service.
Contact Us Today
To learn more about Round Type SC Fast Connectors, please contact us today. We will be happy to answer your questions and help you choose the right product for your needs.
