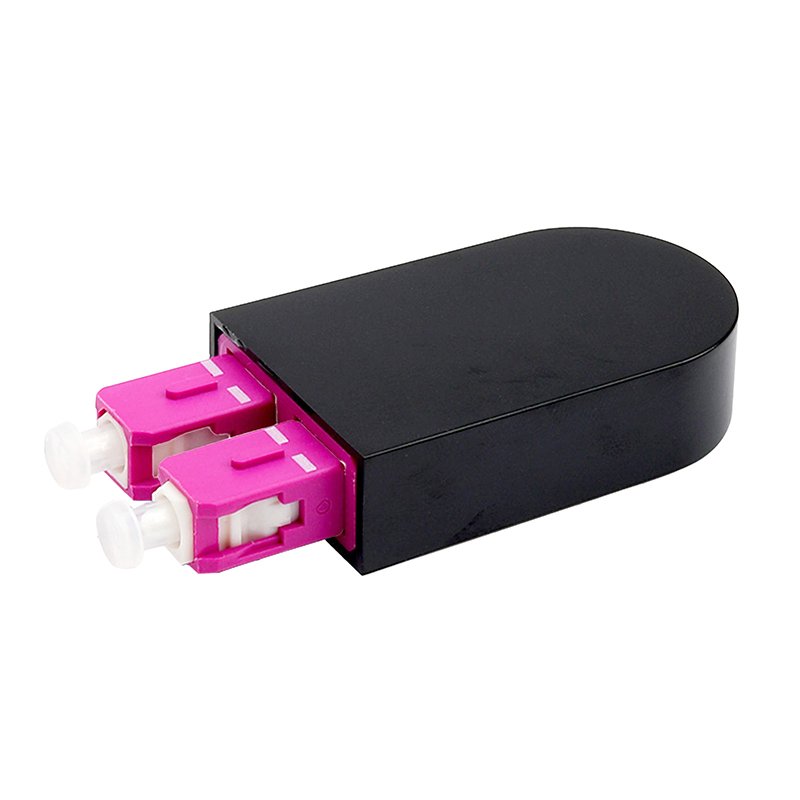

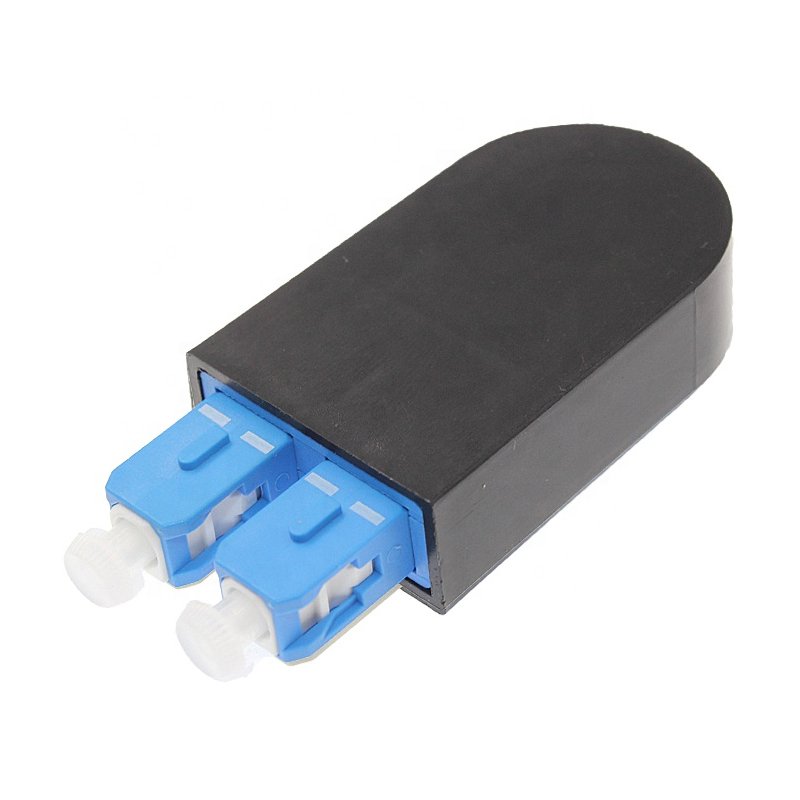

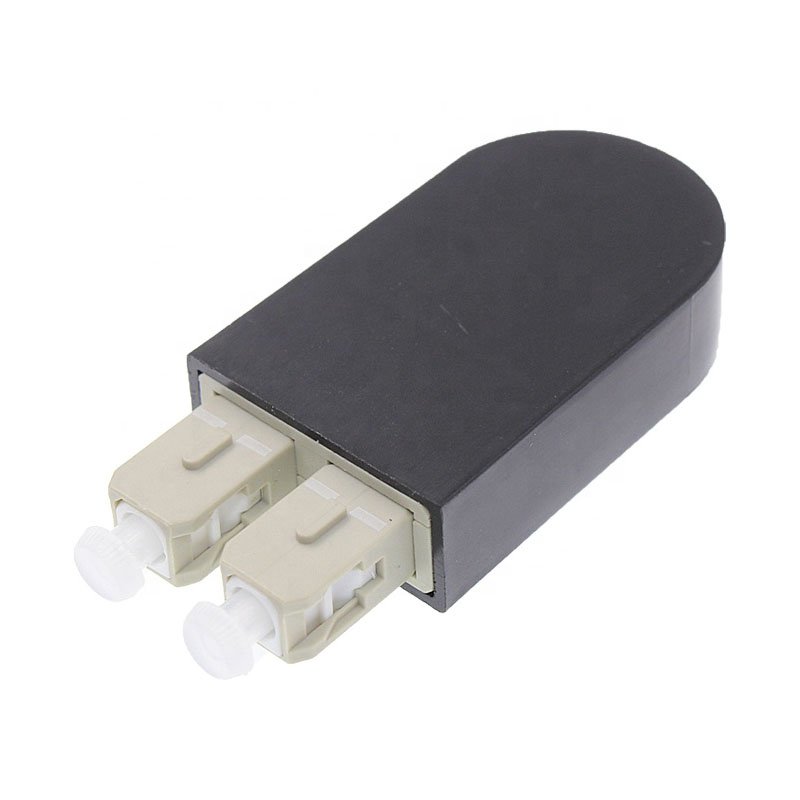

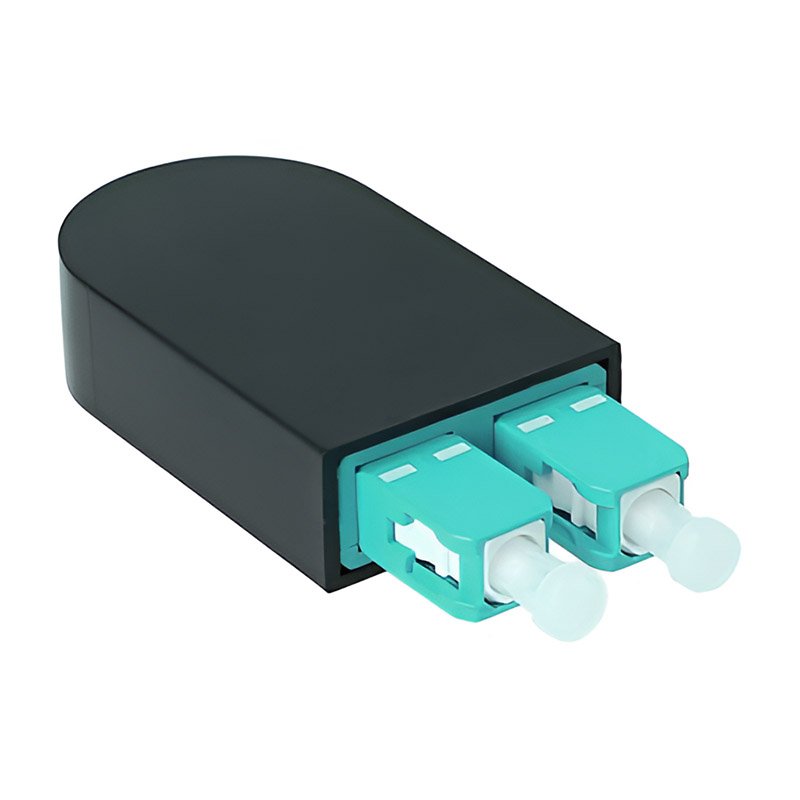

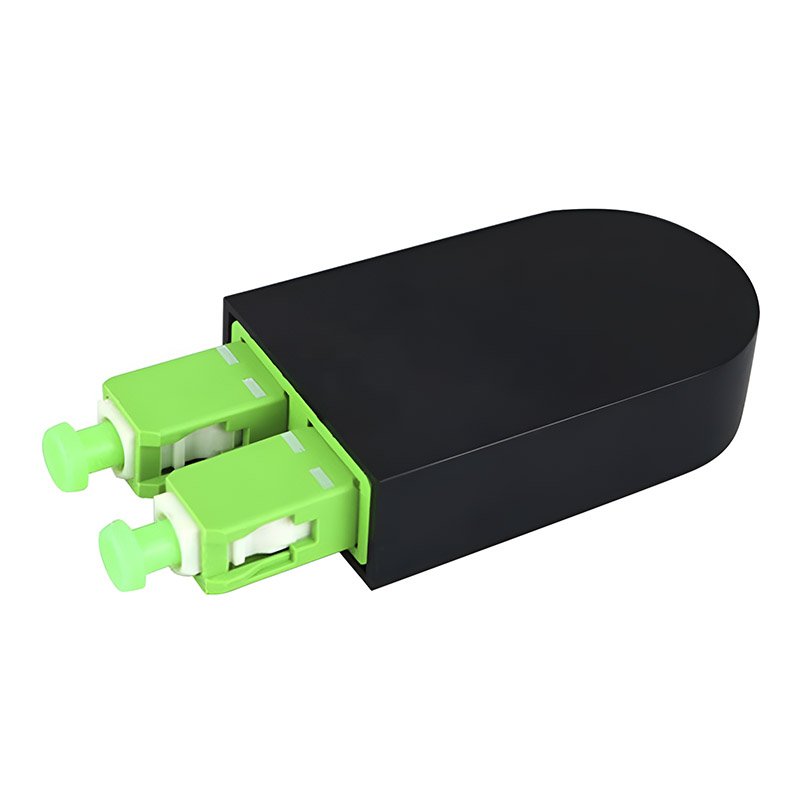

High-Performance SC Optical Loopback for Testing
An SC optical loopback, also known as an SC fiber optic loopback, is a device used to connect two optical fibers together, allowing for the transmission of optical signals back to their source. It is commonly employed in fiber optic testing applications to evaluate the performance of fiber optic links and identify potential issues.
- Low Insertion Loss for accurate testing.
- High Return Loss to prevent signal degradation.
- Durable, compact design for stability and repeated use.
- Available in single-mode and multimode options.
- Manufactured to comply with industry standards.
Description
An SC Optical Loopback is an essential passive device used widely in high-speed fiber optic networks for testing, system diagnostics, and network maintenance. EPCOM provides a robust and reliable SC loopback designed to offer a simple yet effective method for checking the operational capability and performance of network equipment. By routing a signal from the transmitter port back to the receiver port of the same device, it creates a complete optical link. This process allows network engineers to isolate issues, perform equipment burn-in tests, and verify port functionality with precision and confidence. Its compact design and stable performance make it an indispensable tool for maintaining the integrity of modern telecommunication systems and data centers.
Understanding the SC Optical Loopback’s Function
The primary function of an optical loopback is to provide a temporary return path for a light signal. When connected to a transceiver port, it simulates a connection to a remote device without needing a full-length fiber cable. This is crucial during the installation and maintenance phases of a network. For instance, technicians can verify that a switch port is functioning correctly before connecting it to the live network, thereby preventing potential downtime. This simple test confirms that the hardware can both send and receive data, effectively isolating the port as either functional or faulty.
Applications for the SC Optical Loopback Module
The versatility of the SC loopback module makes it suitable for a wide range of applications. In laboratory environments, it is frequently used for R&D and manufacturing tests to ensure equipment meets quality standards. In the field, it is invaluable for commissioning new networks and troubleshooting existing ones. A key application is in Bit Error Rate Testing (BERT), which assesses the end-to-end performance of a digital communication link by comparing a transmitted test pattern with the received pattern. The loopback provides the necessary return path to conduct this test on a single piece of equipment, helping to identify faults quickly and accurately.
Key Features of EPCOM’s Fiber Optic Loopbacks
At EPCOM, we engineer our loopbacks for superior performance and long-term reliability. Each unit is built to exacting specifications to ensure minimal impact on the signal. Key features include:
- Low Insertion Loss: Our modules are designed to minimize signal attenuation, ensuring that the test results accurately reflect the equipment’s performance, not the test device’s.
- High Return Loss: A high return loss (low reflection) is critical for preventing signal degradation and potential damage to laser transmitters. Our products meet stringent reflection standards.
- Durability and Stability: Housed in a compact, protective casing and featuring a high-quality ceramic ferrule, our SC loopbacks are built to withstand repeated use in various environments while providing stable performance.
- Versatile Options: We offer loopbacks for both single-mode (SM) and multimode (MM) fiber types, with UPC or APC polish options to match your specific network requirements.
Technical Specifications for Our SC Optical Loopback
Our SC optical loopbacks are manufactured to comply with industry standards, delivering consistent performance for all your testing needs. Please refer to the detailed specifications below.
| Parameter | Specification |
|---|---|
| Connector Type | SC/UPC, SC/APC |
| Fiber Type | Single-mode (9/125μm), Multimode (50/125μm, 62.5/125μm) |
| Insertion Loss (IL) | SM ≤ 0.20dB, MM ≤ 0.30dB |
| Return Loss (RL) | SM/UPC ≥ 50dB, SM/APC ≥ 60dB |
| Durability | > 500 Mating Cycles |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS |
Complementary Tools for Comprehensive Network Testing
While an SC loopback is excellent for port diagnostics, a complete testing regimen often requires additional tools to ensure overall network health. Cleanliness, power measurement, and adaptability are key pillars of a reliable fiber optic infrastructure.
For precise power level verification, an MPO/MTP Optical Power Meter is essential. It measures the absolute optical power, allowing you to confirm that signal strength meets the required specifications for your equipment. Furthermore, connector contamination is a leading cause of network failures. Before any test, it is critical to clean the connector end-faces. Using a Fiber Optic Cassette Cleaner ensures a pristine connection, preventing insertion loss and potential damage. In environments with mixed connector types, a component like an ST Fiber Optic Adaptor becomes necessary to interface between different hardware, ensuring seamless connectivity during tests.
Why Choose EPCOM for Your Network Testing Needs?
EPCOM is dedicated to providing high-quality fiber optic components that professionals can trust. Our products are manufactured in compliance with leading industry standards, such as those set by the Telecommunications Industry Association (TIA), to guarantee interoperability and performance. When you choose EPCOM, you are investing in a product that delivers accuracy, durability, and reliability. Our commitment to quality ensures that every SC Optical Loopback helps you maintain a robust and efficient network, minimizing downtime and simplifying troubleshooting procedures. Trust EPCOM to be your partner in building and maintaining world-class fiber optic systems.
