Square SC Fast Connector for FTTH Networks
The Square Type SC Fast Connector is a revolutionary new type of fiber optic connector that is designed for quick and easy installation in the field. It does not require any epoxy or polishing, and it can be installed in a matter of minutes. It is ideal for a variety of applications, including FTTH, LAN, and CCTV.
- High-precision pre-polished ceramic ferrule ensures low insertion loss and high optical performance.
- Fast and tool-free field assembly allows for termination in less than 100 seconds without fusion splicing.
- Robust mechanical clamping design provides excellent tensile strength and long-term environmental stability.
- Full compliance with IEC and TIA/EIA international standards for universal network interoperability.
- Versatile application support for FTTH drop cables, 0.9mm, 2.0mm, and 3.0mm fiber types.
Description
Square SC Fast Connector solutions by EPCOM represent the pinnacle of modern optical termination technology. These components allow technicians to perform rapid and reliable fiber connections without the need for expensive fusion splicing machines. In the rapidly evolving telecommunications landscape, the demand for efficiency in Fiber to the Home (FTTH) deployments has never been higher. EPCOM addresses this need by providing high-quality field assembly connectors that ensure low insertion loss and high return loss. Our commitment to excellence ensures that every termination meets rigorous industrial standards, facilitating seamless data transmission across complex network infrastructures worldwide.
Superior Performance of Square SC Fast Connector
The technical integrity of a network depends heavily on the quality of its connection points. The Square SC Fast Connector is engineered to provide a stable physical interface for optical signals. It utilizes a pre-polished ceramic ferrule that minimizes signal attenuation at the junction. EPCOM focuses on the mechanical precision of the internal structure to prevent air gaps and misalignment. Consequently, these connectors are suitable for both Single-mode (SM) and Multi-mode (MM) fiber applications. The robust housing protects the delicate fiber core from environmental factors, ensuring long-term reliability in various indoor and outdoor scenarios.
To achieve optimal results during installation, technicians often pair these connectors with high-quality cables. For instance, using a reliable gjyxch drop cable ensures that the physical link remains resilient under tension. EPCOM understands that the synergy between the connector and the cable is vital for network longevity. Our products undergo stringent testing to verify their performance under temperature fluctuations and mechanical stress, making them a preferred choice for global operators.
Installation Efficiency with Square SC Fast Connector

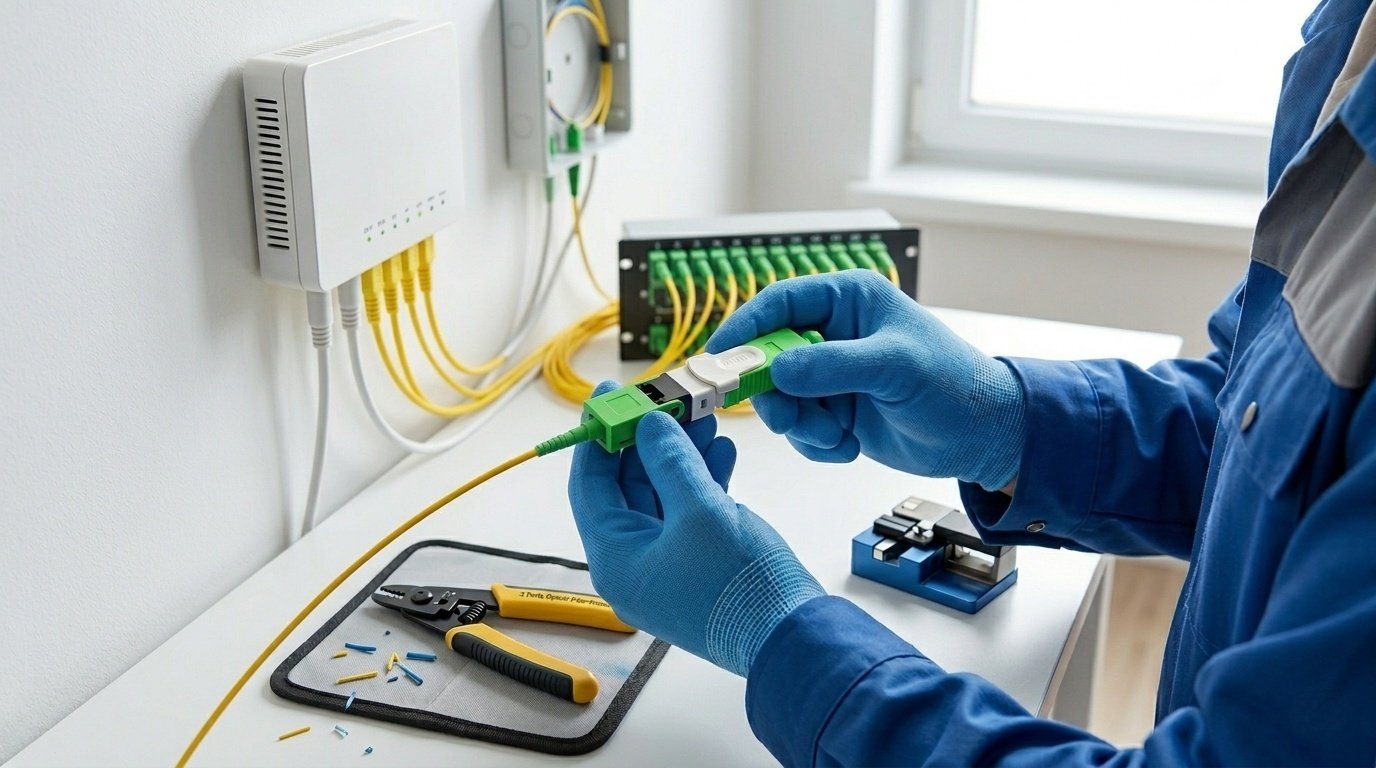

Time-saving features are a hallmark of the EPCOM design philosophy. The assembly process for the Square SC Fast Connector is straightforward and requires minimal training. This simplicity reduces labor costs and accelerates the rollout of broadband services. A critical step in the preparation involves removing the protective buffers of the fiber precisely. We highly recommend using a professional 3 ports optical fiber stripper to prevent micro-cracks on the glass surface. Proper preparation leads to a perfect fit within the connector body, maximizing the efficiency of the light path.
Technical Specifications and Standards
EPCOM adheres to international ITU-T standards for optical communications. This compliance ensures that our Square SC Fast Connector is compatible with existing network hardware from various manufacturers. The square-shaped interface is designed for high-density patching environments where space is limited. Its push-pull mechanism provides an audible click when fully engaged, giving the installer confidence in the connection. Below are the detailed specifications for our standard SC fast connector models.
| Parameter | Specification Details |
|---|---|
| Fiber Type | Single Mode / Multi Mode |
| Connector Type | SC/UPC or SC/APC |
| Insertion Loss | ≤ 0.3dB (Typical 0.2dB) |
| Return Loss | ≥ 50dB (UPC), ≥ 55dB (APC) |
| Tension Test | > 50N |
| Operating Temperature | -40°C to +75°C |
| Assembly Time | < 100 seconds |
Application Scenarios for Square SC Fast Connector
Versatility is a core advantage of the Square SC Fast Connector. It is widely used in data centers, local area networks (LAN), and cable television (CATV) systems. In a typical FTTH home gateway setup, the connector terminates the incoming drop cable and plugs directly into an optical network terminal (ONT). To maintain signal integrity throughout the distribution frame, using a high-performance sc single mode adapter is essential. EPCOM provides a full ecosystem of passive components to ensure your network remains robust from the central office to the end-user.
Durability and Environmental Stability
Environmental factors can significantly impact fiber optic performance. EPCOM ensures that each Square SC Fast Connector is constructed from high-strength plastic materials. These materials are UV-resistant and flame-retardant, meeting the UL safety standards. The internal matching gel is specially formulated to resist aging and drying out over decades of use. This attention to detail guarantees that the connector maintains its optical properties even in harsh climates. Furthermore, the mechanical clamping mechanism provides excellent pull-out strength, preventing accidental disconnections during maintenance.
Quality control is at the heart of EPCOM operations. We employ automated inspection systems to verify the geometry of the ferrule end-face. Any deviation from the ideal curvature or offset can cause significant signal degradation. By maintaining strict tolerances, we provide our clients with products that perform consistently across every batch. This reliability translates to fewer service calls and higher customer satisfaction for internet service providers.
Choosing the Right Square SC Fast Connector
Selecting the appropriate connector depends on the specific requirements of your project. For high-speed data transmission where back-reflections must be minimized, the SC/APC variant is often preferred due to its angled end-face. Conversely, SC/UPC connectors are widely used in standard digital communications. EPCOM offers expert technical support to help you choose the best Square SC Fast Connector for your specific infrastructure needs. Our global distribution network ensures that high-quality components are available whenever and wherever your project demands.
In conclusion, EPCOM stands as a leading provider of fiber optic solutions. Our focus on innovation and quality ensures that our products support the next generation of telecommunications. Whether you are expanding a municipal network or connecting a single home, the Square SC Fast Connector provides the reliability you need. Trust EPCOM for all your fiber termination requirements and experience the difference that professional engineering makes.
