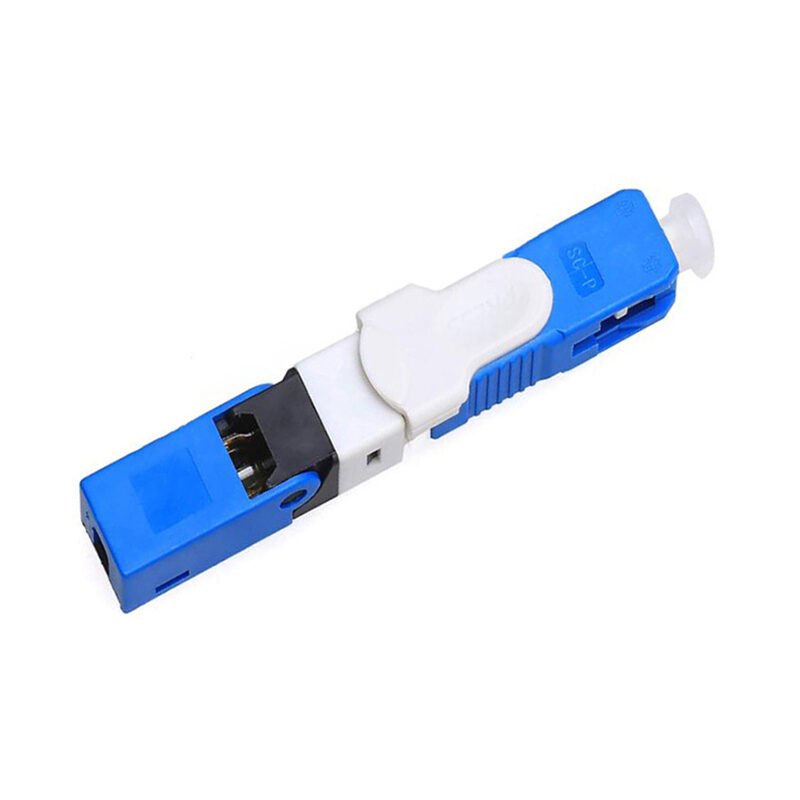

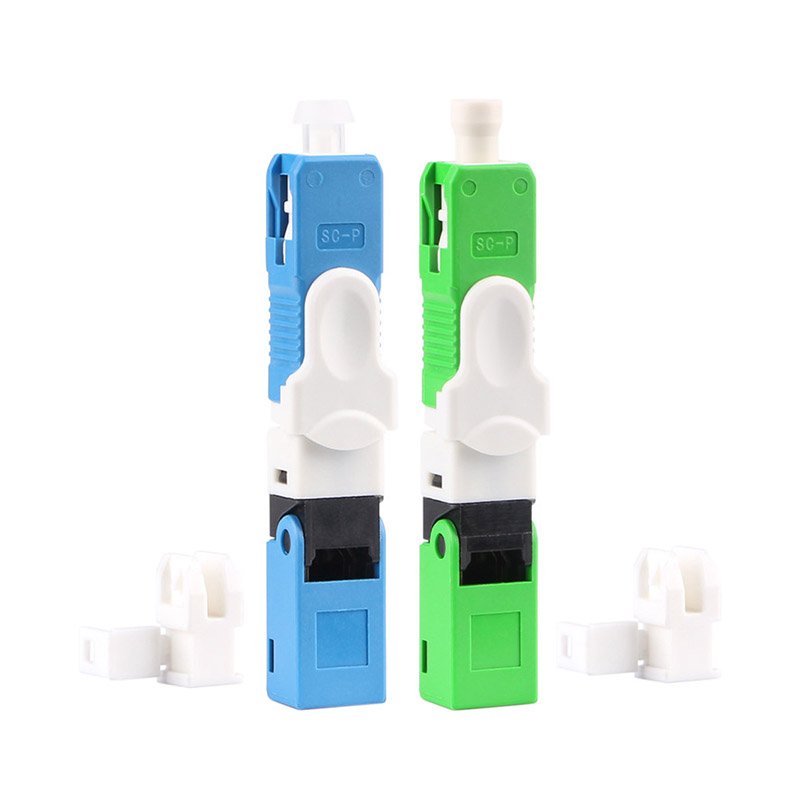

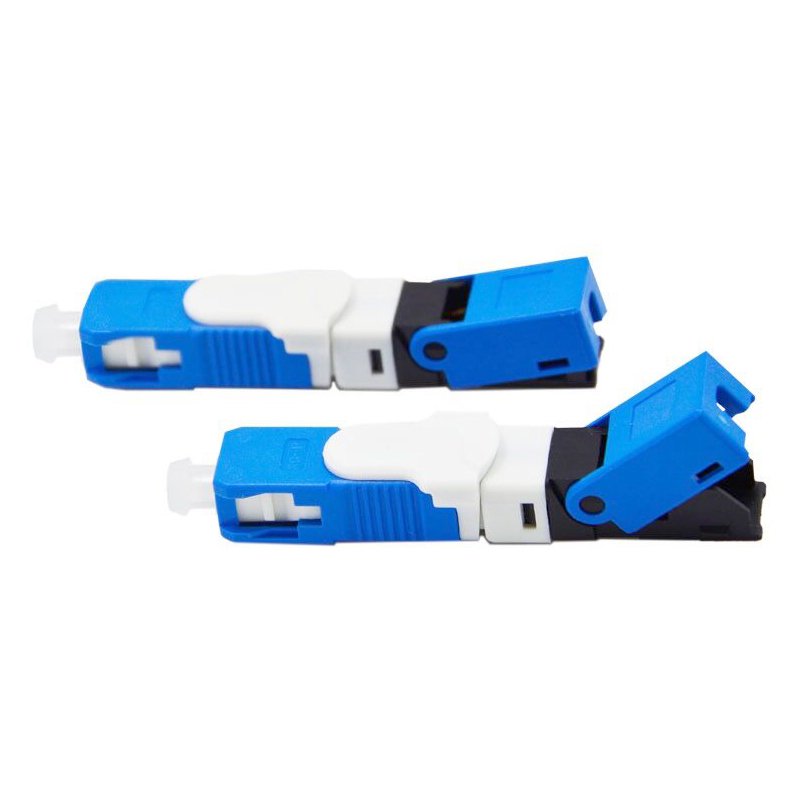

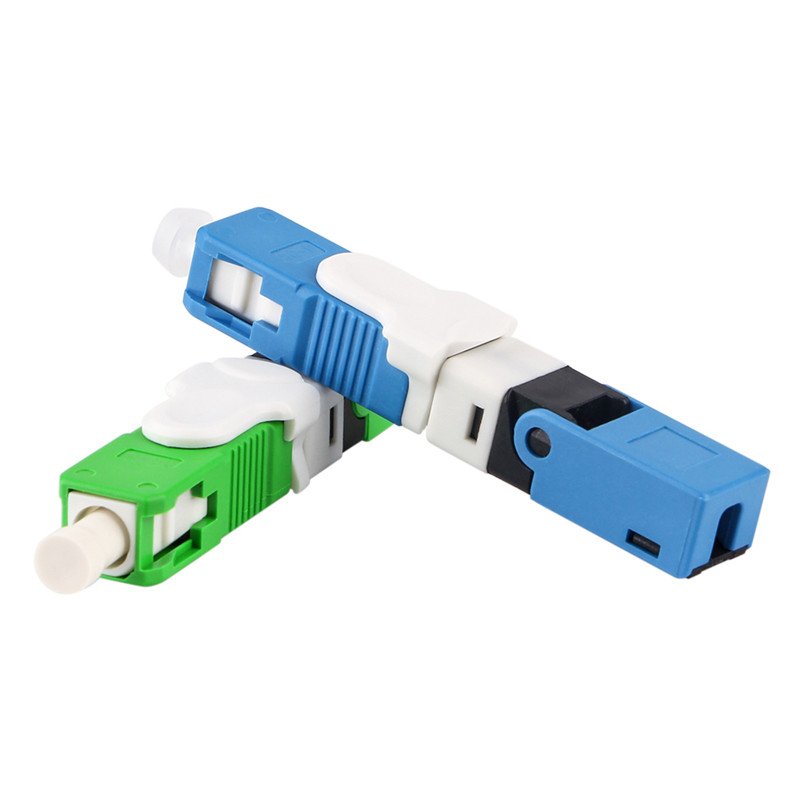

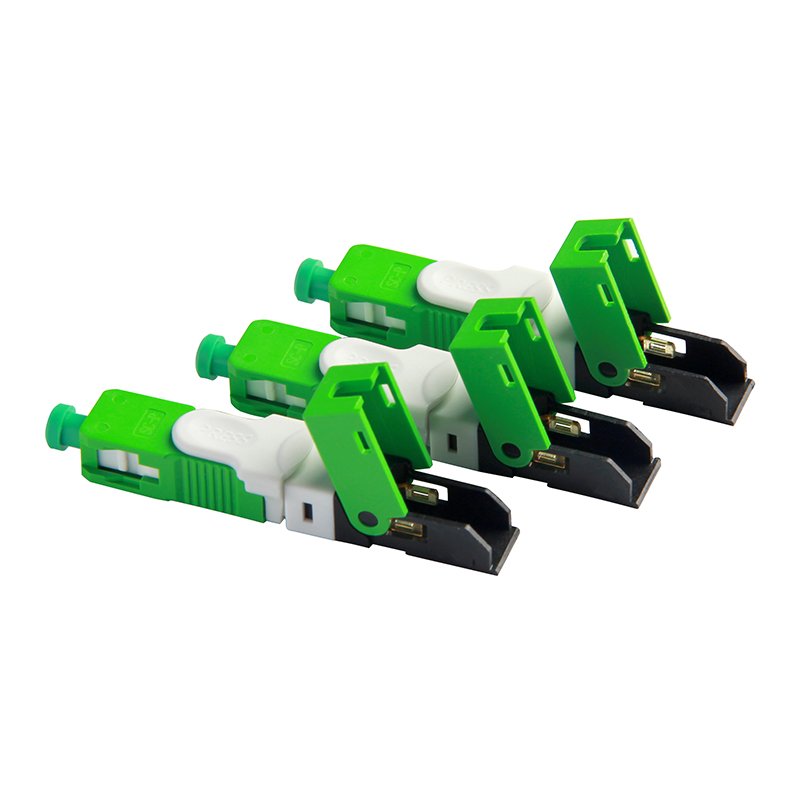

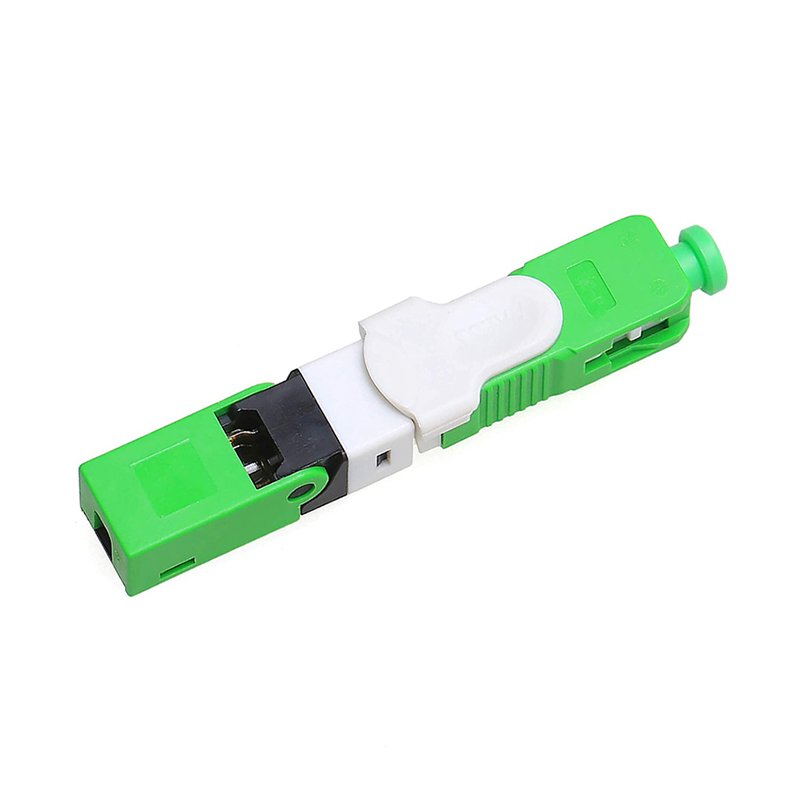

Square Type SC Fast Connector
The Square Type SC Fast Connector is a revolutionary new type of fiber optic connector that is designed for quick and easy installation in the field. It does not require any epoxy or polishing, and it can be installed in a matter of minutes. It is ideal for a variety of applications, including FTTH, LAN, and CCTV.
Description
Square Type SC Fast Connector: Quick and Easy Fiber Optic Connector Installation
Features
- Quick and easy installation
- No epoxy or polishing required
- Can be installed in a matter of minutes
- Ideal for FTTH, LAN, and CCTV applications
- Durable and reliable
Benefits
- Saves time and money on installation
- Eliminates the need for epoxy and polishing
- Provides a reliable connection
- Easy to use
Applications
- FTTH
- LAN
- CCTV
- Data centers
- Military and aerospace
Common Parameters
| Parameter | Value |
| Connector type | SC |
| Ferrule type | UPC or APC |
| Cable type |
2.0mm x 3.0mm or 1.6mm x 2.0mm
|
| Insertion loss |
≤0.3dB (1310nm & 1550nm)
|
| Return loss |
≥50dB for UPC, ≥55dB for APC
|
| Success rate | >98% |
| Reusable times | >5 times |
| Tighten strength of naked fiber | 5 N |
| Tensile strength | >30 N |
| Temperature | -40°C to +85°C |
How to Install
- Strip the cable jacket and expose the fiber.
- Clean the fiber.
- Insert the fiber into the connector.
- Crimp the connector.
- Test the connection.
Why Choose Square Type SC Fast Connector?
The Square Type SC Fast Connector is the best choice for quick and easy fiber optic connector installation. It is durable, reliable, and easy to use. If you are looking for a high-quality fiber optic connector that will save you time and money, the Square Type SC Fast Connector is the perfect solution.
Order Your Square Type SC Fast Connector Today!
Contact us today to learn more about the Square Type SC Fast Connector and to place your order.
