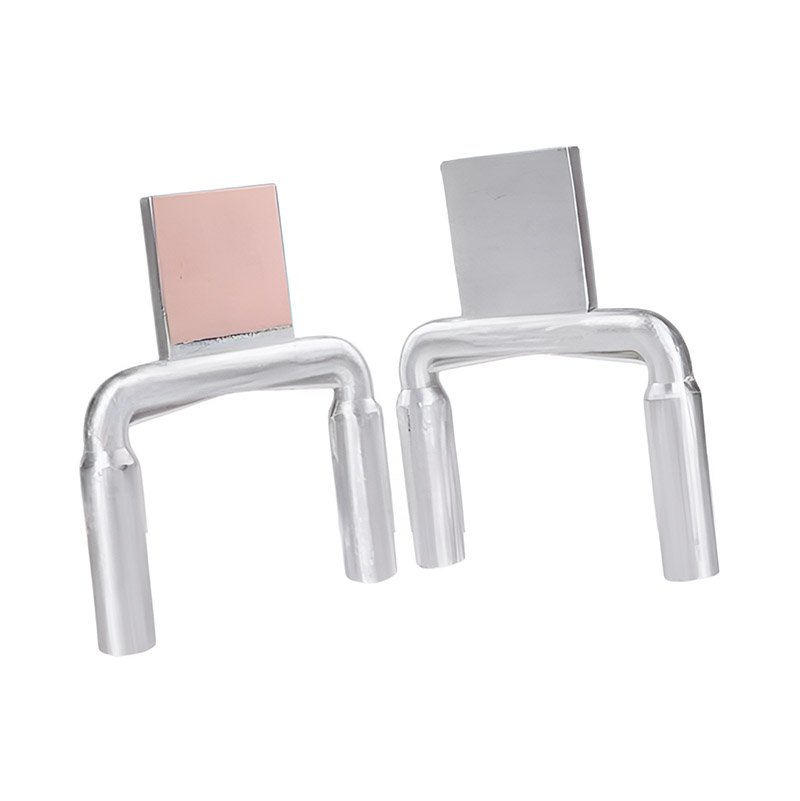

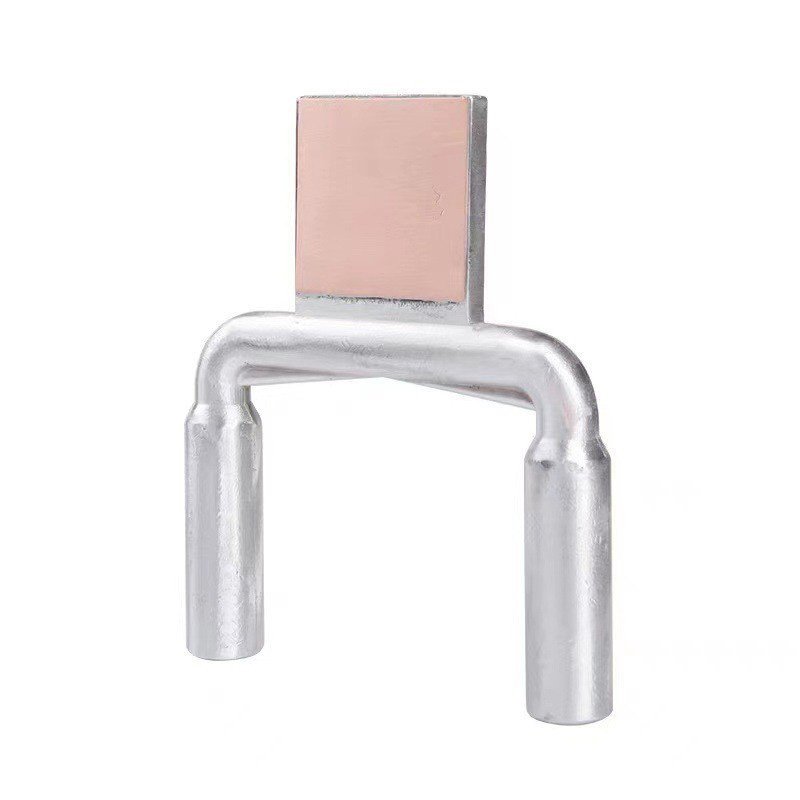

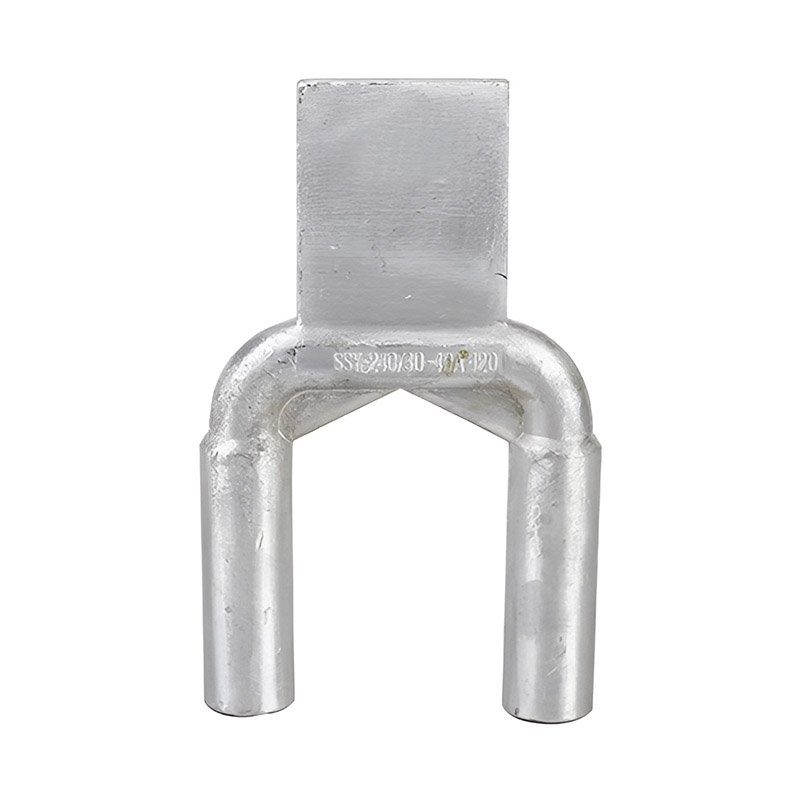

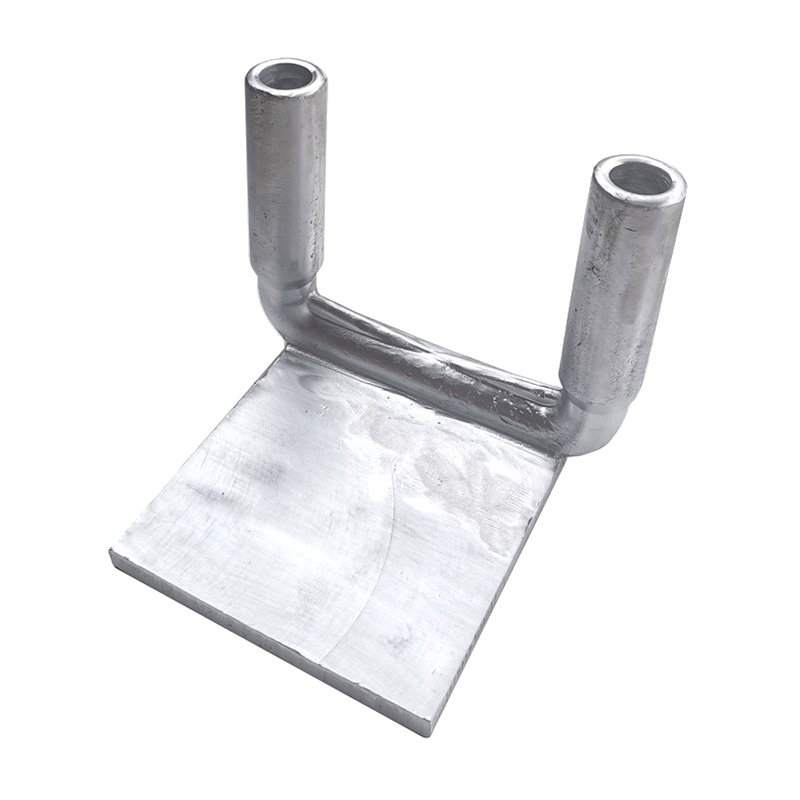

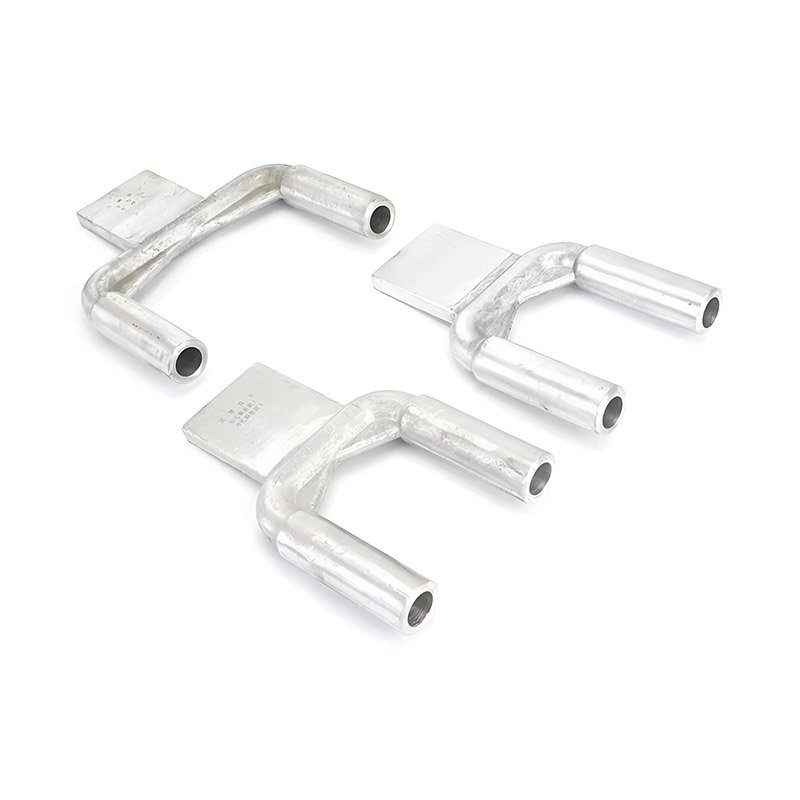

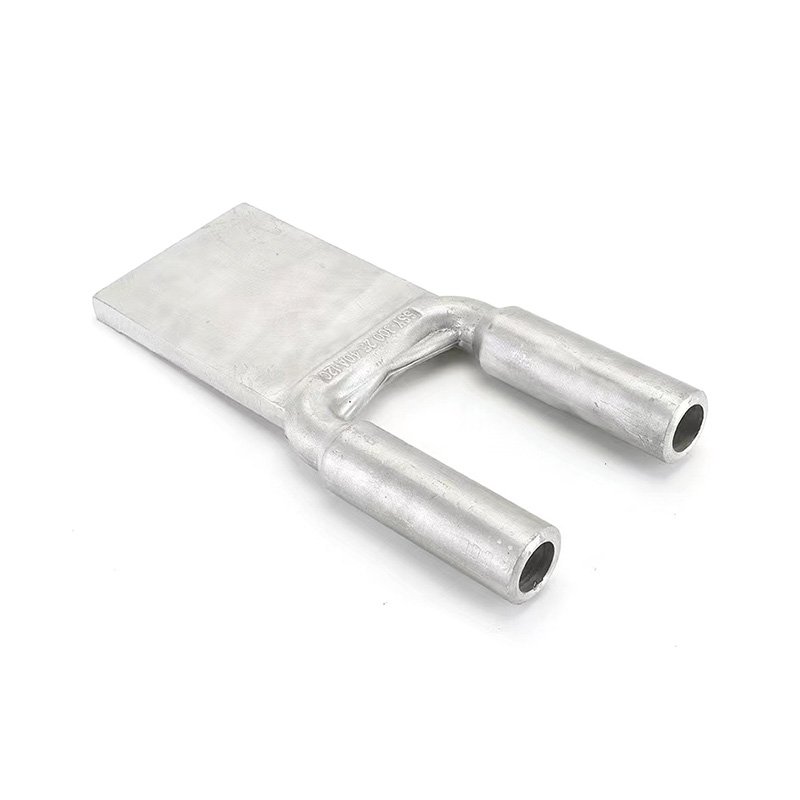

High Quality SSY Terminal Clamp for Power Systems
SSY Terminal Clamps are made from high-quality materials, such as copper or aluminum, which provide excellent conductivity and corrosion resistance. They are also designed to withstand harsh environments and vibrations.
- High-strength forged aluminum for superior durability.
- Low electrical resistance to prevent heat buildup.
- Excellent corrosion resistance for all outdoor climates.
- Anti-corona design for stable high-voltage performance.
- Precision dimensions for easy and fast installation.
Description
SSY Terminal Clamp components are essential for establishing reliable electrical connections between conductors and equipment terminals in high-voltage substations. EPCOM designs these specialized fittings to withstand extreme mechanical stress and maintain superior conductivity under varying environmental conditions. By choosing a high-grade terminal solution, infrastructure projects can significantly reduce the risk of power loss or equipment failure. These products play a critical role in the stability of national power grids and industrial distribution networks.
At EPCOM, we prioritize engineering excellence. Our manufacturing process ensures that every clamp meets rigorous safety standards. The structural integrity of a substation fitting depends on precise material composition. We utilize premium aluminum alloys to prevent corrosion and oxidative degradation over time. Consequently, our clients receive components that offer longevity and consistent performance throughout their lifecycle.
Technical Features of SSY Terminal Clamp

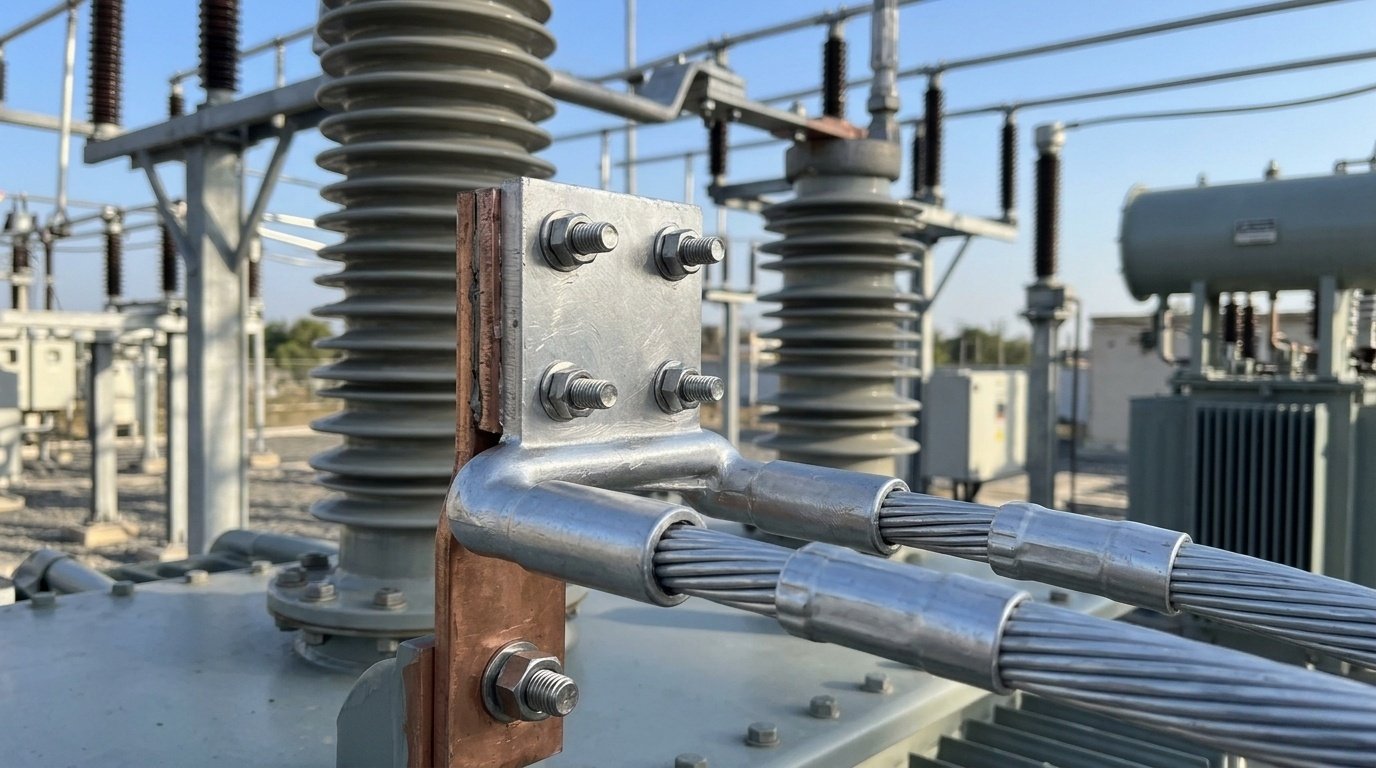

The primary function of this hardware is to secure the connection point between an overhead line and a transformer or circuit breaker. EPCOM engineers have optimized the surface contact area to minimize electrical resistance. Lower resistance results in less heat generation, which is vital for preventing long-term damage to sensitive equipment. Furthermore, the design incorporates aerodynamic features to reduce corona discharge in extra-high voltage applications.
Installation efficiency is another hallmark of the EPCOM brand. The ergonomic design allows technicians to perform secure fastenings quickly. For optimal results during the installation phase, we highly recommend using our specialized Electric Hydraulic Crimping Tool. This tool ensures that the pressure applied to the clamp is uniform and meets the specified torque requirements for a permanent, maintenance-free bond.
Material and Durability Standards
Durability is a non-negotiable requirement for outdoor power infrastructure. EPCOM utilizes high-strength forged aluminum which offers an excellent strength-to-weight ratio. This material choice is crucial for supporting heavy conductors without adding unnecessary load to the terminal bushings. Moreover, the hardware undergoes specialized heat treatment to enhance its mechanical properties. This process ensures the clamp can handle thermal expansion and contraction cycles without loosening.
In many complex grid layouts, you might require different connection types. For instance, if your project involves branch connections rather than direct equipment termination, our JBT Parallel Groove Connector provides a versatile alternative for parallel conductor joining. Both products follow the same high-quality manufacturing philosophy that EPCOM is known for globally.
SSY Terminal Clamp Specifications and Sizes
Selection of the correct fitting size is paramount for system safety. EPCOM provides a comprehensive range of dimensions to accommodate various conductor diameters. It is essential to match the clamp specification with the specific conductor cross-section used in your project. Below is the detailed technical specification table for the standard series.
| Product Category | Conductor Dia. (mm) | Terminal Bolt Size | Main Material | Rated Strength (kN) |
|---|---|---|---|---|
| Medium Duty | 15.0 – 22.0 | M12 / M16 | Forged Aluminum | ≥ 45 |
| Heavy Duty | 22.1 – 33.0 | M16 / M20 | Forged Aluminum | ≥ 60 |
| Extra Heavy | 33.1 – 45.0 | M20 / M24 | Forged Aluminum | ≥ 85 |
Installation Guidelines for SSY Terminal Clamp
Proper installation is key to ensuring the maximum conductivity of any terminal connection. Technicians must clean the conductor surface thoroughly to remove any oxide layers before positioning the clamp. EPCOM recommends applying a thin layer of conductive grease to the contact surfaces. This practice prevents future oxidation and improves the electrical interface. Transitioning from preparation to execution, the bolts must be tightened in a cross-pattern to ensure even pressure distribution.
If you are working on specialized copper-to-aluminum transitions, you may consider utilizing our SYG Terminal Clamp series, which is specifically designed for varied bimetallic interface requirements. Using the correct series for each specific application prevents galvanic corrosion, which is a common cause of power outages in coastal or humid environments.
Why Choose EPCOM for Power Hardware
EPCOM stands at the forefront of the power transmission industry. We combine decades of technical expertise with state-of-the-art manufacturing facilities. Our quality control team tests every batch for tensile strength and electrical resistance. This dedication to quality ensures that every **SSY Terminal Clamp** delivered to a job site exceeds international expectations. We understand that in the energy sector, reliability equals safety.
Furthermore, EPCOM provides comprehensive technical support for all our power line fittings. Whether you are designing a new substation or upgrading an existing grid, our engineers are available to assist with product selection and installation advice. We believe in building long-term partnerships with our clients through transparency and superior product performance. Our commitment to innovation drives us to continuously improve our hardware designs for the evolving needs of the global energy market.
Global Logistics and Support
We manage a robust supply chain to ensure timely delivery of critical components to projects worldwide. EPCOM maintains significant inventory levels for standard sizes to minimize lead times. Our packaging is designed to protect delicate terminal surfaces during international transit. We recognize that project timelines are strict, and delays in hardware delivery can lead to significant financial losses for contractors.
In conclusion, the electrical network is only as strong as its weakest connection. Investing in high-quality hardware from EPCOM ensures that your infrastructure remains resilient against the elements and heavy load demands. From the initial design phase to the final implementation, we provide the reliable solutions necessary for modern power transmission. Trust EPCOM to deliver the excellence your project deserves.
