High-Performance ST Fiber Optic Adaptor for Networks
The ST Fiber Optic Adaptor is a high-quality, cost-effective solution for connecting two ST fiber optic connectors. It is commonly used in telecommunications, data communications, and CATV applications. The adapter is available in both single-mode and multimode versions, and it features a precision zirconia ceramic alignment sleeve to ensure low insertion loss and back reflection.
- Low Insertion Loss
- High Return Loss
- Excellent Durability
- Quality Material Options
- Versatile Configurations
Description
An ST Fiber Optic Adaptor is a fundamental component for establishing robust and reliable fiber optic links. EPCOM offers a superior range of these adaptors, also known as couplers, designed to provide a secure and precise connection between two ST fiber optic connectors. Engineered for excellence, our adaptors facilitate the alignment of connector ferrules, ensuring that light passes through with minimal loss and back reflection. This precision is critical for maintaining signal integrity in high-speed data transmission and telecommunications networks, making our ST adaptors an indispensable part of your network infrastructure.
What is an ST Fiber Optic Adaptor?

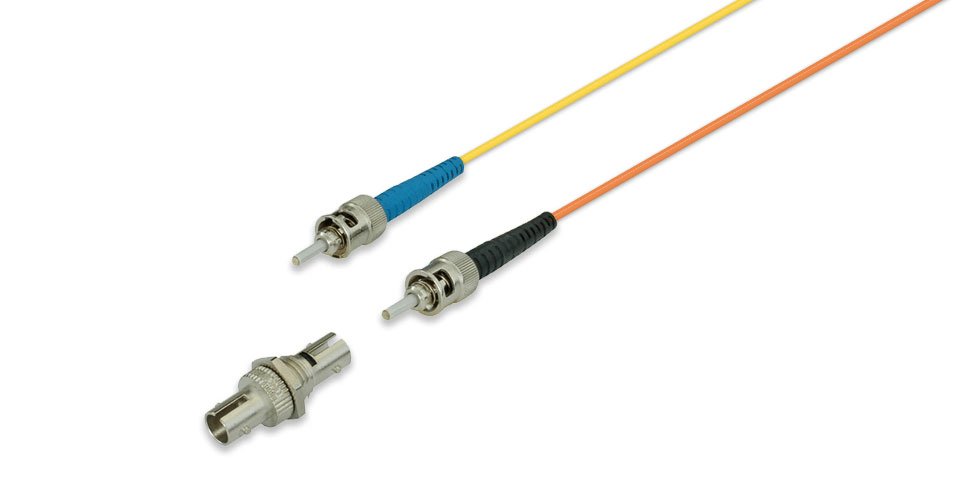

The ST (Straight Tip) connector, recognizable by its bayonet-style locking mechanism, has long been a standard in the fiber optics industry. An ST Fiber Optic Adaptor is a passive device designed to mate two ST connectors in a fiber optic patch panel, enclosure, or other equipment. Inside the adaptor is a precision alignment sleeve, typically made of zirconia ceramic, which holds the fiber tips of the two connectors in perfect alignment. This ensures a stable, low-loss connection that is essential for the performance of the entire optical circuit. EPCOM’s adaptors are built to meet and exceed industry standards for durability and performance.
Key Features and Benefits
EPCOM’s ST adaptors are manufactured with the highest quality materials to deliver exceptional and consistent performance. They are the preferred choice for technicians and engineers who demand reliability.
- Low Insertion Loss: Our adaptors feature high-precision alignment sleeves that minimize insertion loss (typically <0.2dB), preserving the power budget of your network.
- High Return Loss: A superior polishing process and precise alignment ensure high return loss, reducing signal reflection that can cause errors and damage laser sources.

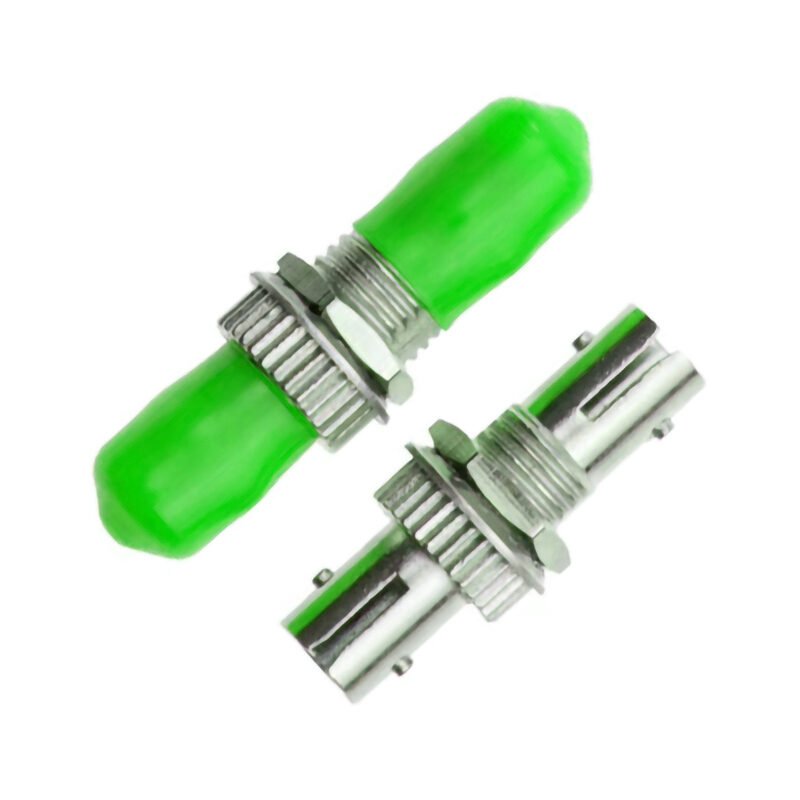

- Excellent Durability: The robust metal housing and bayonet locking mechanism provide a secure, vibration-resistant connection, rated for hundreds of mating cycles without performance degradation.
- Material Quality: Available with either phosphor bronze or high-grade zirconia ceramic alignment sleeves to meet different performance and cost requirements. Zirconia ceramic is recommended for single-mode applications due to its superior precision and durability.
- Versatile Configurations: We offer simplex, duplex, and quad configurations in various materials and mounting styles to fit any application requirement.
Precision Engineering for Optimal Performance
The core of any fiber optic adaptor is its alignment sleeve. EPCOM utilizes state-of-the-art manufacturing processes to ensure our zirconia ceramic sleeves have exceptionally smooth surfaces and tight inner diameter tolerances. This meticulous engineering minimizes the air gap between connected ferrules and guarantees precise core-to-core alignment, which is the cornerstone of a high-performance fiber optic link. By reducing signal loss and back reflection, our adaptors help maximize network reach and reliability.
Technical Specifications of the ST Fiber Optic Adaptor
The following table outlines the detailed technical parameters of our ST-ST Fiber Optic Adaptors. These specifications confirm their suitability for a wide range of demanding networking environments.
| Parameter | Specification |
|---|---|
| Connector Type | ST-ST (Female to Female) |
| Fiber Mode | Singlemode (SM) 9/125µm & Multimode (MM) 50/125µm, 62.5/125µm |
| Insertion Loss (IL) | ≤0.20dB (Typical: 0.15dB) |
| Return Loss (RL) | ≥50dB (UPC), ≥60dB (APC) for Singlemode |
| Mating Durability | >500 Cycles |
| Alignment Sleeve Material | Zirconia Ceramic (Standard), Phosphor Bronze (Optional) |
| Housing Material | Nickel-Plated Zinc Alloy or Copper |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS, Telcordia, ANSI/TIA/EIA |
Applications Across Industries
The reliability and versatility of the ST connector system make it suitable for a broad spectrum of applications. EPCOM’s ST adaptors are deployed globally in various sectors:
- Telecommunication Networks: Used in central offices, data centers, and outside plant applications to connect long-haul and metro networks.
- Local Area Networks (LANs): Ideal for backbone and horizontal cabling in enterprise and campus networks.
- Data Processing and Enterprise: Provides critical interconnects within high-density data centers and server farms.
- CATV and FTTx: Essential for building out cable television and Fiber to the x (FTTX) networks, bringing high-speed internet closer to the subscriber.
- Industrial and Military: The rugged design and secure locking mechanism perform reliably in harsh environments subject to vibration and mechanical stress.
The Role of the ST Fiber Optic Adaptor in Modern Networks
In an increasingly connected world, every component in a network plays a critical role. The ST Fiber Optic Adaptor acts as a vital bridge, ensuring that the high-fidelity light signals carrying data are not compromised at connection points. A failure at this level can lead to intermittent service, data loss, or complete network outages. By choosing a high-quality adaptor from EPCOM, you are investing in the stability and long-term performance of your entire fiber optic infrastructure.
Installation and Maintenance
Proper installation and maintenance are key to leveraging the full potential of your fiber optic components. When installing an ST adaptor, ensure both connector end-faces are clean before mating. The presence of dust or oil can significantly increase insertion loss and even damage the fiber tips. For optimal cleanliness, we recommend using EPCOM’s specialized fiber optic cleaning wipes before every connection. When building out your network, couple our adaptors with high-quality cables like our ST Fiber Optic Pigtail for splicing applications or a versatile SC to ST Patch Cord for equipment connections to ensure end-to-end performance.
Why Choose EPCOM?
EPCOM is committed to being your trusted partner in fiber optic connectivity. Our products are rigorously tested to ensure they comply with international standards, including those set by the Telecommunications Industry Association (TIA) and IEC. By controlling our manufacturing process, we guarantee consistent quality, competitive pricing, and reliable delivery. Our team of experts is ready to assist you with product selection and technical support to ensure your project’s success. Choose EPCOM for connectivity components that deliver performance and peace of mind.
