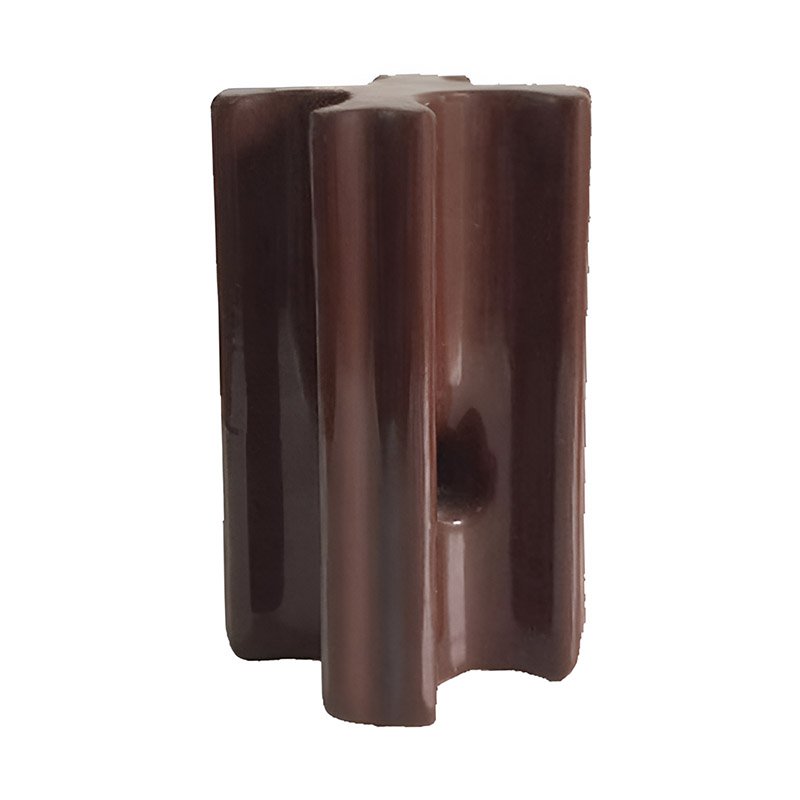

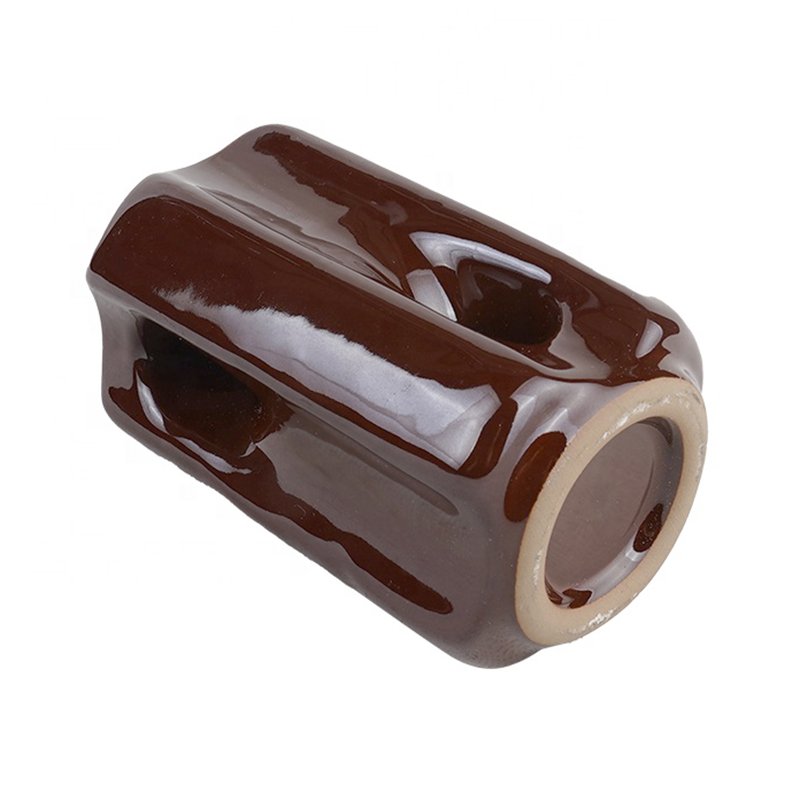

Stay Insulator for Overhead Lines

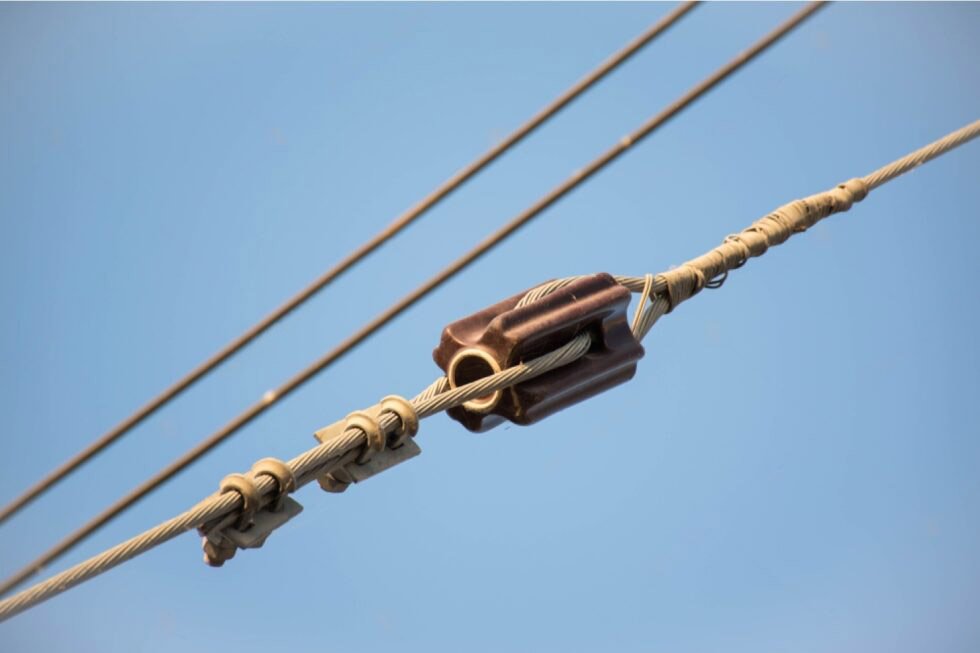

The primary function of a stay insulator is to isolate the lower part of a stay wire from the upper part, which might be in proximity to live conductors. This separation is vital to prevent the lower, accessible part of the stay wire from becoming energized, thereby ensuring the safety of personnel and the public. EPCOM’s range of electrical stay insulators are manufactured from high-grade materials, typically porcelain or advanced polymers, to offer superior dielectric strength and resistance to environmental degradation factors such as UV radiation, moisture, and temperature fluctuations. Understanding the International Electrotechnical Commission (IEC) standards for insulators is key to appreciating the quality EPCOM delivers.

Understanding the Importance of Quality Stay Insulator

A Stay Insulator might seem like a simple component, but its failure can lead to significant consequences, including line sag, pole collapse, and prolonged power outages. Therefore, selecting a high-quality stay insulator is not merely a choice but a necessity for any reliable overhead line system. EPCOM’s commitment to quality ensures that each electrical stay insulator meets rigorous testing standards, providing peace of mind and long-term operational efficiency. These insulators are designed to handle the tensile loads imposed by the guy wires, ensuring that poles remain upright and conductors maintain their specified clearances from the ground and other structures.

The operational environment for stay insulators can be harsh. They are constantly exposed to weather elements and mechanical stresses. Factors such as material purity, manufacturing precision, and design robustness play a significant role in their longevity and performance. EPCOM utilizes advanced manufacturing techniques and stringent quality control processes to produce stay insulators that offer excellent mechanical strength, high resistance to electrical tracking, and long service life. This focus on quality helps in minimizing maintenance requirements and replacement costs over the lifespan of the power line.

Applications and Versatility of EPCOM Stay Insulator

EPCOM’s Stay Insulators are versatile and find application in various segments of power transmission and distribution networks, as well as in telecommunication line infrastructure. Key applications include:

• Supporting utility poles carrying low, medium, and high voltage distribution lines.
• Securing communication poles for telephone lines, cable television, and internet infrastructure.
• Use in guyed towers and masts for radio and television broadcasting.
• Applications in railway electrification projects for supporting overhead line equipment.

The design of our stay insulators, also known as guy strain insulators, ensures compatibility with various types of Stay Wire and anchoring systems. Proper selection depends on factors such as the voltage of the line, the mechanical load requirements, and the prevailing environmental conditions. For more information on material properties, consult resources like the National Electrical Manufacturers Association (NEMA), which provides standards for electrical equipment.

Key Features and Advantages

Choosing EPCOM for your stay insulator needs brings several advantages, rooted in our commitment to product excellence and customer satisfaction. Our insulators are designed with the following key features:

• High Mechanical Strength: Engineered to withstand high tensile loads from stay wires, ensuring structural stability of the pole line. Our design process includes rigorous mechanical testing.
• Superior Electrical Insulation: Manufactured from high-quality porcelain or polymer materials with excellent dielectric properties to prevent electrical leakage and ensure safety.
• Weather Resistance: Designed to endure extreme weather conditions, including UV radiation, heavy rain, snow, and temperature variations without significant degradation in performance.
• Corrosion Resistance: Materials and glazes used are resistant to chemical corrosion and environmental pollutants, extending the service life of the insulator.
• Ease of Installation: Our stay insulators are designed for straightforward installation with standard line hardware, reducing installation time and labor costs.
• Durability and Longevity: Robust construction and high-quality materials ensure a long operational life, minimizing the need for frequent replacements.
• Compliance with Standards: Manufactured and tested in accordance with relevant international standards to guarantee reliability and safety.

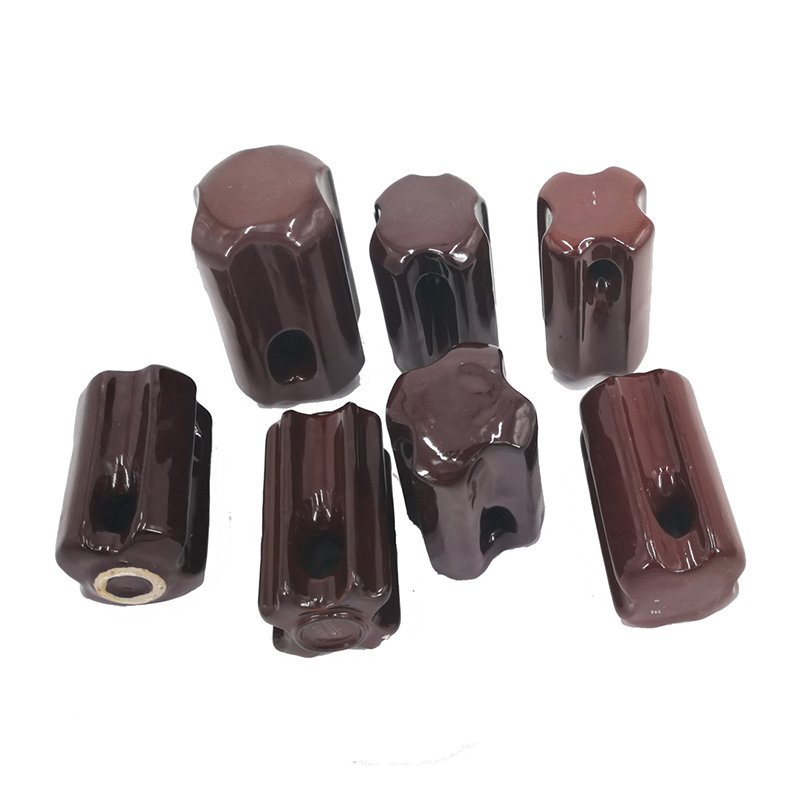

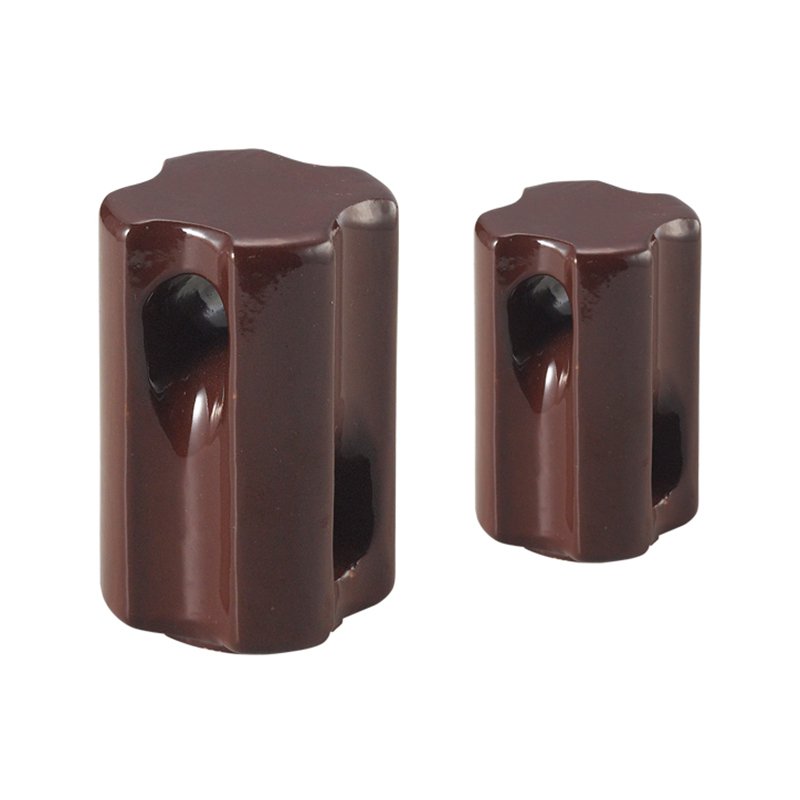

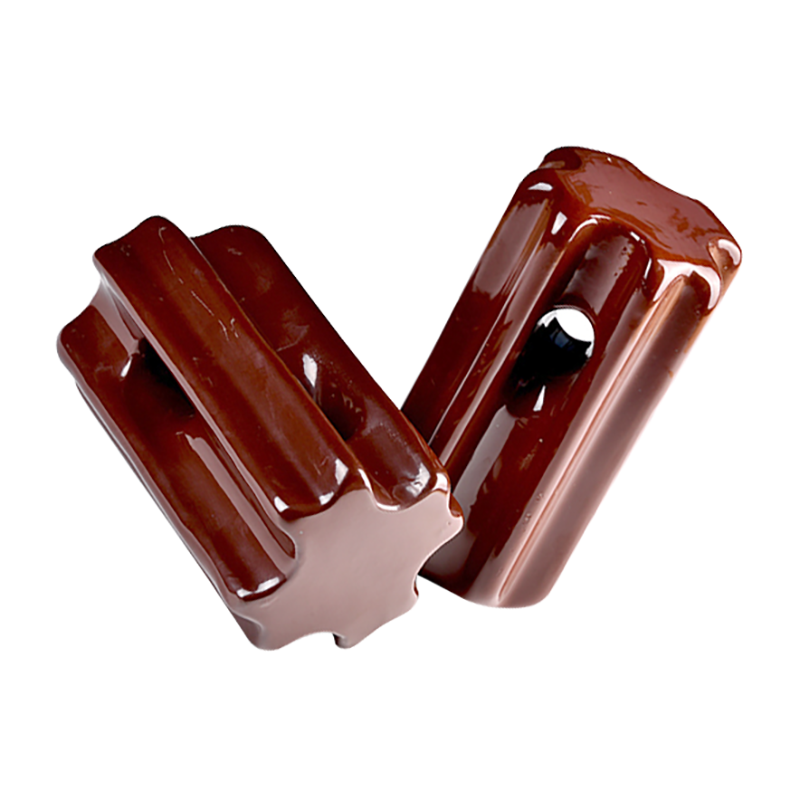

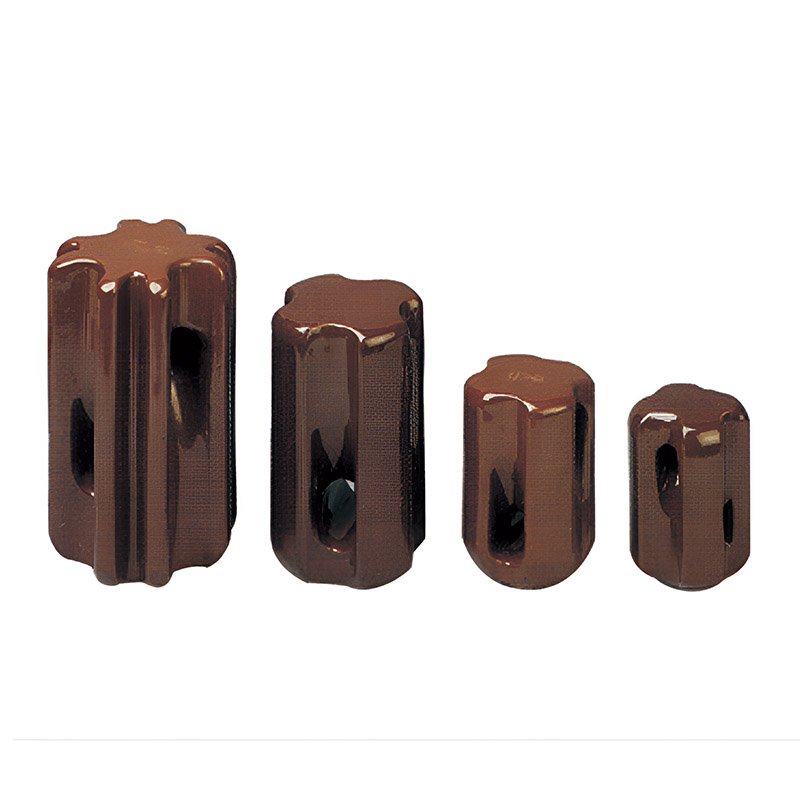

Technical Specifications for Our Porcelain Stay Insulator Range

EPCOM provides a comprehensive range of porcelain stay insulators to meet diverse project requirements. Below are typical specifications for our standard models. Please note that custom specifications can also be accommodated upon request.

Parameter	Specification Range
Type	ANSI 54-1, 54-2, 54-3, 54-4 or equivalent IEC types
Material	High-Quality Wet Process Porcelain
Glaze Color	Brown, Grey, White (others available on request)
Minimum Mechanical Failing Load	20 kN to 120 kN (Varies by model)
Low-Frequency Dry Flashover Voltage	25 kV to 70 kV (Varies by model)
Low-Frequency Wet Flashover Voltage	15 kV to 50 kV (Varies by model)
Creepage Distance	75 mm to 300 mm (Varies by model, customizable)
Applicable Standards	ANSI C29.4, IEC 60383, or customer-specific standards

Note: The specifications listed above are indicative. For detailed information on specific models or custom requirements for your Stay Insulator needs, please contact our technical sales team.

Complementary Products for Your Stay Assembly

A complete and robust stay assembly requires more than just a high-quality stay insulator. EPCOM also provides a range of essential components that work in conjunction with our insulators to ensure the stability and safety of your overhead line structures. These include:

• Stay Wire (Guy Wire): High-tensile strength galvanized steel wire used to provide mechanical support to poles. Our stay wires are designed for durability and optimal load-bearing capacity.
• Stay Rod (Anchor Rod): Used to connect the stay wire to the ground anchor. EPCOM offers various types of stay rods, including thimble eye and threaded options, to suit different anchoring methods and soil conditions.
• Stay Thimble (Guy Thimble): Placed within the loop of the stay wire at the connection point to protect the wire from excessive wear and kinking, thereby prolonging its life and maintaining its strength.

Integrating these components from EPCOM ensures a compatible and reliable stay assembly, engineered for optimal performance and longevity. Using our complete solution simplifies procurement and guarantees system integrity.

Commitment to Quality and Global Standards for Stay Insulator

At EPCOM, our manufacturing processes for Stay Insulators adhere to stringent quality management systems, often aligned with ISO 9001 principles. This commitment ensures consistency, reliability, and performance of every electrical stay insulator we produce. Our products are subjected to comprehensive testing, including mechanical load tests, electrical withstand tests, and material analysis, to verify their compliance with international standards such as ANSI (American National Standards Institute) and IEC.

This rigorous approach to quality assurance means that when you choose an EPCOM stay insulator, you are investing in a product designed for safety, durability, and long-term value. Our global customer base relies on our insulators for critical infrastructure projects, a testament to the trust placed in our manufacturing expertise and product quality.

Why Choose EPCOM for Your Stay Insulator Requirements?

EPCOM stands out as a preferred supplier of stay insulators and other overhead line materials for several compelling reasons:

• Expertise and Experience: With years of experience in the electrical components industry, EPCOM possesses deep knowledge and expertise in designing and manufacturing high-performance insulators.
• Comprehensive Product Range: We offer a wide variety of stay insulators suitable for different voltage levels, mechanical loads, and environmental conditions, along with complementary stay assembly hardware.
• Customization Capabilities: EPCOM can develop and manufacture stay insulators tailored to specific customer requirements and project needs.
• Global Reach, Local Support: While we serve a global market, we are committed to providing responsive customer service and technical support.
• Competitive Pricing: We strive to offer high-quality products at competitive prices, ensuring excellent value for our customers.
• Focus on Innovation: EPCOM continually invests in research and development to improve product designs and explore new materials for enhanced performance and reliability.

When you partner with EPCOM, you are choosing a supplier dedicated to providing reliable solutions that contribute to the safety and efficiency of power and communication networks worldwide. Our focus on the quality of each Stay Insulator ensures that your infrastructure is built to last.

For further inquiries about our stay insulators, to request a quotation, or to discuss your specific project needs, please do not hesitate to contact the EPCOM sales team. We are ready to assist you in selecting the optimal insulating solutions for your applications.
