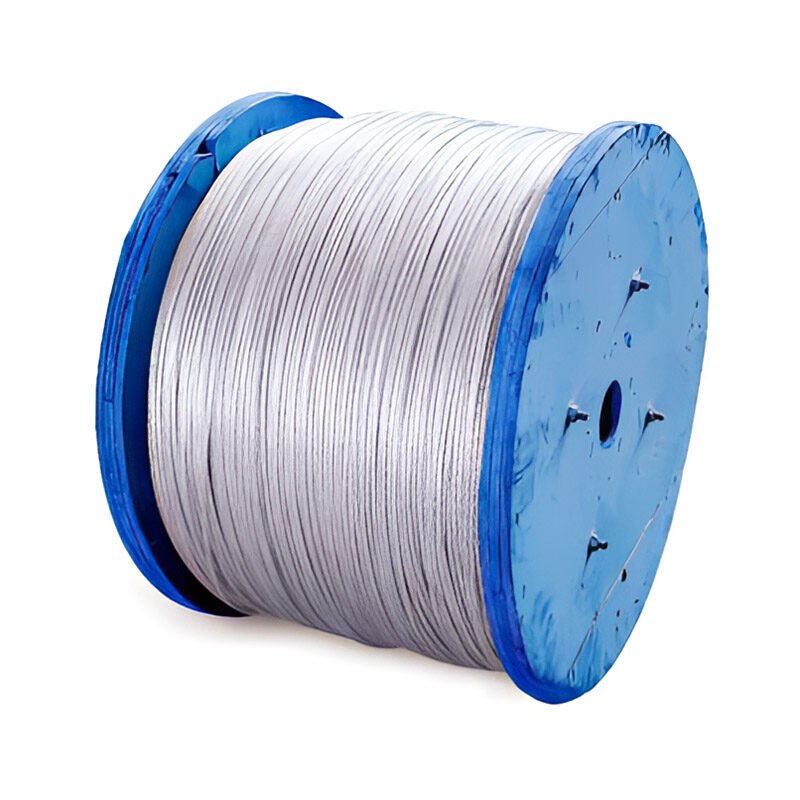

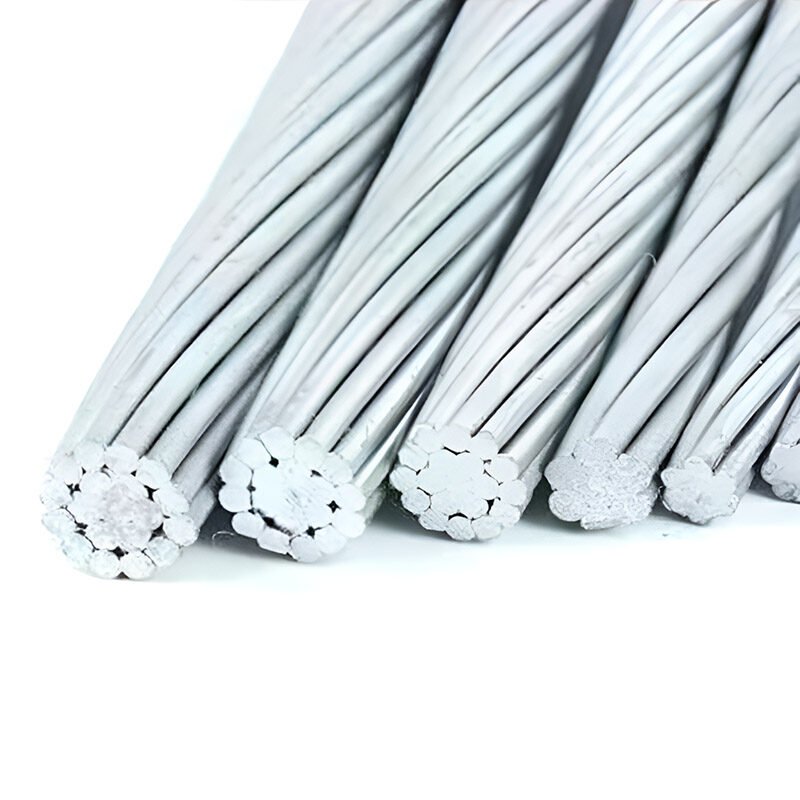

Stay Wire
Stay wire is a type of galvanized steel wire rope that is used to provide support and stability to structures such as towers, masts, and poles. It is made from high-strength steel wire strands that are galvanized to protect them from corrosion. Stay wires are typically anchored to the ground or to a concrete foundation and are then connected to the structure that they are supporting.
Description
Robust Stay Wire for Electrical Infrastructure
- Supporting power transmission lines
- Guying towers and poles
- Securing electrical equipment
Stay Wire is made from high-quality materials that are resistant to corrosion and wear. It is also available in a variety of sizes to meet the specific needs of each application.
Common Sizes
|
Model
|
Steel Wire Nominal Diameter (mm)
|
Nominal Diameter (mm)
|
CSA (mm²)
|
Strength of Extension | ||||
| 1270 | 1370 | 1470 | 1570 | 1670 | ||||
|
1*7
|
1 | 3 | 5.5 | 6.43 | 6.93 | 7.44 | 7.94 | 8.45 |
| 1.2 | 3.6 | 7.92 | 9.25 | 9.98 | 10.71 | 11.44 | 12.17 | |
| 1.4 | 4.2 | 10.78 | 12.6 | 13.59 | 14.58 | 15.57 | 16.56 | |
| 1.6 | 4.8 | 14.07 | 16.44 | 17.73 | 19.03 | 20.32 | 21.62 | |
| 1.8 | 5.4 | 17.81 | 20.81 | 22.45 | 24.09 | 25.72 | 27.35 | |
| 2 | 6 | 21.99 | 25.69 | 27.72 | 29.74 | 31.76 | 33.79 | |
|
1*19
|
2.2 | 6.6 | 26.61 | 31.1 | 33.55 | 36 | 38.45 | 40.88 |
| 2.6 | 7.8 | 37.17 | 43.43 | 46.85 | 50.27 | 53.69 | 57.11 | |
| 3 | 9 | 49.5 | 57.86 | 62.42 | 66.98 | 71.54 | 76.05 | |
| 3.2 | 9.6 | 56.3 | 65.78 | 70.96 | 76.14 | 81.32 | 86.5 | |
| 3.5 | 10.5 | 67.35 | 78.69 | 84.89 | 91.08 | 97.28 | 103.48 | |
| 3.8 | 11.4 | 79.39 | 92.76 | 100.1 | 107.4 | 114.7 | 121.97 | |
| 4 | 12 | 87.96 | 102.8 | 110.9 | 119 | 127 | 135.14 | |
|
1*37
|
1.6 | 8 | 38.2 | 43.66 | 47.1 | 50.54 | 53.98 | 57.41 |
| 1.8 | 9 | 48.35 | 55.26 | 59.62 | 63.97 | 68.32 | 72.67 | |
| 2 | 10 | 59.69 | 68.23 | 73.6 | 78.97 | 84.34 | 89.71 | |
Benefits of Stay Wire
- High strength and durability
- Corrosion resistance
- Versatility
- Easy to install
- Long service life
Why Choose Our Stay Wire?
We are a leading manufacturer of Stay Wire with a reputation for quality and reliability. Our Stay Wire is made from the highest quality materials and is rigorously tested to ensure that it meets the most demanding requirements. We also offer a wide variety of sizes and finishes to meet your specific needs.
Contact us today to learn more about our Stay Wire and how it can benefit your power transmission application.
