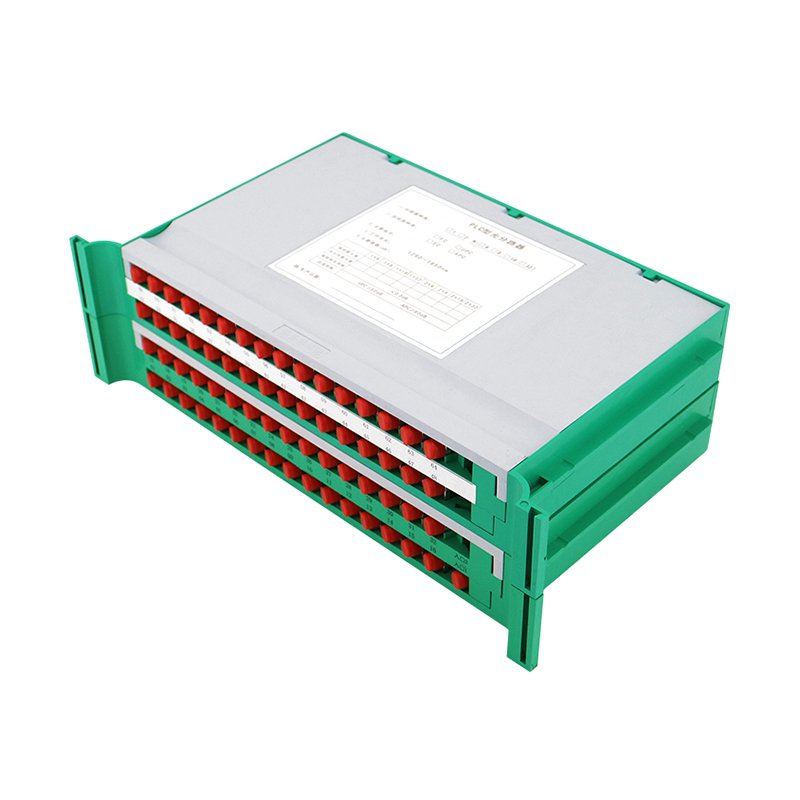

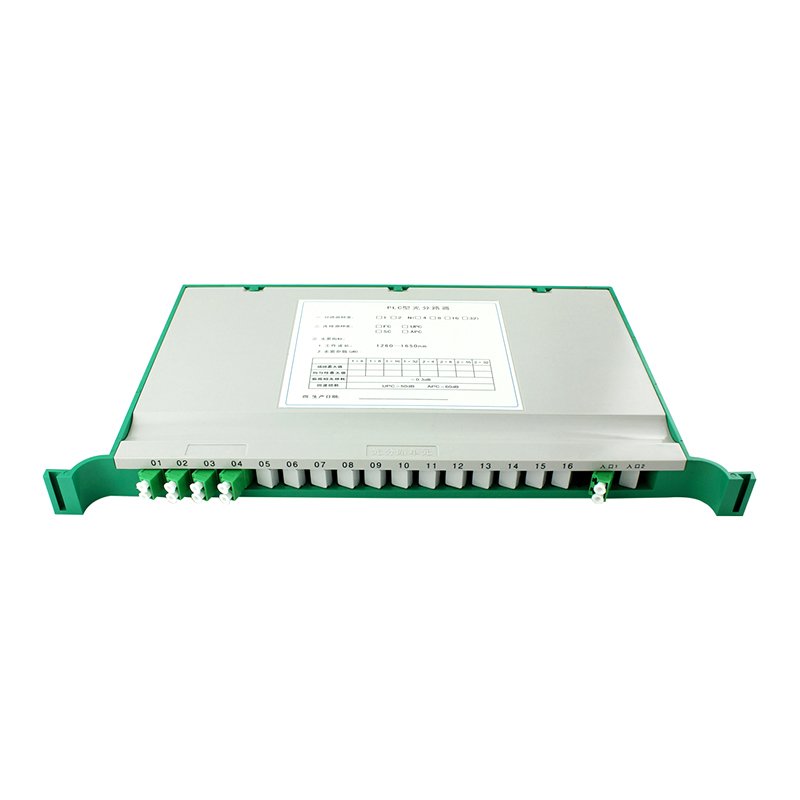

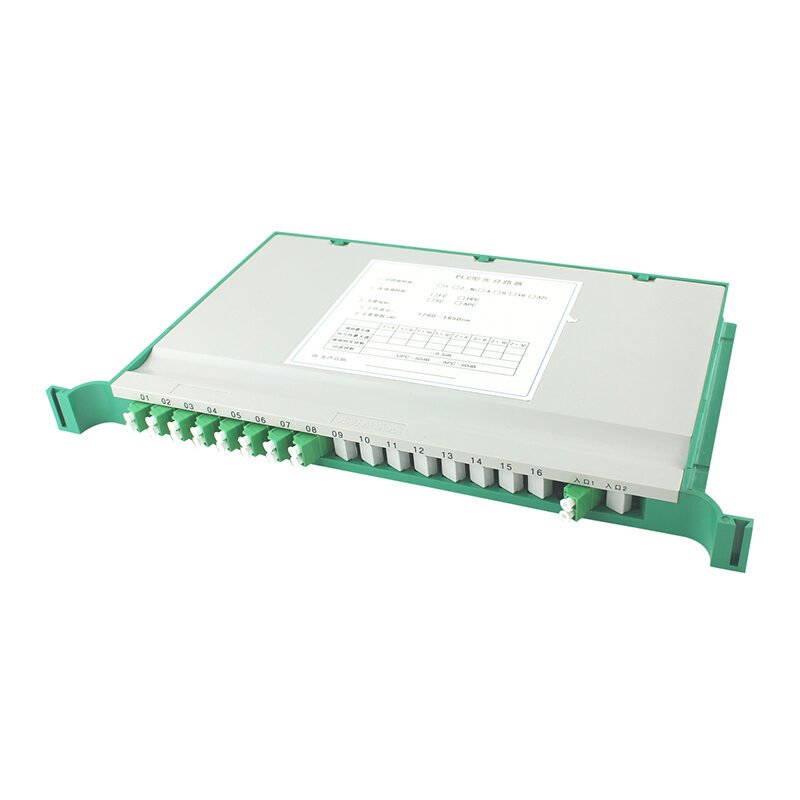

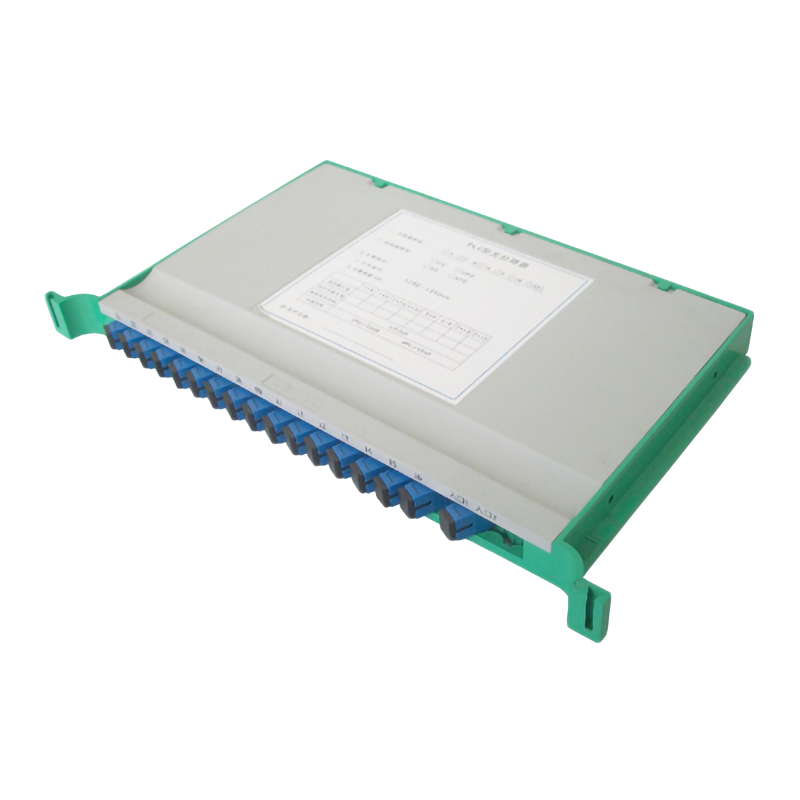

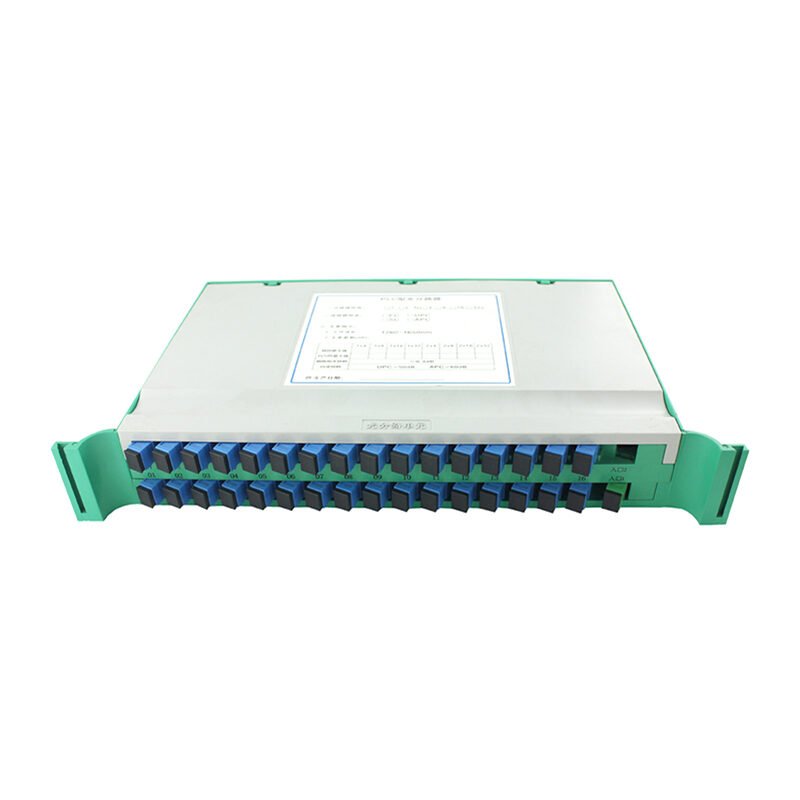

Tray Assembly PLC Splitter for Fiber Networks
The Tray Assembly PLC Splitter is a versatile and cost-effective optical power distribution device that is ideal for a wide range of applications, including FTTH, PON, CATV, and data center networks. It is designed to be used in conjunction with optical fiber cables and provides a reliable and efficient way to split optical signals into multiple channels.
- High-density tray design for seamless integration into distribution frames and termination boxes.
- Low insertion loss and superior uniformity across all channels using advanced PLC technology.
- Rigid protective housing to prevent micro-bending and ensure long-term mechanical stability.
- Wide operating wavelength range compliant with ITU-T G.671 and IEC international standards.
- Factory pre-terminated modules for rapid plug-and-play installation in FTTX environments.
Description
Tray Assembly PLC Splitter is a critical component for modern optical power management, providing balanced signal distribution across various network architectures. At EPCOM, we manufacture these splitters using Planar Lightwave Circuit technology to ensure high reliability and minimal physical footprint. This specific tray-type design integrates seamlessly into standard fiber distribution frames, allowing network operators to scale their infrastructure efficiently. By utilizing high-quality silica glass waveguides, our splitters deliver uniform optical performance across a wide wavelength range, making them ideal for FTTX and PON deployments.
Optimized Design of Tray Assembly PLC Splitter
The mechanical structure of the Tray Assembly PLC Splitter is engineered for protection and ease of maintenance. Unlike bare ribbon splitters, the tray-mounted version secures the delicate optical fibers within a rigid plastic or metal housing. This prevents micro-bending losses and physical damage during installation. Furthermore, the modular nature of the tray allows for rapid replacement or upgrades within a 24 cores termination box for fiber optics. EPCOM focuses on precision alignment to achieve low insertion loss and high return loss, ensuring that signal integrity remains consistent from the central office to the end-user.
Reliability is paramount in optical communication. Each Tray Assembly PLC Splitter undergoes rigorous testing under extreme environmental conditions. We follow international standards such as ITU-T G.671 for optical components to guarantee long-term stability. The tray format simplifies fiber routing, reducing the complexity of cable management in high-density environments. This systematic approach helps in minimizing human error during manual patching and splicing operations.
Technical Specifications and Standards
Understanding the performance metrics of the Tray Assembly PLC Splitter is essential for network design. Key parameters include the split ratio, which can range from 1:2 to 1:64. High-performance splitters must maintain a low Polarization Dependent Loss (PDL) to avoid signal fluctuations. Below is a detailed specification table for our standard range.
| Parameters | 1×4 | 1×8 | 1×16 | 1×32 |
|---|---|---|---|---|
| Operating Wavelength (nm) | 1260 ~ 1650 | |||
| Insertion Loss (dB) Max | 7.2 | 10.5 | 13.5 | 16.5 |
| Loss Uniformity (dB) Max | 0.6 | 0.8 | 1.2 | 1.5 |
| PDL (dB) Max | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss (dB) Min | 55 (APC) / 50 (UPC) | |||
| Directivity (dB) Min | 55 | |||
| Operating Temperature (°C) | -40 ~ +85 | |||
Key Connectivity Components
To achieve optimal results, the Tray Assembly PLC Splitter should be used with compatible hardware. Specifically, the input and output ports are often fitted with a SC single mode adapter to ensure precise connector mating. Proper alignment at these connection points is vital for reducing back-reflections. Additionally, for external patching requirements, using a high-quality SC-ST patch cord provides a reliable link between the splitter tray and active equipment such as OLTs or ONUs.
Applications of Tray Assembly PLC Splitter in Telecom

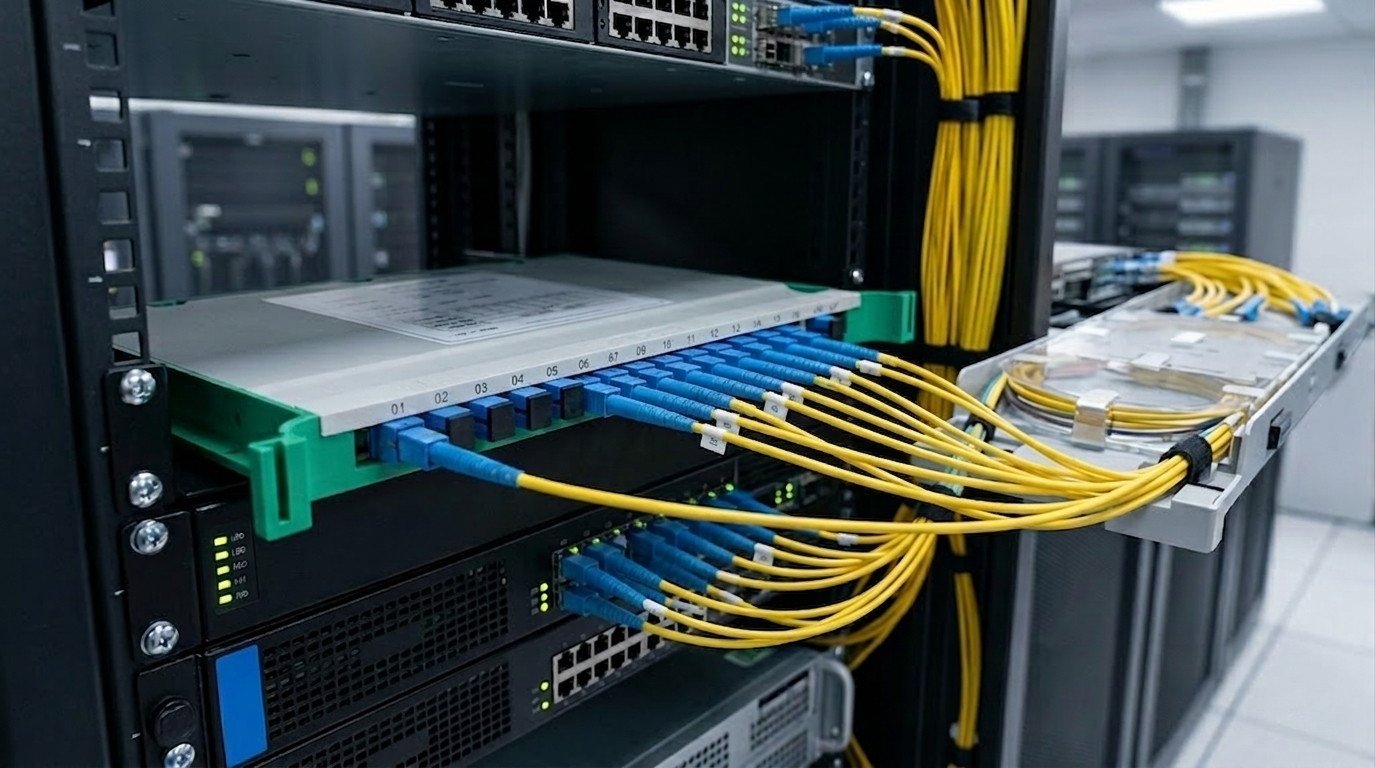

EPCOM provides these solutions for a variety of telecommunication scenarios. In Fiber to the Home (FTTH) networks, the Tray Assembly PLC Splitter acts as the primary distribution hub in residential buildings. It allows a single optical feeder cable to serve multiple subscribers simultaneously. Moreover, in data center environments, these trays are utilized to distribute monitoring signals without interrupting the main data flow. The compact design ensures that multiple trays can be stacked within a single 1U or 2U rack-mount chassis.
Installation flexibility is another advantage. The Tray Assembly PLC Splitter can be pre-terminated in the factory to reduce field labor costs. This “plug-and-play” capability is essential for large-scale rollouts where time-to-market is a critical factor. EPCOM ensures that every connector is cleaned and inspected under digital microscopy before shipping, adhering to the IEC standards for connector end-face quality.
Maintenance and Durability
Long-term performance of the Tray Assembly PLC Splitter depends on proper handling and environment. Since the splitters are passive components, they do not require a power source, which contributes to their high MTBF (Mean Time Between Failures). However, dust and contaminants are the primary enemies of fiber optics. Regular inspection of the adapters and patch cords connected to the tray is recommended. EPCOM designs its trays with protective covers to minimize dust ingress during routine network maintenance.
Why Choose EPCOM for Your Tray Assembly PLC Splitter?
Selecting EPCOM as your supplier means investing in quality and technical expertise. Our manufacturing process for the Tray Assembly PLC Splitter involves semi-automated assembly lines that ensure consistency across large production batches. We prioritize low-smoke zero-halogen (LSZH) materials for fiber jacketing to comply with modern safety regulations. Furthermore, our engineering team provides comprehensive support for customized splitting ratios and tray dimensions to fit unique enclosure requirements.
In summary, the Tray Assembly PLC Splitter is an indispensable tool for efficient fiber optic network expansion. Its robust construction, coupled with EPCOM’s commitment to optical excellence, provides a future-proof solution for increasing bandwidth demands. Whether you are building a rural broadband network or a dense urban 5G backhaul, our splitter trays offer the reliability your subscribers expect.
