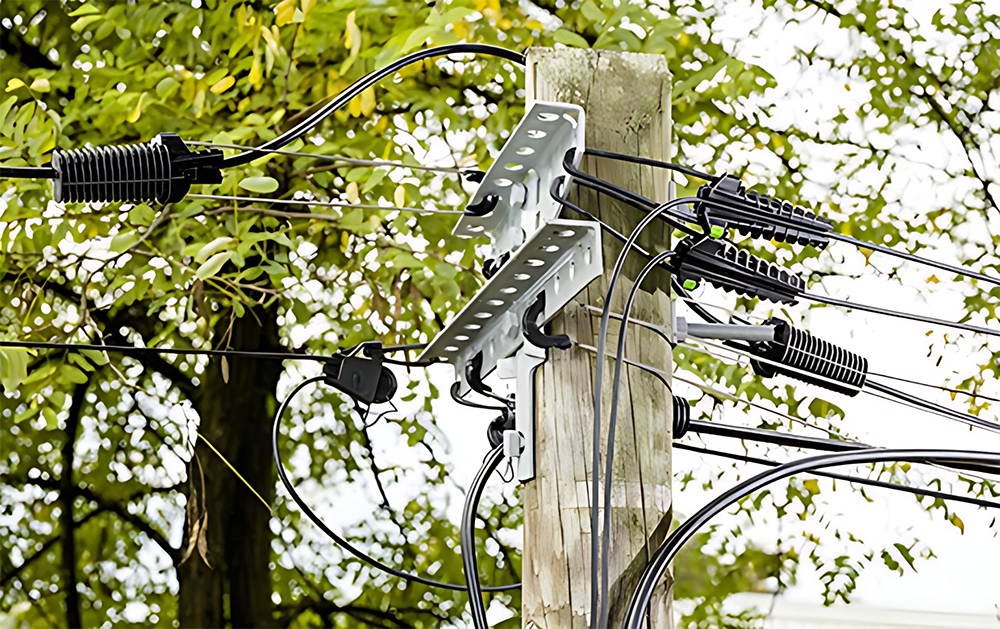

Secure Networks with a Fiber Optic Tension Clamp

A Fiber Optic Tension Clamp is a fundamental component in the construction and maintenance of aerial fiber optic networks. These devices are engineered with precision to securely anchor and maintain the tension of optical cables, ensuring the network’s long-term stability and performance. Without a reliable tension clamp, expensive fiber optic cables are susceptible to damage from environmental factors like wind, ice, and temperature fluctuations, which can lead to signal loss and costly network downtime. This comprehensive article explores every facet of fiber optic tension clamps, from their basic functions and types to selection criteria, installation procedures, and the high-quality solutions offered by EPCOM. Our goal is to provide a definitive resource for network engineers, technicians, and project managers dedicated to building robust and resilient communication infrastructures.

What is a Fiber Optic Tension Clamp?

At its core, a fiber optic tension clamp, often referred to as a dead-end clamp or anchor clamp, is a piece of hardware designed to terminate and hold an aerial fiber optic cable under a specific mechanical tension. Its primary role is to transfer the tensile load from the cable to a supporting structure, such as a pole or tower. This is crucial at the beginning and end of a cable run, at sharp angles, or whenever the cable needs to be securely fixed. These clamps are meticulously designed to grip the cable without damaging the delicate optical fibers within. They must provide a firm hold that prevents slippage while avoiding excessive pressure that could cause signal attenuation or long-term fiber degradation. The materials and design of these clamps are critical, as they must withstand constant tension and harsh environmental conditions for decades.

The engineering behind these clamps involves a careful balance of grip strength and gentleness. For All-Dielectric Self-Supporting (ADSS) cables, the clamp must grip the outer jacket without compressing the core. For Optical Ground Wire (OPGW), which is integrated into electrical transmission lines, the clamp must manage both electrical and mechanical properties. EPCOM specializes in providing a diverse range of tension clamps tailored to different cable types, diameters, and tensile strength requirements, ensuring every installation is both secure and safe for the fiber.

The Critical Role of a Fiber Optic Tension Clamp

The importance of selecting and properly installing a high-quality fiber optic tension clamp cannot be overstated. It is a linchpin in the physical layer of a network, directly impacting its reliability, lifespan, and maintenance costs. A failing clamp can lead to a catastrophic failure of the entire cable span, resulting in service outages that can affect thousands of users and incur significant repair expenses. Therefore, understanding its multifaceted role is essential for anyone involved in aerial network deployment.

Ensuring Network Reliability with the Right Clamp

Network reliability starts with the physical integrity of the cable installation. A fiber optic tension clamp provides the necessary mechanical stability to keep the cable in its designated position, maintaining the correct sag and tension profile designed by engineers. This prevents the cable from experiencing excessive movement or stress, which are primary causes of fiber damage over time. By choosing a clamp that is perfectly matched to the cable’s specifications and the environmental load conditions, network operators can significantly reduce the risk of physical faults. This proactive approach to hardware selection is a cornerstone of building a network that meets and exceeds its expected service life.

Protecting Your Investment in Fiber Cables

Fiber optic cable represents a substantial financial investment. The clamp is the first line of defense in protecting that investment from mechanical harm. A well-designed tension clamp distributes gripping force evenly around the cable’s circumference, often using soft inserts or liners to cushion the cable. This design prevents point-loading and stress concentrations that can fracture fibers or compromise the cable jacket’s integrity. Furthermore, by maintaining proper tension, the clamp ensures the cable operates within its safe mechanical limits, preventing stretching that can lead to permanent damage to the optical fibers. EPCOM’s products are designed with this protective function in mind, utilizing advanced materials and engineering to safeguard your critical network assets.

How a Fiber Optic Tension Clamp Prevents Sag

Cable sag is a critical parameter in aerial cable design. While a certain amount of sag is necessary to manage thermal expansion and contraction, excessive or uncontrolled sag is problematic. It increases the cable’s exposure to wind-induced motion (aeolian vibration and galloping), which can cause fatigue damage to both the cable and the supporting hardware. A fiber optic tension clamp provides the fixed anchor point needed to establish and maintain the engineered sag profile. By holding the cable securely at the dead-end points, it ensures the tension along the span remains consistent and predictable, thereby controlling sag and minimizing the dynamic forces exerted on the cable.

Types of Fiber Optic Tension Clamps Explained

The world of fiber optic hardware is diverse, with different clamp designs available to suit specific applications, cable types, and installation environments. Understanding the main categories is the first step toward making an informed purchasing decision. The primary distinction is often based on the clamp’s mechanism and its intended use case, whether for distribution lines or long-haul transmission routes.

At EPCOM, we offer a comprehensive catalog of solutions. A great starting point is to explore our main category for Tension Clamps to see the variety available. The main types include:

• Wedge-Type Tension Clamps: These are very common for ADSS and drop cables. They feature a wedge mechanism that tightens its grip on the cable as the tension increases. This self-tightening feature makes them easy to install without special tools and highly reliable.
• Helical (Preformed) Tension Clamps: This design uses a set of preformed helical rods that wrap around the cable. They offer a very large contact area, which distributes the gripping force over a longer section of the cable. This makes them ideal for high-tension applications and delicate cables, as they significantly reduce stress concentration.
• Bolt-Type Tension Clamps: These clamps use bolts to apply clamping pressure. They are highly adjustable and can provide immense holding strength, making them suitable for heavy OPGW cables or long spans with high mechanical loads. Proper torque application is critical during installation.

One of our most versatile and widely used products is the PA2000 Dead-End Anchoring Clamp. This model is a perfect example of a robust, wedge-type clamp designed for anchoring insulated service lines. Its ease of installation and high-quality, corrosion-resistant materials make it a preferred choice for last-mile and distribution networks.

Key Features to Look for in a Quality Fiber Optic Tension Clamp

When sourcing tension clamps, it’s crucial to look beyond the price tag and evaluate the features that contribute to long-term performance and reliability. A superior clamp will save you significant money over the network’s lifecycle by preventing failures and reducing maintenance needs. The following are critical attributes to consider.

• Material Quality and Durability: The material is the foundation of the clamp’s performance. Look for high-strength, corrosion-resistant materials like hot-dip galvanized steel, aluminum alloys, or weather-resistant polymers. The choice depends on the environment; for example, coastal areas with salt spray require materials with superior corrosion resistance.
• Grip Strength and Cable Compatibility: The clamp must provide sufficient gripping strength to hold the cable securely without slipping under the maximum rated load. Crucially, it must be designed for the specific diameter and type of your fiber optic cable. Using the wrong size clamp can lead to cable damage or failure.
• Ease and Speed of Installation: Labor is a significant cost in network construction. A clamp that is intuitive and quick to install without requiring specialized, expensive tools can lead to substantial savings. Features like tool-free installation or single-bolt designs are highly advantageous.
• Environmental Resistance: The clamp will be exposed to the elements 24/7. It must be resistant to UV radiation from the sun, which can degrade plastics over time, as well as extreme temperatures, both hot and cold. Certifications or material specifications that guarantee long-term outdoor performance are a must.

How to Select the Perfect Fiber Optic Tension Clamp

Selecting the right clamp is a systematic process that involves analyzing cable specifications, environmental conditions, and the specific application. A methodical approach ensures that the chosen hardware is not only compatible but also optimized for the demands of the installation, guaranteeing a secure and lasting connection.

Understanding Your Cable Specifications

The first step is a thorough review of the fiber optic cable’s data sheet. Two parameters are of paramount importance:

1. Outer Diameter: The tension clamp is designed to fit a specific range of cable diameters. An ill-fitting clamp will either be too loose, leading to slippage, or too tight, causing compression damage. Always ensure your cable’s diameter falls comfortably within the clamp’s specified range.
2. Rated Tensile Strength (RTS): The clamp’s holding strength, often called the Rated Holding Strength (RHS), must be compatible with the cable’s RTS. For dead-end applications, the clamp should typically be able to hold at least 90-95% of the cable’s RTS without slipping or damaging the cable. This ensures the cable itself will fail before the clamp gives way.

Assessing Environmental and Span Conditions

The physical environment dictates the mechanical load the clamp must endure. Key factors include:

• Span Length: Longer spans result in higher static tension and are more susceptible to dynamic loads. The clamp’s strength must be sufficient to handle the increased forces associated with long-span construction.
• Wind and Ice Loading: These are critical calculations in aerial design. Engineers use standards from organizations like the Institute of Electrical and Electronics Engineers (IEEE) to determine the maximum load the cable will experience under worst-case weather scenarios. The tension clamp must be rated to withstand these peak loads.

Matching Your Fiber Optic Tension Clamp to the Application

Not all installations are the same. The clamp must be chosen based on its location in the network. A tangent (straight-line) pole requires a suspension assembly, not a tension clamp. Tension clamps are used where the cable line terminates or changes direction significantly. For example, a dead-end pole at the end of a run requires a full-tension clamp, whereas a pole with a small line angle might use a specific type of angle clamp. This is where a complete hardware solution, including suspension clamps, becomes important. For tangent supports, the XGU Suspension Clamp is an excellent choice, designed to support the cable without gripping it under full tension, allowing for controlled movement.

The Installation Process for a Fiber Optic Tension Clamp

Proper installation is just as critical as selecting the right hardware. A high-quality clamp can fail if it is not installed according to the manufacturer’s instructions. A disciplined and well-executed installation process ensures that the clamp functions as designed and provides the expected level of security and reliability for the life of the network.

Pre-Installation Checks and Tool Requirements

Before heading to the field, preparation is key. Technicians should:

• Verify the Equipment: Double-check that the clamp model and size match the cable and the project specifications. Inspect the clamp for any signs of damage from shipping or handling.
• Consult the Installation Manual: Every clamp model has a specific set of instructions. Reviewing them beforehand prevents errors and saves time on-site.
• Gather the Right Tools: While many modern clamps are tool-free, some bolt-type models require a torque wrench to ensure the bolts are tightened to the correct specification. Overtightening can damage the cable, while undertightening can lead to slippage.
• Clean the Cable: The section of the cable where the clamp will be installed should be clean and dry to ensure maximum gripping friction.

A Step-by-Step Guide to Installing Your Fiber Optic Tension Clamp

While specific steps vary, a general installation process for a wedge-type clamp is as follows:

1. Open the clamp’s bail or loop.
2. Insert the wedge and clamp body over the fiber optic cable at the designated installation point.
3. Pull the clamp back, causing the wedge to engage and grip the cable jacket. The grip will increase as tension is applied.
4. Attach the clamp’s bail to the thimble or bracket on the pole or support structure.
5. Apply tension to the cable gradually using a hoist or pulley system until the correct sag is achieved. The clamp will automatically adjust its grip.
6. Once the final tension is set, the installation of the clamp is complete.

Common Mistakes to Avoid During Installation

Even experienced technicians can make mistakes. Avoiding these common pitfalls is crucial for a successful installation:

• Installing on a Damaged Cable Section: Never place a clamp over a cut, abraded, or otherwise damaged section of the cable jacket. This will compromise its holding ability.
• Incorrect Orientation: Some clamps are directional. Installing them backward can reduce their effectiveness or lead to failure.
• Exceeding the Bending Radius: Ensure the cable is not bent more sharply than its minimum bending radius when routing it into the clamp and onto the pole.

Comparing Different Fiber Optic Tension Clamp Models

To help visualize the differences between clamp types, the following table provides a high-level comparison. This can serve as a quick reference guide when beginning the selection process for your project’s specific needs.

Clamp Type	Primary Material	Typical Application	Key Benefit
Wedge Type Anchor Clamp	UV Resistant Polymer, Stainless Steel	ADSS, Drop Wires, Distribution	Fast, tool-free installation
Helical (Preformed) Dead-End	Aluminum Alloy, Galvanized Steel	ADSS & OPGW, Long Spans	Excellent force distribution, minimizes stress
Bolt-Type Strain Clamp	Hot-Dip Galvanized Steel	OPGW, High Tension Transmission	Very high holding strength, adjustable
Suspension Clamp	Aluminum Alloy, Polymer Inserts	Tangent (straight line) supports	Supports cable without full tension grip

Material Usage in Fiber Optic Clamp Manufacturing

The materials used in manufacturing clamps are chosen for their specific properties of strength, weight, and resistance to environmental degradation. The chart below illustrates a typical distribution of materials used across the industry for various types of clamps, reflecting the demand for both performance and cost-effectiveness.

The Importance of Ancillary Hardware for your Fiber Optic Tension Clamp

A successful aerial installation relies on a system of compatible hardware, not just a single clamp. The tension clamp is the anchor, but it works in concert with other components to protect the cable along its entire length. Neglecting these supporting elements can create weak points in the installation, undermining the security provided by a high-quality tension clamp. A holistic approach to hardware selection is essential for building a truly resilient network.

One of the most significant threats to aerial cables is vibration. Aeolian vibration, caused by steady, laminar wind blowing across the cable, can induce high-frequency oscillations. Over time, this vibration can cause fatigue damage to the cable’s internal components and the clamping points. To combat this, a Spiral Vibration Damper is an essential accessory. This simple, helically formed PVC device wraps around the cable near the clamp, disrupting the wind flow and effectively dampening the harmful vibrations. It is a cost-effective insurance policy against long-term fatigue failure, and its use is highly recommended, especially in open areas prone to consistent winds.

EPCOM’s Commitment to Quality Fiber Optic Tension Clamps

At EPCOM, we understand that our clients are not just buying hardware; they are building the backbones of modern communication. Our reputation is built on providing components that meet the highest standards of quality, reliability, and performance. Our entire range of Fiber Optic Tension Clamp products undergoes rigorous testing to ensure they can withstand the mechanical loads and environmental stresses they will face in the field. We employ advanced materials and precision manufacturing processes to create clamps that our customers can install with confidence.

Our engineering philosophy is centered on creating solutions that are not only strong but also safe for the delicate fiber optic cables they are designed to protect. We are committed to continuous innovation, developing new designs that offer easier installation, enhanced durability, and better value for our clients. When you choose EPCOM, you are partnering with a company that is dedicated to the long-term success of your network infrastructure. We stand behind our products and provide expert support to help you select the ideal hardware for your specific project requirements.

Advanced Considerations for Fiber Optic Tension Clamp Use

Beyond the basics of selection and installation, experienced network designers and engineers must account for more nuanced challenges. These advanced considerations separate a good installation from a great one, ensuring the network is prepared for any eventuality and is easy to maintain throughout its operational life.

Dealing with Extreme Weather Conditions

Standard design calculations account for typical wind and ice loads, but some regions are prone to more extreme events like hurricanes, tornadoes, or heavy ice storms. In such cases, a more conservative approach to hardware selection is warranted. This might involve choosing a fiber optic tension clamp with a higher rated holding strength or one made from materials with superior impact resistance. For more information on material properties under stress, resources on materials science can be highly informative. Additionally, the entire support structure, from the pole attachment hardware to the guy wires, must be specified to withstand these peak conditions.

Long-Term Maintenance of Your Fiber Optic Tension Clamp System

While a properly installed, high-quality clamp system is designed to be largely maintenance-free, periodic inspections are a good practice, especially after severe weather events. Visual inspections can identify potential issues before they become critical failures. Things to look for include:

• Signs of Corrosion: Check for rust or degradation on all metallic components.
• Cracks or Discoloration in Polymers: This can be an indication of UV degradation or material fatigue.
• Cable Slippage: Look for any indication that the cable has moved within the clamp.
• Loose Hardware: Ensure all bolts and attachments are still secure.

A proactive maintenance schedule can significantly extend the life of the network and prevent unexpected outages.

Frequently Asked Questions (FAQ)

Here are answers to some of the most common questions we receive about fiber optic tension clamps.

What is the main purpose of a fiber optic tension clamp?

The main purpose is to securely anchor a fiber optic cable to a support structure (like a pole) at the end of a span or at a significant turning angle. It holds the cable under mechanical tension, preventing it from sagging excessively and protecting it from damage due to environmental forces.

How do I choose the right size fiber optic tension clamp?

You must match the clamp to the cable’s outer diameter. Every clamp has a specified diameter range it can accommodate. Using a clamp that is too large will result in insufficient grip and slippage, while one that is too small can crush and damage the cable. Always refer to the cable and clamp manufacturer’s datasheets.

Can I reuse a fiber optic tension clamp?

It is generally not recommended to reuse most types of tension clamps, especially wedge-type or preformed helical clamps. The initial installation can cause permanent deformation in the clamp’s components, and reusing it may lead to a less secure grip. For safety and reliability, it is always best practice to use a new clamp for a new installation or re-tensioning.

What is the difference between a tension and a suspension clamp?

A fiber optic tension clamp is a dead-end clamp used to terminate the cable and hold its full mechanical tension. A suspension clamp is used on intermediate (tangent) poles to support the cable’s weight, but it is not designed to hold the full line tension. It allows the cable to pass through and can permit some movement.

Conclusion: The Foundation of a Reliable Network

The Fiber Optic Tension Clamp is far more than a simple piece of hardware; it is a critical enabling technology for modern aerial fiber optic networks. It is the component that bears the constant load, weathers the harshest storms, and ultimately protects the vital communication pathways we all rely on. From ensuring network reliability and preventing sag to protecting the substantial investment made in fiber optic cables, its role is indispensable.

Choosing the right clamp requires a careful analysis of the cable, the environment, and the specific application. By partnering with a knowledgeable and quality-focused supplier like EPCOM, you gain access to a wide range of superior products and the expertise needed to make the best selection. We encourage you to explore our solutions, including our robust anchoring clamps, supportive suspension clamps, and essential vibration dampers, to build a network that is secure, durable, and ready for the future. Contact EPCOM today to discuss your project needs and let us help you build a better network from the pole down.
