The Ultimate Guide to Fiber Optic Protection Box

A Fiber Optic Protection Box is an indispensable component in today’s high-speed communication networks, serving as the frontline defense for delicate fiber optic connections. As the world increasingly relies on the speed and reliability of fiber optics for everything from business operations to home entertainment, the need to protect these critical infrastructure assets has never been more paramount. These enclosures, though often overlooked, are fundamental to ensuring network longevity, signal integrity, and operational efficiency. They provide a secure, organized, and stable environment for the sensitive points within a fiber network—splices, connectors, and distribution points—safeguarding them from a multitude of external threats. For any organization deploying or maintaining a fiber network, understanding the role and value of a high-quality protection box from a trusted provider like EPCOM is the first step toward building a robust and resilient communication system.

What is a Fiber Optic Protection Box?

At its core, a Fiber Optic Protection Box is a specialized enclosure designed to house and protect the critical components of a fiber optic network. Think of it as a secure vault for your data pathways. Its primary purpose is to safeguard the points where optical fibers are terminated, spliced, or interconnected. These points are notoriously fragile. A single fiber strand is thinner than a human hair and is highly susceptible to damage from physical impact, moisture, dust, and other environmental contaminants. Therefore, the protection box creates a controlled micro-environment that shields these vulnerabilities.

The functionality of these boxes extends beyond mere protection. They are also crucial for organization and management. Inside a well-designed box, you’ll find mechanisms for routing cables, securing splices in trays, and organizing connectors. This systematic arrangement is vital for initial installation and, just as importantly, for future maintenance and troubleshooting. Without it, technicians would face a chaotic web of fibers, making it nearly impossible to identify and resolve issues efficiently. In essence, the Fiber Optic Protection Box brings order to complexity, ensuring that the network remains not only safe but also manageable and scalable. It is a fundamental building block for any Fiber to the Home (FTTH), Local Area Network (LAN), or large-scale telecommunication infrastructure.

The Critical Importance of a Fiber Optic Protection Box in Modern Networks

In the architecture of modern telecommunications, the role of a Fiber Optic Protection Box cannot be overstated. It is a linchpin that ensures the entire system functions as intended—reliably and consistently. The benefits ripple across the network, from maintaining signal quality to reducing long-term operational costs. Let’s explore the key reasons why these enclosures are so critically important.

Ensuring Signal Integrity and Performance

The primary currency of a fiber optic network is data, transmitted as pulses of light. The purity and strength of this light signal are paramount. Any degradation, or ‘attenuation’, can lead to slow speeds, data loss, and complete connection failure. A Fiber Optic Protection Box plays a direct role in preserving this signal integrity. It prevents micro-bends in the fibers—sharp, microscopic curves that can cause light to leak out. Furthermore, by keeping connectors and splice points perfectly aligned and free from dust or moisture, the box ensures a clean, uninterrupted path for the light, thereby maintaining optimal performance and the high-speed data transmission that users expect.

Safeguarding Against Physical Damage

Fiber optic cables, despite their incredible data-carrying capacity, are physically vulnerable. The internal glass fibers can easily be fractured by impact, crushing forces, or excessive tension. A robust Fiber Optic Protection Box, often constructed from high-impact ABS plastic, acts as a rigid shield against these physical threats. Whether it’s accidental contact during construction, vandalism, or the persistent pressure in an underground installation, the enclosure provides essential structural protection. This physical security is the first line of defense in preventing costly and disruptive network outages.

Protecting from Environmental Hazards with a Fiber Optic Protection Box

Environmental factors pose a significant and constant threat to fiber optic networks, especially in outdoor or industrial settings. A properly sealed Fiber Optic Protection Box is designed to be impervious to these challenges. It provides crucial protection against:

• Moisture and Water Ingress: Water can freeze and expand, putting stress on fibers, and can also corrode connection points. High-quality boxes have IP (Ingress Protection) ratings that certify their ability to keep water out.
• Dust and Debris: A single speck of dust on a connector end-face can block the light signal entirely. The sealed design of a protection box prevents contamination from airborne particles.
• UV Radiation: Sunlight can degrade the outer jackets of cables over time, making them brittle. The materials used in outdoor-rated boxes are UV-stabilized to resist this effect.
• Temperature Extremes: The box insulates the internal components from wild temperature swings, which can cause materials to expand and contract, potentially misaligning connectors.

Simplifying Network Maintenance and Management

A well-organized network is an efficient network. A Fiber Optic Protection Box provides a centralized and easily accessible point for technicians. When an issue arises, they know exactly where to go to test, troubleshoot, or reconfigure connections. The internal organizers, splice trays, and clear labeling systems within the box drastically reduce the time required for maintenance activities. This not only lowers operational costs by minimizing technician time on-site but also reduces network downtime, leading to a better experience for the end-user. It transforms a potentially chaotic junction into a managed and professional termination point.

Exploring the Different Types of Fiber Optic Protection Box Solutions

The world of fiber optics is not one-size-fits-all, and the enclosures that protect it are just as diverse. The specific type of Fiber Optic Protection Box required for a project depends heavily on the application, environment, and scale of the network. From compact indoor units to large, rugged outdoor vaults, each design is engineered to solve a specific set of challenges. EPCOM offers a comprehensive portfolio to meet these varied needs, ensuring that no matter the scenario, there is a solution available to provide optimal protection and management.

Indoor vs. Outdoor Fiber Optic Protection Box Models

The most fundamental distinction between protection boxes is their intended environment. Indoor boxes are typically smaller, lighter, and designed to blend into the background of a data closet, office, or residence. Their primary focus is on organization and ease of access in a controlled environment. Outdoor boxes, on the other hand, are built for battle. They are constructed from heavy-duty, UV-resistant materials and feature robust sealing gaskets to achieve high IP ratings against water and dust. They must be able to withstand rain, snow, sun, and temperature extremes, making them essential for FTTH deployments, pole-mounted applications, and industrial settings.

Wall-Mount vs. Rack-Mount Fiber Optic Protection Box Units

The mounting style is another key differentiator. Wall-mount boxes are designed to be fixed to a flat surface. They are commonly used at building entry points or in communication closets where rack space is not available. They provide a secure termination point that is easily accessible. Rack-mount enclosures (often called fiber optic patch panels) are designed to fit into standard 19-inch server racks. These are the standard in data centers and enterprise network rooms, allowing for high-density connections to be managed neatly alongside other network equipment like switches and servers.

A Closer Look at EPCOM’s Specialized Fiber Optic Protection Box Range

EPCOM prides itself on offering a targeted range of solutions to meet specific field requirements. These include:

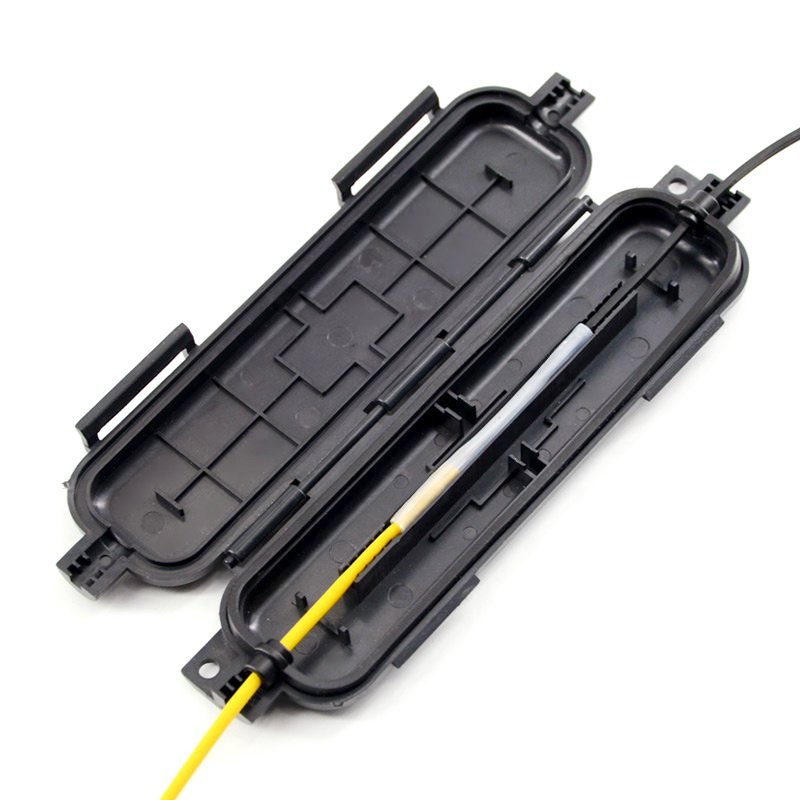

• ABS 1×1 Splice Box: A compact and durable solution perfect for protecting single splices in aerial or buried applications. Its high-impact ABS construction ensures resilience against physical stress and environmental factors.
• Drop Cable Splicing Protection Box: Specifically designed for FTTH “last mile” connections, this box protects the critical splice point between the main network cable and the individual subscriber’s drop cable, ensuring a reliable home connection.
• Mini Splice Protection Box: Ideal for indoor FTTH applications, this small-footprint box neatly protects a heat-shrink fusion splice, providing a clean and professional finish inside a customer’s premises.
• Protective Box with Fusion Splice Sleeves: This unit is built for superior protection, featuring an IP65 rating and a robust snap-fit closure to shield delicate fusion splices from impact, vibration, and moisture.
• Protection Box with Adaptor: A versatile and user-friendly option for FTTX networks, this box integrates adapters directly into the enclosure, simplifying connections and cable management for rapid and efficient deployment.

Dome vs. Inline Enclosures: Which Fiber Optic Protection Box is Right for You?

For larger, outdoor splice applications, enclosures often come in two main form factors: dome and inline. Dome (or vertical) closures are dome-shaped and are excellent for buried or manhole applications where they may be submerged. Their design naturally sheds water and provides 360-degree access to the internal splice trays. Inline (or horizontal) closures are cylindrical and are typically used in aerial or ducted applications. They are designed for “in-line” cable runs, with cable entry and exit ports at opposite ends, making them ideal for branch-off points in a network. The choice between them depends entirely on the physical layout and location of the splice point.

Key Features to Look for in a High-Quality Fiber Optic Protection Box

When selecting a Fiber Optic Protection Box, not all products are created equal. The quality and features of the enclosure you choose will have a direct impact on the reliability and longevity of your network. A superior box is an investment that pays dividends by preventing costly repairs and downtime. Here are the essential features to scrutinize to ensure you are getting a product that meets professional standards, such as those offered by EPCOM.

• Material and Durability (IP Ratings): The construction material is the box’s first line of defense. Look for high-impact, engineering-grade plastics like ABS or polycarbonate, which offer excellent resistance to physical shock and chemical exposure. For outdoor units, UV stability is non-negotiable to prevent the material from becoming brittle under sun exposure. Critically, check the IP (Ingress Protection) rating. A rating like IP65 indicates the box is completely dust-tight and can protect against low-pressure water jets, making it suitable for most outdoor applications.
• Capacity and Scalability: The box should not only accommodate your current needs but also allow for future growth. Consider the number of splice trays it can hold, the maximum number of splices, and the quantity and size of the cable entry/exit ports. A box with modular splice trays and ample room for cable management provides the scalability needed to add more connections later without replacing the entire enclosure.
• Security Features: Unauthorized access can compromise your entire network. A quality protection box should have robust security features. This can range from simple screw-down covers to more advanced locking mechanisms requiring a key or special tool. Tamper-evident features can also provide an immediate visual indication if the enclosure has been opened by unauthorized personnel.
• Ease of Installation and Access: Time is money, especially for field technicians. A well-designed box should be easy to install and access for maintenance. Look for features like hinged covers, snap-fit closures, and removable splice trays. The internal layout should be intuitive, with clear pathways for routing fibers and designated areas for securing them, preventing kinks and stress during installation and servicing.
• Compatibility with Connectors and Cables: The enclosure must be compatible with the types of cables and connectors you are using. This includes having the correct size cable entry ports with effective grommets or glands to seal around different cable diameters. If the box includes integrated adapters, ensure they match your connector types (e.g., SC, LC, FC). Versatility is key, as networks often use a mix of components.

Comparison of EPCOM Fiber Optic Protection Box Features

Product	Primary Application	Key Feature	Material
ABS 1×1 Splice Box	Aerial, Duct, Buried Splice Protection	Compact, hinged cover with snap lock	High-Impact ABS Plastic
Drop Cable Splicing Protection Box	FTTH Drop Cable Splicing	Waterproof and dustproof for outdoor use	High-Quality Polymer
Mini Splice Protection Box	Indoor FTTH Splice Protection	Small, lightweight for indoor termination	Durable Plastic
Protective Box with Fusion Splice Sleeves	High-Protection Splicing Environments	IP65 rating, snap-fit closure	Durable ABS Plastic
Protection Box with Adaptor	FTTX Network Management	Integrated adaptors, enhanced sealing	High-Quality, Durable Materials

The Installation Process for a Fiber Optic Protection Box: A Step-by-Step Guide

Proper installation is crucial to realizing the full protective benefits of a Fiber Optic Protection Box. A hasty or incorrect installation can compromise seals, stress fibers, and create problems that the box was designed to prevent. Following a systematic process ensures a secure, weather-tight, and organized result that will serve the network reliably for years. Here is a general step-by-step guide to the installation process.

H3: Pre-Installation Checklist

Before you begin, preparation is key. Ensure you have all the necessary tools and materials on hand. This typically includes the protection box itself, mounting hardware (screws, brackets), cable stripping tools, fiber cleaning supplies, a fusion splicer or mechanical connectors, and the correct fiber optic cables. Review the manufacturer’s instructions for the specific box model. Visually inspect the box for any damage and ensure all seals and gaskets are properly seated.

Mounting the Fiber Optic Protection Box

Securely mount the enclosure in its designated location. For a wall-mount box, this means using the appropriate anchors and screws for the surface material (e.g., concrete, drywall, wood). Ensure the box is level and firmly attached, so it won’t be dislodged by accidental contact or environmental stress. For pole-mounted units, use the supplied banding or brackets, ensuring they are tightened to the manufacturer’s specifications.

Cable Entry and Management

Carefully prepare the fiber optic cables for entry into the box. Strip back the outer jacket and any armoring to the required length, exposing the internal buffer tubes and fibers. Feed the cables through the designated entry ports. It is absolutely critical to properly seal these entry points. Use the provided rubber grommets or cable glands, ensuring a snug fit around the cable to create a watertight and dust-tight seal. Inside the box, secure the cable’s strength members to the designated strain-relief points. This prevents any external pulling force from being transferred to the delicate splices or connectors.

Splicing and Termination

Route the individual fibers along the planned pathways within the box, avoiding sharp bends (always respect the fiber’s minimum bend radius). Place the fibers into the splice tray. Whether you are using fusion splicing or mechanical splicing, perform the connection according to best practices. Place the completed splice and its protective sleeve into a designated slot in the splice tray. If you are terminating with connectors, attach them and plug them into the appropriate adaptors. Meticulous organization at this stage is vital for future maintenance.

Post-Installation Testing

Before closing and sealing the box, it is essential to test the connections. Use an Optical Time Domain Reflectometer (OTDR) or an Optical Loss Test Set (OLTS) to verify that the splices or connections have low loss and are performing within acceptable parameters. This step confirms the quality of your work and ensures the connection is viable before it is sealed up. Once testing is complete and successful, carefully coil any excess fiber into the management trays, close the cover, and secure all latches or screws to finalize the seal.

Essential Tools and Accessories for Fiber Optic Protection Box Installation

Installing a Fiber Optic Protection Box correctly requires more than just the box itself; it demands a suite of specialized tools and accessories to ensure every connection is clean, precise, and secure. Using the right equipment is not a luxury—it’s a necessity for achieving the high-performance standards that fiber optic networks demand. EPCOM understands this and provides not only the enclosures but also the critical tools needed to complete the job professionally.

At the heart of any fiber installation is the need for a perfect end-face on the fiber. This is where a High Precision Fiber Cleaver becomes indispensable. Before a fiber can be spliced or terminated, it must be cut, or “cleaved,” to create a perfectly flat surface, perpendicular to the fiber axis. A poor cleave results in a jagged or angled surface that will cause significant signal loss and back reflection when connected. A high-precision cleaver ensures a clean, mirror-like finish every time, laying the foundation for a low-loss, high-performance connection that will last.

Equally important is cleanliness. The core of an optical fiber is incredibly small, and a single particle of dust can completely obstruct the signal path. This is why professional-grade Fiber Optic Cleaning Wipes are a mandatory part of any technician’s toolkit. These are not ordinary wipes; they are lint-free, non-abrasive, and highly absorbent, designed specifically for use with approved cleaning solvents to remove any contaminants from connector end-faces, ferrules, and other optical surfaces. Regular and thorough cleaning before every mating is a fundamental best practice, as outlined by industry bodies like the Fiber Optic Association (FOA), to prevent performance degradation and permanent damage to connectors.

Finally, the network components must be connected. This is where high-quality patch cords come into play. A product like the SC to LC Patch Cord is essential for linking different pieces of equipment or for connecting the termination box to the active network devices. These factory-terminated and tested cords guarantee a reliable, low-loss connection between different connector types (in this case, SC and LC). Using a pre-tested patch cord from a reputable supplier like EPCOM eliminates the variability and potential for error associated with field terminations, ensuring a stable and robust link within your network infrastructure.

Maintaining Your Fiber Optic Protection Box for Long-Term Reliability

The installation of a Fiber Optic Protection Box is not the end of the story. Like any critical piece of infrastructure, it requires periodic maintenance to ensure it continues to provide the necessary protection over its entire service life. Proactive maintenance is far less costly than reactive repairs and is key to guaranteeing consistent network performance and reliability. A structured maintenance plan will help identify potential issues before they lead to service disruptions.

The Importance of Regular Inspections

Visual inspection is the cornerstone of a good maintenance routine. Technicians should periodically visit the location of the protection box to perform a thorough check. This includes looking for any signs of physical damage to the enclosure, such as cracks, dents, or warping. They should verify that all latches and locks are secure and that the seals are intact and not showing signs of degradation from UV exposure or environmental stress. It’s also important to check that the mounting hardware is still secure and that there is no undue stress on the cables entering the box.

Best Practices for Cleaning Your Fiber Optic Protection Box

While the inside of a sealed box should remain clean, the exterior can accumulate dirt, grime, or salt spray in coastal areas. Keeping the exterior clean can help prolong the life of the material. If a box needs to be opened for maintenance, it creates an opportunity for contamination. Technicians must follow strict cleaning protocols, as detailed by leading test equipment manufacturers like Fluke Networks. Before making any new connections or reconnections, every connector end-face must be inspected with a microscope and cleaned if necessary using the proper tools, such as lint-free wipes and approved solvents.

Environmental Monitoring and Control

For boxes located in particularly harsh or mission-critical environments, it’s wise to monitor the surrounding conditions. Are there new sources of vibration? Has nearby construction increased the risk of damage? Is there evidence of water pooling around the base of a pedestal or pole? Being aware of changes in the environment allows for preemptive action, such as reinforcing the mounting, improving water drainage, or adding extra physical protection around the enclosure.

Documentation and Labeling

Good record-keeping is a vital part of maintenance. All protection boxes should be clearly labeled on the outside with a unique identifier. Inside, the individual fibers, trays, and ports should also be labeled according to a network-wide scheme. Any maintenance performed, any changes made, and the results of any tests should be logged. This documentation is invaluable for future troubleshooting, as it provides a clear history of the connection point, saving technicians significant time in diagnosing and resolving future issues.

Common Applications and Use Cases for a Fiber Optic Protection Box

The versatility and necessity of the Fiber Optic Protection Box mean it is found in virtually every corner of the modern digital landscape. From the massive data centers that power the cloud to the simple connection point on the side of a house, these enclosures are the unsung heroes of high-speed connectivity. Their design and features are adapted to fit the unique demands of each application, ensuring robust protection wherever fiber optic cables are deployed.

Fiber to the Home (FTTH) Deployments

In FTTH networks, protection boxes are ubiquitous. They are used as distribution points in neighborhoods, where a main feeder cable is split to serve multiple homes. Smaller, weather-proof boxes are then installed on the exterior of each subscriber’s residence to act as the demarcation point, protecting the splice between the network’s drop cable and the home’s internal wiring. Inside the home, a mini splice box might be used to provide a clean and secure final termination point.

Data Centers and Enterprise Networks

Data centers are the nerve centers of the internet, and they rely on high-density fiber optic cabling. Here, rack-mount protection boxes, or patch panels, are standard. They allow for the organized termination and management of thousands of fiber connections in a compact space. These enclosures facilitate the complex cross-connects between servers, switches, and storage area networks, making it possible to manage, modify, and scale the data center’s infrastructure efficiently.

Telecommunications Infrastructure

In the broader telecommunications network, large, high-capacity protection boxes (often inline or dome closures) are used to protect major splice points in the backbone and feeder networks. These can be found in underground vaults, in aerial applications strung between utility poles, or in cellular tower installations. These enclosures must be extremely durable and often require specialized tools for re-entry, protecting the most critical and high-traffic data routes from the elements and unauthorized access.

Industrial and Harsh Environment Applications

Standard enclosures are not sufficient for environments like manufacturing plants, oil and gas refineries, or transportation systems. In these settings, specially designed, ruggedized Fiber Optic Protection Box models are required. These are often made from even more robust materials like stainless steel or specialized polymers and feature higher IP ratings (e.g., IP67 or IP68) to protect against corrosive chemicals, extreme vibrations, and the possibility of being submerged in water. They ensure that even in the most challenging conditions, the communication network remains online and reliable.

Why Choose EPCOM for Your Fiber Optic Protection Box Needs?

In a market with numerous options, selecting the right partner for your network components is as important as selecting the right technology. When it comes to safeguarding your critical fiber optic infrastructure, choosing EPCOM for your Fiber Optic Protection Box needs is a decision rooted in quality, reliability, and expertise. EPCOM is not just a supplier; we are a dedicated partner in building robust and future-proof communication networks.

Our commitment begins with quality. Every Fiber Optic Protection Box in the EPCOM catalog is manufactured using high-grade, durable materials and is subjected to rigorous quality control processes. We understand the harsh realities of field deployment, which is why our outdoor enclosures are designed with superior UV resistance and weather sealing to ensure long-term performance, while our indoor solutions are crafted for ease of use and efficient management. This focus on durability means a lower total cost of ownership for our clients, with less need for premature replacements and fewer service calls.

Furthermore, EPCOM offers a specialized and versatile product range tailored to real-world applications. We recognize that a single design cannot meet every need. From our compact mini splice boxes for FTTH installations to our robust, multi-functional enclosures for larger distribution points, our portfolio provides targeted solutions. This allows network designers and technicians to select the perfect box for the job, ensuring optimal performance without overspending on unnecessary features. When you choose EPCOM, you gain access to a comprehensive ecosystem of products designed to work together seamlessly.

Conclusion

The Fiber Optic Protection Box is far more than a simple plastic case; it is a critical infrastructure asset that underpins the reliability, performance, and longevity of any fiber optic network. From protecting fragile splices against physical and environmental threats to providing the organization necessary for efficient maintenance and scalability, its role is foundational. A failure to invest in a high-quality enclosure is a risk that can lead to signal degradation, costly downtime, and a compromised user experience.

By understanding the different types of boxes available, the key features to look for, and the importance of proper installation and maintenance, network operators can make informed decisions that will protect their investment for years to come. EPCOM stands ready to be your partner in this endeavor, offering a curated selection of high-quality, durable, and user-friendly Fiber Optic Protection Box solutions designed for the diverse challenges of modern communication networks. Protect your connections, ensure your network’s integrity, and build a foundation for future growth by choosing the proven reliability of EPCOM.
