The Ultimate Guide to Insulation Piercing Connectors
Insulation Piercing Connectors (IPCs) from EPCOM represent a revolutionary step forward in electrical connection technology. These innovative devices allow for rapid, reliable, and safe connections to be made on insulated electrical cables without the need to strip the insulation from the conductor. Consequently, they have become an indispensable component in modern electrical grids, from vast power distribution networks to localized street lighting and building systems. This comprehensive guide will explore every facet of IPCs, demonstrating why EPCOM is the trusted partner for your electrical connection needs. We will delve into their mechanics, diverse applications, installation best practices, and how they compare to traditional connection methods, providing you with the expert knowledge to leverage this technology effectively.

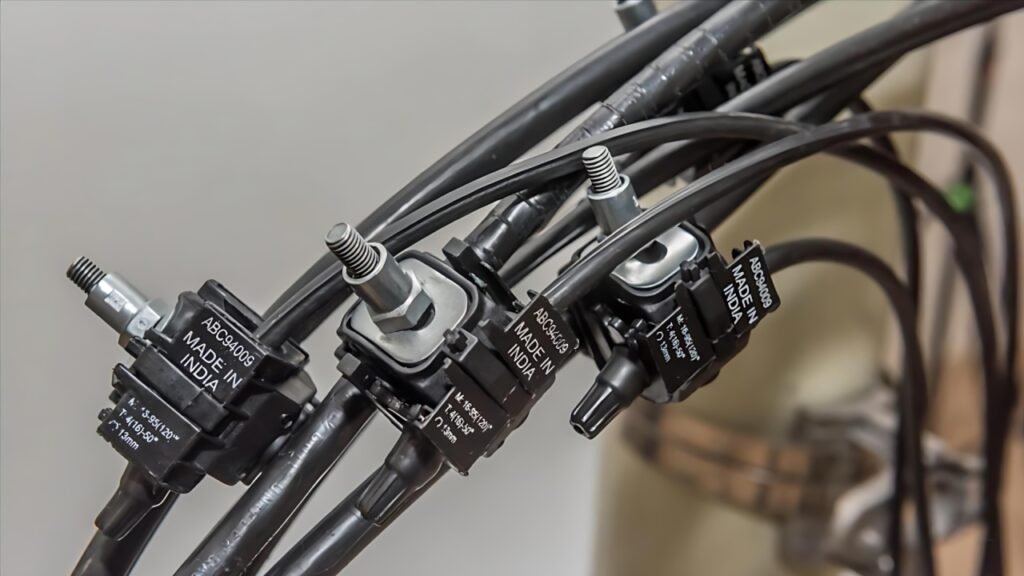

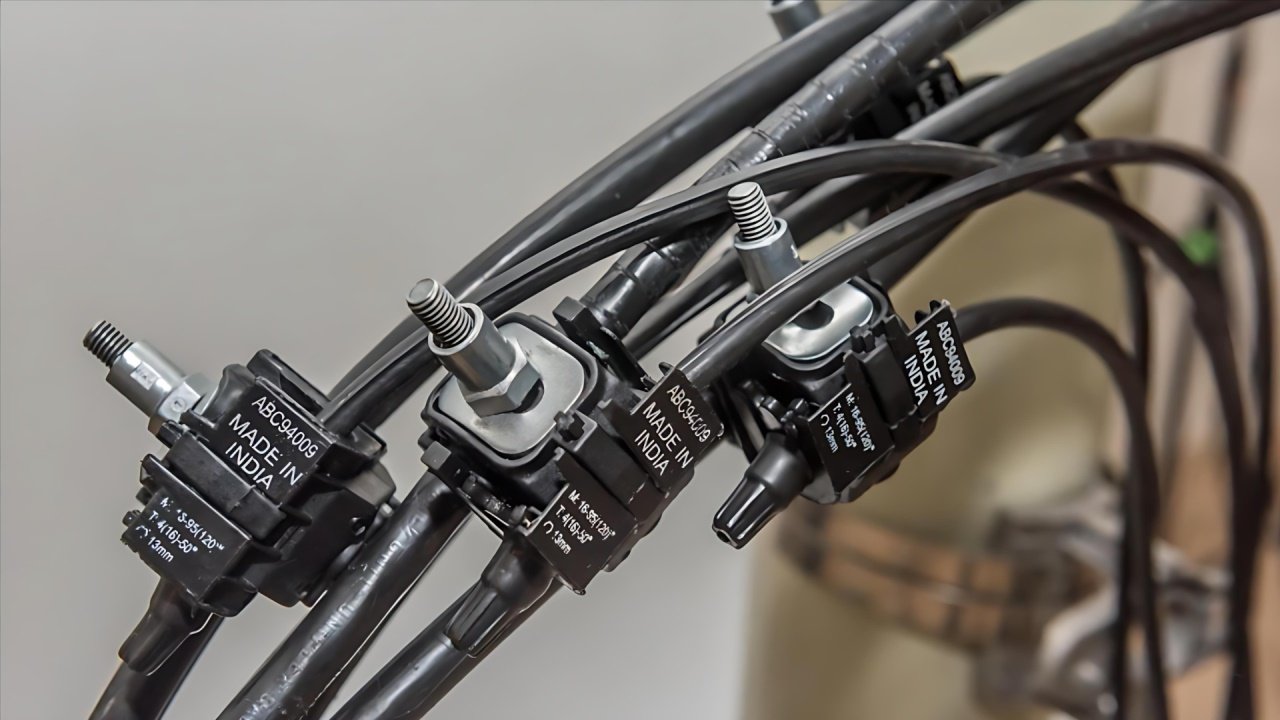

What Are Insulation Piercing Connectors?
At its core, an insulation piercing connector is a mechanical marvel designed for simplicity and efficiency. It consists of a body, one or more sharp, tin-plated copper or aluminum “teeth,” and a shear-head bolt system. When the bolt is tightened, it drives the teeth through the cable’s insulation to make a secure, direct, and stable contact with the conductor inside. Furthermore, the connector body is typically made from robust, weather-resistant, and UV-stabilized polymer, ensuring long-term durability even in the harshest outdoor environments. A special antioxidant grease within the connector prevents moisture ingress and oxidation at the contact point, guaranteeing a low-resistance and long-lasting connection. This design completely eliminates the labor-intensive and potentially hazardous process of insulation stripping.
The Core Technology Behind Insulation Piercing Connectors
The magic of an insulation piercing connector lies in its controlled piercing mechanism. The metal teeth are engineered to precise specifications to pierce the insulation cleanly without cutting or damaging the conductor strands. As you tighten the connector’s bolt, two things happen simultaneously. First, the teeth establish the electrical contact. Second, the connector’s housing and integrated rubber seals clamp down on the cable, creating a secure, waterproof, and electrically insulated enclosure. This process is finalized when the pre-set torque is reached, at which point the shear-head bolt snaps off. This brilliant feature ensures that every single installation has the exact right amount of torque, removing guesswork and guaranteeing a perfect, repeatable connection every time. It’s a system that promotes both safety and reliability.
The Unmatched Advantages of Using Insulation Piercing Connectors
The shift towards IPCs in the electrical industry is driven by a host of significant benefits over traditional connection methods. These advantages streamline workflow, enhance safety, and improve the long-term reliability of electrical installations.
- Drastically Reduced Installation Time: By eliminating the need to strip wires, installers can save a significant amount of time on each connection. This efficiency gain is multiplied across large projects, leading to substantial labor cost savings.
- Enhanced Safety: Because the cable’s insulation is never stripped, the risk of accidental contact with live conductors is dramatically reduced. Installers can often work on live lines (following strict safety protocols), a feat that is far more hazardous with traditional connectors. The insulated body of the IPC provides an additional layer of protection.
- Guaranteed Connection Quality: The shear-head bolt system is a key feature of high-quality insulation piercing connectors. It makes the connection process foolproof. Over-tightening, which can damage conductors, and under-tightening, which can lead to high-resistance hotspots, are completely eliminated.
- Waterproof and Weather-Resistant: EPCOM’s IPCs are designed with superior sealing technology. The combination of a robust polymer body and silicone rubber seals makes the connections completely waterproof and resistant to UV radiation, dust, and pollutants. This makes them ideal for overhead lines and underground applications alike.
- Versatility and Flexibility: These connectors are incredibly versatile. They are “dual-rated,” meaning a single connector can be used for both aluminum and copper conductors, as well as for connecting an aluminum main cable to a copper tap cable (or vice-versa). This reduces the inventory required for a job.
Diverse Applications: Where Are Insulation Piercing Connectors Used?
The versatility and reliability of insulation piercing connectors have led to their adoption in a wide array of critical electrical applications. Their ability to perform in any environment makes them a go-to solution for engineers and technicians worldwide.
Primary Use in Overhead and Underground Power Distribution
Perhaps the most common application for Insulation Piercing Connectors is in low-voltage (LV) aerial bundled cable (ABC) systems. They are used to create tap-offs from the main distribution line to supply power to residential homes, commercial buildings, or other smaller distribution points. Similarly, their waterproof design makes them the perfect choice for underground residential distribution (URD) systems, where maintaining a watertight seal is paramount to prevent faults and extend the life of the grid.
Critical Role in Street Lighting and Public Infrastructure
Street lighting networks are another area where IPCs excel. They allow for quick and secure tapping from overhead or underground mains to power individual light poles. The speed of installation is a major benefit for municipal projects, as it minimizes disruption. Moreover, the long-term reliability of the connection reduces maintenance calls and enhances the dependability of public lighting, which is crucial for public safety.
Building Electrical Systems and Industrial Applications
Within large commercial and industrial buildings, IPCs are used for T-connections and branching within the power distribution system. They offer a fast and efficient way to tap into main busbars or large feeder cables to power sub-panels and heavy machinery without requiring a full system shutdown. For instance, connecting a new piece of equipment becomes a much simpler task, reducing downtime and production losses.
Exploring EPCOM’s Range of Insulation Piercing Connectors
EPCOM is proud to offer a comprehensive portfolio of high-quality insulation piercing connectors, each designed to meet specific application needs while adhering to the highest standards of quality and safety. Our connectors ensure that you have the right tool for any job, big or small.
Our product line, including the versatile JJC, JBC, TTD, and CT series Insulation Piercing Connectors, is engineered for superior performance. Whether you need to connect service lines, build out a street lighting system, or tap into main power lines, our connectors provide a reliable, waterproof, and easy-to-install solution. They are dual-rated for copper and aluminum conductors and feature shear-head torque technology to guarantee a perfect connection every time. We encourage you to explore our full range to find the ideal connector for your project’s specifications.
Step-by-Step Installation Guide for Insulation Piercing Connectors
Proper installation is key to unlocking the full potential of IPCs. While the process is straightforward, following the correct procedure is essential for safety and long-term reliability. Always ensure you are a competent person and adhere to all local safety codes.
Pre-Installation Checks
- Verify the Connector: Check that the IPC model is correct for the cable sizes (both main and tap) and the voltage level. This information is clearly marked on the connector body.
- Inspect the Cable: Ensure the section of cable where the connector will be installed is clean and free from damage. While IPCs are robust, starting with a clean surface is good practice.
- Prepare Your Tools: You will typically only need a hex socket wrench of the appropriate size. Do not use adjustable or open-ended wrenches, as they can damage the shear head.
Installation Process for a Double-Bolt Insulation Piercing Connector
- Open the Connector: Loosen the bolts to open the connector’s jaws. Do not remove the bolts completely.
- Position the Main Cable: Place the main (run) cable into the larger groove of the connector. The fit should be snug.
- Insert the Tap Cable: Insert the tap (branch) cable fully into the smaller groove until it hits the end stop. The end cap should be on the tap cable.
- Hand-Tighten the Bolts: Tighten both bolts by hand until the connector is securely gripping both cables and is positioned correctly.
- Apply Final Torque: Using a socket wrench, begin to tighten the bolts. It is crucial to tighten them alternately and evenly. For example, give each bolt one or two full turns before switching to the other. Continue this process.
- Confirm the Connection: Continue tightening until the hexagonal shear head of each bolt breaks away. This audible and physical confirmation indicates that the correct torque has been applied, the teeth have pierced the insulation correctly, and the connection is secure and waterproof.
Insulation Piercing Connectors vs. Traditional Connectors: A Comparison
To fully appreciate the innovation of IPCs, it’s helpful to compare them to traditional connection methods, such as mechanical lugs and split-bolt connectors. This comparison highlights the significant advancements in efficiency, safety, and reliability that IPCs bring to the table.
Traditional methods almost always require the meticulous stripping of cable insulation. This step is not only time-consuming but also introduces risks. A small nick on a conductor strand can create a weak point, and exposing the conductor increases the risk of electric shock. For these traditional tasks, having a reliable tool is essential. While EPCOM’s IPCs make stripping obsolete for many jobs, a professional toolkit is incomplete without a high-quality stripper for other wiring needs. For those applications, we recommend the EPCOM Adjustable Wire Stripper with Cutter, which provides precise and clean stripping every time.
The table below provides a clear, side-by-side comparison:
| Feature | Insulation Piercing Connectors (IPCs) | Traditional Connectors (Lugs, Split-Bolts) |
|---|---|---|
| Installation Speed | Very Fast. No insulation stripping required. | Slow. Requires careful measuring, cutting, and stripping of insulation. |
| Safety | High. Fully insulated body and no exposed live parts during installation. Live-line work is possible. | Lower. Exposed conductors create a risk of shock. Requires system shutdown. |
| Skill Level Required | Low. Shear-head bolt ensures correct torque without special tools or training. | High. Requires a trained technician with a torque wrench to ensure proper connection. |
| Waterproofing | Excellent. Integrated rubber seals and grease create a fully waterproof connection. | Poor. Requires external mastic tapes, heat shrink, or other covers to waterproof, adding time and cost. |
| Tooling | Simple. Only a standard socket wrench is needed. | Complex. Requires wire strippers, cable cutters, crimpers, and a torque wrench. |
| Conductor Compatibility | Excellent. Most are dual-rated for both Aluminum (Al) and Copper (Cu) conductors. | Limited. Often requires specific Al or Cu rated connectors and bi-metal washers. |
The Place for Traditional Tooling in a Modern World
While IPCs are a superior choice for tapping insulated cables, other connection types, like terminations, require lugs. In these cases, a secure crimp is non-negotiable. The integrity of an electrical system often depends on the quality of its terminations. For creating these essential end-connections, a powerful and reliable tool is required. The EPCOM YQK Cable Crimping Pliers are engineered for exactly this purpose, delivering consistent and robust crimps that ensure the safety and longevity of your installations.
Technical Specifications for Waterproof Insulation Piercing Connectors
When selecting an IPC, it is essential to understand the technical specifications to ensure it matches the requirements of your electrical system. Choosing the right connector is the first step to a successful installation.
Key Parameters to Consider:
- Voltage Rating: Most IPCs are designed for low-voltage systems, typically up to 1kV (1,000 Volts). Always ensure the connector’s rating exceeds the system’s operating voltage.
- Conductor Range: Each connector is specified with a main and tap conductor range (e.g., Main: 50-150mm², Tap: 16-35mm²). Using a connector on a cable outside its specified range will result in a faulty connection.
- Material Composition: The body is usually a glass-fiber reinforced polymer for strength and UV stability. The piercing teeth are made of tin-plated aluminum or copper to ensure excellent conductivity and prevent galvanic corrosion when connecting dissimilar metals.
- Applicable Standards: Look for connectors that comply with international standards like IEC 61238-1, or national standards like the NFPA 70 (NEC). Compliance ensures the product has been rigorously tested for safety and performance.
The Importance of Cable Compatibility
The performance of an insulation piercing connector is also dependent on the cable it is used with. These connectors are designed to work seamlessly with a wide range of insulated cables. For robust applications, particularly in direct burial or harsh outdoor environments, a durable and reliable power cable is essential. The EPCOM NYY Cable, with its tough PVC insulation and sheath, is an excellent choice that pairs perfectly with our waterproof IPCs to create a connection system that will stand the test of time.
Maintaining Safety and Compliance with Your Insulation Piercing Connectors
Safety is the most important aspect of any electrical work. While IPCs are inherently safer than other methods, adhering to best practices and standards is non-negotiable. This commitment to safety and quality is at the heart of all products from EPCOM.
Leading bodies like the Institute of Electrical and Electronics Engineers (IEEE) provide guiding principles and standards for electrical engineering practices that promote safety and reliability. Furthermore, for installations in the United States, connectors used for service entrance splices must be listed and marked as suitable for use on the line side of service equipment, a requirement often certified by organizations like UL Solutions. Using certified, high-quality insulation piercing connectors from a reputable manufacturer like EPCOM ensures that your installations are not only efficient but also fully compliant and, most importantly, safe for both the installer and the end-user.
Frequently Asked Questions (FAQ) About Insulation Piercing Connectors
1. Can you use insulation piercing connectors on any type of cable?
Insulation piercing connectors are designed for use on insulated cables, such as those with PVC, XLPE, or PE insulation. They are not suitable for uninsulated or bare conductors. It is also crucial to match the connector to the specified conductor size range and insulation thickness for proper performance.
2. Are insulation piercing connectors reusable?
No, IPCs are single-use devices. The shear-head bolt is designed to break off upon reaching the correct torque, which is a permanent change. Furthermore, the piercing teeth and sealing gaskets are designed for one installation cycle. Attempting to reuse a connector would compromise the safety, waterproofing, and electrical integrity of the connection.
3. Can you install an IPC on a live power line?
Yes, one of the significant advantages of many insulation piercing connectors is that they are rated for live-line installation by trained professionals. The fully insulated body prevents contact with energized components. However, this work must only be performed by qualified personnel following strict utility safety protocols and using appropriate personal protective equipment (PPE).
4. How do IPCs handle connections between aluminum and copper wires?
High-quality IPCs use tin-plated contact teeth and are filled with an antioxidant compound. The tin plating provides a compatible interface for both aluminum (Al) and copper (Cu) conductors. The grease seals the connection from air and moisture, preventing the galvanic corrosion that would otherwise occur when these two dissimilar metals are joined.
5. What happens if I use the wrong size IPC for my cable?
Using an incorrectly sized connector is dangerous. If the connector is too large for the cable, the teeth may not make proper contact, or the waterproof seal will not form correctly, leading to moisture ingress and connection failure. If the connector is too small, you will not be able to install it, or you may severely damage the cable’s conductors by forcing it, creating a serious safety hazard.
6. Do waterproof insulation piercing connectors require any extra sealing?
No, they do not. A key benefit of a waterproof IPC is its all-in-one design. The integrated rubber seals and robust housing provide a complete, standalone waterproof and submersible connection (typically rated IP67 or higher). No additional taping, heat shrink, or external covers are required, which is another way they save time and reduce material costs.
For any further questions or to discuss your specific project needs, do not hesitate to contact the experts at EPCOM. We are dedicated to providing not only the best electrical components but also the best support in the industry.
