Your In-Depth Guide to MPO/MTP Connectivity

MPO/MTP connectivity is the cornerstone of modern, high-speed data centers and telecommunication networks. As the demand for faster data transmission and greater bandwidth explodes, traditional fiber optic solutions are reaching their limits. Therefore, understanding and implementing a robust MPO/MTP connectivity strategy is no longer just an option; it’s a necessity for future-proofing your infrastructure. This comprehensive guide will explore every facet of this transformative technology, from its fundamental components to advanced implementation strategies. Moreover, we will highlight how EPCOM provides the cutting-edge products required to build a reliable, scalable, and incredibly fast network. Ultimately, this technology offers a significant leap forward in managing the complex web of connections required by today’s digital world.

The transition to 40G, 100G, 400G, and even 800G Ethernet is impossible without the high-density capabilities offered by Multi-fiber Push-On (MPO) and its high-performance variant, MTP® (Multi-fiber Termination Push-on) connectors. These systems consolidate multiple fibers into a single, compact interface, drastically reducing the physical space required for cabling. Consequently, this not only simplifies cable management but also improves airflow and cooling efficiency within crowded racks—a critical concern for any data center manager. Throughout this article, we’ll delve into the nuances of this technology, providing you with the knowledge to make informed decisions for your network’s architecture. We will also discuss the practical applications and benefits that make MPO/MTP connectivity the superior choice for high-stakes environments.

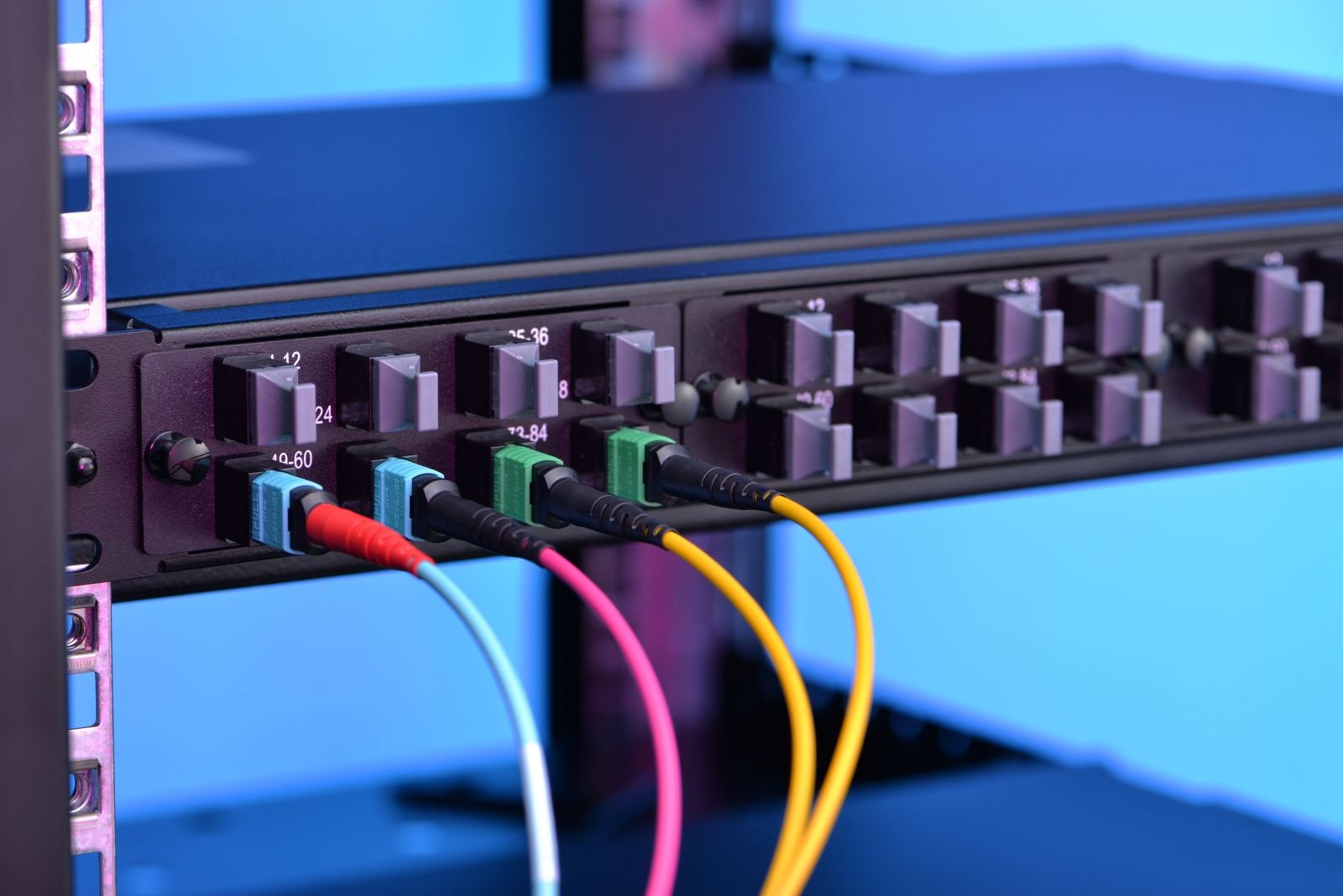

Decoding the Fundamentals of MPO/MTP Connectivity

To truly appreciate the power of MPO/MTP systems, it’s essential to understand the basics. At its core, this technology is about density and efficiency. Instead of dealing with individual fiber connectors like LCs or SCs, an MPO/MTP connector can house 8, 12, 16, 24, or even more fibers in a single ferrule. This multi-fiber approach is what enables the massive data throughput required for next-generation applications. For instance, a single MPO/MTP cable can replace a dozen individual patch cords, immediately decluttering your setup. This simplification is a game-changer for technicians and network engineers who need to deploy, manage, and scale network infrastructure rapidly and without errors.

What Exactly is an MPO Connector?

The MPO connector, which stands for Multi-fiber Push-On, is a standardized fiber optic connector defined by international standards like IEC 61754-7. It is designed to terminate multiple optical fibers (typically a ribbon fiber) in one ferrule. The connector features a push-pull mechanism for easy and secure mating. Inside the connector, precision-molded ferrules align the fibers to ensure a reliable connection with low signal loss. Furthermore, MPO connectors are distinguished by guide pins—two small pins in the male connector that align with holes in the female connector to ensure precise fiber-to-fiber contact across the entire array. This precision is absolutely critical for maintaining signal integrity, especially in high-speed parallel optics applications.

MTP® vs. MPO: Clarifying the MPO/MTP Connectivity Difference

While the terms MPO and MTP® are often used interchangeably, it is crucial to recognize the distinction. MPO is the generic name for the connector style. However, the MTP® connector is a specific, high-performance brand of MPO connector developed and patented by US Conec. The MTP® connector is engineered with several enhancements for superior mechanical and optical performance. These improvements include:

• Removable Housing: This allows for easy gender changes in the field, re-polishing of the ferrule, and interferometric scanning after assembly.
• Ferrule Float: The MTP® connector’s ferrule is designed to float, which helps maintain physical contact between mated ferrules even under mechanical stress or load.
• Elliptical Guide Pins: Instead of standard chamfered pins, MTP® connectors use elliptical stainless steel guide pins. This shape improves guidance, reduces debris generation, and minimizes wear on the guide holes.
• Metal Pin Clamp: A specialized metal pin clamp centers and secures the push spring, eliminating the risk of lost pins and preventing potential fiber damage.

In short, while all MTP® connectors are MPO connectors, not all MPO connectors offer the advanced features and guaranteed performance of a genuine MTP® connector. For mission-critical applications where reliability and performance are paramount, choosing MTP® brand products, like those offered by EPCOM, is the wisest decision for your MPO/MTP connectivity infrastructure.

The Essential Components for Superior MPO/MTP Connectivity

A successful high-density network is built upon a foundation of high-quality components. Each piece of the puzzle, from the cables to the adapters and even the cleaning tools, plays a vital role in the overall performance and reliability of your system. Using subpar components can lead to signal degradation, increased downtime, and frustrating troubleshooting sessions. Therefore, EPCOM is dedicated to providing a comprehensive suite of products designed to work together seamlessly, ensuring your network operates at peak efficiency from day one. Let’s explore the key building blocks of a robust MPO/MTP connectivity solution.

MPO/MTP Patch Cords: The Lifeline of Your MPO/MTP Connectivity

The backbone of any MPO/MTP system is the patch cord. These are not just simple cables; they are precision-engineered assemblies designed for high-density, high-bandwidth applications. The EPCOM MPO/MTP Patch Cord is a perfect example of such a critical component. These patch cords serve as the primary conduits for data, linking servers, switches, and patch panels within and between racks.

Key features to consider when selecting an MPO/MTP patch cord include:

• Fiber Count: Ranging from 8 to 24 fibers or more, the fiber count must match the requirements of your transceivers and overall network design.
• Fiber Type: You must choose between single-mode (OS2) for long-distance transmission and multimode (OM3, OM4, or OM5) for shorter-reach data center applications. OM4 and OM5 are optimized for the higher speeds of modern networks.
• Polarity: MPO/MTP systems use specific polarity methods (Type A, Type B, or Type C) to ensure the transmit signal from one end correctly links to the receive port on the other. Using the correct polarity is essential for the link to function.
• Jacket Rating: Cable jackets must comply with local fire codes. Options typically include LSZH (Low Smoke Zero Halogen), Plenum (OFNP), and Riser (OFNR).
• Low Insertion Loss: High-quality patch cords from EPCOM are manufactured to have minimal insertion loss, which is crucial for maintaining a healthy power budget in your optical link, especially across multiple connection points.

Investing in premium patch cords is a direct investment in the stability and speed of your network. They are fundamental to achieving the promise of effortless, high-speed MPO/MTP connectivity.

The Role of MPO/MTP Adapters in Seamless Connections

An adapter’s role is simple yet critical: to provide a secure and perfectly aligned connection between two MPO/MTP connectors. The EPCOM MPO/MTP Adaptor is designed for this exact purpose. It acts as the bridge that ensures fibers from one cable align precisely with the fibers of another. Adapters are used in patch panels and cassettes to create a manageable and scalable cabling infrastructure.

When choosing an adapter, pay attention to:

• Keyway Orientation: Adapters come in “Key Up to Key Down” or “Key Up to Key Up” configurations. This orientation dictates how the connectors are aligned and is a critical part of maintaining proper polarity throughout the channel.
• Alignment Sleeve Material: For multimode applications, phosphor bronze is often sufficient. However, for the more stringent alignment requirements of single-mode fiber, ceramic sleeves are preferred due to their tighter tolerances and durability.
• Dust Caps: A simple but essential feature. Dust is the enemy of any fiber optic connection. Quality adapters come with tightly fitting dust caps to protect the internal sleeves from contamination when not in use.

A reliable adapter ensures that the connection point itself does not become a source of signal loss or back reflection, thereby maintaining the integrity of the entire channel.

Maintaining Performance with the MPO/MTP Cleaning Pen

One of the most overlooked yet crucial aspects of fiber optic maintenance is cleanliness. A single speck of dust on a fiber end-face can cause significant insertion loss and back reflection, potentially leading to link failure. This problem is magnified in MPO/MTP systems, where up to 24 or more fibers are present on a single end-face. The EPCOM MPO/MTP Cleaning Pen is an indispensable tool for any technician working with high-density fiber.

This one-click tool is engineered to make cleaning fast, easy, and effective. With a simple push action, a specialized micro-fiber cleaning strand gently sweeps the entire connector end-face, removing dust, oil, and other debris without leaving any residue. Why is this so important for MPO/MTP connectivity?

• It Prevents Signal Loss: The primary cause of link failure is contaminated end-faces. Regular cleaning ensures a clear path for light signals.
• It Protects Equipment: Mating a dirty connector to a clean one can cause permanent damage to both end-faces through grinding of debris.
• It Ensures Reliability: Proactive cleaning is part of a best-practice maintenance routine that guarantees long-term network performance and reduces troubleshooting time.

With the ability to perform over 800 cleanings, this simple pen is a low-cost insurance policy for your multi-thousand dollar network equipment. It is an absolute must-have for any professional fiber optic toolkit.

How MPO/MTP Connectivity Transforms Modern Data Centers

The modern data center is an ecosystem built for speed, scalability, and efficiency. As enterprises migrate to cloud services and new technologies like AI and machine learning demand unprecedented processing power, the underlying network infrastructure must evolve. This is where MPO/MTP connectivity provides its most significant impact. It directly addresses the primary challenges faced in today’s data center environments: the need for higher bandwidth, the demand for greater density, and the necessity of rapid deployment.

Enabling 40G, 100G, and 400G+ Network Speeds

The path to higher Ethernet speeds relies on parallel optics. Unlike traditional serial transmission, which uses one fiber for transmitting and one for receiving, parallel optics use multiple fibers simultaneously to increase data rates. For example:

• 40G Ethernet (40GBASE-SR4) typically uses 8 fibers within a 12-fiber MPO connector (4 for transmitting and 4 for receiving).
• 100G Ethernet (100GBASE-SR4) uses the same 8-fiber configuration but with each lane running at a faster 25G.
• Next-generation 400G and 800G standards continue to leverage this parallel approach, often using 16 or 32 fibers within a single MPO/MTP connector.

MPO/MTP connectivity is the only practical way to support these multi-fiber interfaces. It provides a single, clean mating point for these high-speed transceivers, making it possible to deploy and manage these links at scale. Trying to achieve this with individual connectors would be a logistical nightmare, leading to a tangled mess of cables and an unmanageable infrastructure.

Simplifying Cable Management: A Core Benefit of MPO/MTP Connectivity

Cable congestion is a serious problem in data centers. A dense jungle of cables can restrict airflow, leading to increased cooling costs and a higher risk of equipment failure due to overheating. Moreover, it makes moves, adds, and changes (MACs) a slow and risky process. The high-density nature of MPO/MTP connectivity offers an elegant solution.

By consolidating up to 24 or more fibers into a single cable with a small diameter, MPO/MTP trunk cables drastically reduce the volume of cabling required. A single MPO trunk can replace up to 24 individual duplex patch cords. This has several immediate benefits:

• Reduced Cable Bulk: Less cable volume in pathways and under raised floors improves airflow and lowers energy consumption.
• Faster Deployment: Connecting a single MPO/MTP connector is much faster than connecting 12 or 24 individual LC connectors. This significantly accelerates the deployment of new racks and servers.
• Easier Management: With fewer cables to trace and manage, technicians can perform MACs more quickly and with less risk of accidentally disconnecting the wrong service.

Comparison: MPO/MTP vs. Traditional Cabling

To fully grasp the advantages, let’s compare deploying a 144-fiber link using traditional LC connectors versus MPO/MTP connectors.

Technical Deep Dive: Advanced MPO/MTP Connectivity Concepts

To successfully deploy and troubleshoot MPO/MTP systems, a deeper understanding of some technical concepts is required. While the plug-and-play nature of the technology simplifies many aspects of installation, concepts like polarity, gender, and performance tiers are crucial for ensuring your network functions as intended. A mistake in any of these areas can lead to a non-functional link, making this knowledge essential for network architects and field technicians alike. EPCOM not only provides the components but also the expertise to help you navigate these technical details, ensuring a successful implementation of your MPO/MTP connectivity.

Understanding Polarity in MPO/MTP Systems

Polarity is the term used to describe the mapping of fibers from one end of a multi-fiber cable to the other. In any fiber optic link, the transmitter (Tx) at one end must connect to the receiver (Rx) at the opposite end. With a simple duplex cable, this is easy to manage. However, with 12 or 24 fibers in a single connector, a standardized system is needed to ensure the correct mapping. The TIA-568 standard defines three primary methods for MPO polarity:

• Method A (Straight-Through): In a Type A trunk cable, Fiber 1 at one end connects to Fiber 1 at the other end, Fiber 2 to Fiber 2, and so on. This method requires a “flip” to be performed in a patch cord at one end of the channel to ensure the Tx-to-Rx connection. The connectors have a “Key Up” to “Key Down” orientation.
• Method B (Reversed): In a Type B trunk cable, the fiber positions are reversed. Fiber 1 at one end connects to Fiber 12 at the other end, Fiber 2 to Fiber 11, and so on. This is the most common method for direct 40G-to-40G connections as it uses the same Type B patch cord on both ends. The connectors have a “Key Up” to “Key Up” orientation.
• Method C (Pairs Flipped): In a Type C trunk cable, each adjacent pair of fibers is flipped. So Fiber 1 connects to Fiber 2, and Fiber 2 connects to Fiber 1 on the other end; Fiber 3 connects to Fiber 4, and so on. This method is more complex and typically used in legacy systems or specific pre-terminated cassette applications.

It is absolutely critical to design your entire channel—from the trunk cable to the cassettes and patch cords—using a consistent polarity method. Mixing components from different polarity methods will result in a failed link.

Connector Gender and its Role in MPO/MTP Connectivity

Just like in many other connector types, MPO/MTP connectors have genders: male and female. The distinction is simple yet vital: the male connector has two alignment pins, and the female connector has two corresponding holes. An MPO/MTP connection can only be made between a male and a female connector. Attempting to mate two male or two female connectors will not only fail to establish a link but can also cause permanent damage to the connectors.

The general rule of thumb for MPO/MTP connectivity is:

• The connectors on patch panels (adapters) are configured so the fixed connectors inside the panel are female.
• The patch cords or trunk cables that will be plugged into these panels must therefore be male.
• Transceivers (like QSFP+) always have a male (pinned) connector. Therefore, the patch cord connecting to the transceiver must be female (unpinned).

This rule ensures that you always have a male-to-female connection at every mating point. The removable housing feature of MTP® connectors provides an advantage here, allowing skilled technicians to change the gender of a connector in the field if needed.

Best Practices for a Flawless MPO/MTP Implementation

Deploying a new cabling system, especially one as critical as your data center’s backbone, requires careful planning and execution. While MPO/MTP technology simplifies many aspects of installation, following established best practices is the key to maximizing performance, ensuring long-term reliability, and achieving a positive return on your investment. From the initial design phase to ongoing maintenance, a structured approach will help you avoid common pitfalls and build a network that is both powerful and easy to manage. As a leader in the field, EPCOM recommends a multi-faceted strategy that covers planning, installation, and post-deployment care.

Planning and Design for MPO/MTP Connectivity

Success begins long before the first cable is unboxed. The planning phase is arguably the most critical stage. A well-thought-out design ensures that your MPO/MTP connectivity infrastructure will meet not only your current needs but also your future bandwidth requirements.

1. Define Your Migration Path: Are you building a new data center, or are you upgrading an existing one? Your strategy will differ. For upgrades, you might need MPO-to-LC breakout cables or cassettes to interface with legacy equipment. For new builds, you can design a spine-leaf architecture with MPO/MTP trunks from the start. A full range of these solutions can be found in the EPCOM MPO/MTP Connectivity category.
2. Calculate Your Link Loss Budget: Every connection point (adapter) and every meter of cable adds a small amount of signal loss (attenuation). You must calculate the total loss for your longest channel to ensure it does not exceed the maximum loss tolerated by your optical transceivers. Using high-performance, low-loss components from EPCOM provides more margin in your budget.
3. Standardize on a Polarity Method: As discussed earlier, choose one polarity method (typically Type B) and stick with it for your entire project. Document this decision clearly so that all technicians and future procurement follow the same standard. This is the single most important step to avoid connectivity issues.
4. Plan Your Pathways: Map out where your trunk cables will run. Ensure that your cable trays and conduits are not overfilled and that you maintain a proper bend radius for all cables. MPO/MTP cables, like all fiber optic cables, can be damaged by sharp bends.

Installation, Testing, and Maintenance

Proper installation and testing are non-negotiable for ensuring your network performs as designed. Once installed, a routine maintenance plan will keep it running smoothly for years to come.

• Inspect and Clean EVERY Connector: This cannot be overstated. Before making any connection, inspect the connector end-face with a fiber scope and clean it if necessary using a dedicated tool like the MPO/MTP Cleaning Pen. This should be done for brand new, out-of-the-bag components as well, as they can have residual dust from the manufacturing process.
• Respect the Bend Radius: Do not bend fiber optic cables tighter than their specified minimum bend radius. Doing so can cause micro-fractures in the glass fiber, leading to high signal loss and eventual failure of the cable.
• Provide Strain Relief: Ensure that cables are not hanging by their own weight from the connectors. Use cable management features in racks and cabinets to properly support the cables and prevent strain on the connection points.
• Test and Certify: After installation, it is best practice to test the links. This can range from a simple light source and power meter test to full Tier 1 certification using an OLTS (Optical Loss Test Set) with MPO interfaces. Certification provides a baseline of performance and verifies that the installation was done correctly according to standards set by organizations like the Telecommunications Industry Association (TIA).
• Document Everything: Label every cable and every port clearly. Maintain detailed documentation of your cabling plant, including pathways, lengths, and test results. This documentation is invaluable for future troubleshooting and expansion projects.

Conclusion: EPCOM is Your Partner for Future-Ready MPO/MTP Connectivity

The journey towards a faster, denser, and more efficient network infrastructure leads directly to MPO/MTP connectivity. This technology is not just an incremental improvement; it is a fundamental shift in how we build and manage high-speed networks. From simplifying cable management and accelerating deployment to enabling the incredible speeds of 400G Ethernet and beyond, the benefits are clear and compelling. As we’ve explored, a successful implementation depends on a combination of robust planning, best-practice execution, and, most importantly, high-quality components.

This is where EPCOM stands as your trusted partner. We provide a complete, end-to-end solution for all your MPO/MTP needs. Whether you require high-performance MTP® patch cords, precision-engineered adapters, essential cleaning tools, or complex breakout cassettes, our portfolio is designed to meet the highest standards of quality and reliability. By choosing EPCOM, you are not just buying products; you are investing in a foundation for growth, scalability, and long-term success. Let us help you build the network of tomorrow, today.
