Your Ultimate Guide to Stay Wire Hardware in 2025

Stay Wire Hardware is the unsung hero of modern electrical and telecommunications infrastructure, providing the essential stability required to keep our world connected and powered. At EPCOM, we understand that the integrity of an entire overhead line system relies on the strength and quality of each individual component. From high-tension transmission lines traversing rugged landscapes to local distribution poles in suburban neighborhoods, these collections of meticulously engineered parts work in unison to counteract immense physical forces. This comprehensive guide will delve deep into the world of stay wire components, exploring their functions, the critical importance of material quality, and how selecting the right hardware ensures the long-term safety, reliability, and efficiency of power and communication networks. Furthermore, we will showcase how EPCOM’s range of products provides the robust solutions needed for today’s demanding infrastructural projects.

The Critical Role of Stay Wire Hardware in Modern Infrastructure

At its core, the function of stay wire hardware, often referred to as guy wire hardware, is to provide mechanical support and stability to freestanding structures, most notably utility poles. While a pole is designed to bear vertical loads, it is highly susceptible to unbalanced lateral (sideways) forces. These forces can originate from several sources: the pull of heavy electrical conductors, particularly at termination points or where the line changes direction; the immense pressure of high winds; the weight of ice and snow accumulation; or even uneven terrain. Without a counteracting force, a pole would lean, potentially leading to sagging lines, electrical faults, or catastrophic structural failure. This is where the stay assembly, a system comprised of various stay wire hardware components, becomes indispensable. It acts as an anchor, transferring these lateral loads safely from the top of the pole to the ground. Consequently, the reliability of our electrical grid and communication networks is directly tied to the performance of this essential hardware.

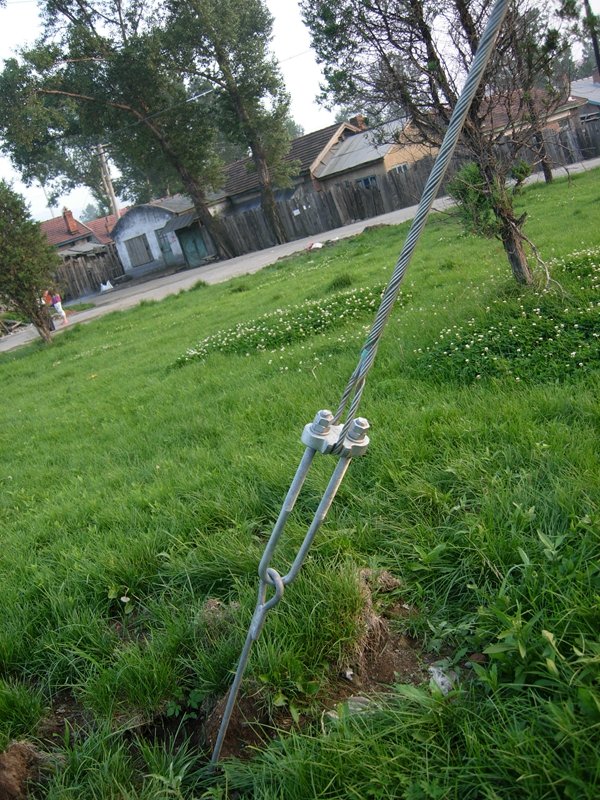

Deconstructing the Stay Assembly: A Guide to EPCOM’s Essential Stay Wire Hardware Components

A complete stay assembly is a system where each part has a distinct and vital role. Understanding these individual components is key to appreciating the engineering that goes into ensuring a pole remains upright and secure for decades. EPCOM offers a comprehensive range of Stay Wire Hardware, with each product designed to meet rigorous standards of quality and performance. Let’s explore the core components that form a robust stay assembly.

The Backbone: High-Tensile Stay Wire

The central element of any stay assembly is the Stay Wire itself. This is not ordinary wire; it is a high-tensile steel strand cable, specifically engineered to withstand incredible tension without stretching or breaking. Typically made from galvanized steel to resist corrosion, the stay wire connects from a high point on the utility pole down to a ground-level anchor point. The galvanization process, which involves coating the steel with a layer of zinc, is crucial for longevity, as this hardware is constantly exposed to the elements. The strength and diameter of the stay wire must be carefully selected based on the calculated load it needs to support. A failure in the stay wire means a complete failure of the support system, making its quality paramount for the safety and stability of the entire overhead line.

The Anchor: The Indispensable Stay Rod

The Stay Rod is the critical link between the tensioned stay wire and the earth itself. This robust, threaded rod is responsible for transferring the immense pulling force from the wire into a secure ground anchor. One end of the stay rod features an eye or a thimble to connect to the stay wire, while the other end is anchored deep into the ground, often attached to a specialized stay plate. Manufactured from high-strength steel, stay rods must resist both the tensile forces from the wire and the corrosive effects of being buried in soil. Their length and diameter are crucial engineering considerations, determined by soil conditions, the angle of the stay, and the total load. EPCOM’s stay rods are engineered for maximum durability, ensuring a reliable anchor point that will not yield under pressure.

The Foundation: The Unyielding Stay Plate

If the stay rod is the anchor, the Stay Plate is its foundation. This component, also known as an anchor plate, is a large, flat or curved metal plate that is buried in the ground and connected to the bottom end of the stay rod. Its primary function is to distribute the pulling force of the stay assembly over a wide area of soil. Without a stay plate, the narrow stay rod could simply pull through the earth under high tension, especially in softer soil conditions. The large surface area of the plate provides the necessary resistance, or “bearing capacity,” to create a stable and immovable anchor point. The design of the stay plate, including its size and shape, is critical and depends heavily on the type of soil and the magnitude of the forces involved. It is the component that ensures the entire system remains firmly rooted.

The Protector: The Essential Stay Thimble

The integrity of the stay wire at its connection point is protected by a small yet vital component: the Stay Thimble. When a wire rope is looped to form an eye, the bending stress can cause individual strands to fatigue and break over time, especially under constant tension and vibration. A stay thimble is a grooved metal fitting placed inside the wire’s loop. It provides a smooth, reinforced surface for the wire to bend around, drastically reducing localized stress and preventing kinking, chafing, and premature wear. This simple device significantly extends the life of the stay wire and ensures the connection to the stay rod or stay bow remains secure and reliable. It is a perfect example of how even the smallest piece of stay wire hardware plays a critical role in overall system safety.

The Connector: The Versatile Stay Bow

In many stay assemblies, a Stay Bow is used as an intermediary connector, typically linking the stay wire (via a thimble) to the eye of the stay rod. Its curved “bow” shape provides ample room for the connection and ensures that forces are distributed evenly without creating sharp, stressful bends in the components. Stay bows are forged from high-strength steel and are hot-dip galvanized for maximum corrosion resistance. They are a crucial element for creating a strong, articulated joint in the stay assembly, allowing for slight movements and adjustments while maintaining a secure and robust connection. The use of a high-quality stay bow simplifies installation and contributes to the overall mechanical integrity of the support system.

The All-in-One Solution: The Bow Stay Rod Assembly

To streamline procurement and installation, EPCOM also offers an integrated Bow Stay Rod Assembly. This convenient solution combines several components into a single, ready-to-install unit, typically including the stay rod, a stay bow, and sometimes a thimble or other fittings. By providing a pre-assembled unit, EPCOM ensures component compatibility and saves valuable time for line crews in the field. This approach reduces the chance of using mismatched parts and simplifies logistics for large-scale projects, making it an efficient and reliable choice for constructing pole line support systems.

The Guardian: The Crucial Stay Insulator

Safety is the most important consideration in any electrical system. A Stay Insulator, sometimes called a guy strain insulator, is a non-conductive component inserted into the stay wire. Its purpose is to electrically isolate the upper portion of the stay wire (which is near the energized power lines) from the lower portion (which is accessible at ground level). Should a power line accidentally come into contact with the upper stay wire, or should an insulator on the pole fail, the stay insulator prevents dangerous electrical currents from traveling down the wire to the ground, where it could pose a severe risk to people and animals. These are typically made from porcelain or toughened glass, materials with high dielectric strength. Its inclusion is often a mandatory safety requirement according to various international standards and is absolutely essential for public safety.

Quick Comparison of Key Stay Wire Hardware Components

A Deeper Dive into Stay Wire Hardware Applications

While the most common application for stay wire hardware is supporting standard utility poles, its use extends to a variety of critical structures across multiple industries. The principles of counteracting lateral forces with a tensioned anchoring system are fundamental to structural engineering. Therefore, understanding the diverse applications highlights the versatility and importance of high-quality hardware from trusted suppliers like EPCOM. From towering transmission lines to remote communication masts, the reliability of these components is a universal requirement.

Supporting High-Voltage Transmission Towers with Stay Wire Hardware

Transmission towers, the colossal steel structures that carry high-voltage power across vast distances, face enormous structural loads. The weight of the heavy conductor cables, combined with extreme wind and ice loads, creates immense lateral forces, especially on towers where the line terminates or changes direction significantly. In these scenarios, extensive guy-wire systems, which are functionally identical to stay assemblies but often larger in scale, are deployed. Multiple anchor points may be used for a single tower to ensure its stability. The stay wire hardware used in these applications must be of the highest strength and quality, as a single tower failure can cause widespread power outages and significant economic disruption. The stay rods, wires, and connecting hardware must be engineered to handle extreme tension and provide decades of reliable service in exposed, often remote environments.

Crucial Applications in Telecommunications Towers

Similar to transmission towers, telecommunications masts, including cell phone towers and radio broadcast antennas, rely heavily on stay wire hardware for stability. These are often tall, slender structures designed to elevate antennas to a great height for maximum broadcast range. Their slim profile makes them particularly vulnerable to wind-induced oscillations and outright failure if not properly supported. Guyed masts are a cost-effective way to achieve significant height without the massive footprint and material cost of a self-supporting tower. Multiple levels of stay wires are often attached along the height of the mast, anchored in several directions to provide comprehensive support. The stay insulators are also critically important here, not just for electrical safety but to prevent the conductive stay wires from interfering with the tower’s radio frequency radiation pattern.

The EPCOM Advantage: Why Choose Our Stay Wire Hardware?

In a market with various options, selecting a supplier for critical infrastructure components is a decision that carries significant weight. At EPCOM, we distinguish ourselves by focusing on three core pillars: uncompromising quality, precision engineering, and a deep commitment to safety and international standards. When you choose EPCOM’s stay wire hardware, you are not just buying a product; you are investing in peace of mind and the long-term integrity of your network. This commitment is evident in every piece of hardware that leaves our facility, designed and tested to perform under the most demanding conditions.

Uncompromising Quality and Superior Material Standards

The foundation of reliable stay wire hardware is the material from which it is made. We begin by sourcing only high-grade steel and raw materials that meet strict specifications for tensile strength, ductility, and chemical composition. Our manufacturing processes, from forging and casting to threading and galvanizing, are subject to rigorous quality control protocols. For instance, our hot-dip galvanization process provides a thick, uniform zinc coating that offers superior protection against corrosion, a primary cause of hardware failure in the field. This meticulous attention to material science ensures that every EPCOM component, from the largest stay rod to the smallest thimble, provides exceptional durability and a long service life, reducing maintenance costs and replacement frequency.

Precision Engineering for Maximum Reliability and Fit

Reliability in the field starts with precision in the factory. At EPCOM, our stay wire hardware is engineered to exact tolerances. This means that threads are clean and mate perfectly, holes are drilled to the correct diameter, and fittings connect smoothly and securely. This precision is crucial during installation, as it allows line crews to work efficiently and safely, without the frustration and delays caused by poorly manufactured, ill-fitting parts. Furthermore, our designs are optimized for load distribution, minimizing stress concentrations at critical points. This engineering excellence ensures that our components not only meet their specified load ratings but also have a built-in safety margin, providing a robust and reliable performance that utility operators can count on, year after year.

Installation and Maintenance Best Practices for Stay Wire Hardware

Even the highest quality stay wire hardware will only perform as intended if it is installed and maintained correctly. Proper procedures are essential for ensuring the safety of the installation crew and the public, as well as guaranteeing the long-term structural integrity of the pole line. Adhering to established best practices for maintenance can prevent premature failure and extend the life of the entire assembly.

Critical Steps for Safe Installation of Stay Wire Hardware

The installation of a stay assembly is a skilled task that requires careful planning and execution. The first step is always site assessment. This involves determining the correct location and angle for the stay based on the line’s direction and tension, and evaluating the soil conditions to select the appropriate stay plate and rod length. The anchor hole must be excavated to the correct depth to ensure the stay plate is in undisturbed soil. Once the anchor (rod and plate) is set, the hole is backfilled and thoroughly compacted. The stay wire is then measured, cut, and fitted with a thimble and dead-end grip before being attached to the anchor and the pole. Tensioning is the final, critical step, where the wire is tightened to a specific, pre-calculated value using a dynamometer to ensure it is providing the correct amount of counter-force without over-stressing the pole or the hardware itself.

Routine Inspection and Maintenance Protocols

Once installed, stay wire hardware should be part of a regular inspection and maintenance program. Visual inspections should be conducted periodically to check for obvious signs of damage or wear. Key things to look for include:

• Corrosion: Check all steel components, particularly at connection points and near the ground line, for signs of rust that could compromise strength.
• Wire Damage: Inspect the stay wire for broken strands, kinks, or signs of abrasion.
• Anchor Stability: Look for any signs of the anchor pulling up from the ground or soil erosion around the stay rod.
• Component Integrity: Ensure that all fittings are secure and that the stay insulator is free from cracks or chips.
• Proper Tension: While a visual inspection can’t measure tension, obvious sagging in the stay wire is a clear indicator that it needs to be re-tensioned.

Promptly addressing any issues found during an inspection is crucial for preventing a minor problem from escalating into a major failure.

The Future of Pole Line Support: Innovations in Stay Wire Hardware

While the fundamental principles of stay wire hardware have remained consistent, the industry is continually evolving. Innovations are driven by the need for greater efficiency, improved safety, and longer service life in ever more demanding environments. Material science is leading to the development of stronger, more corrosion-resistant alloys. New designs for connectors and tensioning devices aim to make installation faster and more reliable. Furthermore, the integration of monitoring technology is on the horizon. Future stay assemblies might incorporate sensors that can report on their tension and condition in real-time, allowing utilities to move from a schedule-based to a condition-based maintenance strategy. EPCOM remains at the forefront of these developments, committed to incorporating innovative solutions that deliver tangible value to our customers and enhance the resilience of global power and communications infrastructure.

Frequently Asked Questions (FAQ) about Stay Wire Hardware

There are many common questions that arise when planning and implementing projects involving pole line support. Here, we address some of the most frequently asked questions to provide clearer understanding and guidance for engineers, project managers, and field technicians.

What is the main difference between a guy wire and a stay wire?

Functionally, there is no difference. The terms “guy wire” and “stay wire” are used interchangeably in the industry to refer to the tensioned cable used to support a pole or mast. “Guy wire” is a more common term in North America, while “stay wire” is often used in the United Kingdom and other parts of the world. Both refer to the same component within a support assembly that also includes anchors, rods, and insulators. All these components fall under the general category of Stay Wire Hardware or Guy Wire Hardware.

How do I determine the correct size and strength of stay wire hardware needed?

The selection of the appropriate hardware is a critical engineering calculation. It depends on a multitude of factors, including the height of the pole, the size and weight of the conductors it supports, the span length between poles, the angle of the line deviation, and the maximum expected wind and ice loading for the geographical region. A qualified engineer must perform a structural analysis to calculate the total lateral load on the pole. This load determines the required tensile strength of the stay wire and, consequently, the specifications for the corresponding stay rod, plate, and other fittings. Using undersized components is a significant safety risk that can lead to catastrophic failure.

Why is hot-dip galvanization so important for this type of hardware?

Hot-dip galvanization is a process where steel components are submerged in a bath of molten zinc. This creates a durable, metallurgically bonded coating that protects the steel from corrosion in two ways. First, it acts as a physical barrier, preventing moisture and oxygen from reaching the steel. Second, it provides cathodic protection; even if the coating is scratched, the surrounding zinc will corrode preferentially to the exposed steel, sacrificing itself to protect the component. Given that stay wire hardware is constantly exposed to rain, humidity, and in some cases, corrosive soils and salt spray, this robust protection is essential for ensuring a service life of several decades.

Can I reuse old stay wire hardware?

As a general rule, reusing old stay wire hardware is strongly discouraged, especially for the tension-bearing components like the stay wire and stay rod. It is impossible to know the full history of the hardware, including whether it has been subjected to over-tensioning, shock loads (e.g., from a vehicle impact), or metal fatigue. Corrosion can also occur in non-visible areas, such as the threads of a rod buried underground. The risk of failure far outweighs any potential cost savings. For safety and liability reasons, it is always best practice to use new, certified stay wire hardware for all new installations and major repairs.

Conclusion: Your Partner for Reliable Network Infrastructure

The stability of the world’s power and communication grids rests on the strength of foundational components like Stay Wire Hardware. From the high-tensile wire bearing the load to the plate anchoring it firmly in the earth, every part must perform flawlessly for decades. At EPCOM, we have built our reputation on manufacturing and supplying a comprehensive range of hardware that meets the highest standards of quality, precision, and durability. By choosing EPCOM, you are not just purchasing components; you are partnering with a company dedicated to the safety and resilience of your infrastructure. We invite you to explore our full line of products and discover how EPCOM can provide the robust, reliable solutions your projects demand.

For a complete overview of our offerings, please visit our main category page for Stay Wire Hardware and contact our expert team to discuss your specific project needs.
