Your Ultimate Underground Power Cable Guide
An Underground Power Cable is a fundamental component of modern electrical grids, providing a safe, reliable, and aesthetically pleasing way to transmit electricity. Unlike overhead lines, these cables are buried beneath the surface, protecting them from harsh weather conditions and reducing visual clutter. This comprehensive guide will explore every facet of the underground power cable, from its intricate construction and various types to installation best practices and essential maintenance. Furthermore, we will delve into how EPCOM provides top-tier solutions and tools to ensure the integrity and efficiency of your power transmission systems.
What Is an Underground Power Cable?
At its core, an underground power cable is an insulated conductor or a set of conductors bundled together, specifically designed for placement below the ground. The primary function is to carry electrical power from a source, like a substation, to various distribution points, such as homes, businesses, and industrial facilities. The transition from overhead to underground systems marks a significant evolution in urban and suburban planning. Consequently, this shift enhances public safety by eliminating the risk of falling lines and improves the landscape’s appearance.
The construction of an underground power cable is far more complex than that of its overhead counterpart. Each layer is meticulously engineered to handle electrical stress, heat, moisture, and physical pressure. This robust design ensures a long service life and minimizes the need for frequent repairs. Moreover, the choice of materials for each component—conductor, insulation, shielding, and jacketing—is critical. These materials directly influence the cable’s capacity, durability, and overall performance, making material science a key aspect of cable manufacturing. EPCOM is committed to utilizing only the highest quality materials, ensuring that every underground power cable we supply meets rigorous industry standards.
Types of Underground Systems
The world of electrical engineering is not one-size-fits-all, and this is especially true for power transmission. The selection of an underground power cable depends heavily on the specific application, including the voltage level, environmental conditions, and installation method. Therefore, understanding the different classifications is crucial for any project manager, engineer, or technician. Generally, these cables are categorized based on their voltage rating.
Low-Voltage Underground Power Cable
Low-voltage (LV) underground power cables are designed for applications up to 1 kV (1,000 volts). These are the most common types of cables used for distributing power to residential areas, commercial buildings, and for outdoor lighting systems. The construction is relatively simple compared to higher voltage cables. Typically, it consists of a stranded copper or aluminum conductor, insulated with materials like PVC (Polyvinyl Chloride) or XLPE (Cross-linked Polyethylene), and protected by an outer sheath. The simplicity, however, does not compromise its importance. The reliability of power in our daily lives depends heavily on the performance of these LV cables. They must be durable enough to withstand soil pressure and moisture for decades without failure. EPCOM offers a wide range of LV cables that are perfect for secondary power distribution, ensuring a steady and safe flow of electricity to end-users.
Medium-Voltage Underground Power Cable
Medium-voltage (MV) underground power cables operate at a range typically between 1 kV and 35 kV. These are the workhorses of the primary distribution network, connecting substations to local distribution transformers. For instance, they power large industrial facilities, hospitals, and entire housing developments. The design of an MV underground power cable is more sophisticated due to the higher electrical stresses involved. It includes additional layers, such as conductor and insulation shields, to control the electric field and prevent partial discharges (corona) that could degrade the insulation over time. XLPE is the most common insulation material for MV cables due to its excellent dielectric strength and thermal properties. Proper installation and termination of these cables are critical to prevent premature failure, a domain where EPCOM’s expertise and quality products shine.
High-Voltage Underground Power Cable
High-voltage (HV) underground power cables are engineered for applications above 35 kV, often extending up to 230 kV or even higher. These cables are essential for bulk power transmission, often used in densely populated urban areas where overhead lines are not feasible. They can also be used for connecting renewable energy sources, like offshore wind farms, to the main grid. The construction of an HV underground power cable is extremely complex and requires specialized manufacturing processes. They often feature advanced insulation systems and sometimes are fluid-filled or gas-filled to manage the immense heat and electrical stress. The cost of HV cables and their installation is substantial, making reliability and longevity paramount. Each project requires meticulous planning and engineering, a service that EPCOM proudly supports with its advanced product offerings and technical knowledge.
Extra-High-Voltage Underground Power Cable
Beyond HV cables, there are Extra-High-Voltage (EHV) cables used for the highest levels of power transmission, often exceeding 230 kV. These are at the apex of cable technology, used for critical national and international grid connections. The engineering challenges are immense, involving thermal management, advanced insulation compounds, and sophisticated jointing and termination techniques. The use of EHV underground power cable systems is growing, especially with the push for a more interconnected and resilient global energy grid. As technology advances, EPCOM stays at the forefront, ready to meet the demands of these groundbreaking projects.
Why an Underground Power Cable is Crucial
The decision to place power lines underground is driven by a host of compelling advantages over traditional overhead lines. These benefits span safety, reliability, aesthetics, and even economic considerations over the long term. Consequently, urban planners and utility companies are increasingly favoring underground solutions.
First and foremost is safety. Buried cables significantly reduce the risk of electrocution for the public and wildlife. They also eliminate the danger of downed power lines during severe weather events like hurricanes, ice storms, and high winds. Secondly, reliability is greatly enhanced. Protected from the elements, an underground power cable is less susceptible to outages caused by falling tree branches, lightning strikes, or vehicle collisions with poles. This leads to a more stable power supply, which is critical for a modern, technology-dependent society. Finally, the aesthetic and environmental benefits are undeniable. Undergrounding removes the visual blight of poles and wires, preserving natural landscapes and improving property values. While the initial investment is higher, the reduced maintenance costs and fewer weather-related repairs can lead to a lower total cost of ownership over the cable’s lifecycle.
Anatomy of an Underground Power Cable
To truly appreciate the engineering behind these essential components, one must understand their layered construction. Each layer serves a distinct and vital purpose, working in concert to ensure the safe and efficient transmission of electrical energy. While designs vary based on voltage and application, most cables share a common set of core components.
1. Conductor: This is the heart of the cable, the pathway for the electrical current. It is typically made from stranded copper or aluminum. Copper offers superior conductivity, while aluminum is lighter and more cost-effective, making it a popular choice for larger cables.
2. Conductor Shield: A semi-conducting layer applied over the conductor. Its purpose is to create a smooth, cylindrical surface that prevents high-stress points where the conductor meets the insulation, which could otherwise lead to insulation breakdown.
3. Insulation: This is arguably the most critical layer. The insulation prevents the high-voltage current from escaping the conductor. Common materials include XLPE (Cross-linked Polyethylene) and EPR (Ethylene Propylene Rubber), chosen for their high dielectric strength and ability to withstand heat and moisture.
4. Insulation Shield: Another semi-conducting layer, this time applied over the insulation. It works with the conductor shield to create a uniform radial electric field within the insulation, minimizing electrical stress and enhancing the cable’s longevity.
5. Metallic Shield/Sheath: This layer, often made of copper wires or tape, serves multiple functions. It acts as a path for fault currents, provides a ground reference, and shields the cable from external electromagnetic interference.
6. Jacket/Outer Sheath: The final, outermost layer. The jacket is a robust, non-metallic layer (usually PVC or PE) that provides mechanical protection against abrasion, chemicals, and moisture during and after installation. It is the cable’s first line of defense against the harsh underground environment.
The Installation of an Underground Power Cable
Proper installation is paramount to the performance and lifespan of any underground power cable system. It is a complex process that requires careful planning, specialized equipment, and skilled technicians. A single mistake during installation can lead to a catastrophic failure years later. Therefore, adhering to best practices and using the right tools is non-negotiable.

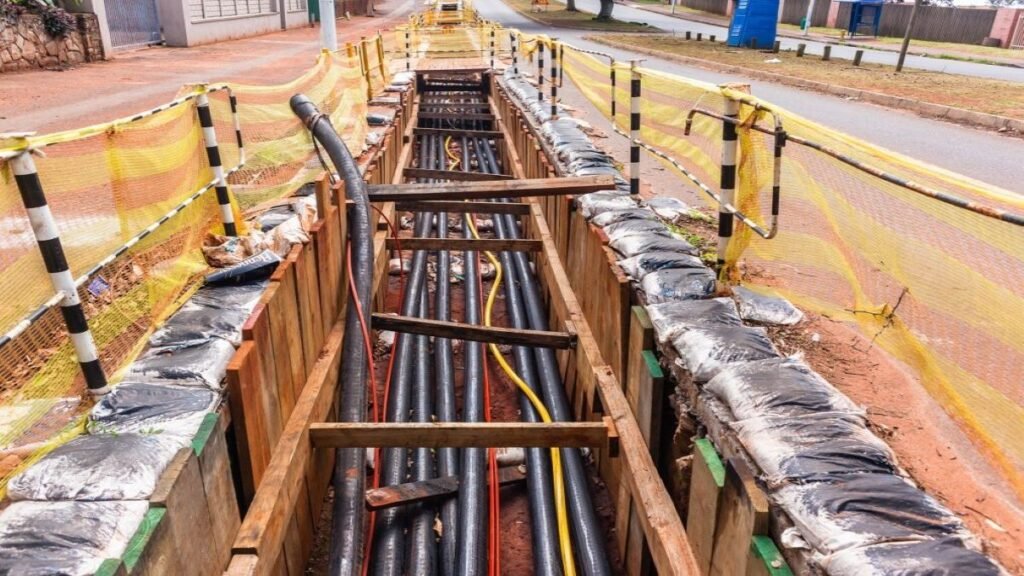

The process typically begins with trenching. The trench must be of adequate depth to protect the cable from surface activities and must be free of sharp rocks or debris that could damage the cable jacket. Often, a bed of sand is laid in the trench to provide a smooth, supportive cushion for the cable. In many cases, cables are installed inside conduits or ducts (made of PVC or steel) for added protection and to facilitate future replacement. After the cable is laid, the trench is carefully backfilled.
Essential Tools for Underground Power Cable Work
Having the right tools is essential for a safe and efficient installation. EPCOM provides a range of high-quality tools designed for professionals working with power cables.
First, before any digging begins, locating existing buried utilities is a critical safety step. This is where a reliable locator comes in. The Underground Cable Locator offered by EPCOM is an indispensable tool. It helps technicians accurately pinpoint the position and depth of buried cables and pipes, preventing accidental and dangerous strikes during excavation. Using this tool is a primary step in complying with safe digging practices.
During the installation or repair process, making perfect connections is key. The JBT Parallel Groove Connector is designed for just this purpose. These connectors are used to join two parallel conductors securely, ensuring a low-resistance and durable electrical connection. A faulty connection can overheat and fail, causing outages, so using high-quality connectors like those from EPCOM is crucial for grid reliability.
Finally, preparing the cable ends for termination or splicing requires precision. The Adjustable Wire Stripper with Cutter is a versatile and essential hand tool for any electrician. It allows for the clean and precise removal of insulation without nicking the conductor. Its high-quality steel construction and ergonomic design make it a durable and comfortable tool for repetitive tasks, ensuring every cable preparation is done to professional standards.
Comparing Installation Methods
There are several methods for installing an underground power cable, each with its own advantages and disadvantages. The choice of method depends on factors like the type of ground, the presence of existing infrastructure, the project budget, and local regulations.
| Installation Method | Description | Advantages | Disadvantages |
|---|---|---|---|
| Direct Burial | The cable is placed directly in an excavated trench, often on a bed of sand. | Lowest initial cost; Fast installation. | Vulnerable to digging damage; Repairs require re-excavation. |
| Duct/Conduit System | Pipes (ducts) are buried first, and the cables are then pulled through them. | Excellent mechanical protection; Easy to add or replace cables. | Higher material and labor cost; Can limit heat dissipation. |
| Horizontal Directional Drilling (HDD) | A trenchless method that drills a path underground for the cable or conduit. | Minimal surface disruption; Ideal for crossing roads or rivers. | Requires specialized equipment; Higher cost; Ground condition dependent. |
Safety and Maintenance Considerations
While an underground power cable is inherently safer than an overhead line, it does not eliminate all risks. Safety must remain the top priority during installation, maintenance, and any subsequent excavation work in the vicinity. Adherence to established safety protocols is mandatory to protect both workers and the public.
One of the most critical resources for electrical safety in the workplace is provided by the Occupational Safety and Health Administration. For comprehensive guidelines, professionals should always consult the OSHA electrical standards, which cover everything from proper insulation and guarding of live parts to safe work practices. These regulations are the law and are designed to prevent serious injuries.
Furthermore, the National Electrical Code® (NEC), published by the NFPA, is the benchmark for safe electrical design, installation, and inspection. Keeping up with the latest version of the NFPA 70, National Electrical Code (NEC), is essential for any electrical professional. It provides detailed requirements for underground cable installations, including burial depths and wiring methods.
Long-Term Maintenance of Underground Power Cable Systems
Once installed, underground power cable systems require periodic maintenance to ensure their continued reliability. This can include periodic testing of the cable’s insulation integrity (e.g., VLF testing) to detect any degradation before it leads to a fault. Visual inspections of terminations at transformers and switchgear are also important. The environment around the cable route should also be monitored to prevent deep-rooted trees or future construction from compromising the cable’s integrity. At EPCOM, we not only supply the cables but also provide the expertise and diagnostic tools needed for a comprehensive maintenance program, helping you protect your investment for decades to come.
The Future of Underground Power Transmission
The technology of the underground power cable is continuously evolving, driven by the need for a more efficient, resilient, and environmentally friendly energy grid. Several key trends are shaping the future of underground power transmission.
One major driver is the integration of renewable energy sources. Wind and solar farms are often located in remote areas, requiring new, high-capacity transmission lines to bring that clean power to urban centers. Underground and subsea cables are often the most viable solution for these connections. As organizations like Americans for a Clean Energy Grid advocate, modernizing our transmission infrastructure is key to a clean energy future.
Another area of innovation is in cable materials. Researchers are developing new insulating compounds that have higher dielectric strength and better thermal performance, allowing for more power to be transmitted through smaller cables. Additionally, the development of High-Temperature Superconducting (HTS) cables promises a revolutionary leap in efficiency, with the potential to carry many times the power of conventional cables with near-zero electrical losses. While still in the early stages of deployment, HTS technology represents the long-term future of bulk power transmission in congested urban environments. EPCOM is closely monitoring these advancements to bring the next generation of power solutions to our customers.
