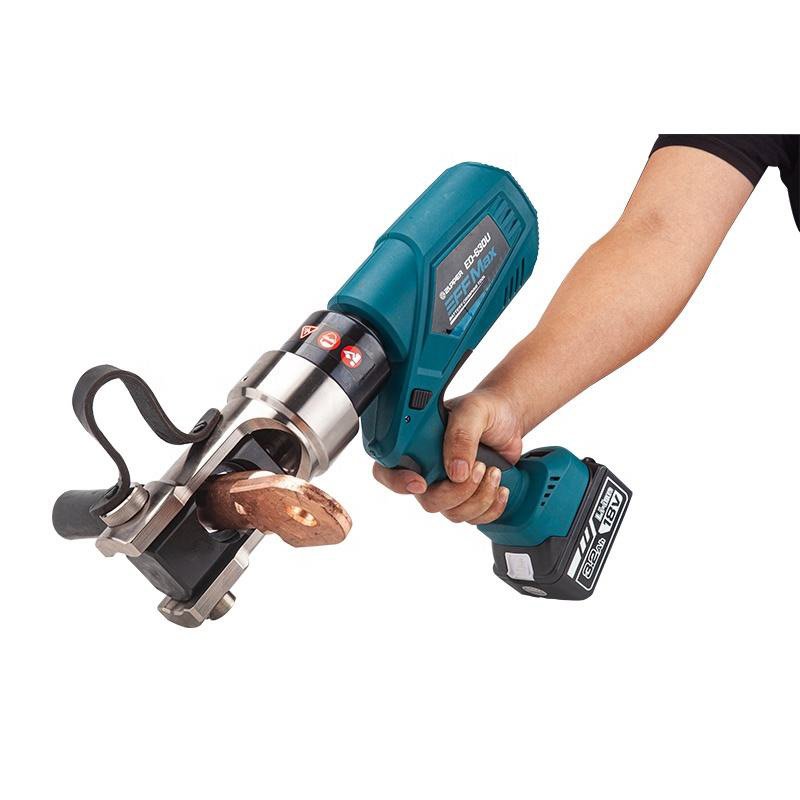

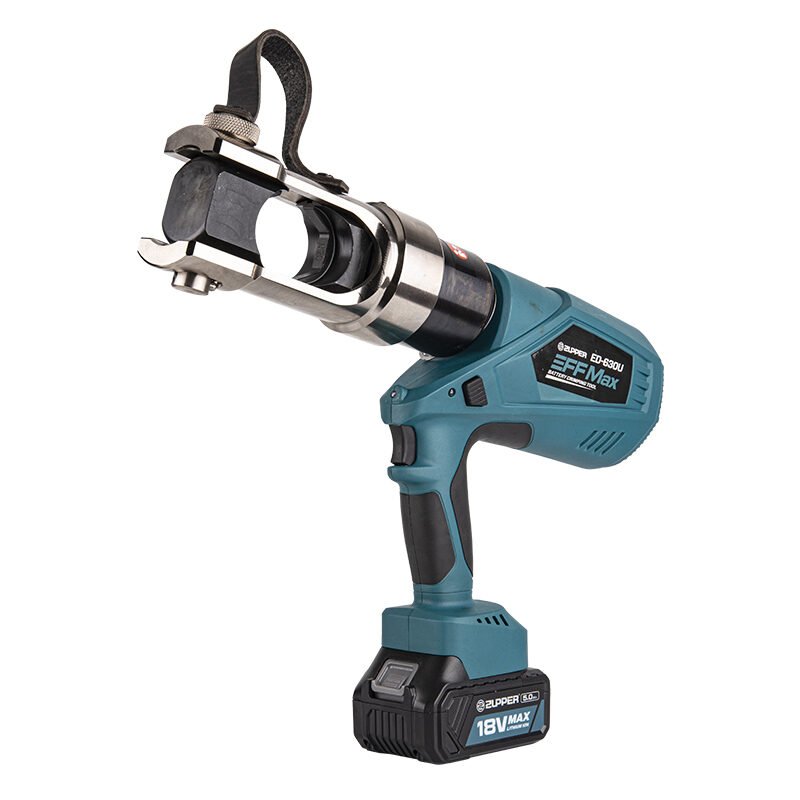

Rechargeable Electric Hydraulic Crimping Tool

The Electric Hydraulic Crimping Tool from EPCOM represents the pinnacle of efficiency and reliability for professional electrical work. Engineered for power and precision, this battery-powered hydraulic crimper delivers consistent, high-quality connections for a wide range of cable sizes. Its robust design and user-friendly features make it an indispensable asset for technicians in power transmission, construction, and industrial maintenance. Achieving a secure and durable connection is fundamental to electrical integrity, and proper crimping techniques are essential for ensuring long-term system performance and safety. This tool is specifically designed to meet and exceed the rigorous demands of the modern electrical industry.

Why Choose EPCOM’s Electric Hydraulic Crimping Tool?

EPCOM is committed to providing tools that enhance productivity without compromising on quality. This crimper is powered by a high-capacity 18V/4.0Ah Lithium-ion battery, eliminating the constraints of cords and hoses found in traditional hydraulic systems. With a formidable rated pressure of 180KN, it effortlessly handles both copper (Cu) and aluminum (Al) cables. The tool’s efficiency is demonstrated by its rapid work cycle of 7-15 seconds, which varies depending on the cable diameter. Furthermore, a single fully charged battery can perform up to 130 crimp cycles on a 150mm² copper cable, ensuring you can complete extensive jobs with minimal downtime. The inclusion of two batteries in the standard package means you always have a backup ready, allowing for continuous operation on-site.

Key Features of Our Electric Hydraulic Crimping Tool

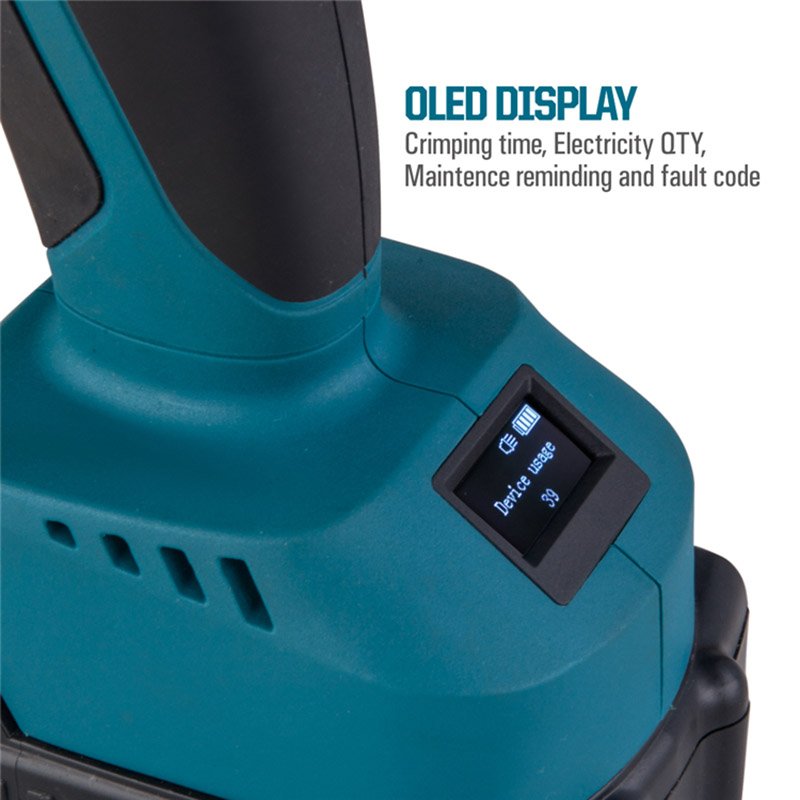

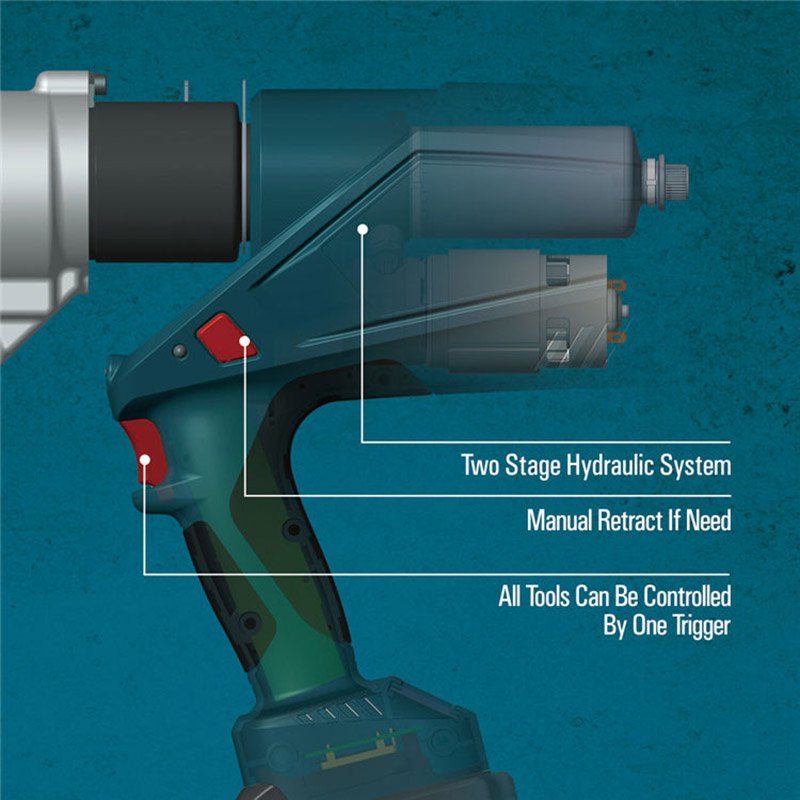

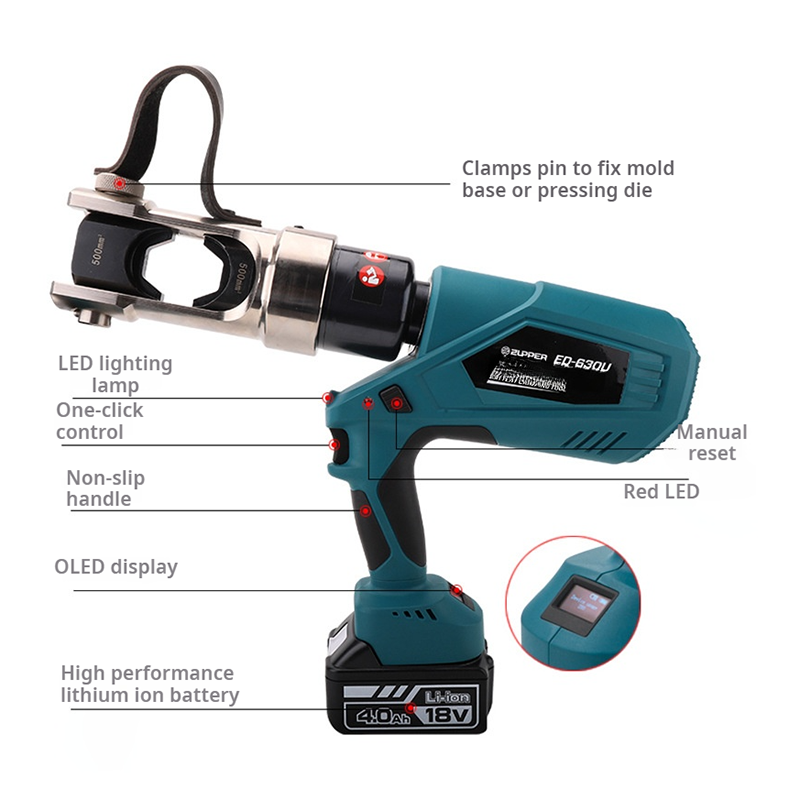

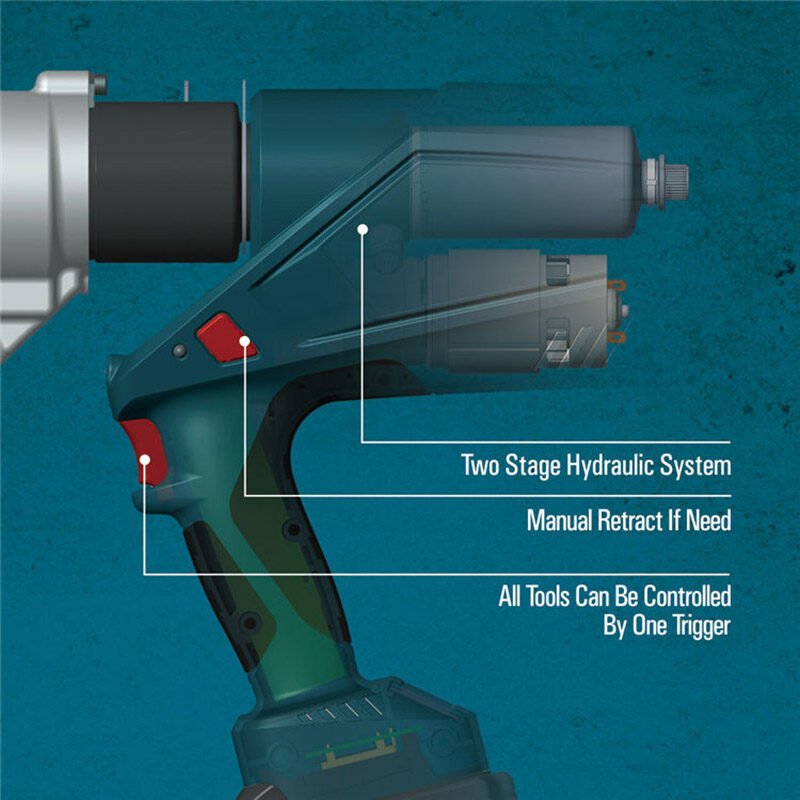

This tool incorporates several advanced features to maximize performance and operator comfort. The C-shaped head design allows for easy insertion and positioning of cables and connectors. An integrated microcontroller unit automatically detects pressure and retracts the ram upon completion of a crimp, guaranteeing a perfect connection every time and preventing over-compression. The tool also features an LED indicator for diagnostics, providing real-time feedback on battery level and tool status. This intelligent functionality streamlines the workflow and reduces the margin for error, which is critical when working with high-stakes electrical systems.

Designed for Versatility and On-Site Durability

Versatility is at the core of this tool’s design. It accommodates a broad crimping range from 16mm² to 630mm² for copper and 10mm² to 500mm² for aluminum. This wide range means a single tool can replace multiple manual crimpers, saving space and cost. It is an ideal solution for terminating cables used with components like our robust SYG Terminal Clamps, ensuring a seamless and secure fit. The tool’s housing is constructed from high-impact, durable plastic, and it operates effectively in a wide ambient temperature range of -10 to 40°C. This resilience makes it a reliable partner for fieldwork in various climates and challenging job site conditions.

Technical Specifications of the Electric Hydraulic Crimping Tool

Below are the detailed technical specifications for the EPCOM Electric Hydraulic Crimping Tool. This table provides all the essential data you need to assess its capabilities and compatibility with your operational requirements.

Product Specifications
Rated pressure	180KN
Stroke	27.5mm
Crimping range	Cu 16-630mm² / Al 10-500mm²
Time/work	7-15s (depend on the dia of cable)
Cycles/charger	130 cycles (Cu 150mm²)
Voltage/capacity	18V/4.0Ah
Charging time	Approx. 80mins
Charging voltage	AC 100V ~ 240V; 50~60Hz
Package	Plastic box
Ambient temperature	-10 ~ 40°C
Weight	8.7kgs
Size of tool	425×343×84mm

Wide-Ranging Applications and Comprehensive Accessories

The power and versatility of this crimping tool make it suitable for a multitude of applications. It is essential for electrical contractors working on large-scale commercial buildings, utility workers maintaining power distribution networks, and engineers in renewable energy sectors installing solar and wind power infrastructure. Any project that requires reliable termination of large-gauge power cables, such as connecting wires inside an Electrical Junction Box, will benefit from the precision this tool offers. Moreover, it is perfectly suited for creating secure overhead line connections with products like our JBLT Parallel Groove Connectors.

To ensure you have everything you need to get started, the tool comes in a durable plastic case with a complete set of accessories. This includes:

• Crimping dies (1 set): 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630 mm²
• Battery: 2pcs
• Charger: 1pc
• Sealing ring of cylinder: 1 set
• Sealing ring of safety valve: 1 set

Trust EPCOM for Your Professional Tooling Needs

Investing in the EPCOM Electric Hydraulic Crimping Tool is an investment in safety, efficiency, and quality. Every component is built to last, ensuring a long service life even under demanding conditions. Adherence to strict manufacturing processes and safety standards is paramount in our design philosophy, aligning with global benchmarks for electrical equipment safety. At EPCOM, we understand the critical nature of electrical connections and are dedicated to providing professionals with the tools they need to perform their jobs with confidence. Our products are designed in accordance with principles championed by organizations like the International Electrotechnical Commission (IEC), reflecting a global commitment to excellence. Contact us today to learn more about how this exceptional tool can elevate your operations.
