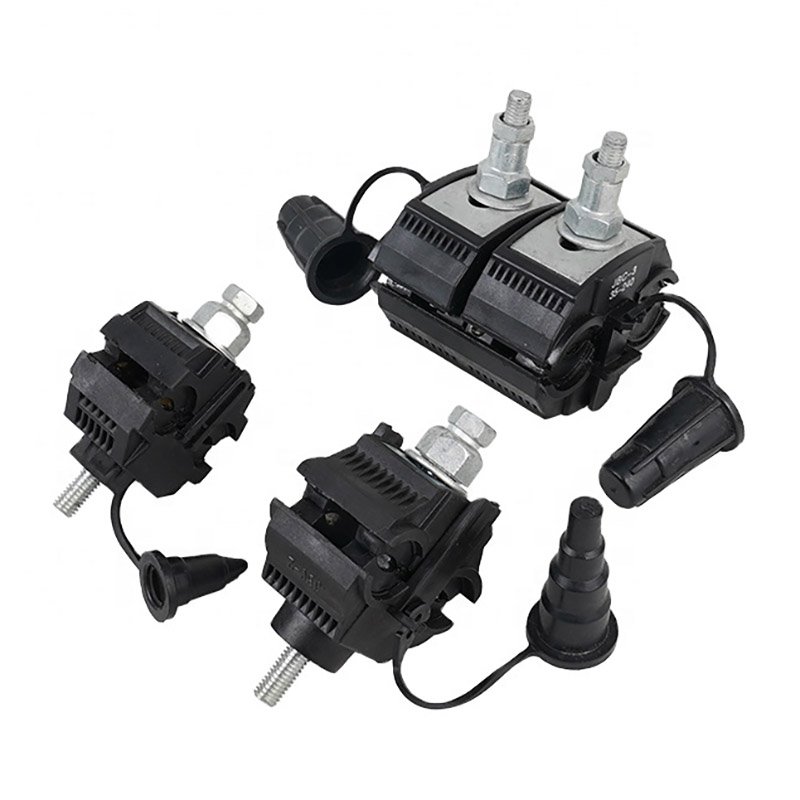

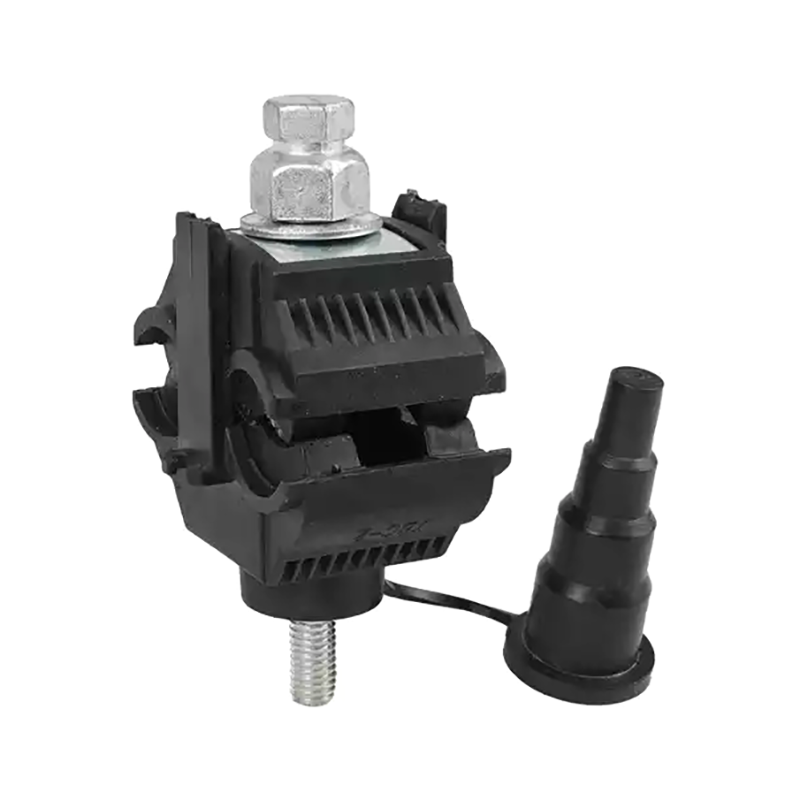

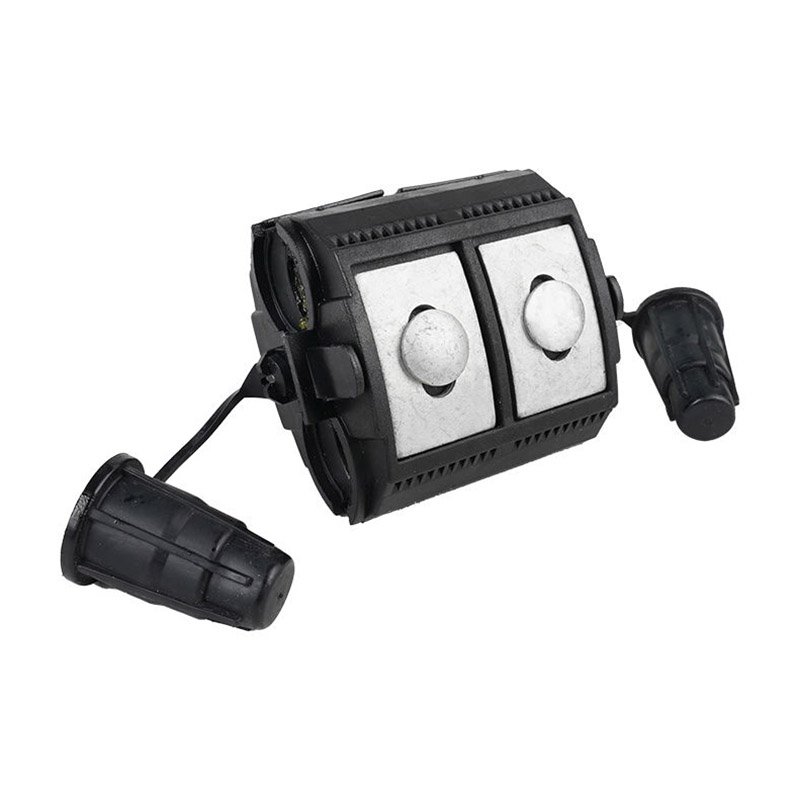

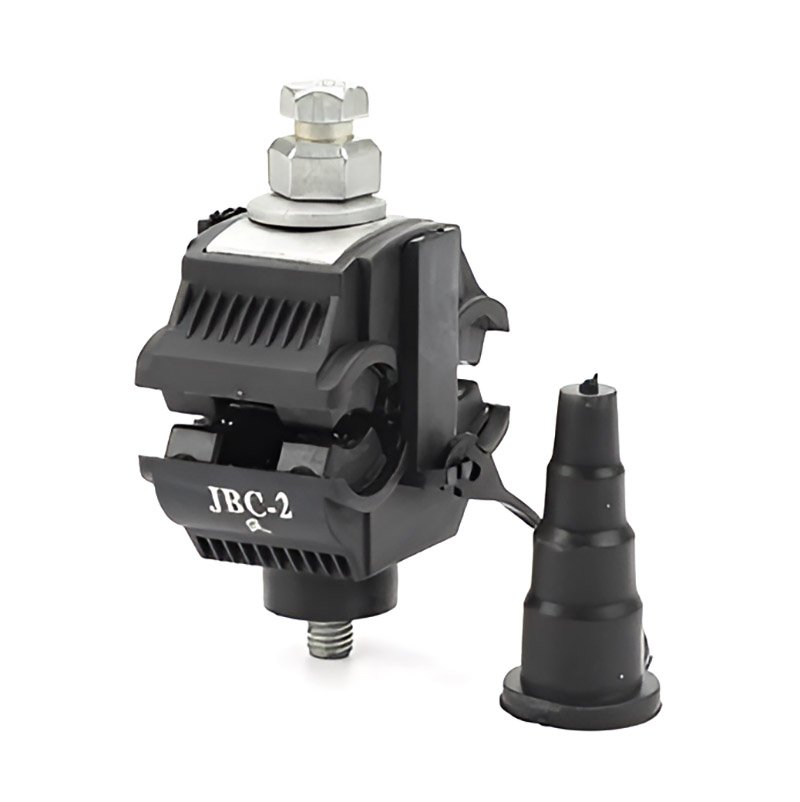

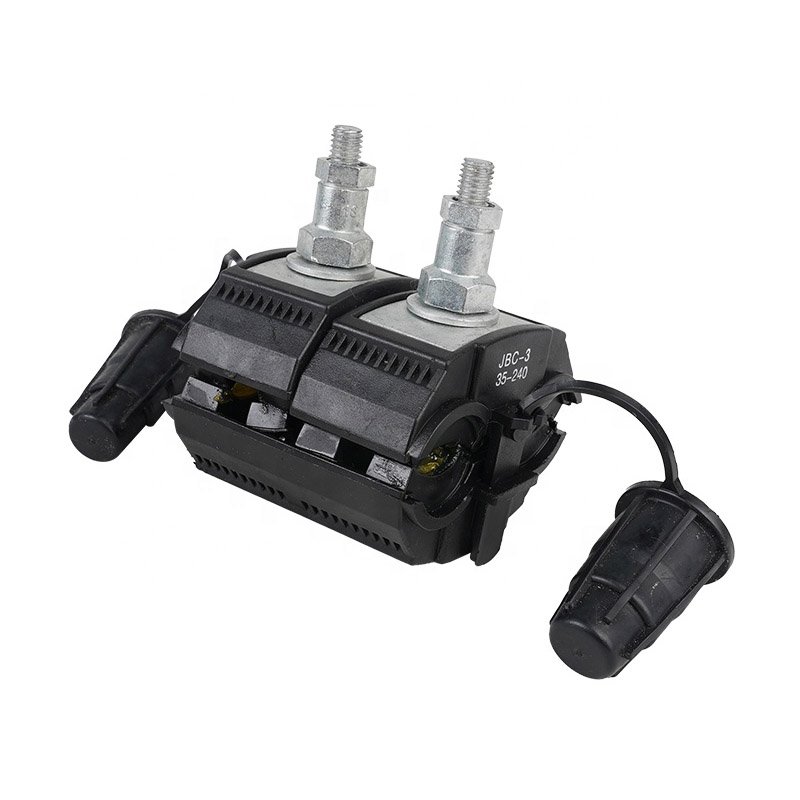

JBC Insulation Piercing Connector
JBC Insulation Piercing Connectors are a versatile and reliable solution for connecting electrical conductors. They are designed for use in a variety of applications, including service line systems, building electrical systems, and street lighting systems. JBC Insulation Piercing Connectors are made from high-quality materials and are designed to withstand harsh weather conditions. They are also easy to install and require no stripping of insulation.
- Insulation piercing design allows safe connection without stripping wire.
- Weather-resistant polymer housing ensures long-term outdoor durability.
- Integrated shear-head bolt guarantees precise installation torque.
- Advanced internal seal provides a fully watertight barrier against oxidation.
- Wide cross-section compatibility accommodates various main and tap cable sizes.
Description
JBC Insulation Piercing Connector is the premier solution for modern low-voltage aerial bundled conductor (LV-ABC) power distribution systems. Designed with cutting-edge engineering principles, this connector provides a highly reliable method for establishing branch connections. Main power lines and branch lines can be securely linked without removing the protective wire insulation. At EPCOM, we recognize that electrical grid reliability depends entirely on the strength of its individual nodes. Therefore, the JBC Insulation Piercing Connector stands as a benchmark of durability and electrical safety in challenging weather environments. Its advanced design minimizes power losses and prevents localized resistance build-up over long operational lifespans. By ensuring a robust and moisture-proof connection, EPCOM continues to supply power grid operators with dependable solutions. Whether you are expanding a municipal street lighting network or reinforcing building service lines, this connector guarantees consistent performance under demanding conditions.
What is the JBC Insulation Piercing Connector?

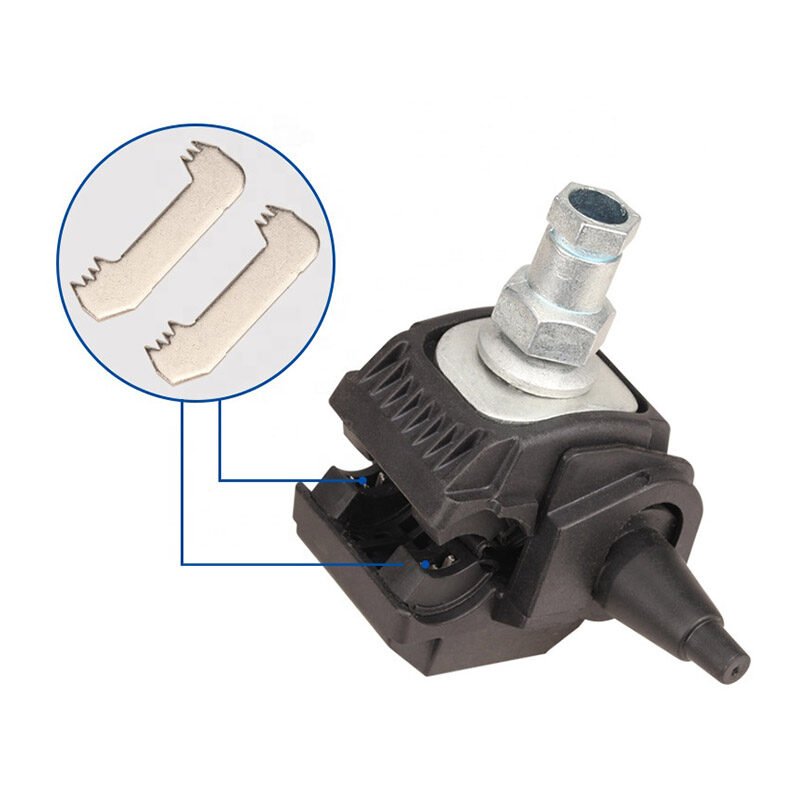

The primary role of the JBC Insulation Piercing Connector is to simplify low-voltage tap connections on overhead power lines. Traditional cable joints often require stripping away outer insulation layers, which exposes the underlying conductor to natural corrosion and severe water ingress. Our innovative design completely eliminates this critical vulnerability. When installing the device, the technician places the insulated main and tap cables directly into the designated grooves of the connector. By tightening the integrated high-strength steel bolt, the internal metallic teeth are forced to penetrate the outer insulation sheath. These teeth make direct, stable contact with the metallic core of the wire without compromising its core mechanical strength. The entire procedure is performed rapidly and can even be executed on live systems safely. This modern methodology minimizes physical effort, drastically reduces standard overhead line installation times, and ensures complete electrical insulation throughout the entire system.
Technical Specifications and Design Features
The material composition of the connector determines its long-term reliability in harsh environments. Each JBC Insulation Piercing Connector is manufactured utilizing premium raw materials selected for their mechanical and electrical properties. The main outer housing consists of high-strength glass fiber reinforced polymer. This specialized polymer resists ultraviolet radiation, environmental aging, and chemical exposure, ensuring it does not crack or degrade over decades of outdoor service. The contact blades are fabricated from high-grade tinned brass or a strong aluminum alloy, delivering low contact resistance and preventing galvanic corrosion between copper and aluminum conductors. Internally, a comprehensive moisture-seal barrier is achieved using a premium elastomer seal combined with specialized waterproof silicone grease. All products are rigorously manufactured to conform with prominent international safety standards including EN 50483-4, NF C 33-020, and NF C 33-004. This standard ensures that the connector easily passes a 6kV dielectric voltage test underwater for a continuous duration of one minute.
| Product Model Series | Main Conductor Size (mm²) | Tap Conductor Size (mm²) | Shear-off Torque (Nm) | Dielectric Test Voltage |
|---|---|---|---|---|
| JBC10-35 Series | 10 – 35 mm² | 1.5 – 6 mm² | 9 Nm | 6 kV (1 min underwater) |
| JBC10-95 Series | 10 – 95 mm² | 1.5 – 10 mm² | 9 Nm | 6 kV (1 min underwater) |
| JBC16-95 Series | 16 – 95 mm² | 2.5 – 35 mm² | 15 Nm | 6 kV (1 min underwater) |
| JBC25-120 Series | 25 – 120 mm² | 25 – 120 mm² | 20 Nm | 6 kV (1 min underwater) |
| JBC35-150 Series | 35 – 150 mm² | 35 – 150 mm² | 25 Nm | 6 kV (1 min underwater) |
Key Advantages of the JBC Insulation Piercing Connector
Opting for our high-performance power distribution solutions delivers clear operational benefits. First, the unit guarantees absolute moisture protection. The integration of high-grade silicone grease and elastic seals creates a completely watertight barrier, preventing oxidation at the contact points. Second, the innovative shear-head bolt design guarantees error-free installation. The shear nut is engineered to snap off cleanly once the precise torque level is reached, preventing over-tightening or under-tightening. This mechanism protects the core conductor from physical deformation while ensuring optimal electrical contact. Third, the connector accommodates a wide range of wire cross-sections. This flexibility reduces the number of distinct stock items utility providers must maintain in their inventory. Finally, the pre-attached protective end cap prevents loose parts from dropping during high-altitude installations, streamlining field operations.
Safe Installation and System Compatibility
Completing a robust overhead electrical or telecommunications infrastructure requires a comprehensive set of high-quality accessories. While the JBC Insulation Piercing Connector handles electrical distribution, other mechanical elements secure the cable infrastructure. For instance, in applications where you need to tap off different styles of insulated aerial lines, the JJC Insulation Piercing Connector serves as an excellent alternative design to fulfill specific cable tap requirements. Additionally, anchoring the heavy self-supporting cables is a critical step to prevent physical sagging and line tension failures. The PA300 Anchor Clamp for ADSS Cable is designed specifically to grip and secure optical or copper aerial cables firmly against poles and structural mounts. To ensure that these heavy-duty mechanical elements are installed properly, line workers utilize the Electric Hydraulic Crimping Tool to achieve perfect, uniform compression connections on surrounding terminal lugs and overhead splices.

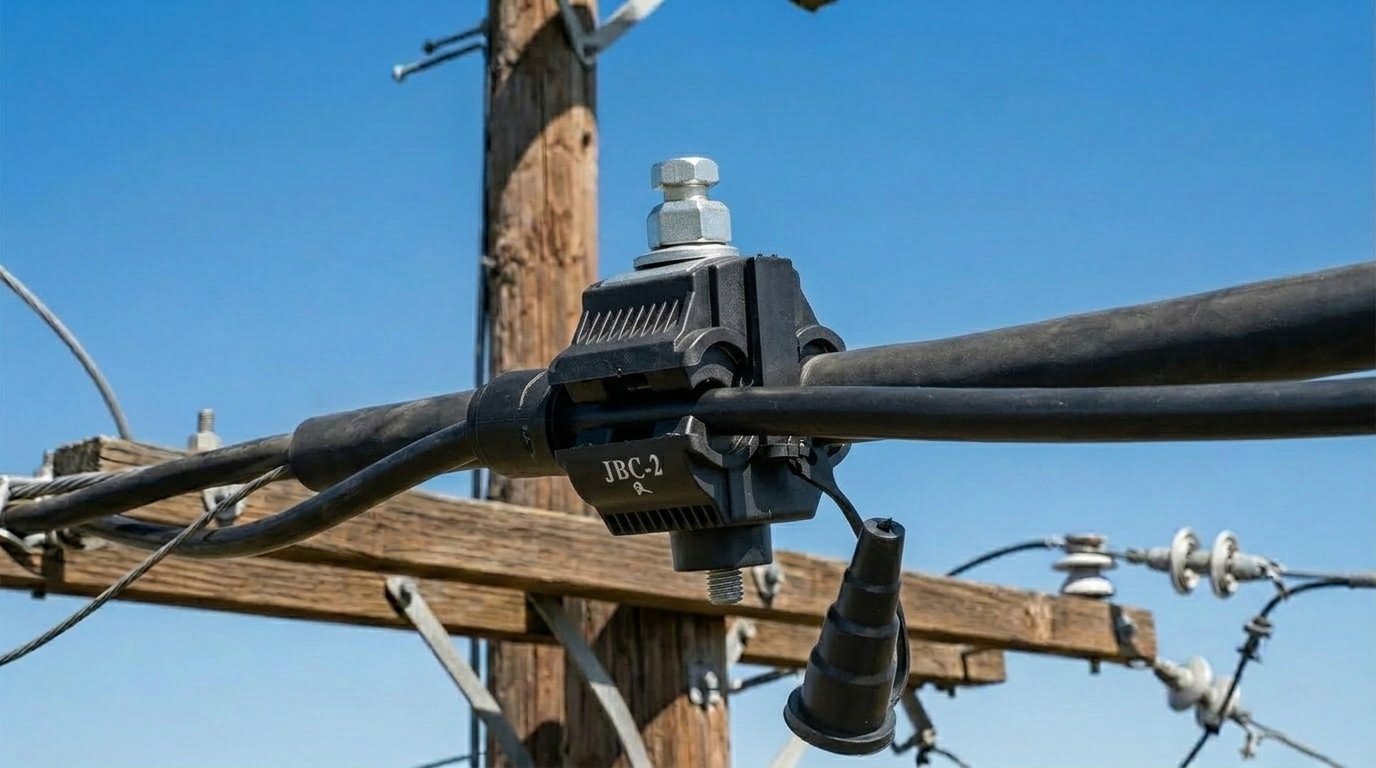

Installation Steps for JBC Insulation Piercing Connector
Achieving a standard-compliant connection requires adhering to systematic installation procedures. Before starting, inspect the JBC Insulation Piercing Connector to confirm that the internal contact teeth and the silicone grease seal are free of dust or debris. Begin by loosening the main connector bolt until the cable channels are fully open. Next, insert the main insulated overhead cable into the primary groove of the connector body. Slide the insulated branch or tap cable completely into the secondary groove, ensuring it is aligned with the protective end cap. Gently tighten the shear-head bolt by hand to hold both cables securely in place. Finally, use a standard insulated socket wrench to tighten the bolt until the upper hexagonal shear head snaps off cleanly. This mechanical snap confirms that the optimum piercing depth and contact force have been established.
Why Choose EPCOM for Overhead Line Accessories?
EPCOM is a globally recognized manufacturer and supplier of high-grade electrical power and telecommunication line hardware. Our commitment to strict quality control ensures that every product leaving our facilities meets international industrial expectations. By sourcing your equipment from us, you gain access to an integrated portfolio of certified aerial line accessories. Ordering the JBC Insulation Piercing Connector from EPCOM ensures you receive products engineered for maximum lifecycle longevity and reliable electrical conductivity. We maintain large stockpiles to guarantee swift delivery times for major power grid projects and emergency maintenance situations. Our professional technical support team stands ready to assist you with installation guidelines, customized product dimensions, and regulatory compliance queries. Partner with EPCOM to secure your modern low-voltage distribution networks with the industry’s most reliable connecting technologies.
