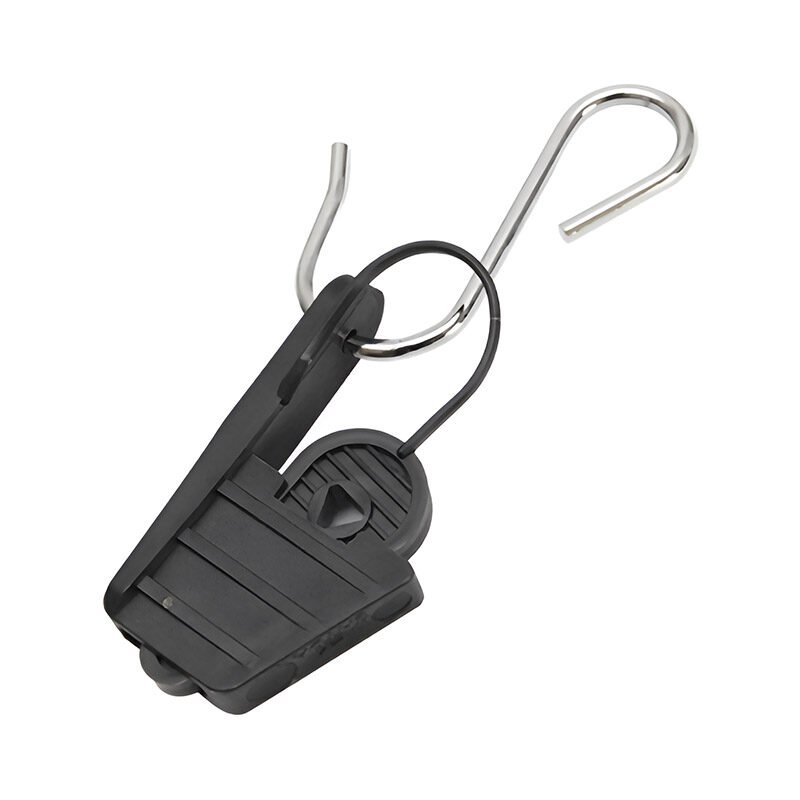

Plastic Drop Wire Clamp with Steel Hook

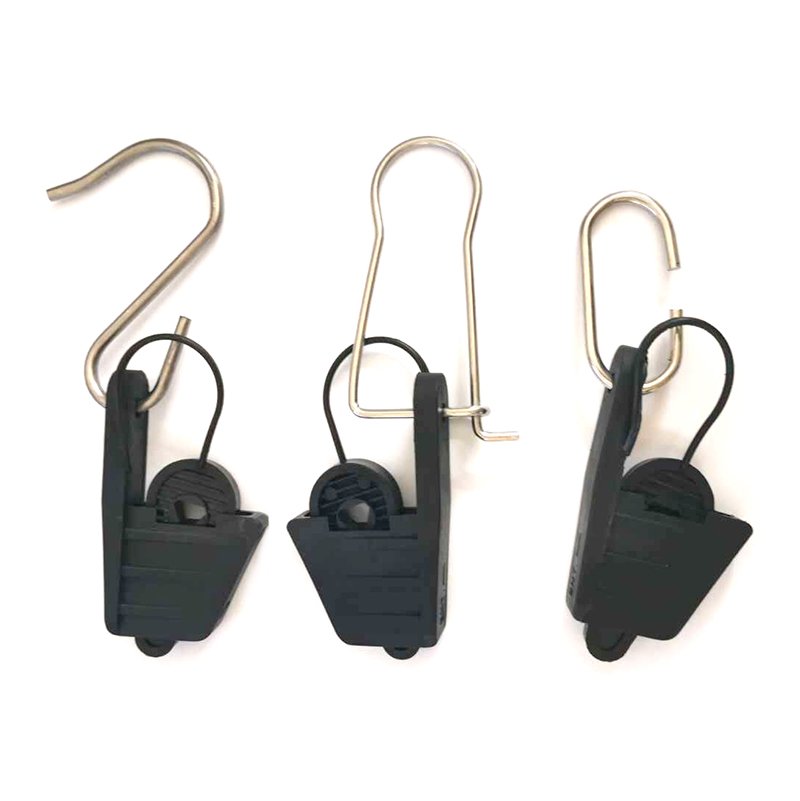

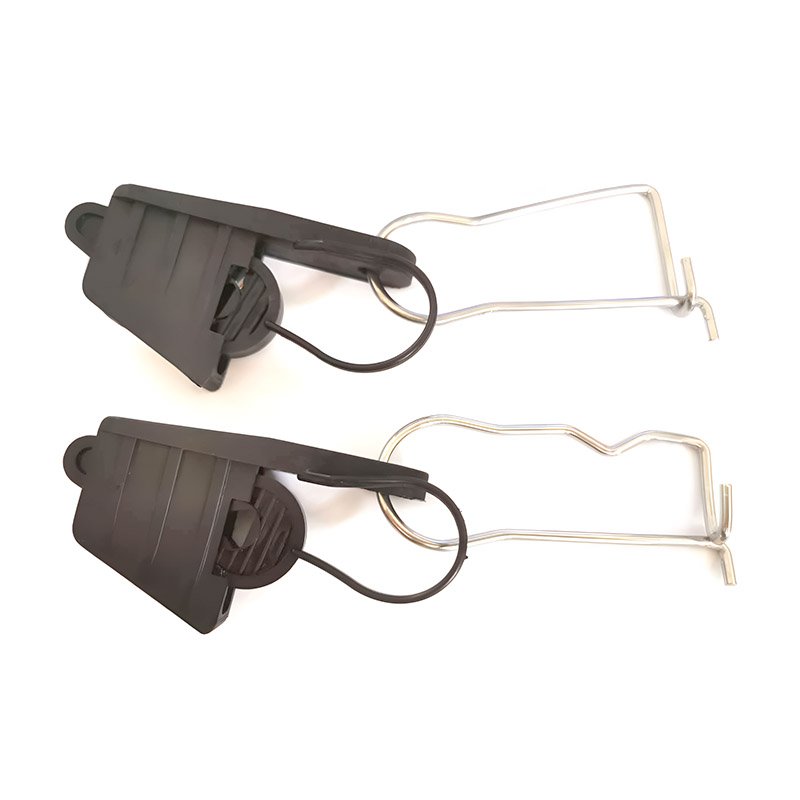

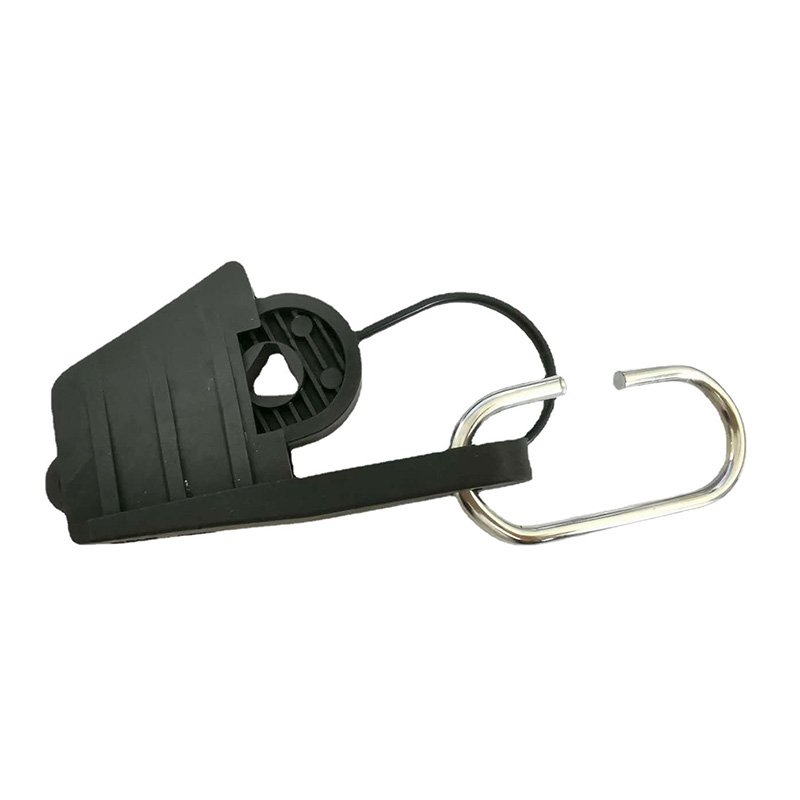

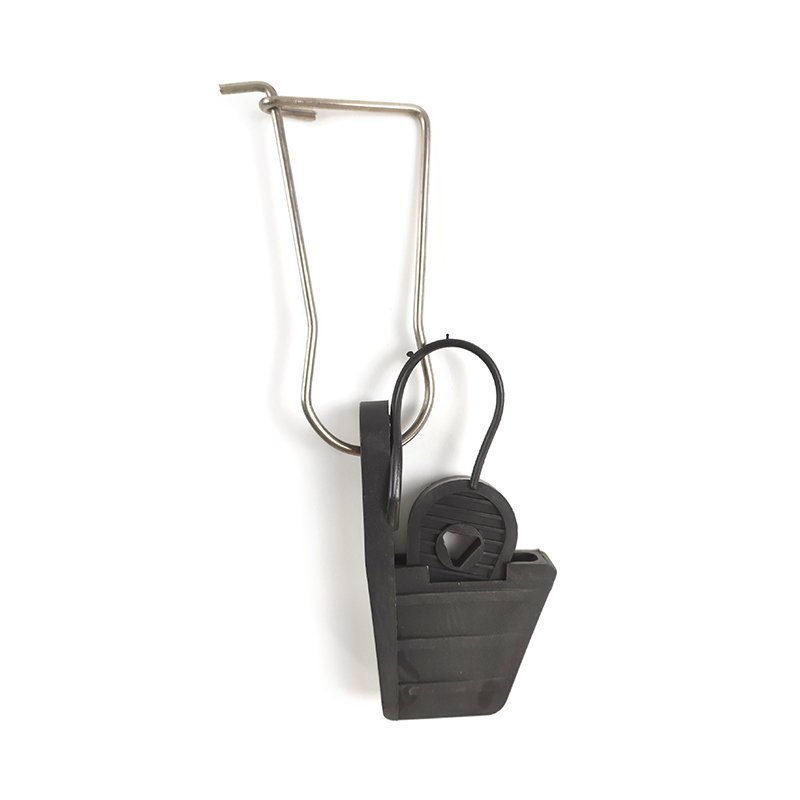

The Plastic Drop Wire Clamp is a versatile and durable tool that is designed to securely connect a variety of stranded cables to devices or buildings. It is made of high-strength, UV-resistant plastic that can withstand the rigors of both indoor and outdoor installations. The Plastic Drop Wire Clamp is available in a variety of sizes and shapes to accommodate a wide range of cable diameters.
- UV-resistant thermoplastic body ensures long-term durability in extreme outdoor environments.
- Self-adjusting wedge mechanism provides a secure grip and prevents cable slippage under load.
- Tool-free installation design significantly reduces labor time and field deployment costs.
- Dielectric plastic construction prevents electrical conduction for enhanced network safety.
- Corrosion-resistant stainless steel bail offers a reliable connection to poles or facades.
Description

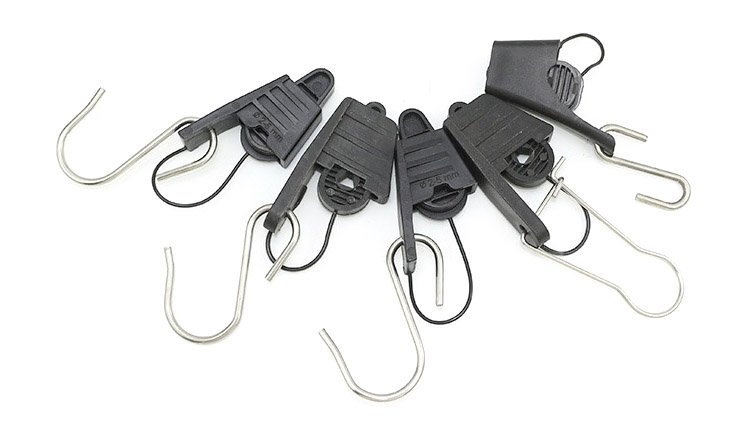

Plastic Drop Wire Clamp is an essential component in modern telecommunication infrastructure, specifically designed to secure flat fiber optic cables. At EPCOM, we understand that the integrity of an aerial network depends significantly on the quality of its anchoring devices. Our clamps provide a reliable solution for connecting optical drop cables to poles or building facades. These fittings play a critical role in the “last mile” connectivity of Fiber to the Home (FTTH) deployments. They ensure that the transmission line remains stable under various environmental conditions.
The primary function of this device is to tighten and support the cable without damaging the optical fibers inside. Traditional metal clamps often faced issues with corrosion or damaging the cable jacket. However, EPCOM utilizes high-grade thermoplastic materials. These materials offer superior resistance against weather elements. The design facilitates easy installation without the need for specialized tools. This efficiency reduces labor costs and installation time for network operators. Our product range guarantees secure dead-ending of cables in span lengths suitable for residential access networks.
Key Features of the Plastic Drop Wire Clamp

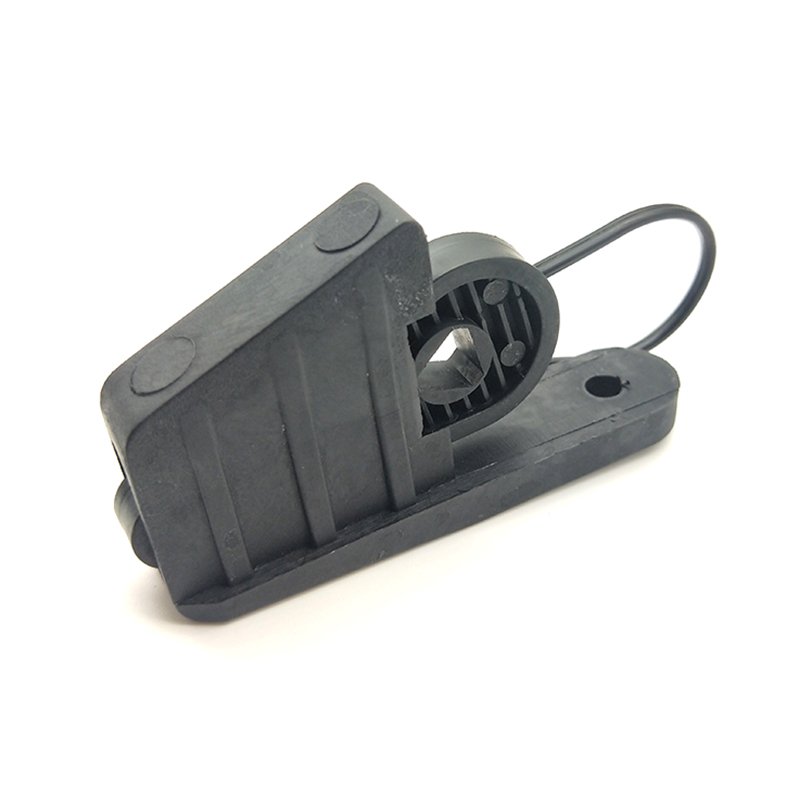

The engineering behind the EPCOM Plastic Drop Wire Clamp focuses on durability and ease of use. One of the standout features is its self-adjusting wedge mechanism. This mechanism tightens the grip as the tension on the cable increases. It prevents cable slippage even during high wind loads or ice accumulation. The body acts as a protective shell, while the wedge secures the cable firmly. This interaction ensures that the tensile load is distributed evenly. It avoids localized stress points that could attenuate the optical signal.
Material selection is paramount for outdoor applications. We use UV-resistant thermoplastic for the body and wedge. This material prevents degradation caused by long-term sun exposure. The wire bail is typically made from stainless steel, offering excellent corrosion resistance. This combination ensures a long service life, often matching the lifespan of the optical cable itself. The clamp is compatible with various flat cable dimensions, making it versatile for different network specifications.
System Integration and Compatibility
A robust aerial network requires a holistic approach to component selection. While the Plastic Drop Wire Clamp is perfect for terminating flat drop cables, other parts of the network may require different fittings. For scenarios involving heavier circular cables or longer spans, network engineers often utilize the PA500 Tension Clamp. The PA500 offers higher tensile strength suitable for distribution cables. Integrating the right clamp for the specific cable type is vital for network longevity.
Furthermore, suspension points in the network infrastructure demand their own specialized hardware. When dealing with figure-8 cables, the Figure 8 Cable Suspension Clamp is the industry standard provided by EPCOM. It supports the cable without halting the span, allowing for efficient routing. Properly mixing suspension and tensioning devices ensures the mechanical stability of the entire route.
The attachment point on the pole or wall is equally important. The wire bail of our clamp needs a secure hooking point. We recommend using a Plastic Wire Anchor with Steel Hook for building facades. This anchor provides a reliable loop for the stainless steel bail. It creates a seamless mechanical connection from the cable to the structure. This complete ecosystem of fittings ensures that every stress point is managed effectively.
Technical Specifications of Plastic Drop Wire Clamp
Understanding the technical parameters is crucial for network planners. The table below outlines the specific capabilities of our standard model. EPCOM ensures that every batch meets rigorous testing standards. We focus on tensile strength, thermal cycling, and aging resistance.
| Parameter | Specification Details |
|---|---|
| Material (Body & Wedge) | UV Resistant ABS / PC / Nylon |
| Material (Bail/Hook) | Stainless Steel (201 or 304 Grade) |
| Cable Compatibility | Flat Drop Cable (FTTH) |
| Cable Size Range | 3.0 x 2.0 mm / 5.0 x 2.0 mm |
| Tensile Strength (MBL) | Up to 0.5 kN – 1.2 kN (Depending on configuration) |
| Operating Temperature | -40°C to +70°C |
| Weight | Approx. 0.04 kg – 0.06 kg |
| Color | Black (Standard) |
These specifications ensure that the clamp performs reliably in diverse climates. From tropical heat to freezing winters, the material integrity remains stable. The stainless steel bail prevents rust, which is a common failure point in cheaper alternatives.
Advantages of Using EPCOM’s Plastic Drop Wire Clamp
Choosing the right anchoring solution impacts the Total Cost of Ownership (TCO) of the network. A high-quality Plastic Drop Wire Clamp reduces maintenance visits. Poorly made clamps often crack under UV exposure or slip during storms. This leads to service interruptions and costly repair dispatch. EPCOM prioritizes quality control to mitigate these risks. Our manufacturing process involves precision injection molding. This guarantees dimensional consistency across thousands of units.
Furthermore, the dielectric nature of the clamp body adds a safety layer. Since the main body is plastic, it does not conduct electricity. This feature is particularly beneficial in areas where lightning strikes are common or where power lines are in close proximity. It protects the cable jacket from potential electrical arcing. This is a significant advantage over fully metallic anchoring solutions.
Installation Efficiency of Plastic Drop Wire Clamp
Time is a critical factor in large-scale FTTx deployments. Our clamp design supports tool-free installation. The technician simply places the fiber cable into the shell body. Then, they insert the wedge. Finally, the bail is hooked onto the pole bracket. The tension from the span automatically secures the wedge. This process takes seconds per connection.
The open bail design allows installation on closed brackets or hooks. This flexibility means installers do not need extra carabiners or shackles. The ergonomic design also prevents hand fatigue for technicians installing hundreds of units daily. Efficiency in the field translates directly to project profitability for contractors and operators.
Manufacturing Excellence for Plastic Drop Wire Clamp
EPCOM maintains strict oversight over the production line. We source raw thermoplastic granules from reputable suppliers. This ensures that the base material has the necessary molecular structure for strength. The injection molding machines are calibrated regularly to prevent voids or weak spots in the plastic body.
Quality checks include tensile testing on random samples from each batch. We simulate real-world conditions to verify the clamp’s holding force. We also conduct aging tests. These tests expose the clamps to concentrated UV radiation and temperature fluctuations. Only batches that pass these stringent criteria are shipped to our clients. This dedication to quality positions EPCOM as a trusted partner in the global telecommunications market.
Conclusion
In the rapidly expanding world of fiber optics, the reliability of accessories is paramount. The Plastic Drop Wire Clamp from EPCOM offers the perfect balance of strength, durability, and cost-effectiveness. Its proven design secures the vital links in FTTH networks worldwide. Whether you are upgrading an existing network or rolling out new infrastructure, our clamps provide the stability you need.
We invite you to explore our full range of aerial fittings. Ensuring you have the correct tension clamps, suspension units, and anchors will guarantee a successful deployment. Trust EPCOM for professional-grade telecommunication solutions that stand the test of time.
