12C E2000 Fan-out Pigtail: High Performance by EPCOM

12C E2000 Fan-out Pigtail solutions have become the cornerstone of high-performance fiber optic networks. Because modern data centers require unprecedented reliability, engineers prioritize components that offer both density and precision. EPCOM recognizes these demands. Therefore, we provide specialized 12-core configurations that simplify complex cable management tasks. By integrating a 12C E2000 Fan-out Pigtail into your infrastructure, you ensure seamless data transmission. Moreover, the E2000 connector’s unique spring-loaded shutter provides unmatched protection against dust and scratches. This article explores the technical advantages, installation best practices, and essential companion products for this critical networking hardware.

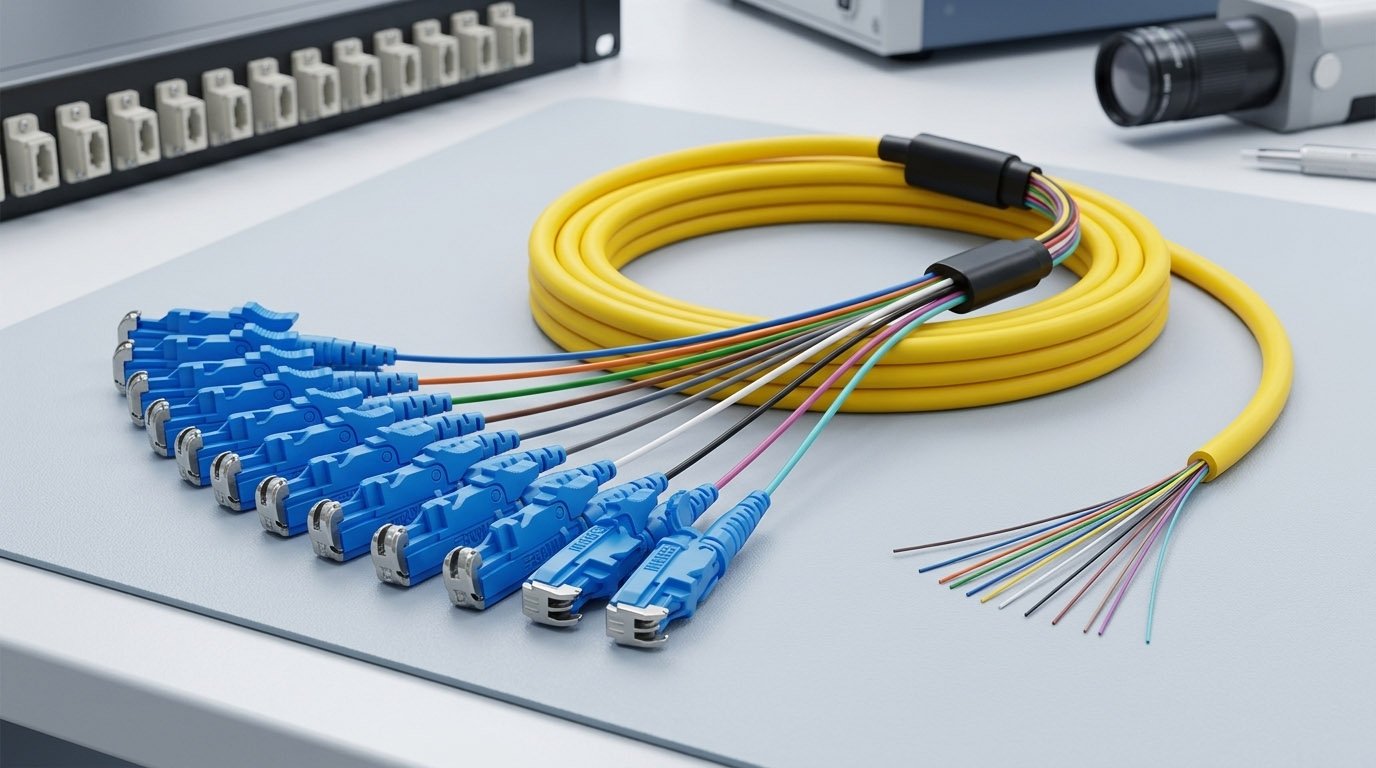

In the rapidly evolving landscape of telecommunications, the transition from traditional connectors to advanced solutions is vital. Consequently, many organizations are upgrading to 12C E2000 Fan-out Pigtail systems to maintain competitive bandwidth speeds. These pigtails consist of twelve individual fiber strands branching out from a single multi-fiber cable. This design is particularly beneficial for connecting multi-fiber trunk cables to individual equipment ports. Furthermore, the use of high-quality materials in EPCOM products ensures long-term durability in diverse environments.

Why Choose a 12C E2000 Fan-out Pigtail for Modern Infrastructure?

The primary advantage of the 12C E2000 Fan-out Pigtail lies in its compact yet robust design. Unlike standard connectors, the E2000 interface features a built-in protective shutter. As a result, the fiber end-face is always shielded when the connector is disconnected. This is crucial for maintaining low insertion loss. Additionally, EPCOM ensures that every 12-core assembly undergoes rigorous testing. Since signal integrity is paramount, we use Corning optical fiber to guarantee optimal performance across all 12 channels.

Transitioning to high-density layouts often introduces challenges in cable routing. However, the fan-out design mitigates these issues. Each leg of the pigtail is typically reinforced with 0.9mm or 2.0mm tubing. Thus, the individual fibers are protected from mechanical stress during installation. When combined with a high-quality E2000 fiber optic adapter, the connection remains stable even in high-vibration environments. EPCOM understands that downtime is costly; therefore, we emphasize the importance of precision-engineered components.

Technical Specifications and Performance Parameters

Understanding the technical parameters is essential for network designers. The 12C E2000 Fan-out Pigtail is available in Single-mode (OS2) and Multi-mode (OM3/OM4) variations. For long-distance transmissions, OS2 is the standard choice due to its low attenuation. Meanwhile, OM4 is preferred for short-reach, high-speed data center applications. EPCOM provides custom lengths to fit specific cabinet dimensions. By doing so, we help technicians avoid excessive cable slack, which can lead to air-flow blockages in server rooms.

Professional Installation Strategies for Multi-Core Fiber

Proper installation of a 12C E2000 Fan-out Pigtail is critical for network longevity. First, technicians must inspect the breakout point. This point is where the main cable transitions into twelve individual pigtails. If handled roughly, the fibers can micro-bend, causing significant signal loss. EPCOM recommends using a 12 cores waterproof terminal box to house the fusion splices. This enclosure provides a secure environment, protecting the 12C E2000 Fan-out Pigtail from moisture and external pressure. Consequently, the network remains operational even in harsh outdoor or industrial settings.

During the splicing process, cleanliness is the most significant factor. Even a microscopic dust particle can ruin a high-speed connection. Therefore, utilizing a one click cleaner is mandatory for every port. This tool allows for quick cleaning of the E2000 end-face without opening the connector shutter manually. Because the 12C E2000 Fan-out Pigtail has twelve distinct connectors, efficiency in cleaning saves considerable time. EPCOM always advocates for a “clean-inspect-connect” workflow to ensure 100% reliability.

Optimizing Performance with 12C E2000 Fan-out Pigtail Networks

To achieve the best results, the 12C E2000 Fan-out Pigtail should be matched with high-grade adapters. The alignment sleeve within the adapter determines the precision of the fiber mating. EPCOM uses ceramic sleeves in our E2000 fiber optic adapter to minimize signal deviation. Furthermore, the E2000 system is color-coded. This feature helps technicians identify different fiber types or service levels quickly. For instance, green is usually reserved for APC (Angle Physical Contact) connectors, which are essential for video and high-return-loss applications.

Another factor to consider is the bend radius. Standard G.652.D fiber has limitations. However, many EPCOM 12C E2000 Fan-out Pigtail units use G.657.A1/A2 bend-insensitive fiber. This allows for tighter routing within cramped patch panels. As a result, the risk of signal attenuation due to bending is greatly reduced. According to standards set by the IEEE, maintaining proper signal-to-noise ratios is fundamental for 40G and 100G Ethernet. By choosing the right pigtail, you are future-proofing your network for these higher speeds.

Applications of the 12C E2000 Fan-out Pigtail in Telecom

Telecommunications companies frequently deploy the 12C E2000 Fan-out Pigtail in Optical Distribution Frames (ODF). In these environments, hundreds of fibers must be managed effectively. Because the E2000 connector is relatively slim, it allows for high port density. EPCOM provides solutions that integrate seamlessly with existing carrier-grade equipment. Furthermore, the 12C E2000 Fan-out Pigtail is ideal for FTTH (Fiber to the Home) head-end installations. It provides a reliable link between the primary splitter and the subscriber distribution modules.

In addition to standard telecom, industrial automation is a growing field for the 12C E2000 Fan-out Pigtail. Factories often have harsh conditions involving oil, dust, and electrical interference. Since fiber is immune to EMI (Electromagnetic Interference), it is the perfect medium. EPCOM ensures that our pigtails are jacketed with LSZH (Low Smoke Zero Halogen) materials. This safety feature is critical for indoor deployments where fire safety codes are strict. Consequently, many industrial leaders choose the 12C E2000 Fan-out Pigtail for its reliability and safety profile.

Advanced Maintenance for 12C E2000 Fan-out Pigtail Links

Maintaining a 12C E2000 Fan-out Pigtail involves regular audits and cleaning. Although the shutters protect the end-face, they are not a substitute for proper cleaning protocols. Technicians should use a one click cleaner during every maintenance cycle. This tool is designed to reach the ferrule through the shutter mechanism. EPCOM recommends testing every fiber strand with an OTDR (Optical Time Domain Reflectometer) annually. This identifies any potential micro-fractures before they cause a network outage. By being proactive, you extend the lifespan of your 12C E2000 Fan-out Pigtail significantly.

Furthermore, managing the fan-out legs requires organizational tools. Cable ties and labeling are essential. EPCOM offers custom-labeled pigtails to simplify troubleshooting. When a 12C E2000 Fan-out Pigtail is correctly labeled, identifying a faulty link takes seconds instead of minutes. This level of detail is what sets professional installations apart. Transitioning to organized fiber management reduces “spaghetti cabling” and improves cooling efficiency in server racks.

Future Trends and the 12C E2000 Fan-out Pigtail

The demand for 400G and 800G networks is on the horizon. Although these speeds often use MPO/MTP connectors, the 12C E2000 Fan-out Pigtail remains vital for breakout applications. For instance, a 100G signal can be broken down into four 25G channels. In this scenario, the E2000 connector provides the high-precision interface needed for the final connection point. EPCOM is continuously researching new glass chemistries to further lower the insertion loss of our 12C E2000 Fan-out Pigtail products. We stay aligned with ITU-T standards to ensure global compatibility.

Environmental sustainability is another key focus for the future. EPCOM is optimizing the manufacturing process of the 12C E2000 Fan-out Pigtail to reduce waste. By using recyclable packaging and durable materials, we lower the total cost of ownership. Thus, choosing our pigtails is not only good for your network but also better for the planet. As we look forward, the 12C E2000 Fan-out Pigtail will continue to evolve, offering even higher density and lower latency for the next generation of the internet.

In conclusion, the 12C E2000 Fan-out Pigtail is an indispensable component for high-quality fiber networks. It combines the safety features of the E2000 connector with the efficiency of a 12-core fan-out design. EPCOM remains committed to providing the highest quality components, from the E2000 fiber optic adapter to the robust 12 cores waterproof terminal box. By investing in professional-grade hardware and following strict maintenance routines with a one click cleaner, you ensure a network that is both reliable and scalable. Trust EPCOM for your fiber connectivity needs and experience the difference that precision engineering makes.
